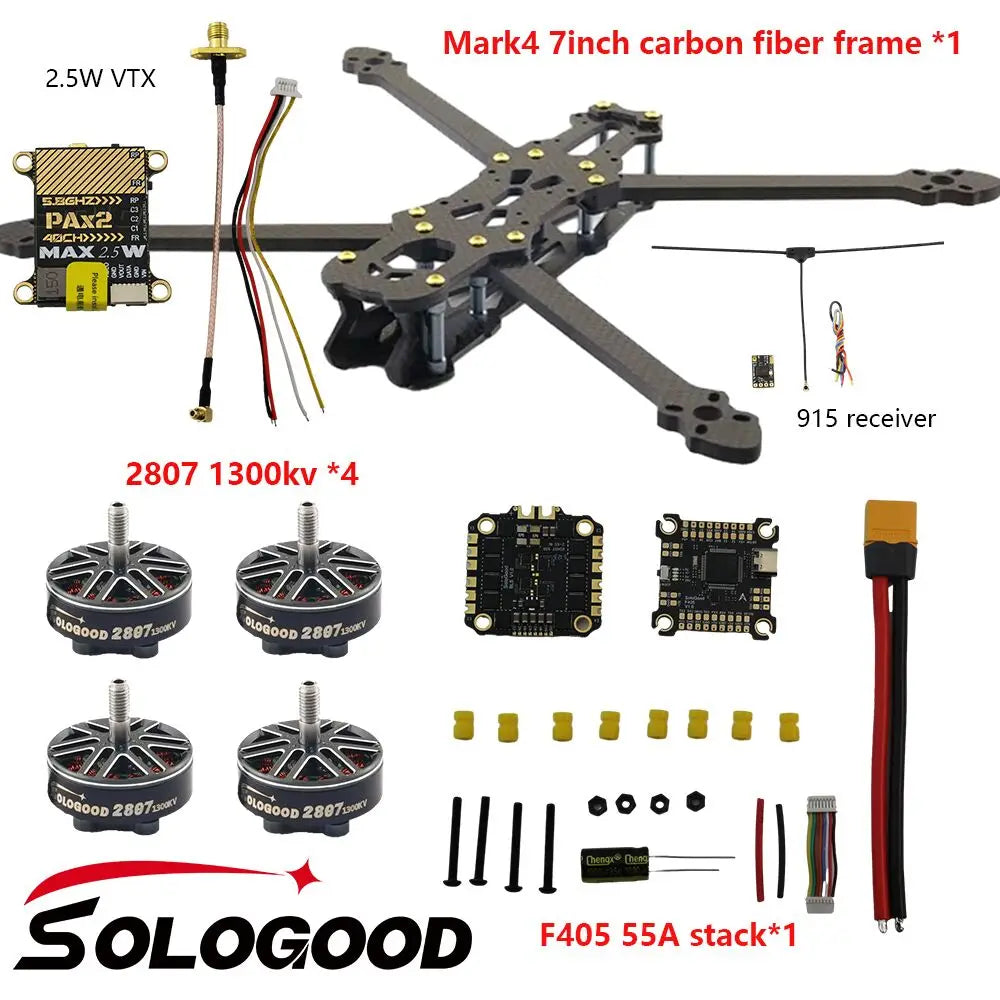

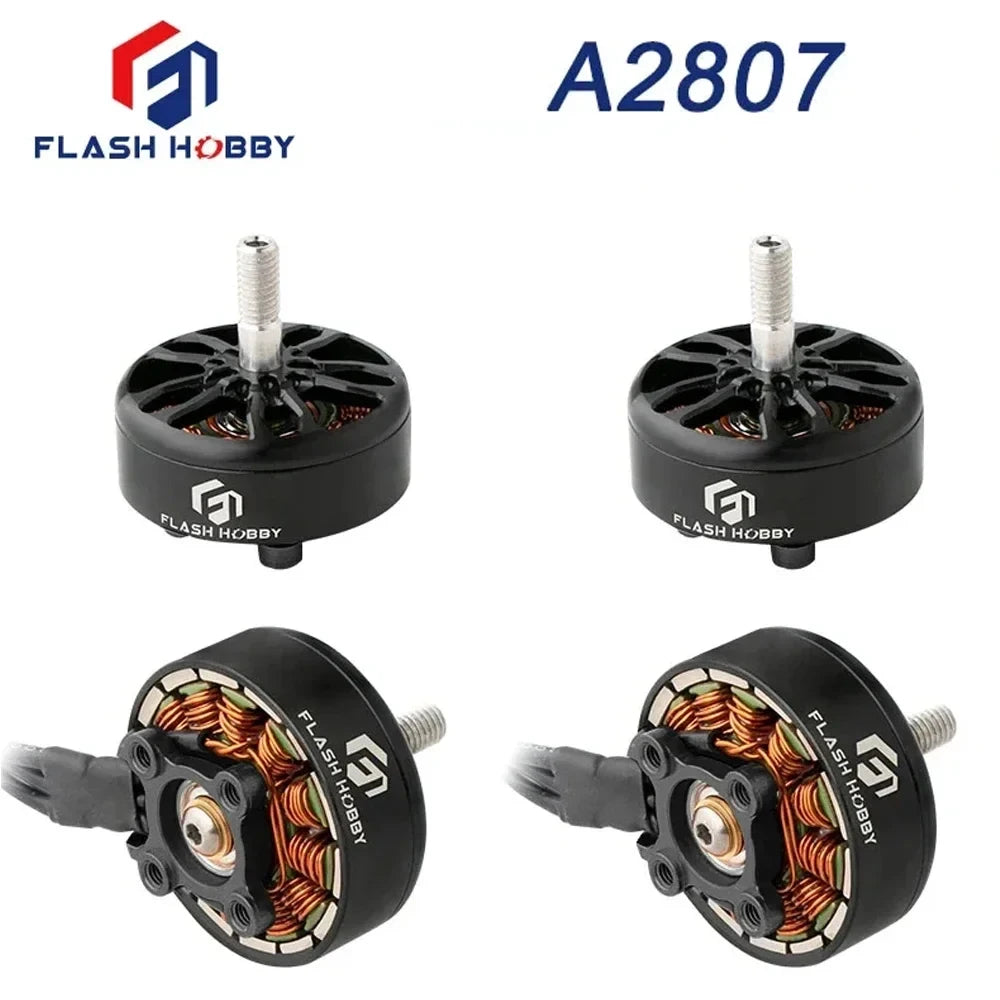

SoloGood Mark4 7inch FPV Dron Frame FLASHHOBBY A2807 SoloGood 2807 1300KV Motor SoloGood F405 55A Stack

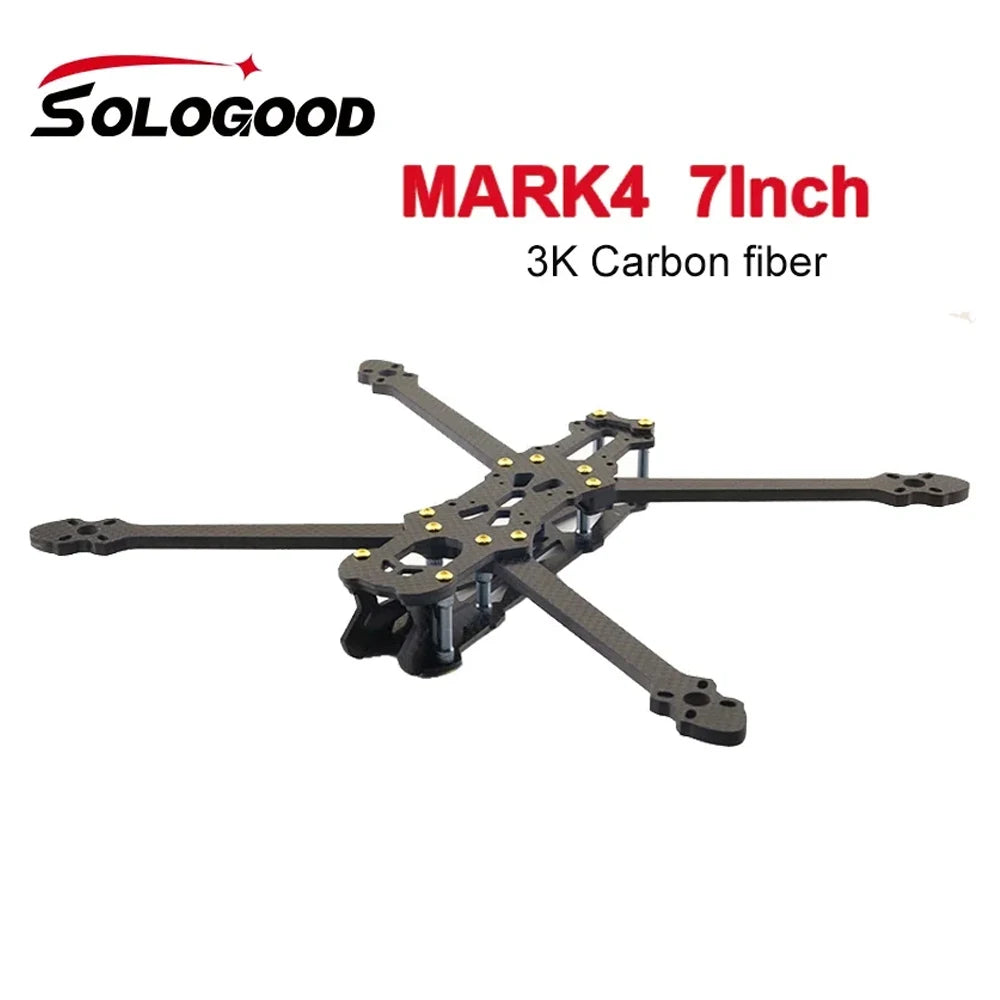

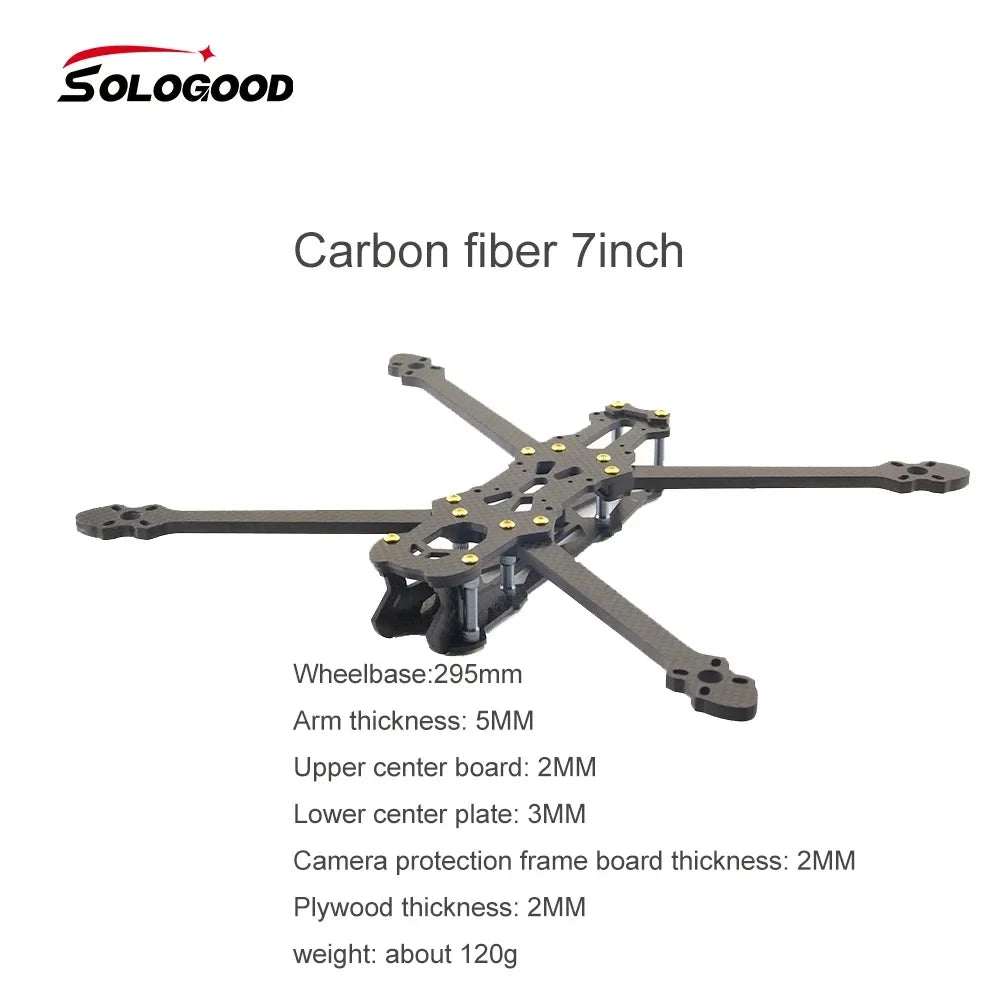

Item name: SoloGood MARK4 7inch

Material : 3K Carbon Fiber

Wheelbase:295mm

Arm thickness: 5MM

Upper center board: 2MM

Lower center plate: 3MM

Camera protection frame board thickness: 2MM

Plywood thickness: 2MM

FC mounting hole: 30.5mm x 30.5mm/20mm x 20mm

VTX mounting hole: 30.5mm x 30.5mm/20mm x 20mm

Camera mounting hole: 19mm-20mm

Propeller: 7 inch propeller

weight: about 120g

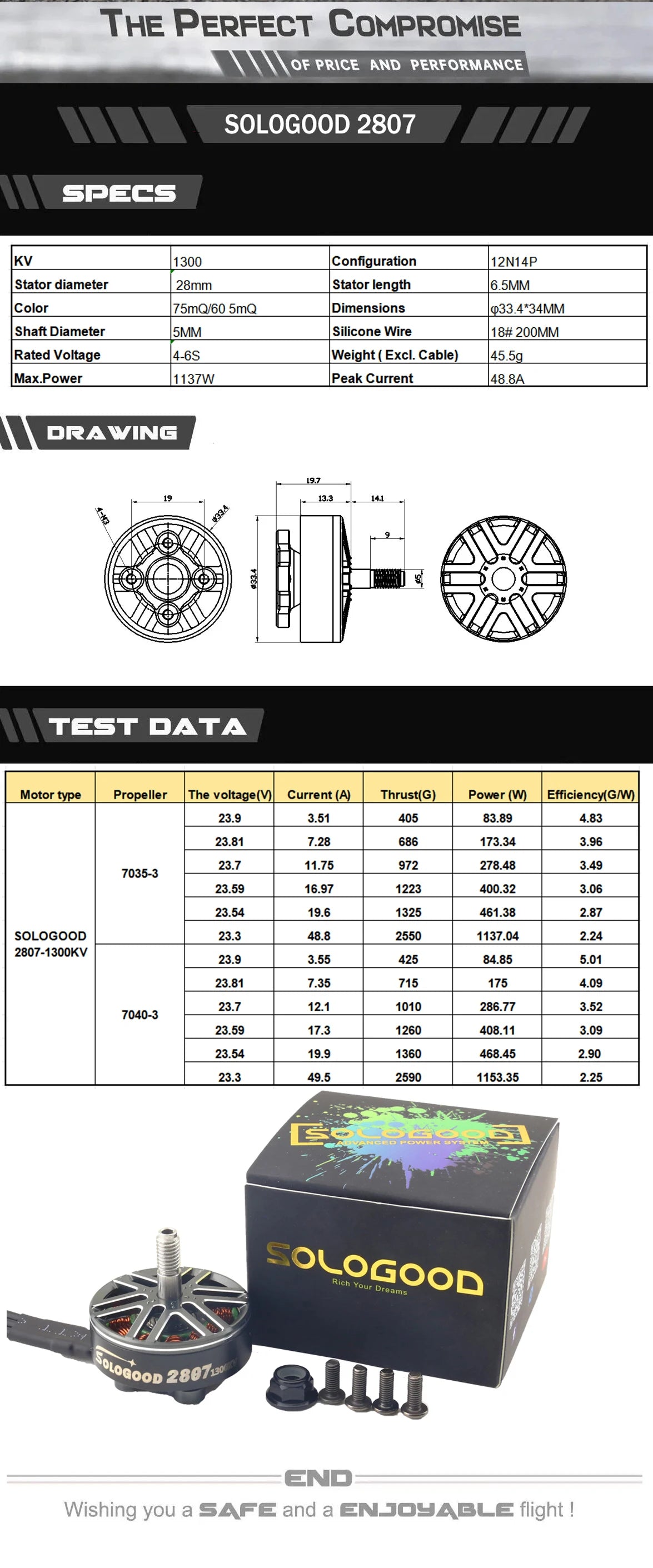

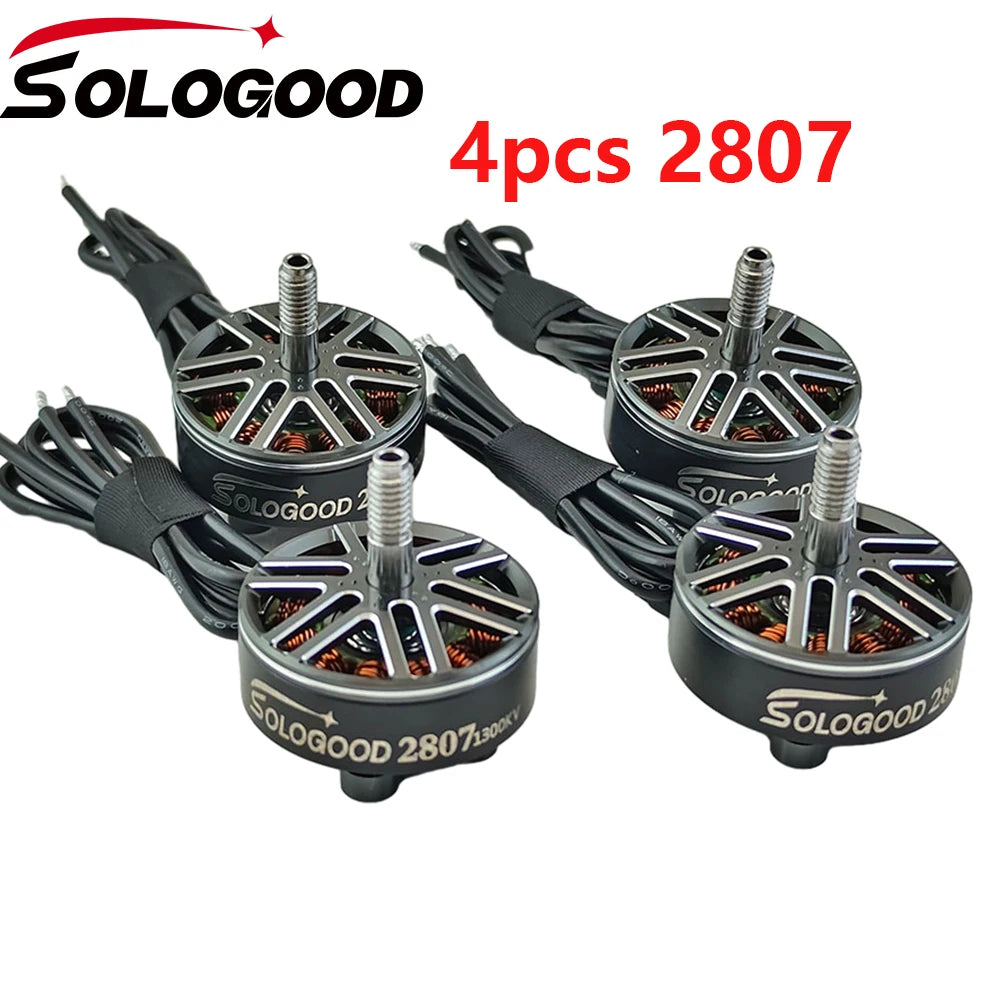

Brand Name: SoloGood

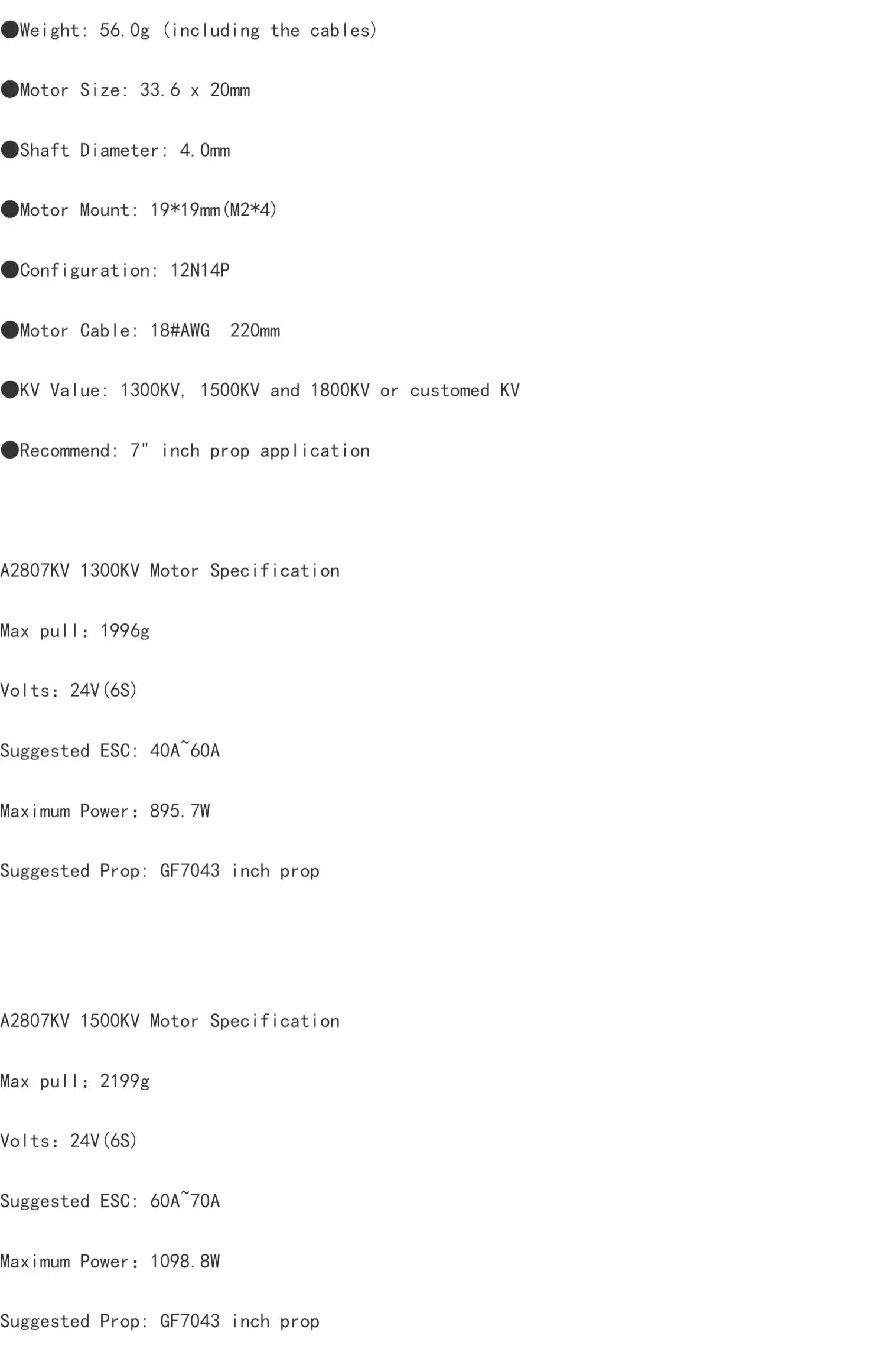

Model: 2807 1300KV
Configu-ration: 12N14P
Stator diameter: 28mm
Stator length: 6.5mm
Shaft diameter: 5mm
Motor Dimension: φ33.4*34mm
Weight: 45.5g/pc (200mm wire)
No. of cells (Lipo): 4~6S
Mounting hole: 3MM 19X19MM
Matching suggestion: 6S LIPO, GF7037-3 or GF7035-3

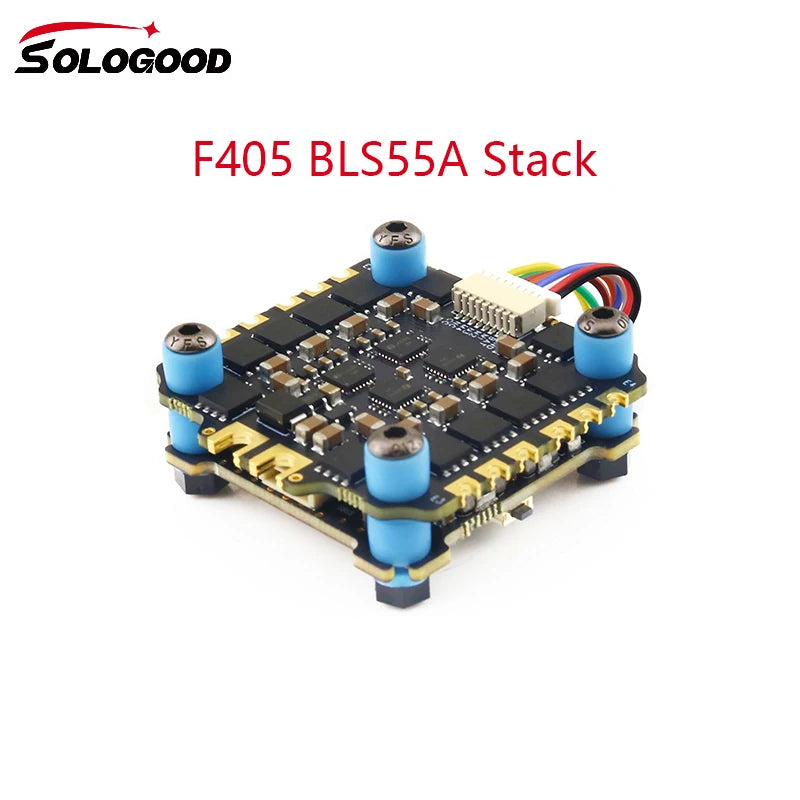

SoloGood F405 Stack

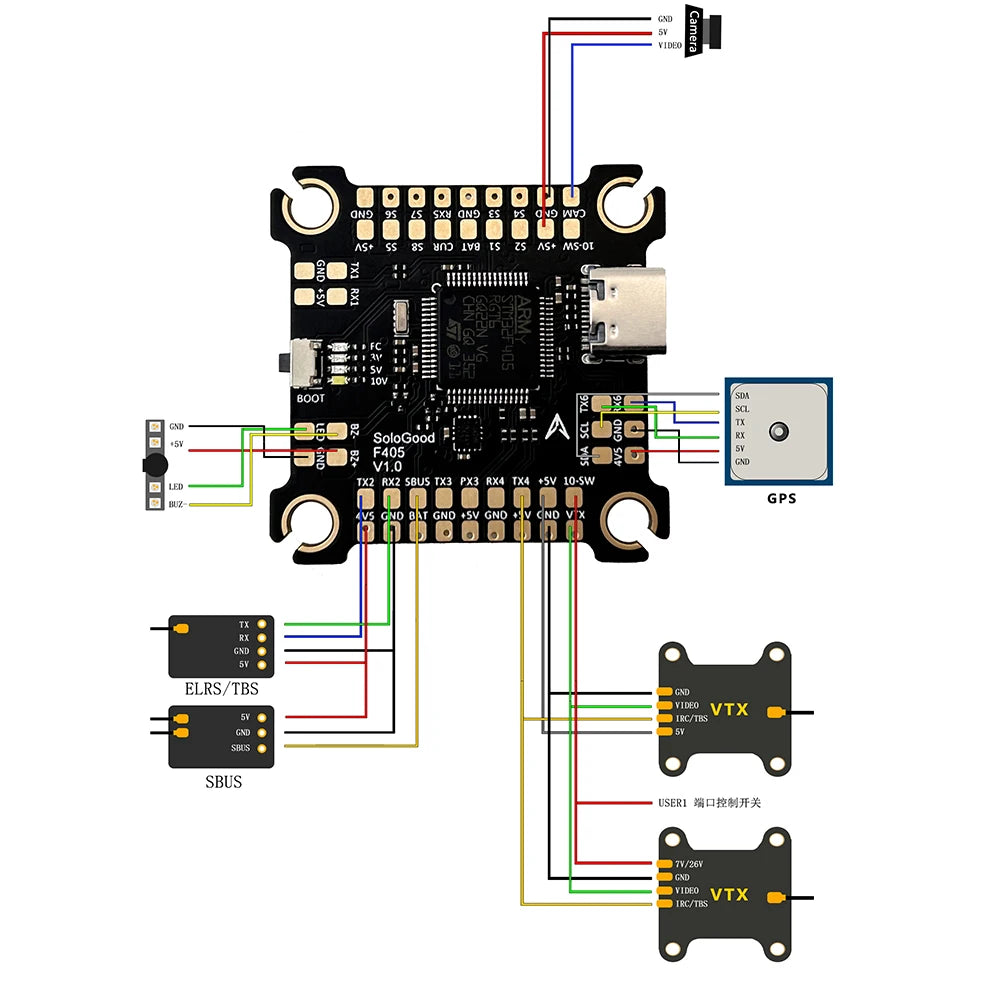

FC Specifications

Main control: STM32F405

Gyroscope: ICM42688P

Barometer: Support SPL-06

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

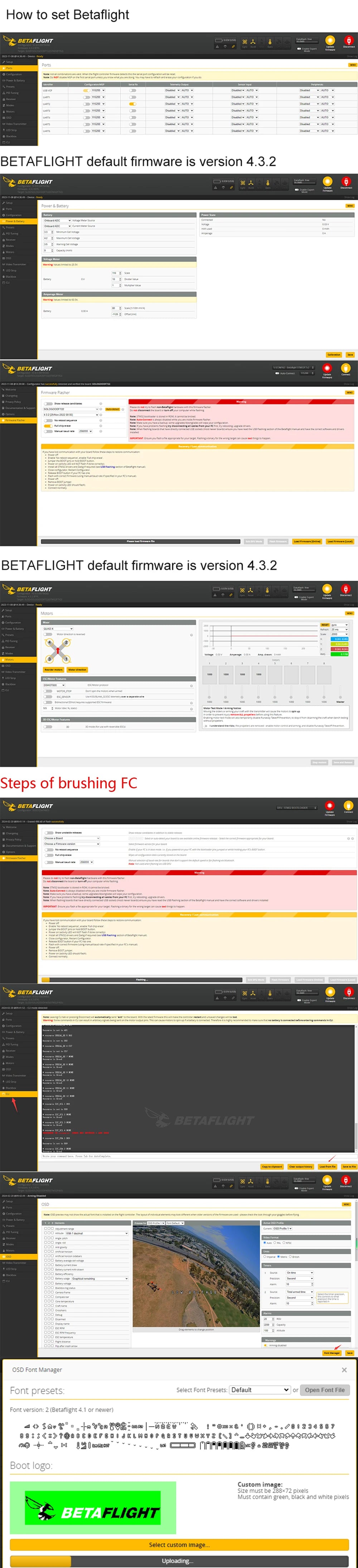

Firmware name: BETAFLIGHT: SOLOGOODF405

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 55A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

Sologood BLS55A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 55A

Maximum current 65A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

Installation hole position 30.5x30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g
