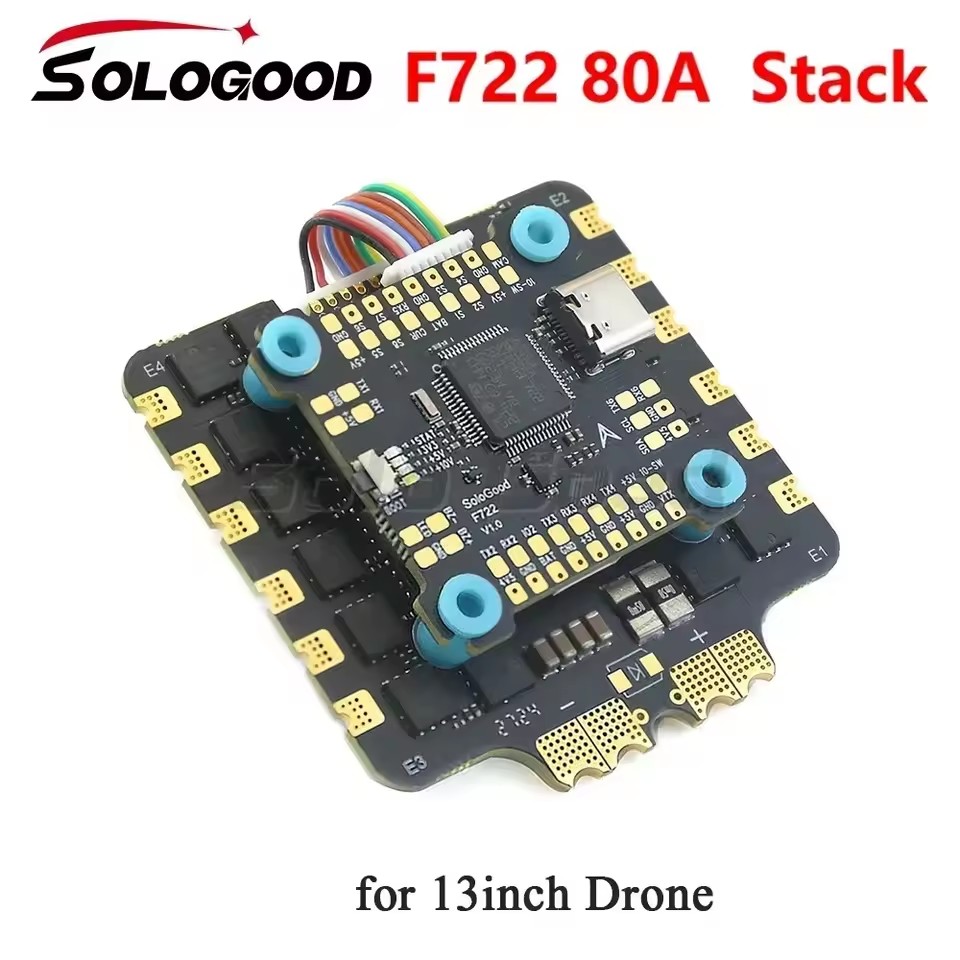

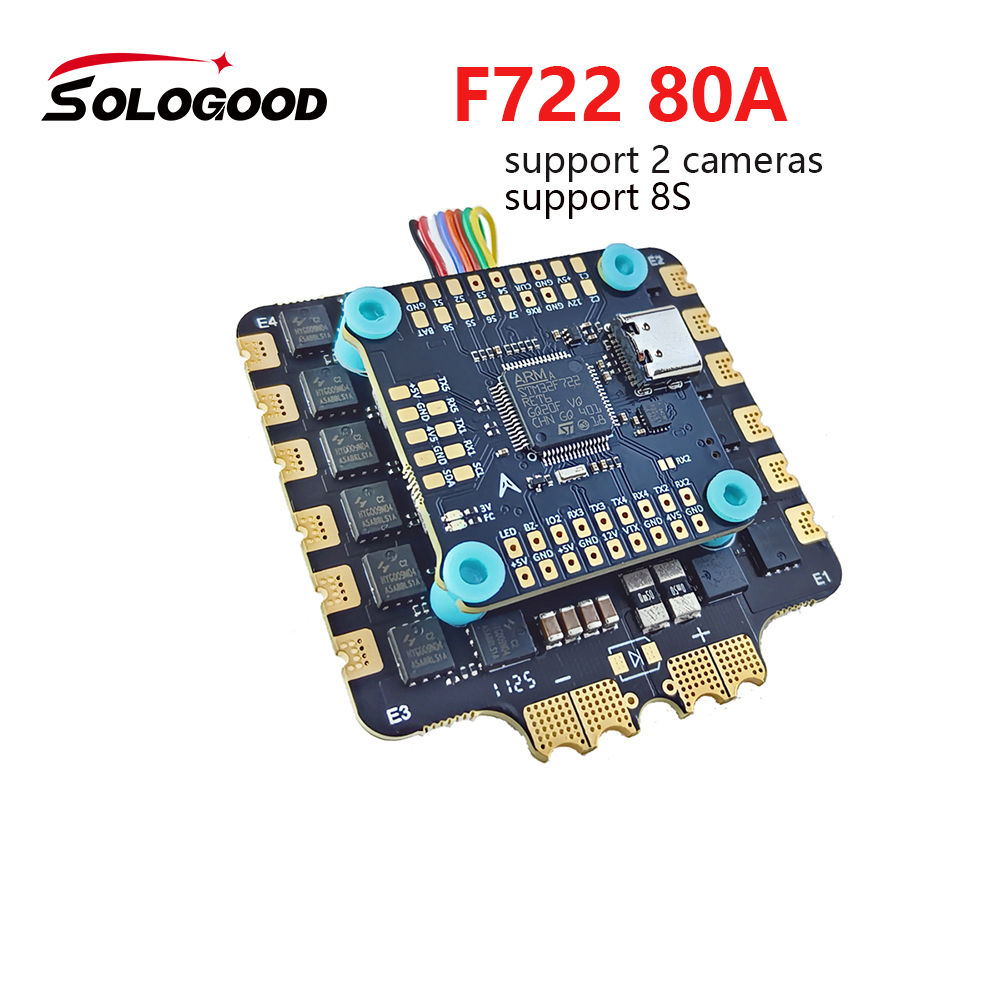

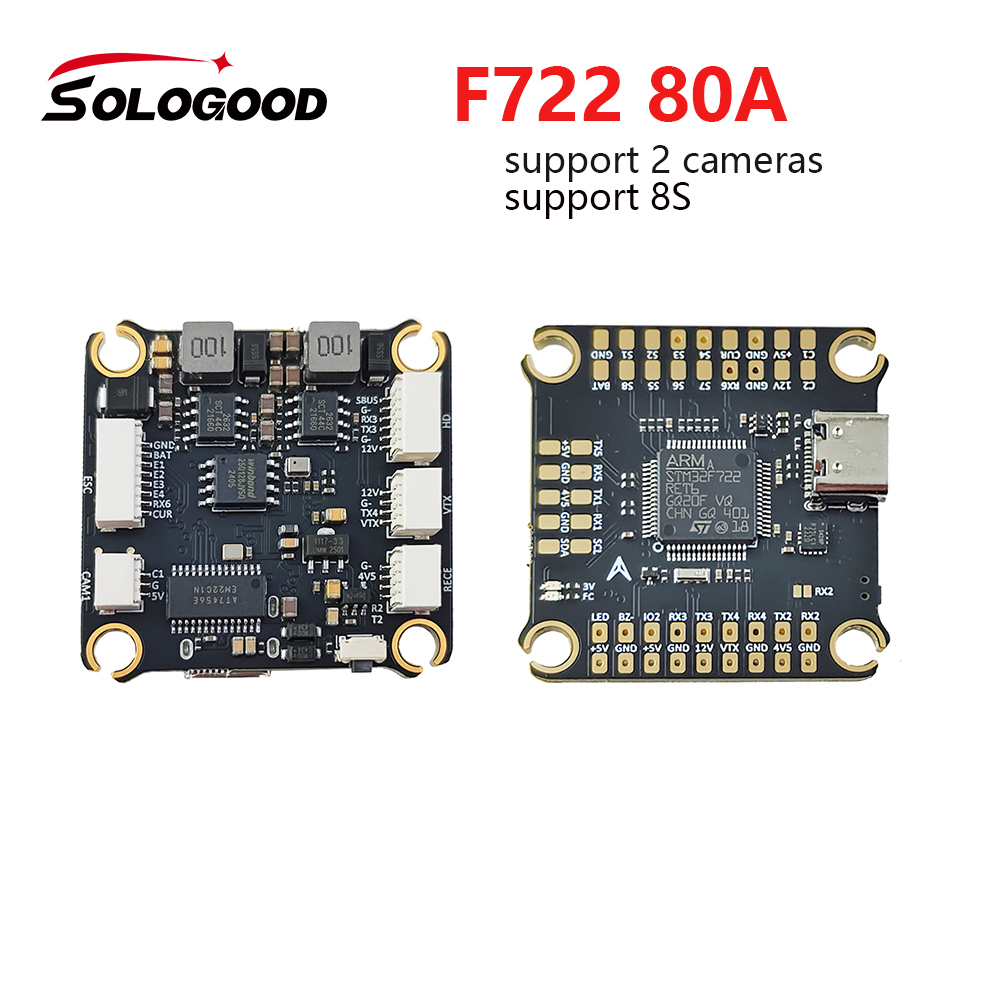

SoloGood F722 80A 8S Stack Flight Control Support 2 Cameras
SoloGood F722 80A 8S Stack Flight Control Support 2 Cameras
无法加载取货服务可用情况
-
Support up to 8 motor outputs to easily build X8 drones.
-
Integrated 5V/10V dual BEC ensures stable operation
-
Four LED status indicators display the working status under different states.
-
Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.
-
The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.
SoloGood 6S F722 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g

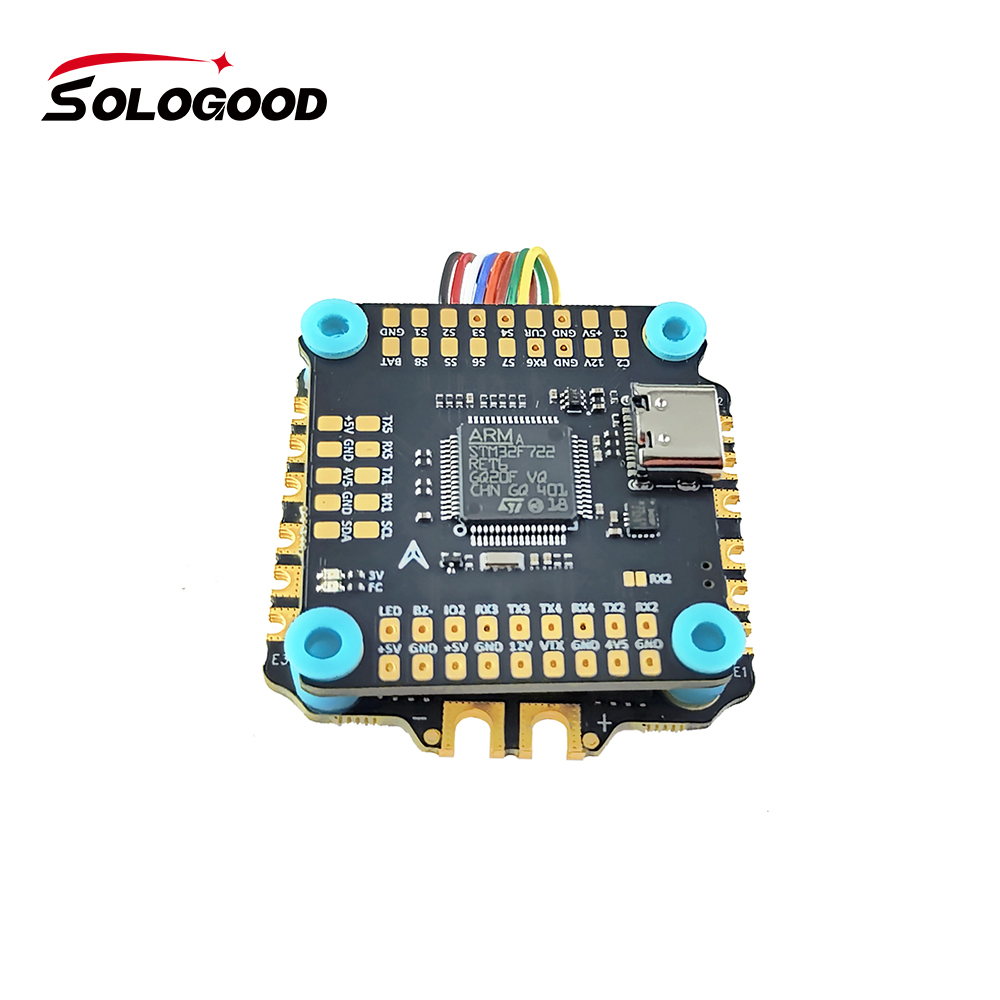

FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support (SPL-06)
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
For more info about FC, pls scan this app
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g
FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)

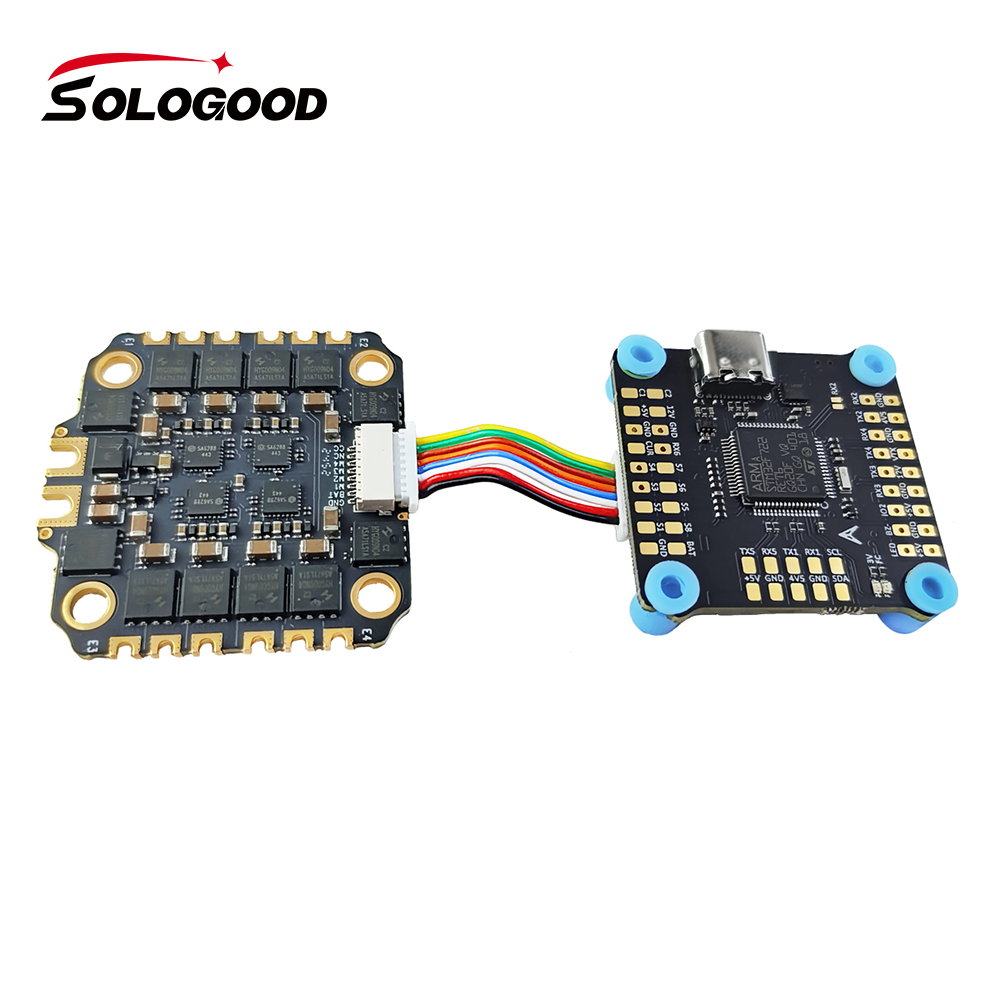

Sologood 8S 80A 4in1 ESC SPEC:
BLS 8-bit ESC-80A
Firmware:B_X_40_24_V0.21
Current scaling value:110
Input Voltage:3-8s
Continuous current:80A
Instantaneous current:90A
Size:58*58.4mm
Fixing hole:30.5*30.5 M4
Weight:28.4g
8S flight control spec:
Main control: STM32F722RET6
Gyroscope: ICM42688P
Input voltage: 3-8S
Barometer: Supports (spl06)
Output voltage: VBAT
OSD: Support (AT7456E)
Installation hole: 30.5x30.5MM
BEC: bec12v/2A,5v/2A
Flight control size: 38.5x38.5MM
UART port: 6
Weight: Approximately 9 grams
Black box: onboard (16M flash memory)
DJI/Vista: Support/6-pin
Number of supported motors: M1-M8
