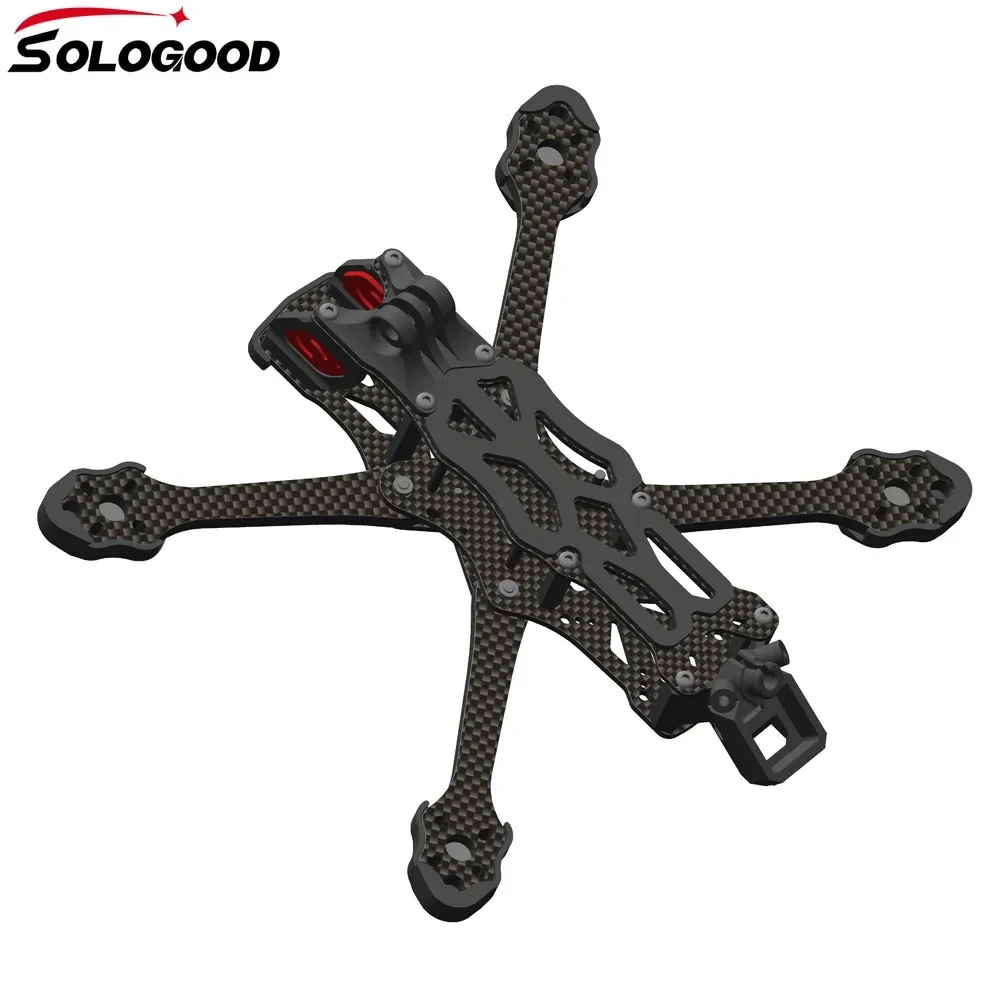

SoloGood APEX EVO Frame Kit F405 55A V3 Stack ICM42688P BLS55A 4in1 ESC 2207 2550KV 2-6S Lipo Unibell Brushless Motor
SoloGood APEX EVO Frame Kit F405 55A V3 Stack ICM42688P BLS55A 4in1 ESC 2207 2550KV 2-6S Lipo Unibell Brushless Motor
无法加载取货服务可用情况
Specification:
Brand Name: SoloGood
Model: APEX EVO.
Wheelbase:225mm(5inch).
Arm Plate Thickness: 5.5MM.
Bottom Plate Thickness: 2.5mm.
Upper Plate Thickness: 2.5mm.
Side plate thickness: 2mm.
Aluminum column height:28 / 20mm.
Weight: 130g/Including 3D printed parts 158g(Different production batches will vary ).
Material: 3K Carbon Fiber.
SoloGood F405 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g
FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
Sologood BLS55A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 55A
Maximum current 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
|
