Description
- High-performance flight control supports up to 8 motor outputs, making it easy to build the X8 drone.
- Integrated dual BEC, 5V and 12V dual BEC.

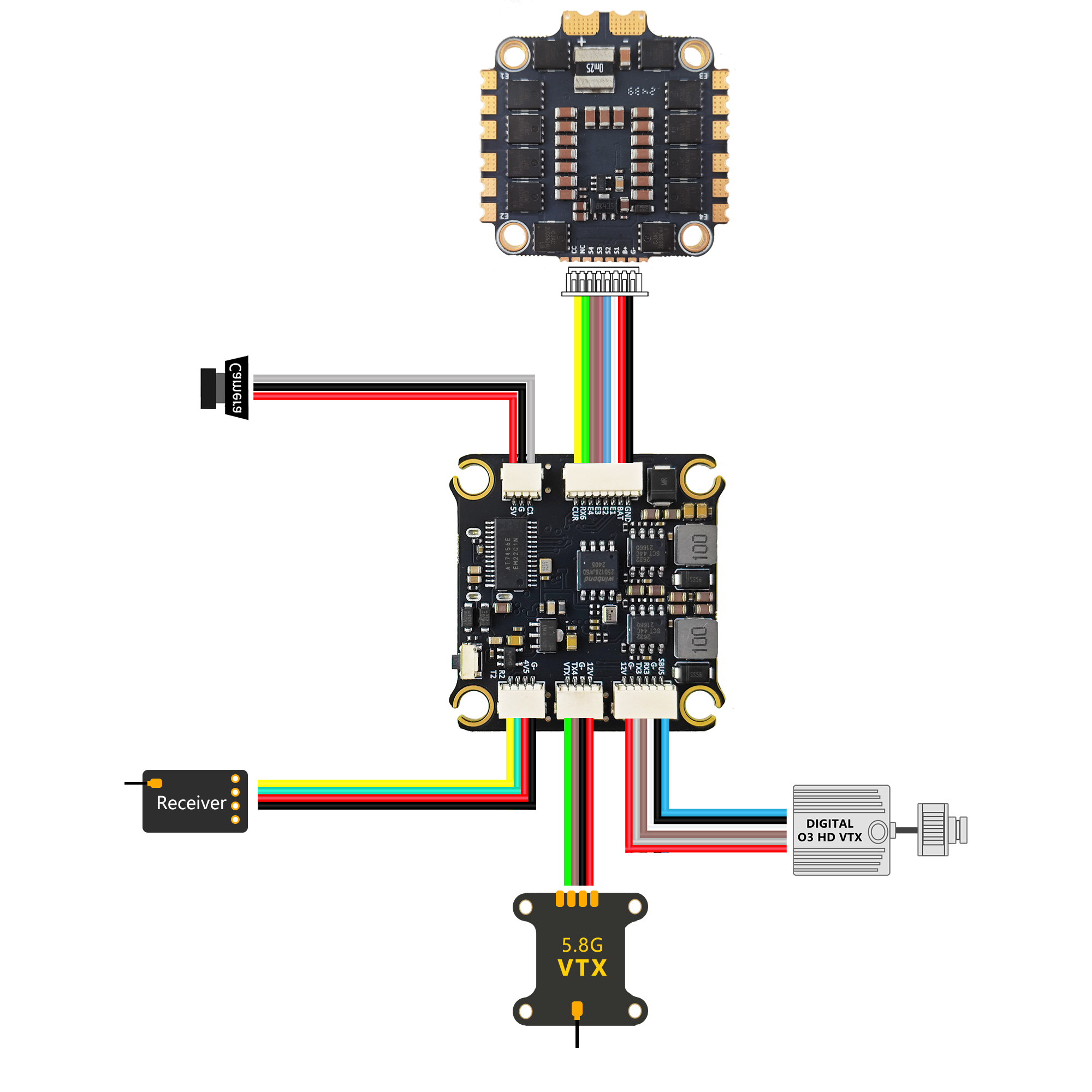

- Supports dual cameras, switching between Cam1 and Cam2 via user1.
- The F722 master control chip, onboard OSD chip, barometer and onboard black box chip are also available.
- Using a large welding plate, the welding plate is away from the components to ensure that even beginners can weld perfectly.
- The air conditioner uses a low-impedance MOS tube, EFM8BB51 processor and on-board TVS protection tube to ensure maximum performance even in complex flight environments and has been tested in multiple layers!
- Default Bluejay firmware, bidirectional DSHOT, turn on RPM filtering.
- Main control: STM32F722RET6
- Gyroscope: ICM42688P
- Pressure gauge: support (SPL06)
- OSD: Supported (AT7456E)
- BEC: 12V/2A, 5V/2A
- UART ports: 6
- Black box: onboard (16M flash memory)
- Number of motors supported: M1-M8
- Firmware Name: BETAFLIGHT: SOLOGOODF722
- Input voltage: 3-8S lithium battery (11-36V MAX)
- Output voltage: VBAT
- Installation hole: 30.5x30.5mm (4mm hole diameter)
- Flight control size: 38.5x38.5mm
- Weight: 8.1g
- DJI/Vista: support/6pin AC
- TVS protection diode: Yes
- External capacitor: 1000uF high frequency low resistance capacitor (included in the package)
- ESC/motor protocol: DSHOT300/600
- Continuous current: 60A
- Maximum current: 65A
- Mounting hole: 30.5x30.5mm (4mm hole diameter)
