Description

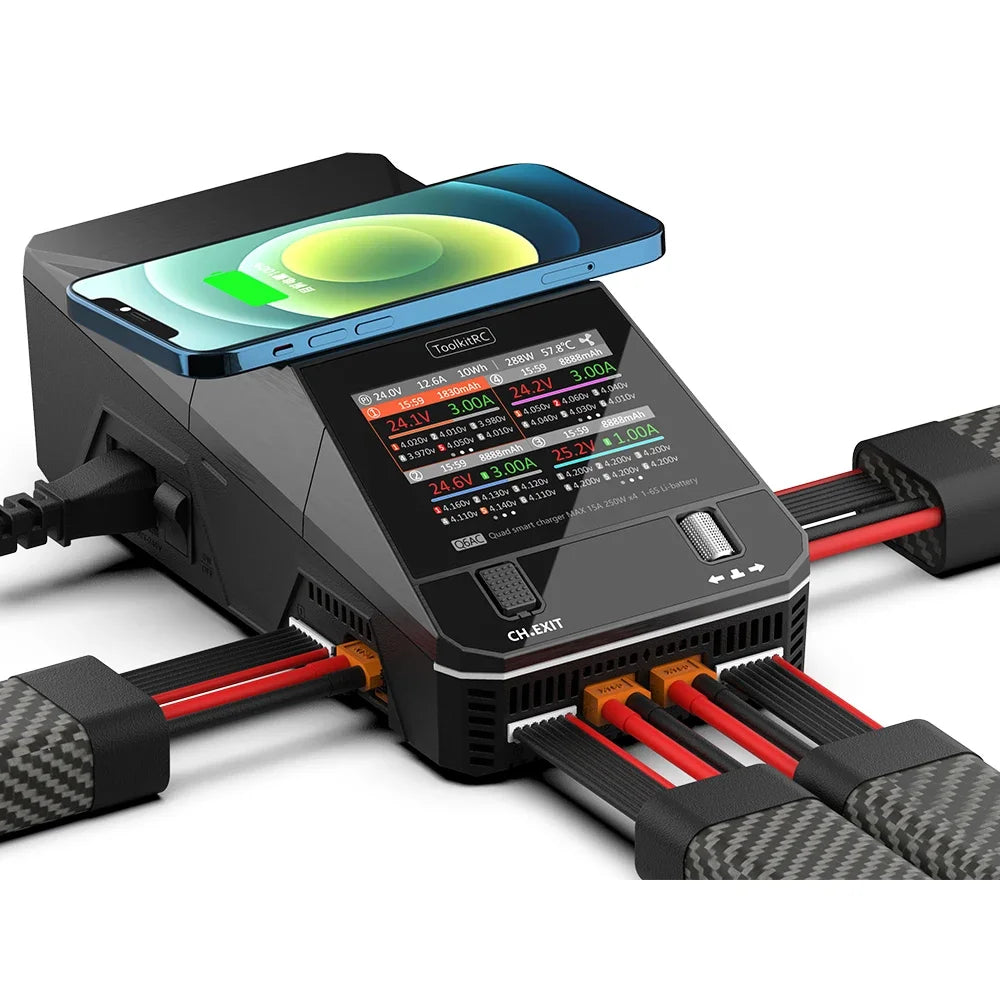

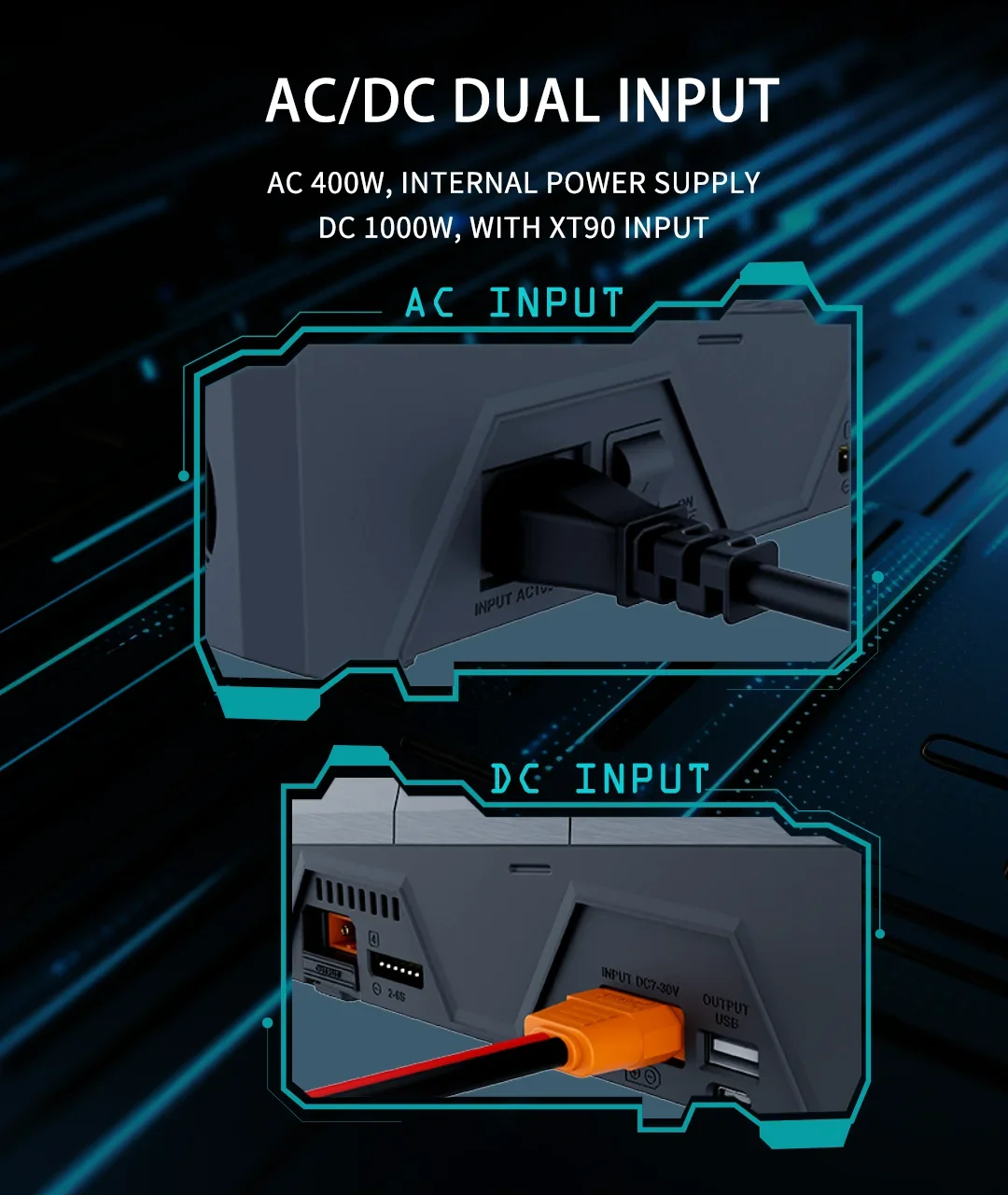

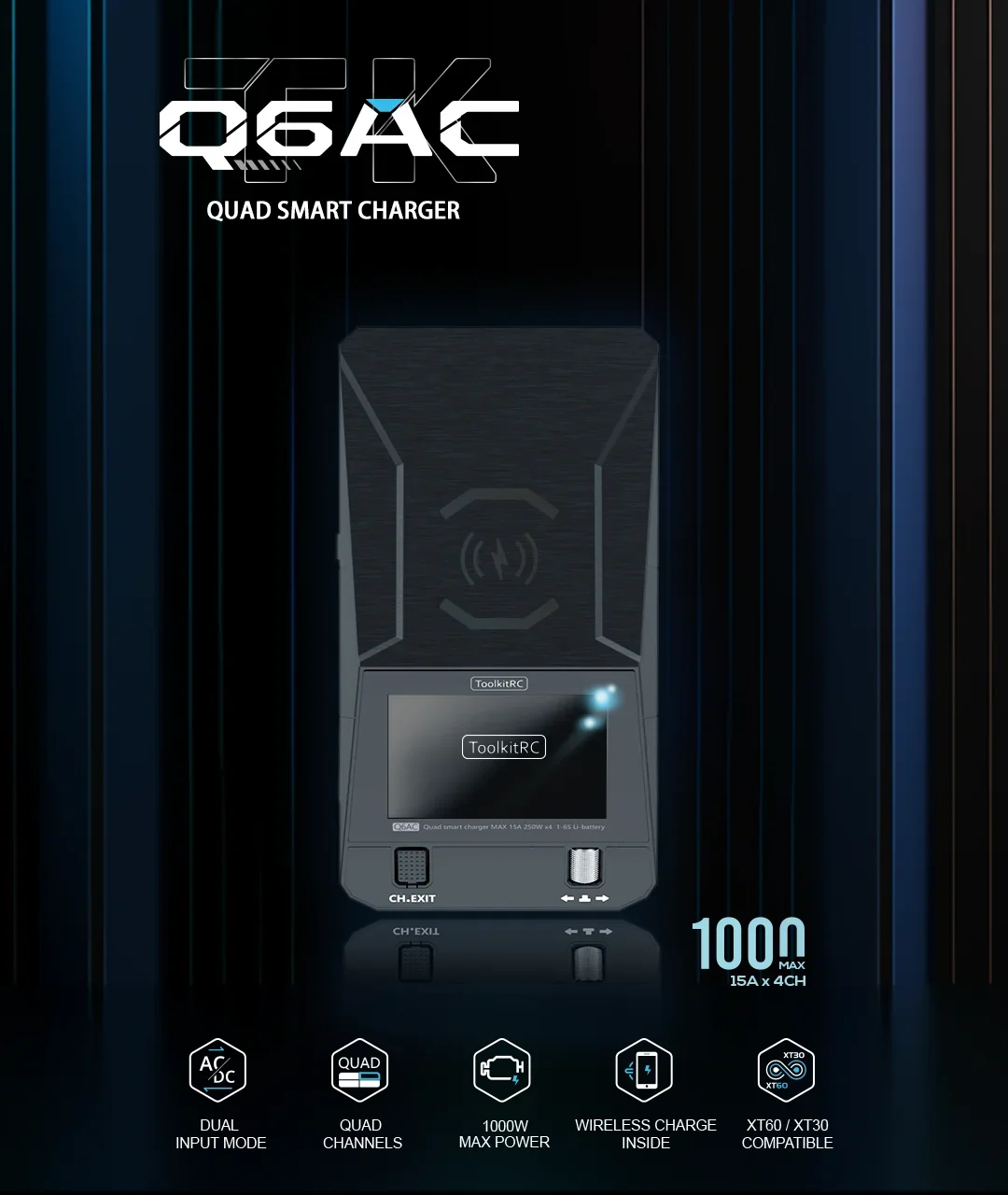

Q6AC four channel independent output, automatic power distribution, total output power up to 1000W, AC/DC dual mode input, built-in 400W AC power supply, XT90 DC input, power up to 1000W, Magesafe magnetic suction wireless charging, slider design, compatible with XT60/XT30 optional,
Input voltage: AC 100-240V, maximum 100W 5.0A
DC 7.0-30.0v @ Max 50A
Battery type: Lipo LiHV LiFe Lion LTO @ 1-6S
NiMh @ 1-16S Pb @ 1-10S
Balance current: 800mA @ 4.2V
Charging power: 250W @ MAX 15A * 4
Discharge power: 250W @ MAX 15A recycling mode
12w @ 3A normal mode

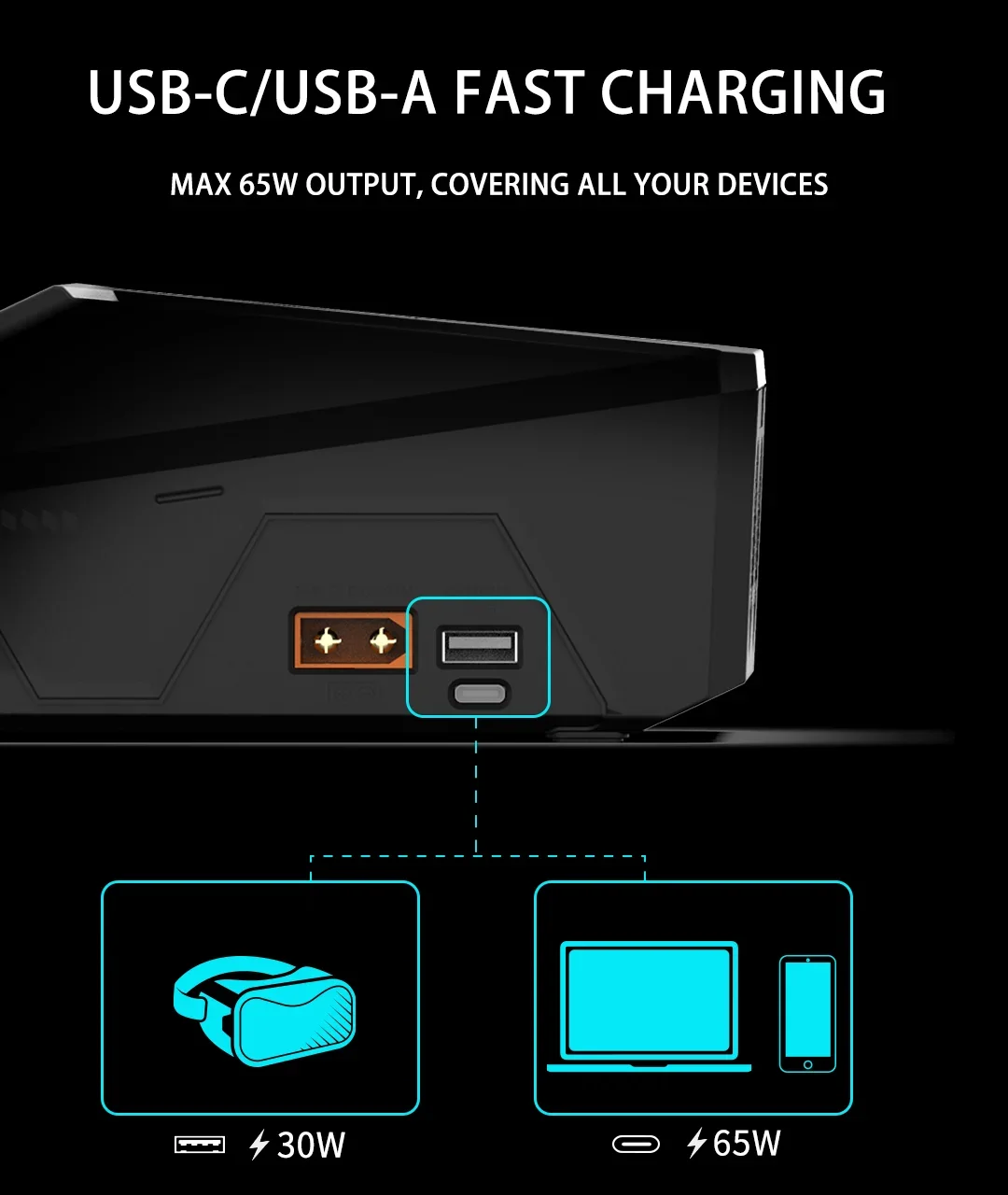

USBA: 30w or upgrade firmware
USBC: Maximum 65W@20.0V
PD QC PPS AFC FCP SCP PE SFCP
Product size: 220mm * 113mm * 82mm
Product weight: 1120g
Packaging size: 260 * 220 * 120 mm
Packaging weight: 1600g
Product Overview

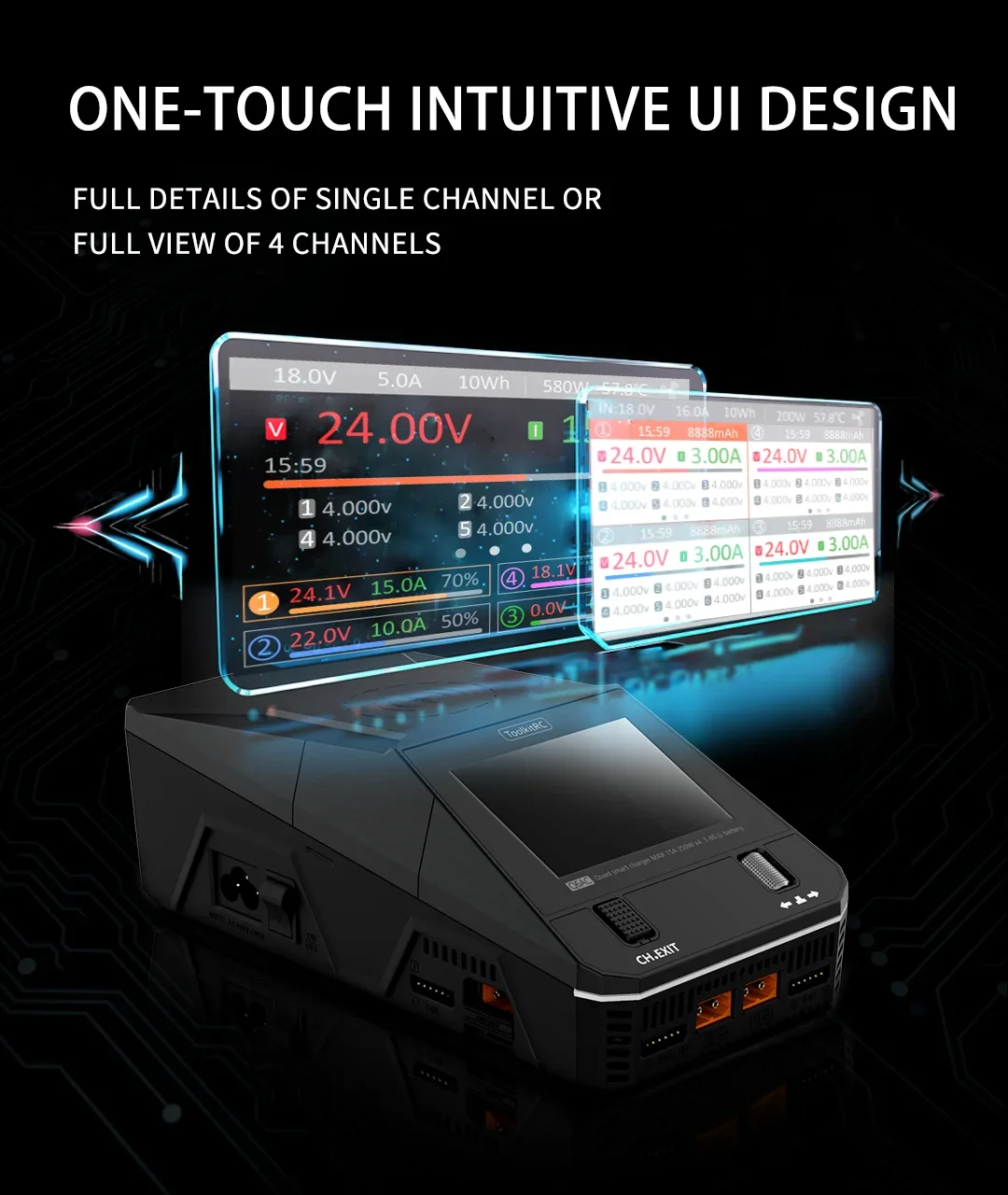

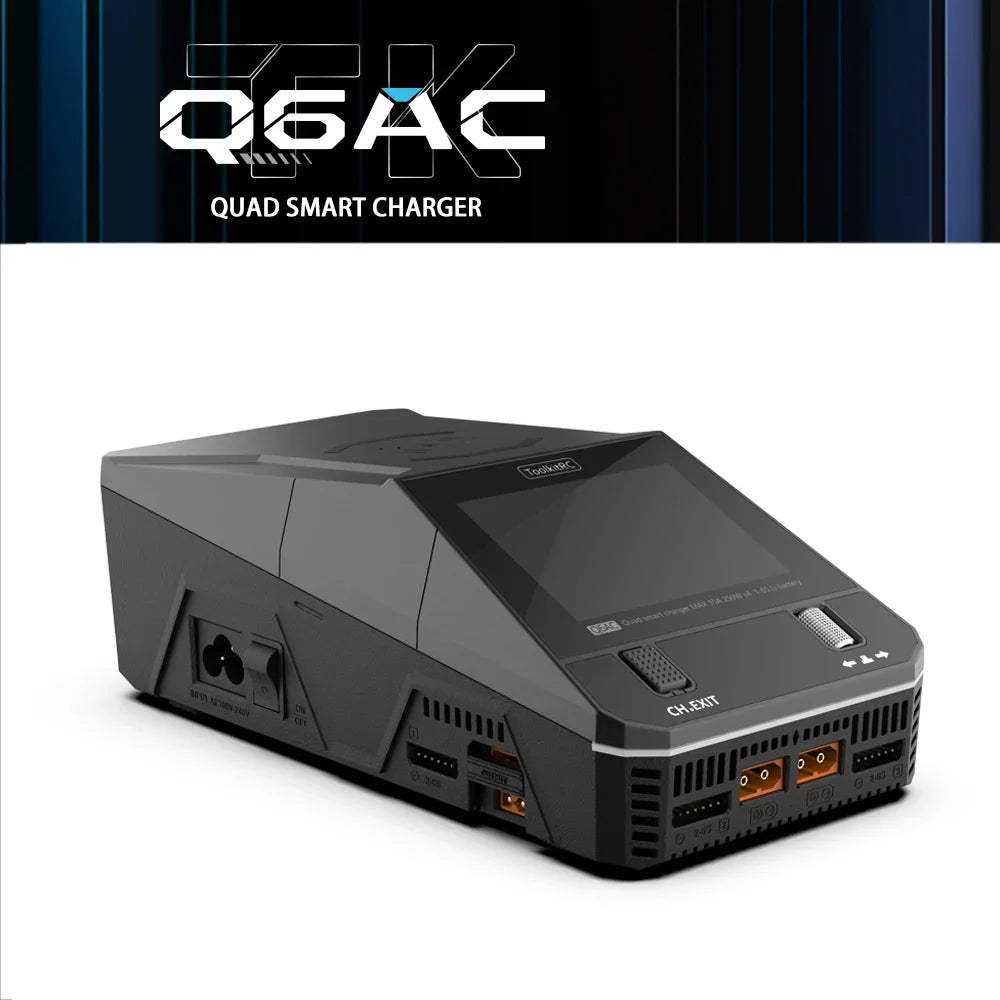

Q6AC is a four channel balanced charger product with IPS highlighted display screen and more convenient operation of roller encoder.
1. Charging accuracy<0.005V.
2. Balance current 800mA
3. Built in 15W wireless charging.
4. Built in 65W C/30W A fast charging.
5. Lithium battery cut-off voltage can be set (TVC function)
6. Automatic allocation of input power
7. Multi language system, can switch to the desired language at will
8. Simulate the device as a disk, copy the upgrade file to achieve product firmware upgrade
9. Can record 32 commonly used batteries.
10. It can record 3 sets of commonly used power supplies, making it convenient for quick translation selection.
