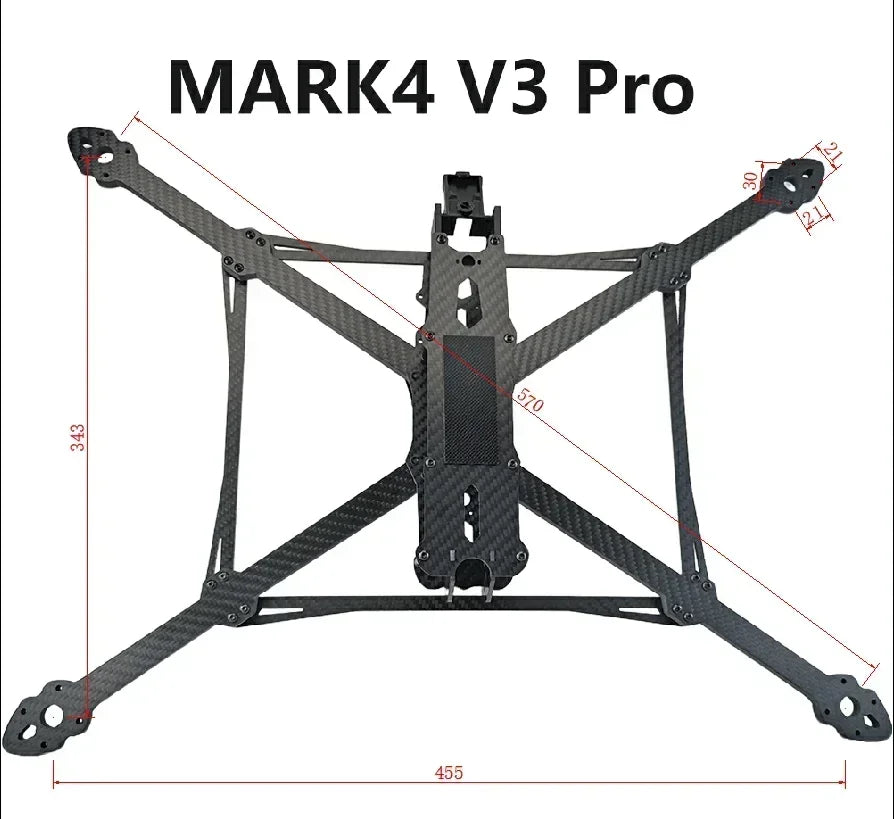

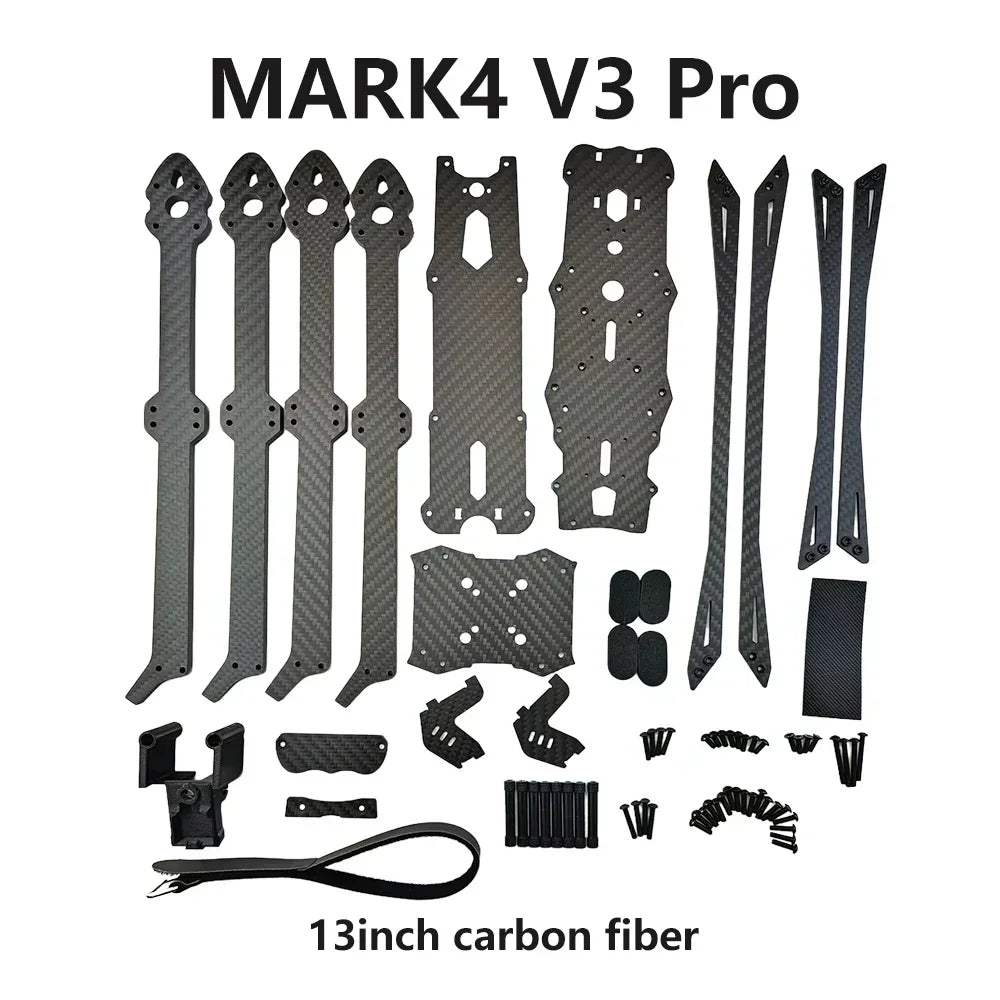

Wheelbase 570MM.
Thickness of upper plate 1.5MM.
Thickness of bottom plate 3MM.
Thickness of lower fixed plate 3MM
Thickness of camera side plate 2.5MM.
Front lip plate 2.5MM thick.
Rear lip 2.5MM thick
Camera arm 8MM
Surrounding reinforcement 3MM
Camera mounting spacing 19MM.
Flight control mounting hole spacing 20*20MM/30.5*30.5MM
Motor mounting hole spacing 21*21MM
The distance between the mounting holes of the graphic transmitter is 20*20MM or 30.5*30.5MM.

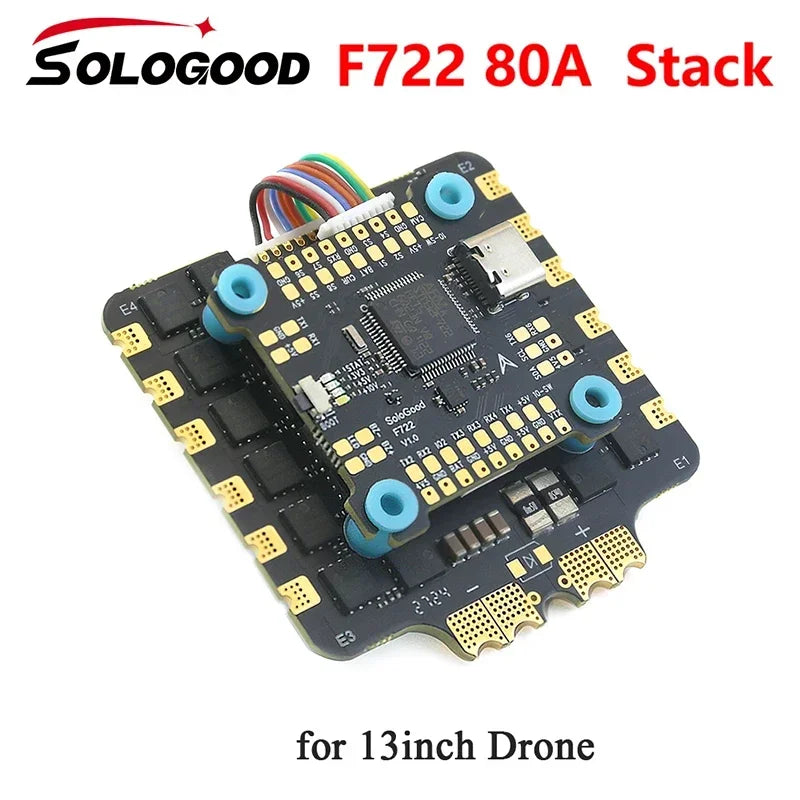

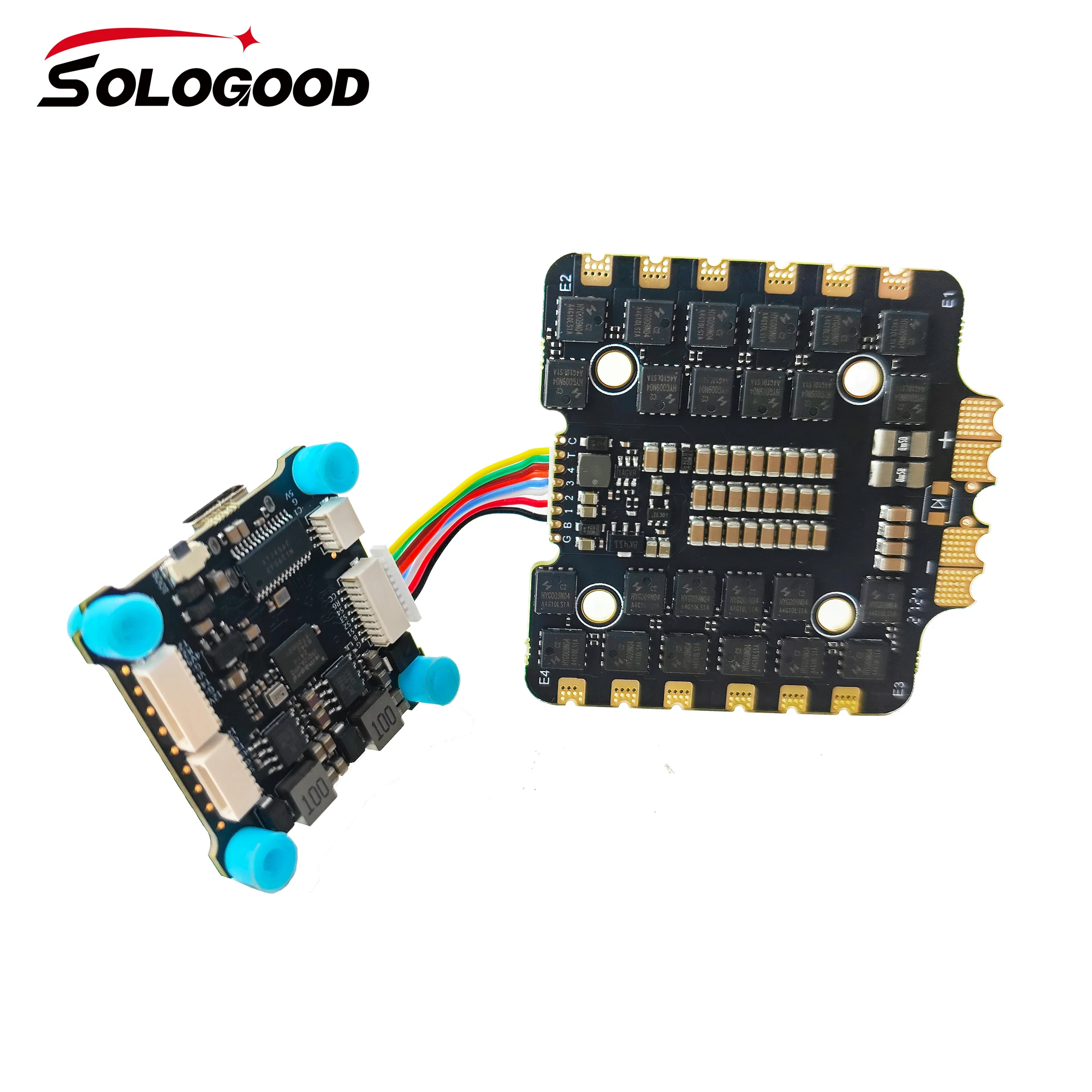

FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support (SPL-06)
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
For more info about FC, pls scan this app

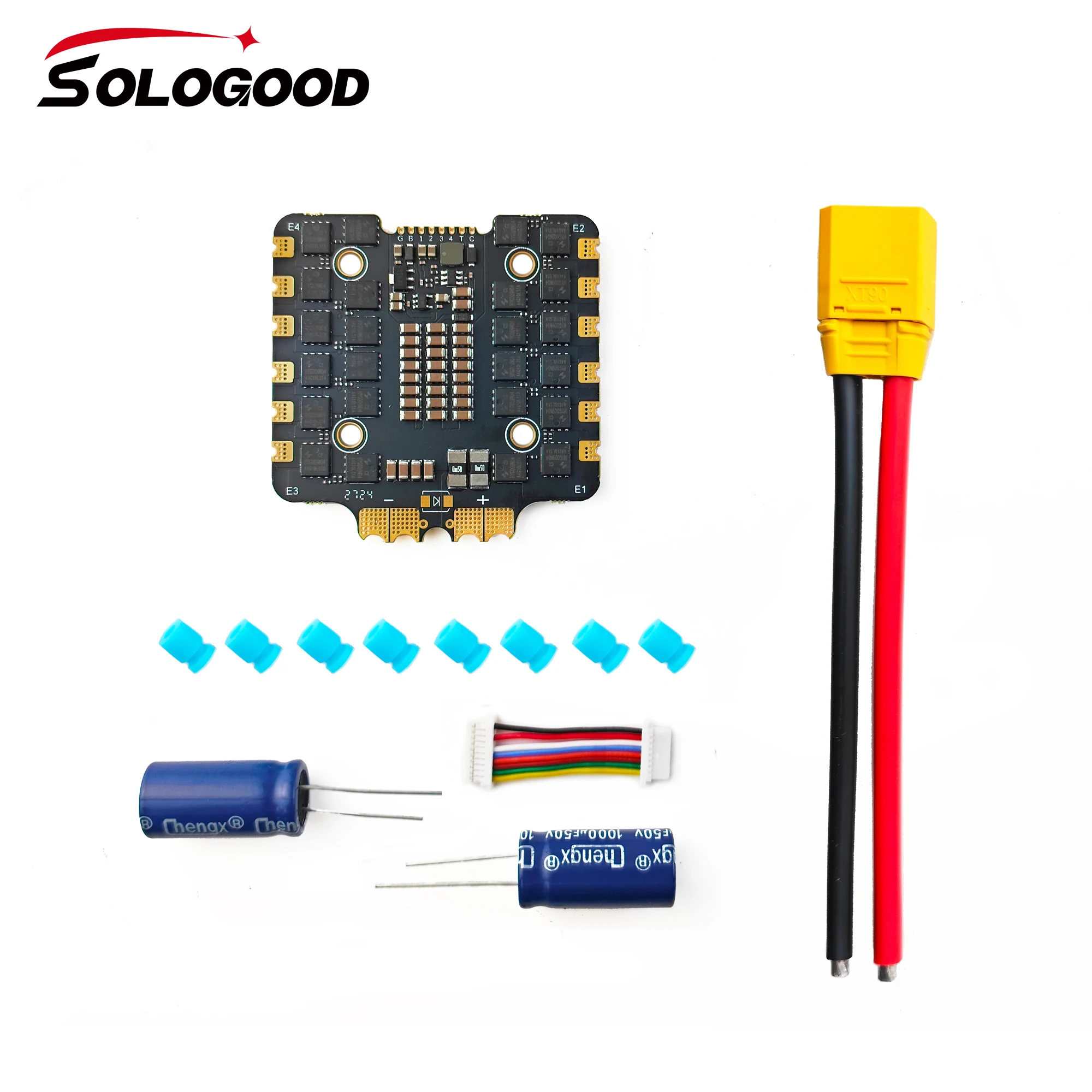

Sologood 80A 4in1 ESC SPEC:
BLS 8-bit ESC-80A
Firmware:B_X_40_24_V0.21
Current scaling value:110
Input Voltage:3-8s
Continuous current:80A
Instantaneous current:90A
Size:58*58.4mm
Fixing hole:30.5*30.5 M4
Weight:28.4g

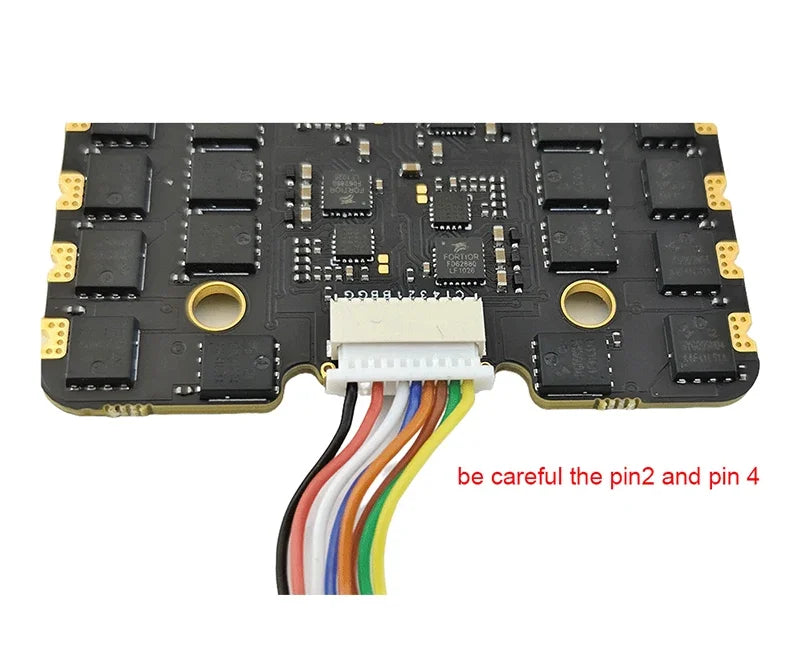

80A ESC Must be Installed Two Capacitors, Two Capacitors are Positive to Positive, Negative To Negative.

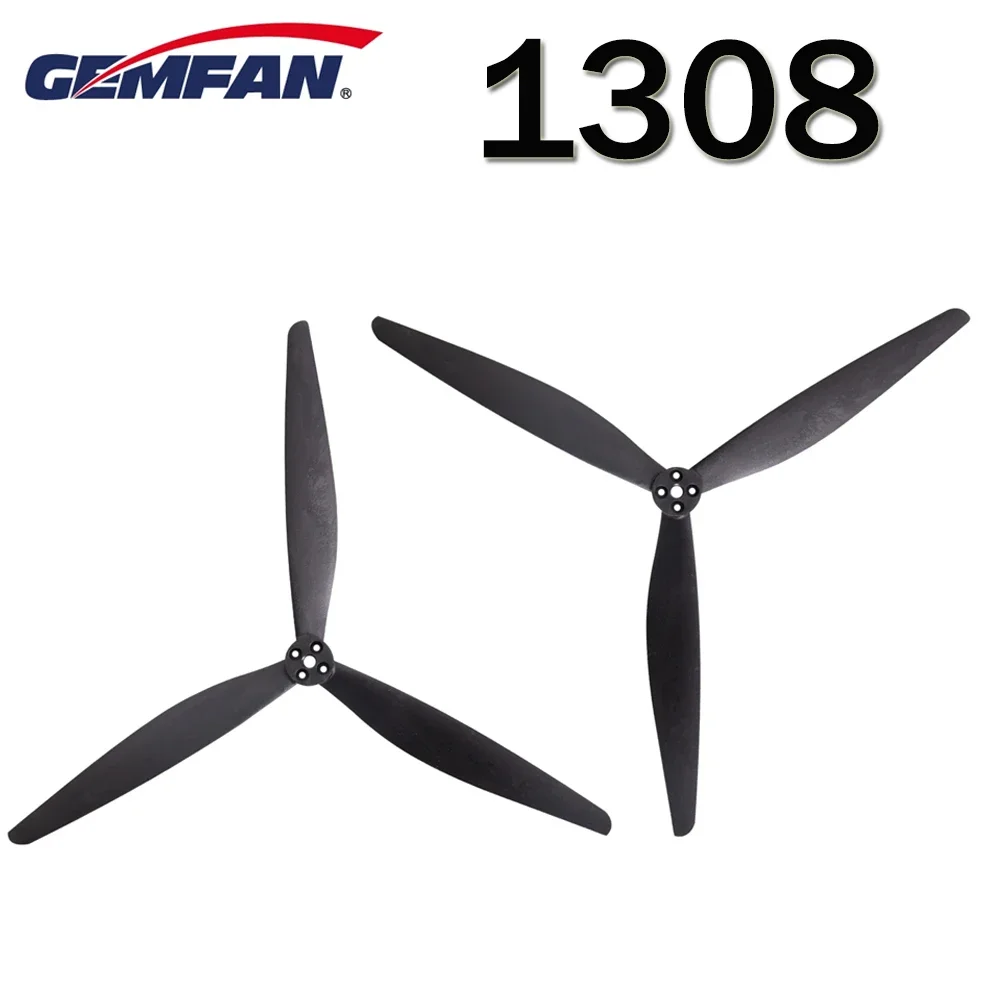

Gemfan X CLASS 1308-3
Material:Glass Fiber Nylon
Weight:42g Reinforced Carbon Nylon/39g Glass Fiber Nylon
Pitch:8in
Prop Dia:330.5mm
Center Thickness:12mm
Center Hole Dia:6mm
Adaptive Motor:5310-400kv
Colors:Black
