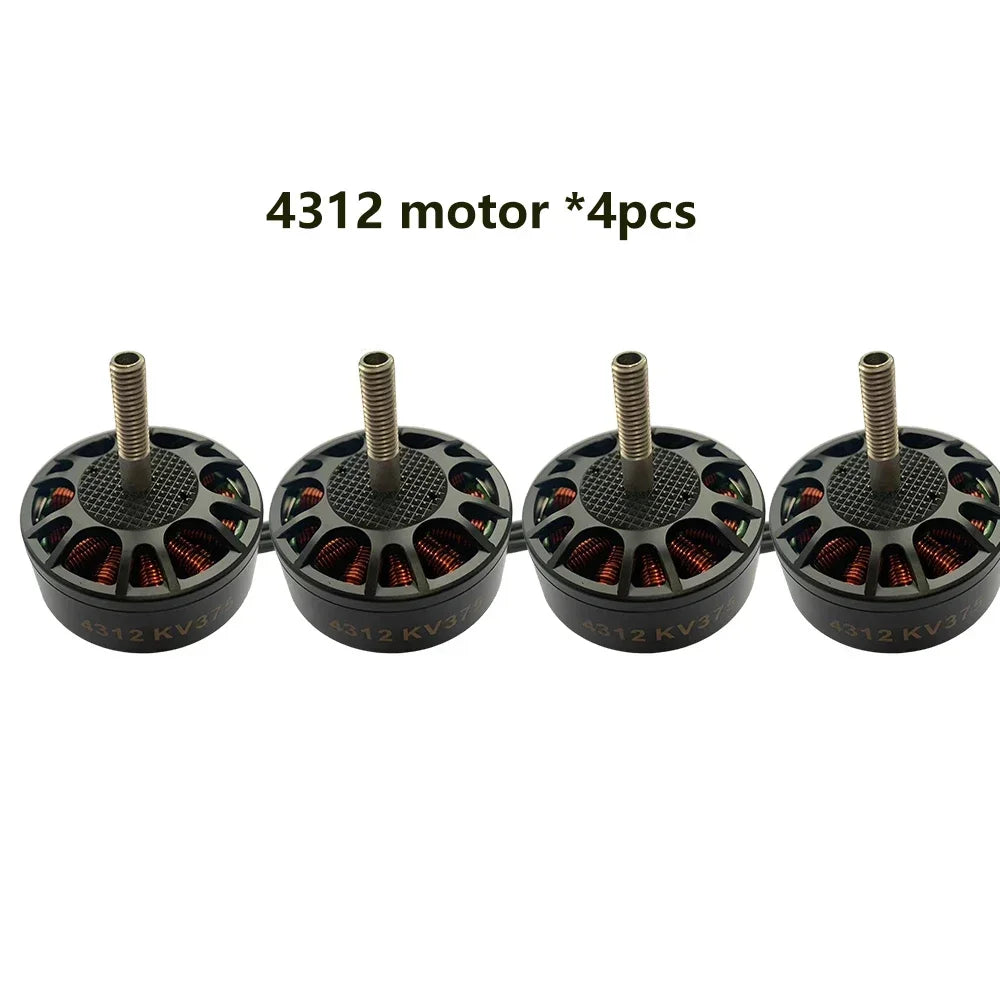

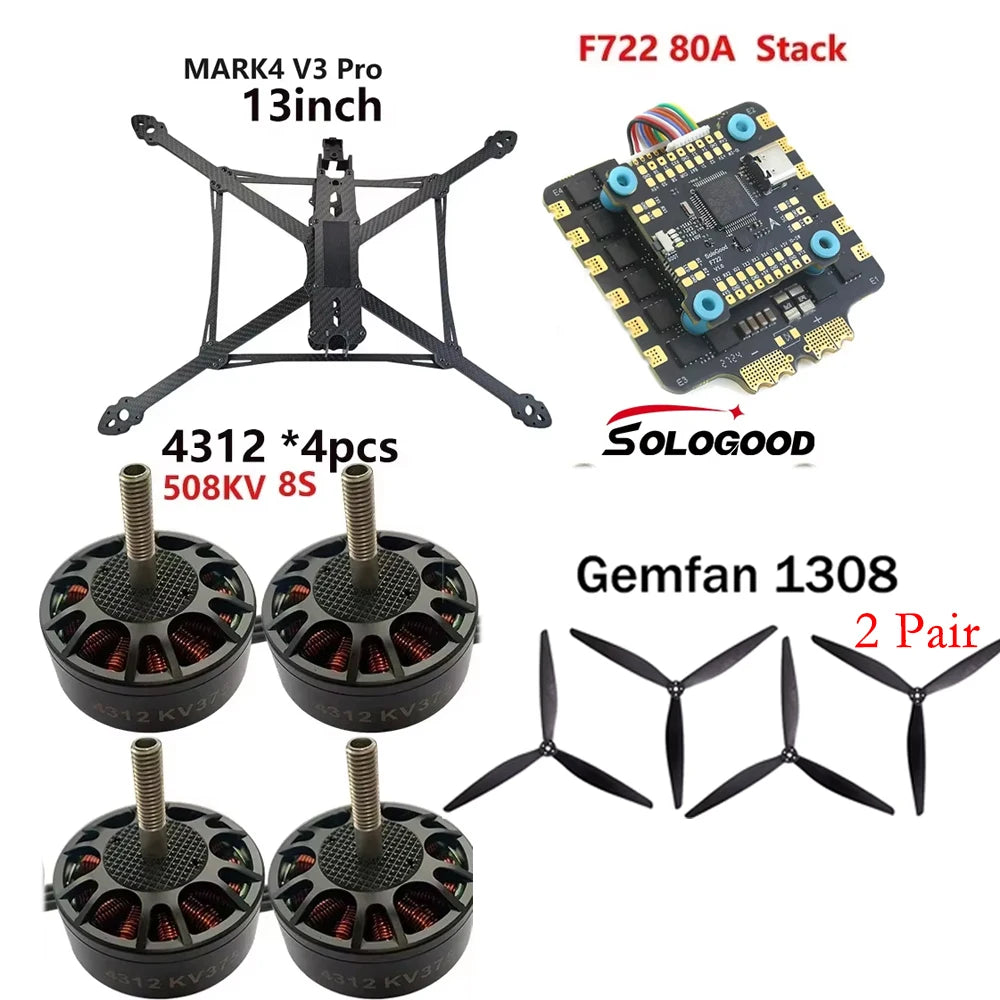

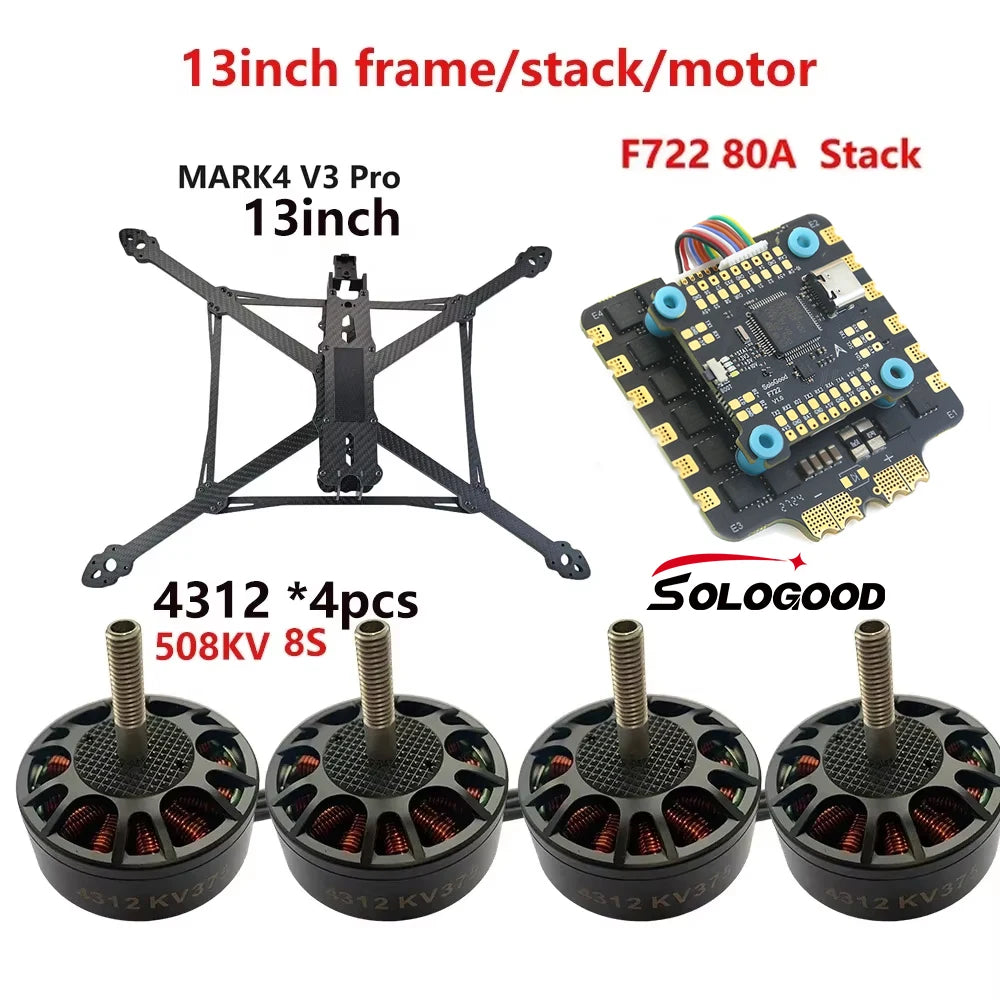

SoloGood MARK4 V3 Pro 13inch 570mm Carbon Fiber Frame SoloGood F722 80A Stack 4312 508KV Brushless Motor

$299.00 USD

~~$599.00 USD~~ $299.00 USD

Sale Sold out

Taxes included.

Color 508KV Moto F722 80A With Propelle

Quantity

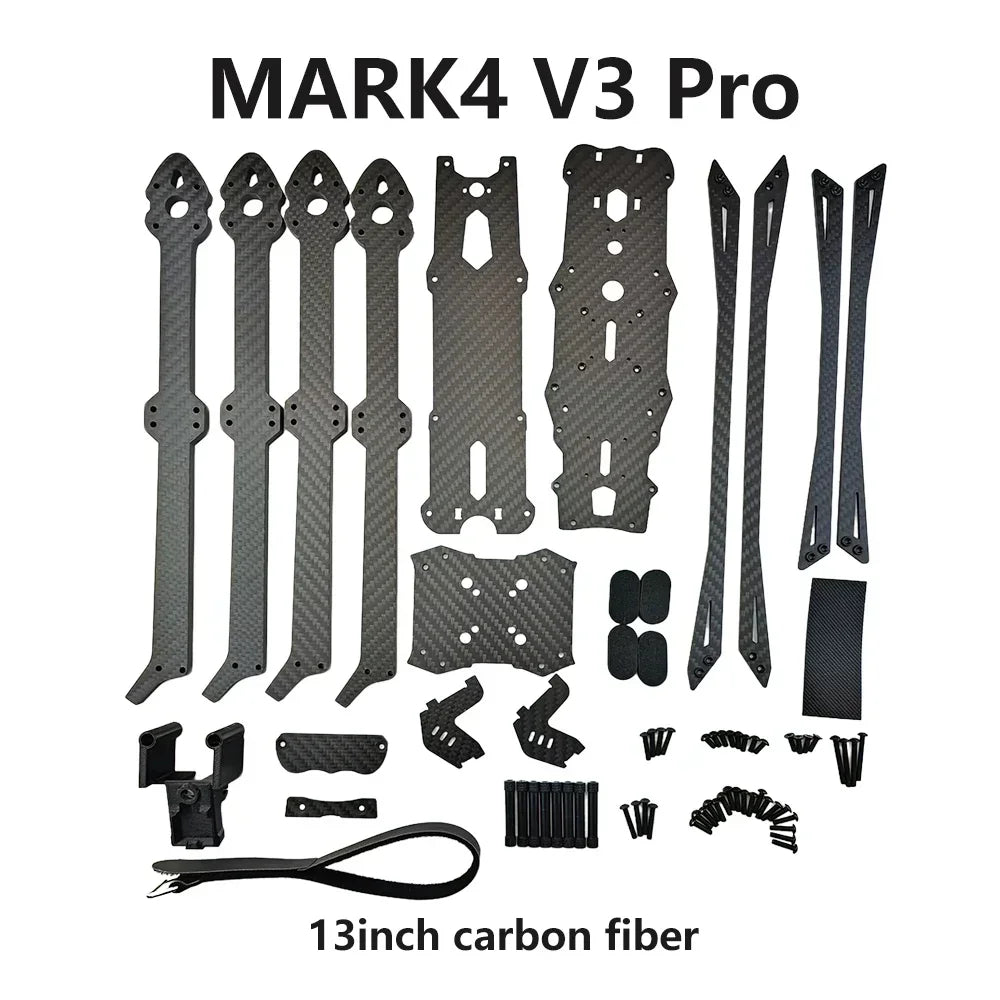

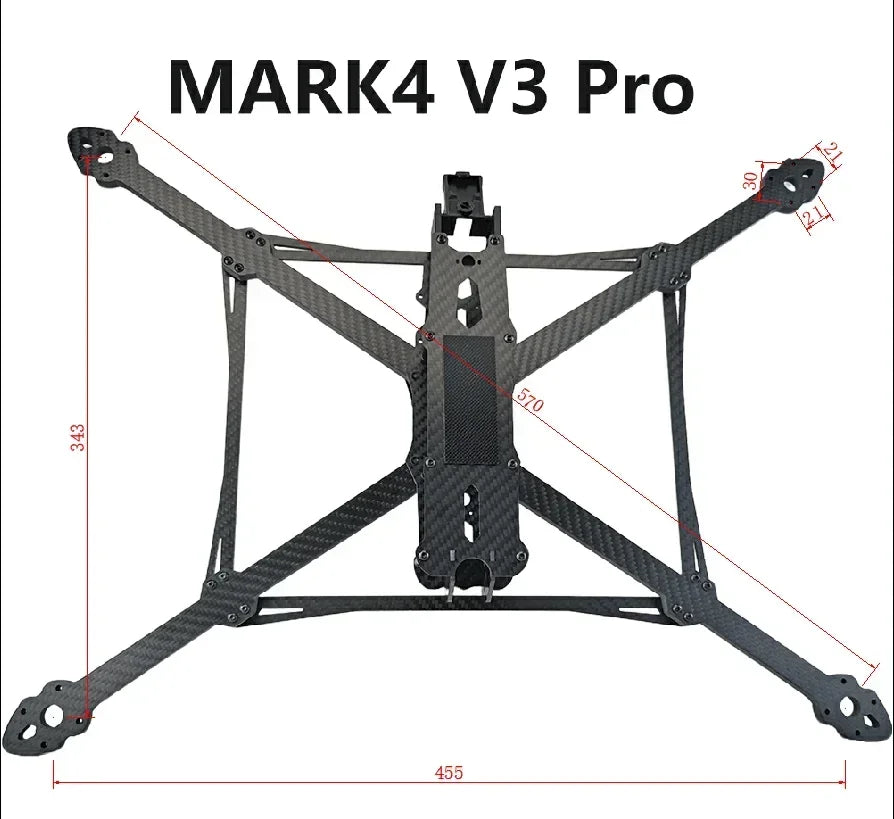

Mark4 V3 Pro 13Inch 570mm Carbon Fiber Frame

Wheelbase 570MM.
Thickness of upper plate 1.5MM.
Thickness of bottom plate 3MM.
Thickness of lower fixed plate 3MM
Thickness of camera side plate 2.5MM.
Front lip plate 2.5MM thick.
Rear lip 2.5MM thick
Camera arm 8MM
Surrounding reinforcement 3MM
Camera mounting spacing 19MM.
Flight control mounting hole spacing 20*20MM/30.5*30.5MM
Motor mounting hole spacing 21*21MM
The distance between the mounting holes of the graphic transmitter is 20*20MM or 30.5*30.5MM.

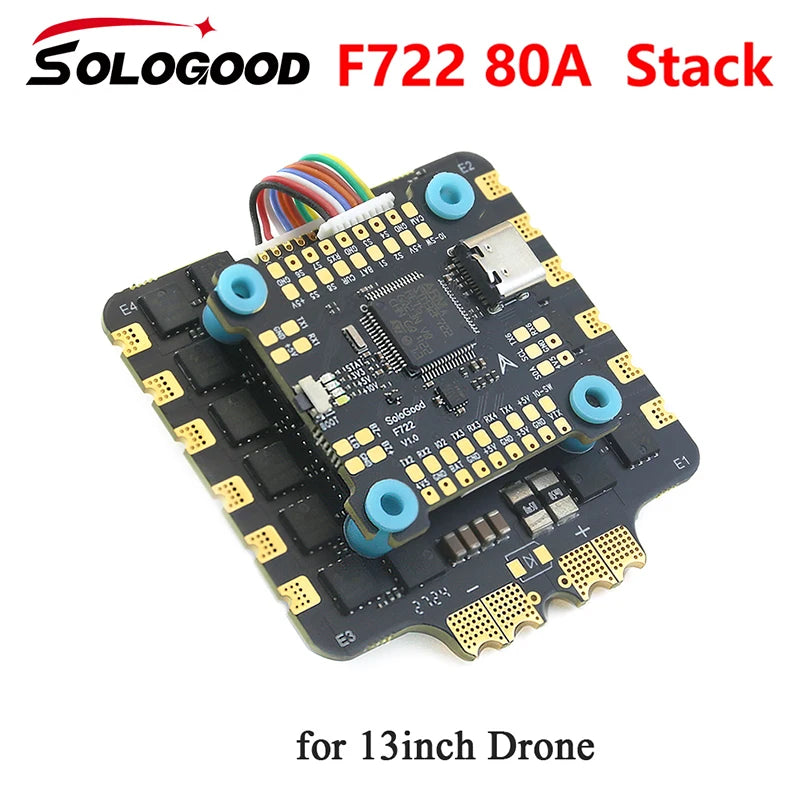

FC Specifications

Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support (SPL-06)

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

For more info about FC, pls scan this app

Sologood 80A 4in1 ESC SPEC:

BLS 8-bit ESC-80A
Firmware:B_X_40_24_V0.21
Current scaling value:110
Input Voltage:3-8s
Continuous current:80A
Instantaneous current:90A
Size:58*58.4mm
Fixing hole:30.5*30.5 M4
Weight:28.4g

80A ESC Must be Installed Two Capacitors, Two Capacitors are Positive to Positive, Negative To Negative.
