Description

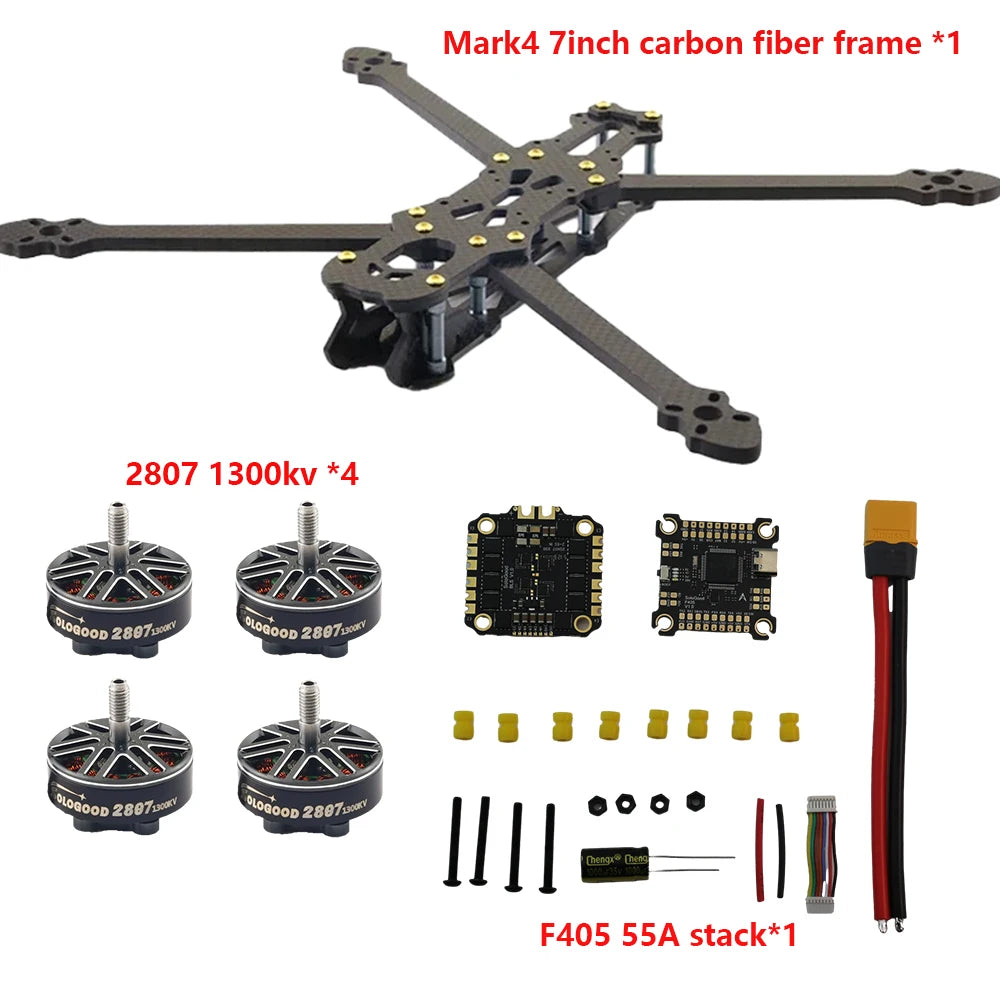

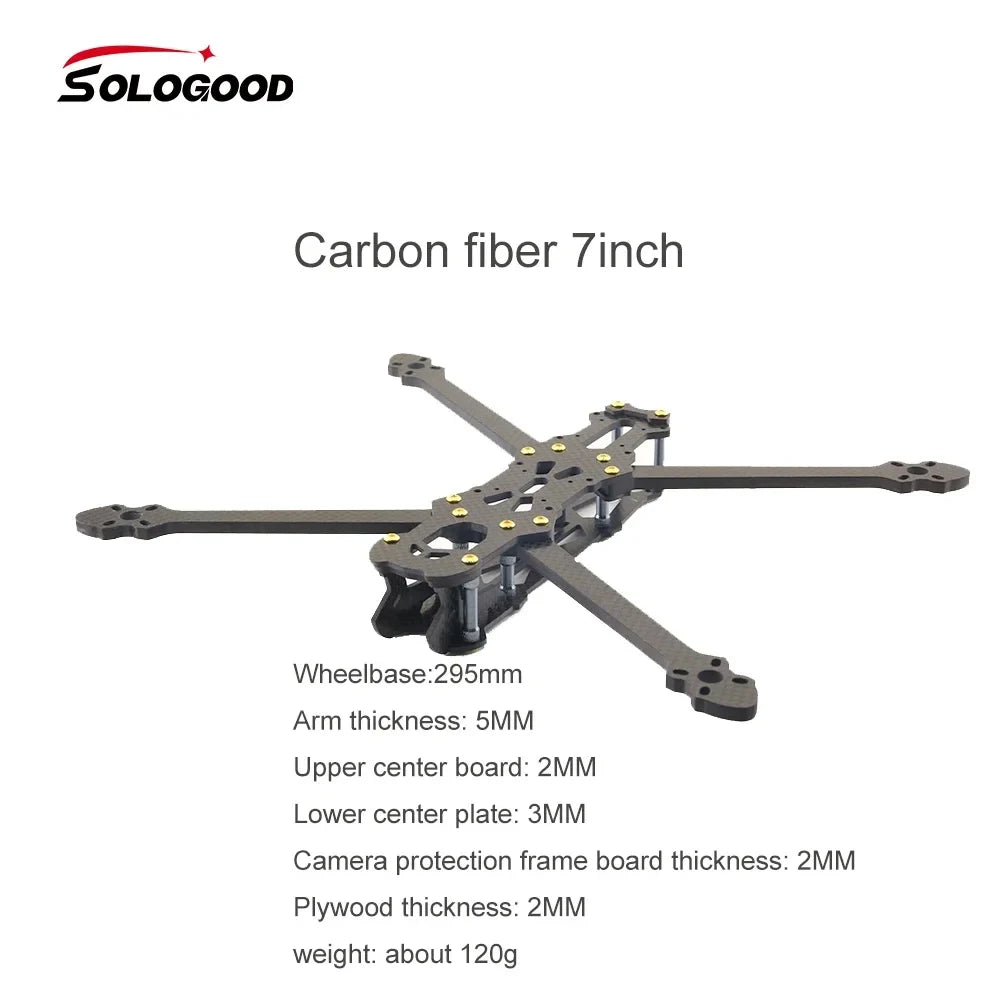

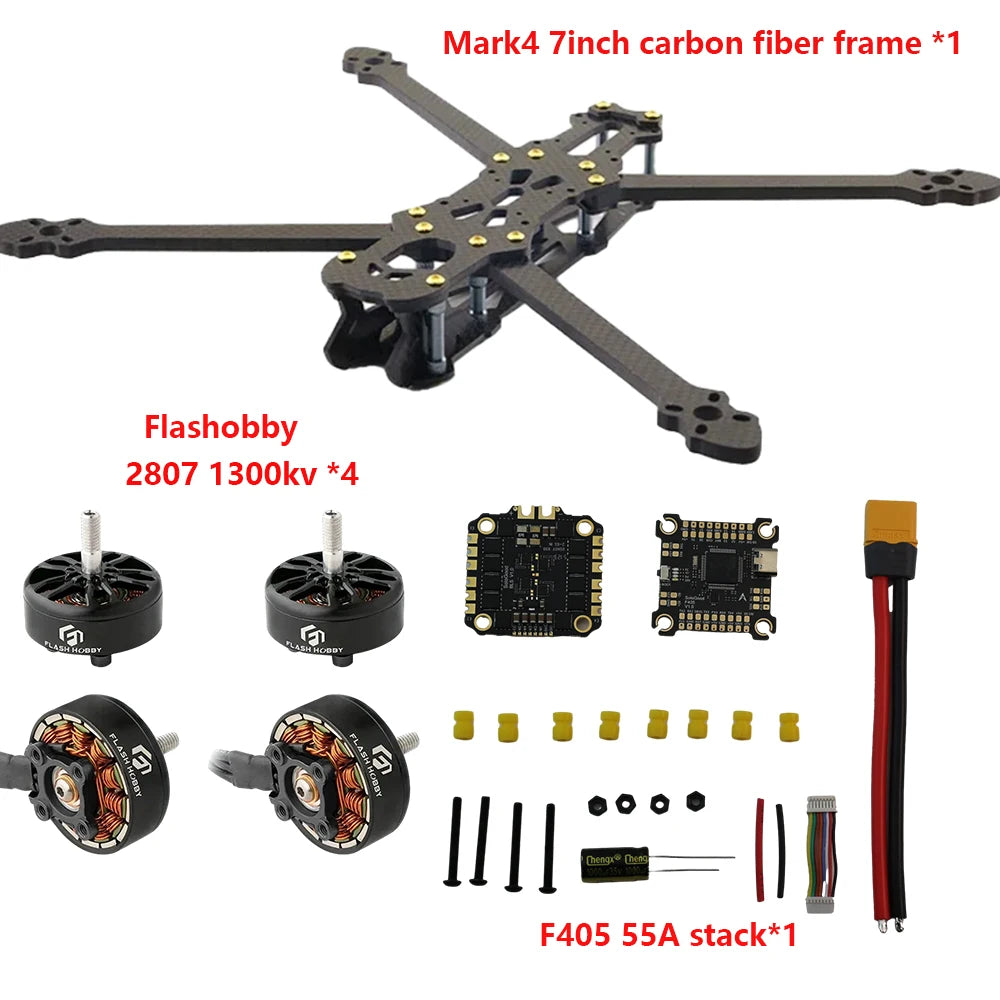

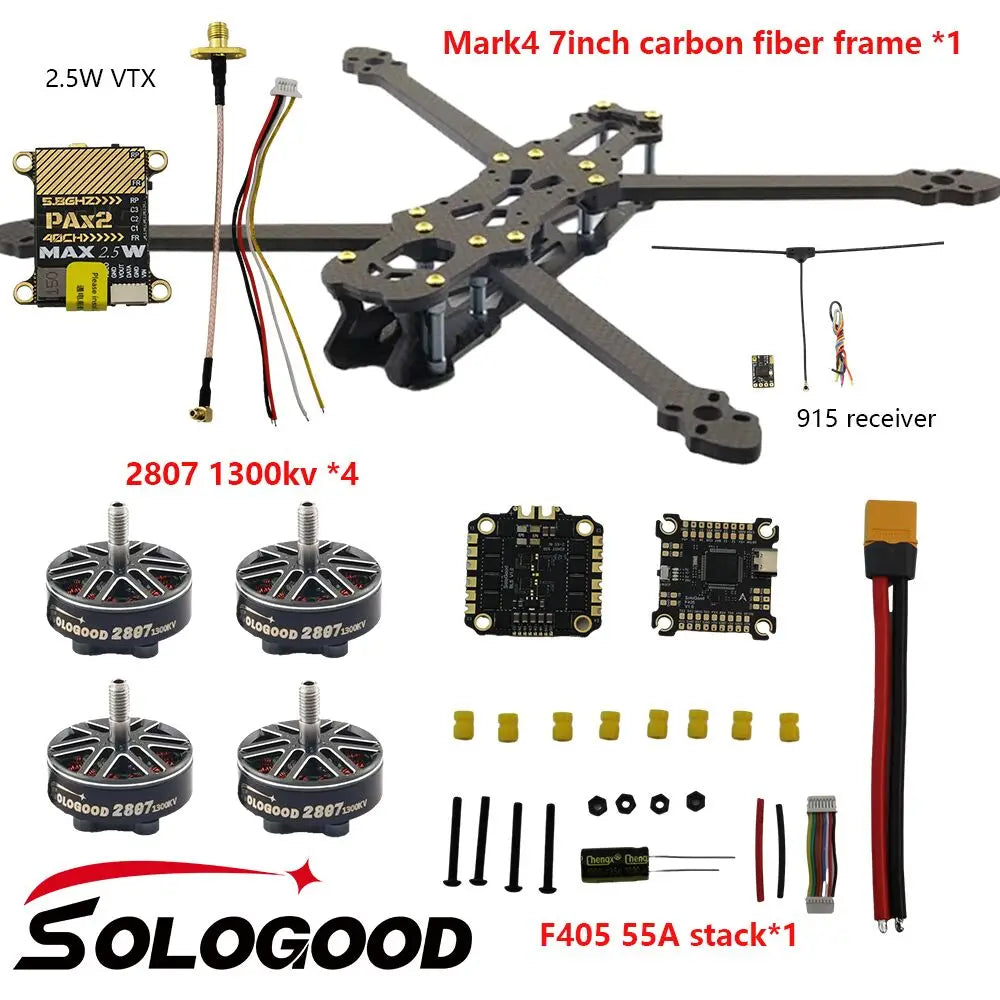

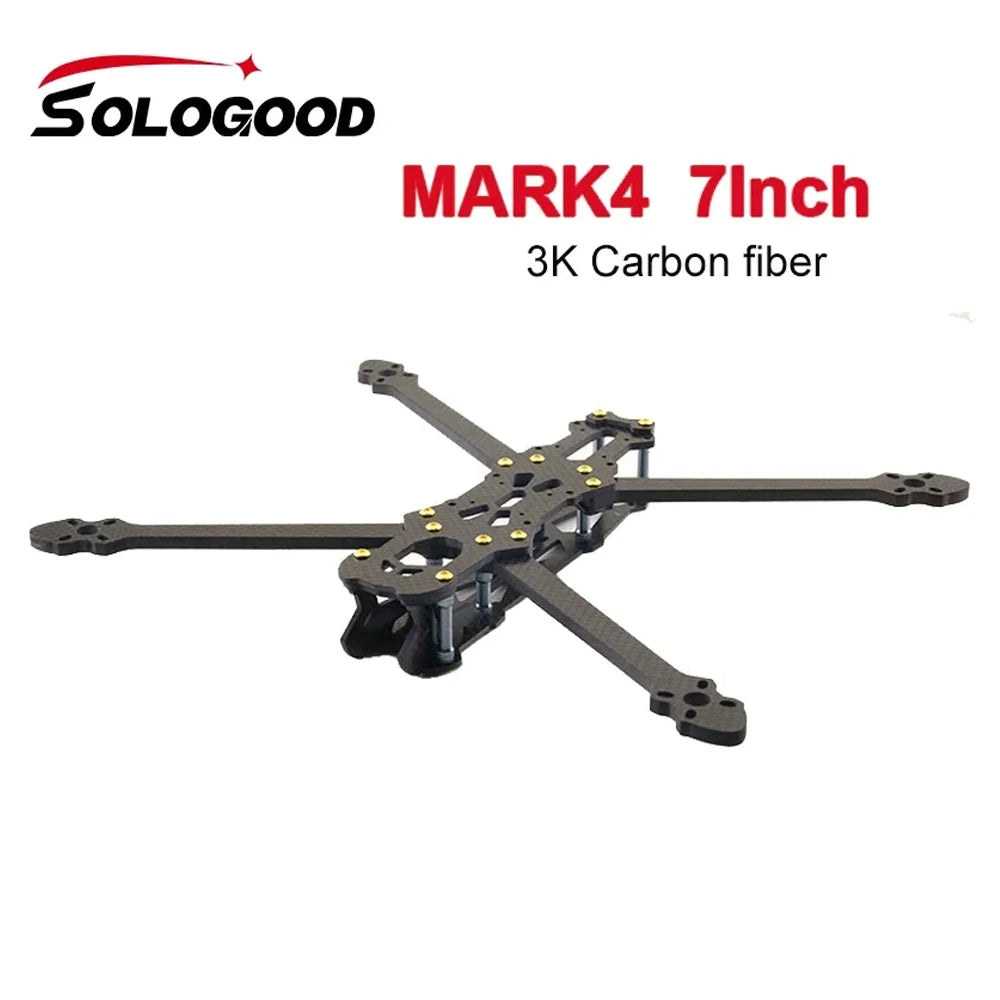

Item name: SoloGood MARK4 7inch
Material : 3K Carbon Fiber
Wheelbase:295mm
Arm thickness: 5MM
Upper center board: 2MM
Lower center plate: 3MM
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
FC mounting hole: 30.5mm x 30.5mm/20mm x 20mm
VTX mounting hole: 30.5mm x 30.5mm/20mm x 20mm
Camera mounting hole: 19mm-20mm
Propeller: 7 inch propeller
weight: about 120g
Brand Name: SoloGood

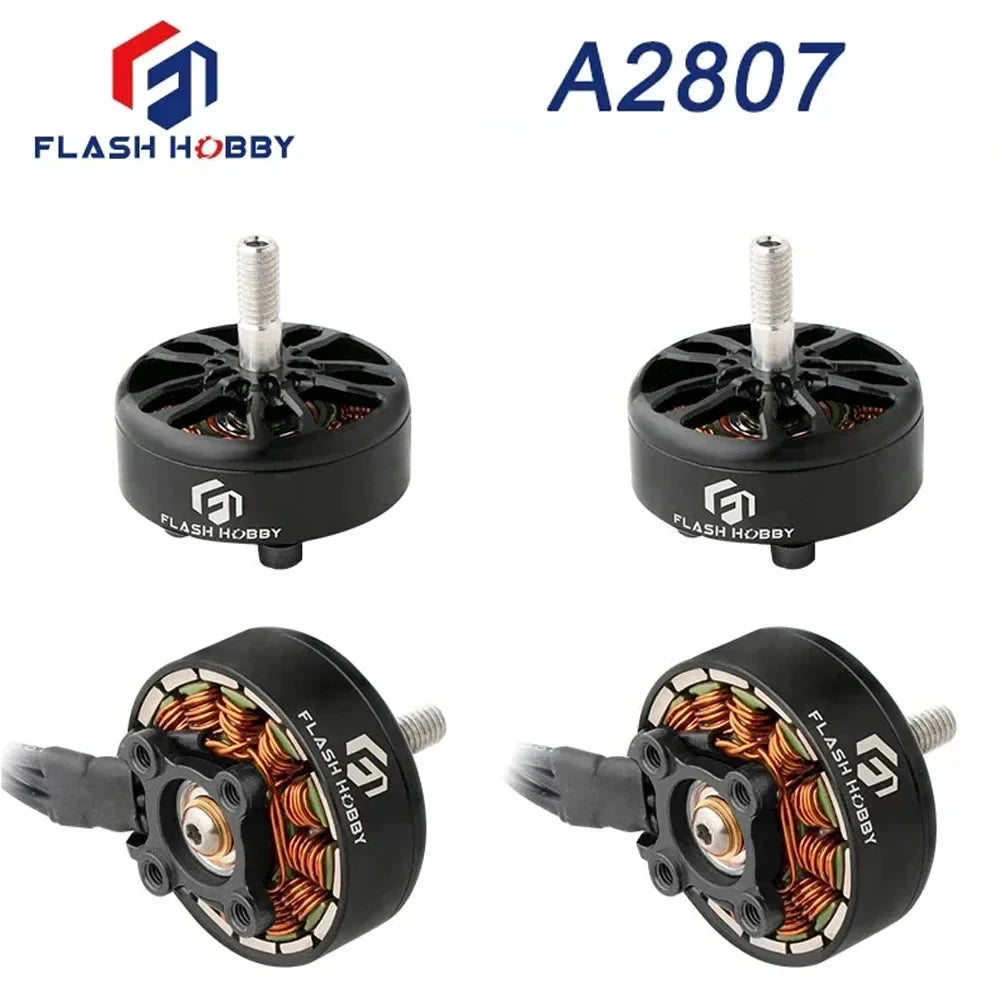

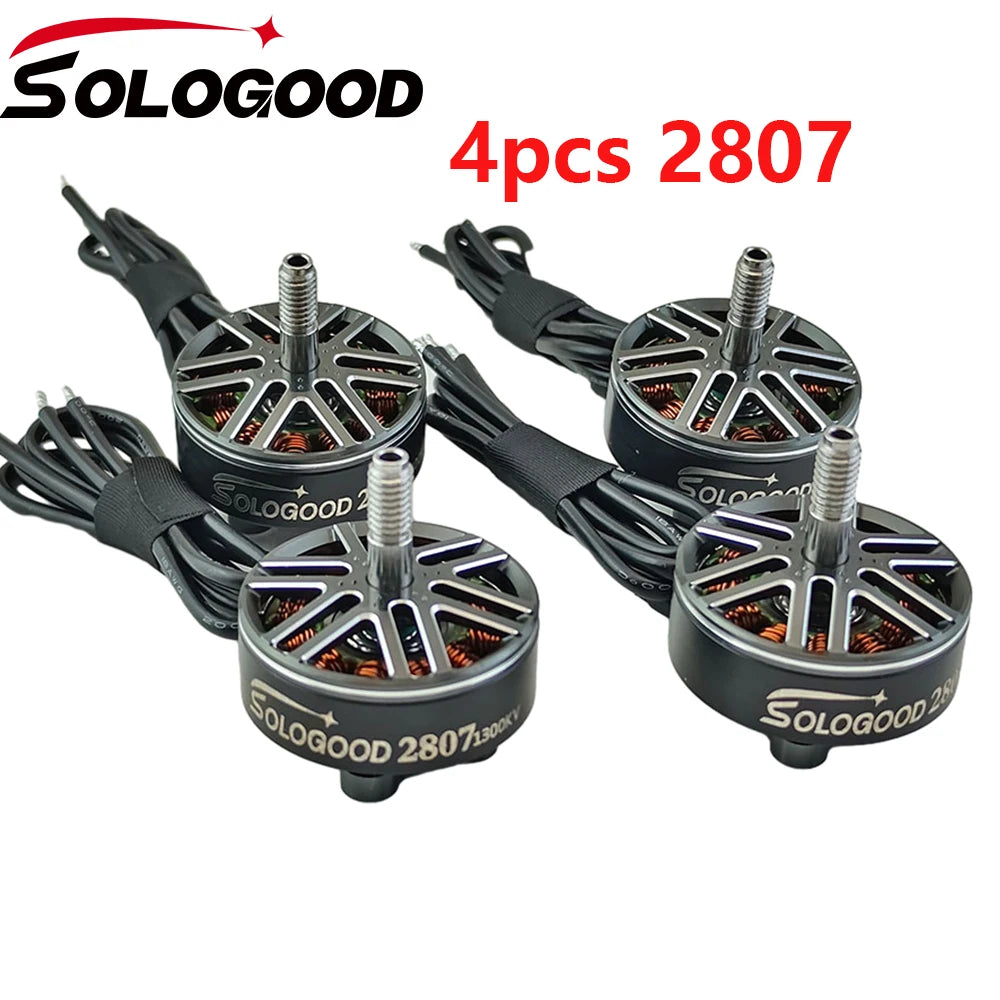

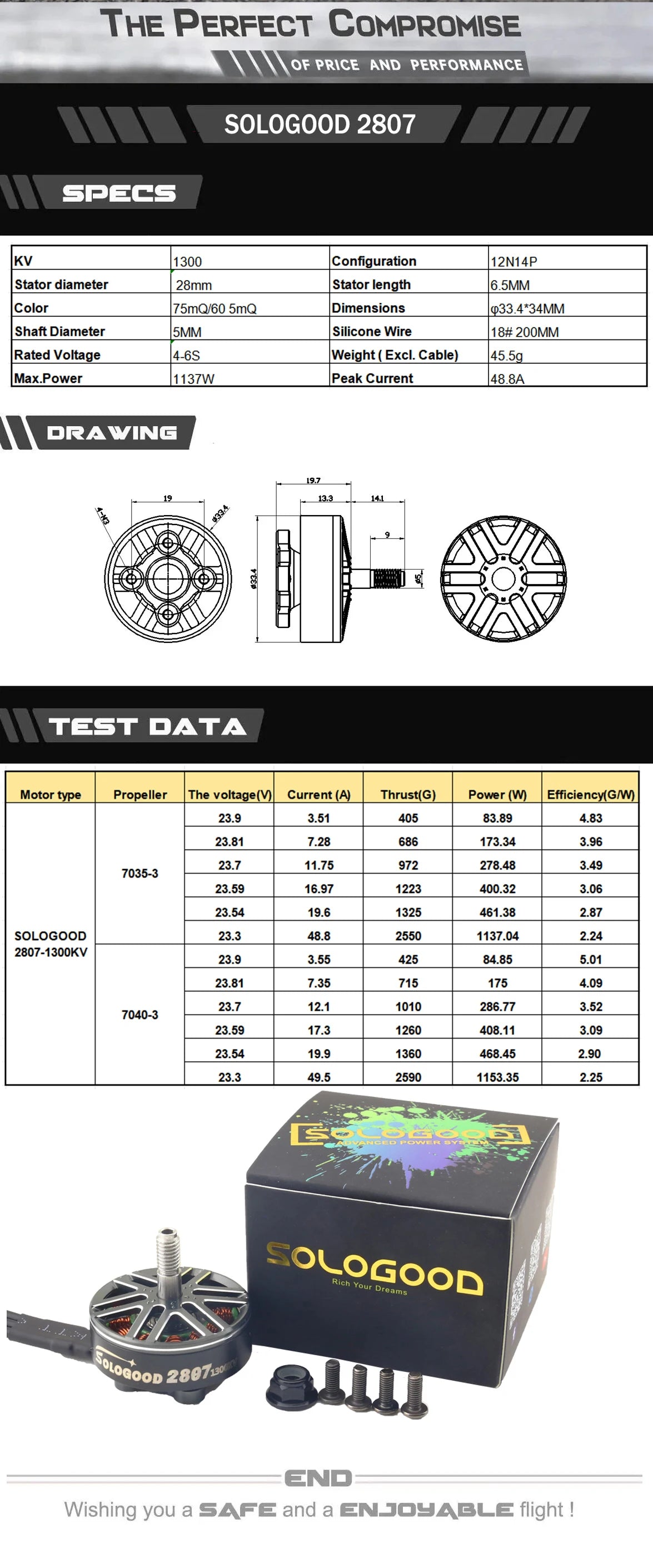

Model: 2807 1300KV
Configu-ration: 12N14P
Stator diameter: 28mm
Stator length: 6.5mm
Shaft diameter: 5mm
Motor Dimension: φ33.4*34mm
Weight: 45.5g/pc (200mm wire)
No. of cells (Lipo): 4~6S
Mounting hole: 3MM 19X19MM
Matching suggestion: 6S LIPO, GF7037-3 or GF7035-3

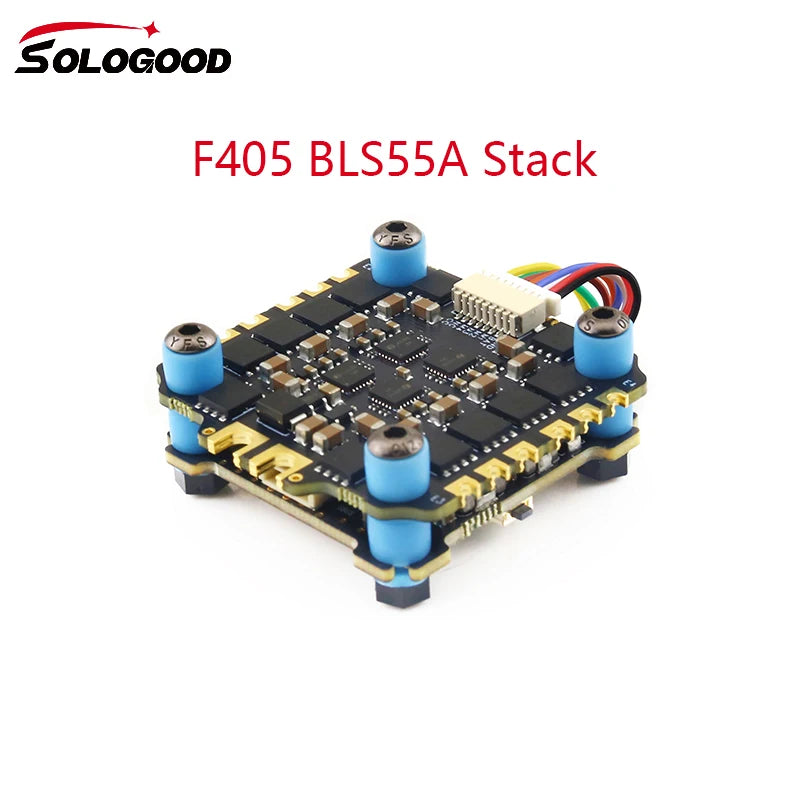

SoloGood F405 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g

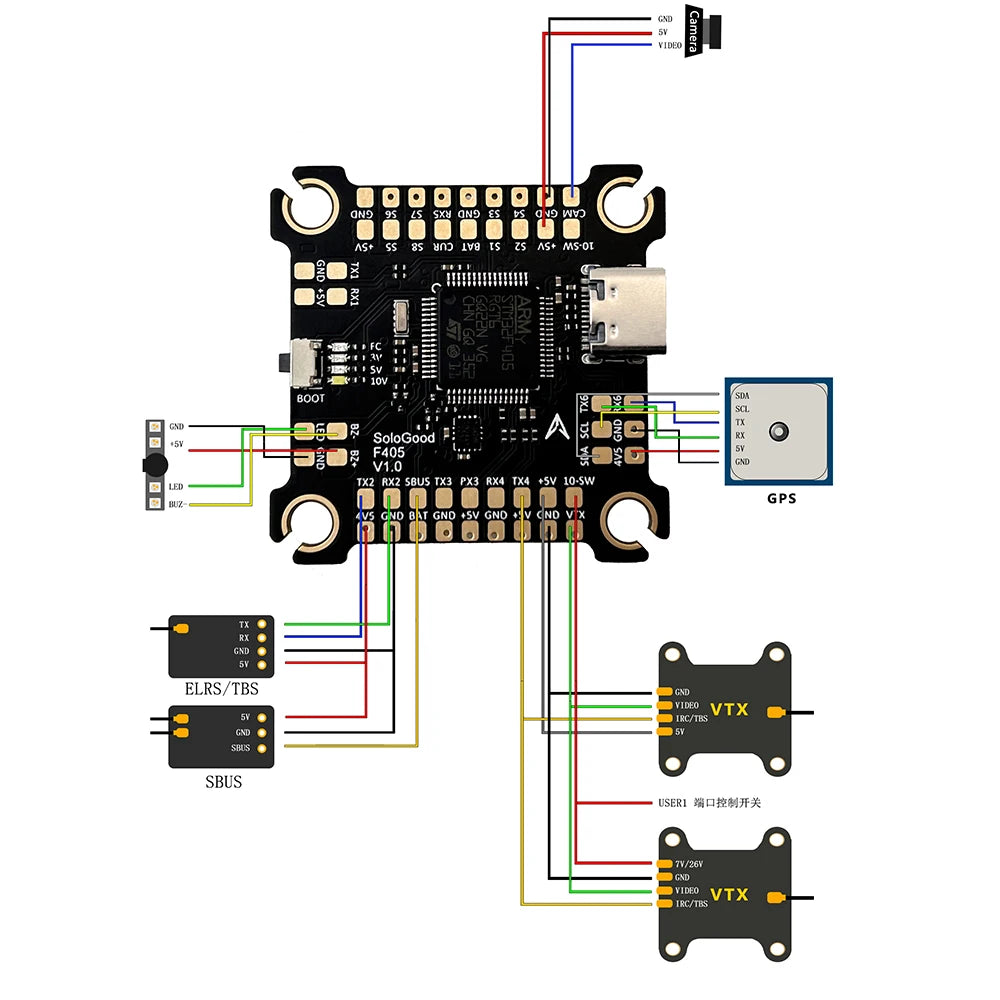

FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8

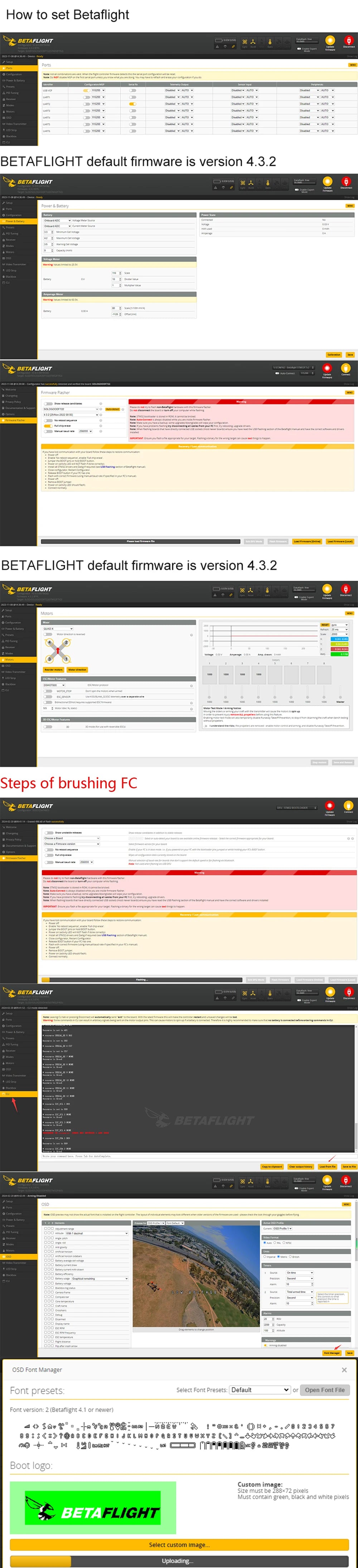

Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
Sologood BLS55A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 55A
Maximum current 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
