Description
Buy FPV drone stacks wholesale,pls click Tel：+86 1599973610（whatsapp/wechat）
For INAV firmware 8.0 version， pls get them on this google link:
https://drive.google.com/file/d/18Oy4F9V97E0qC7jwUlkkTnGLG8i8jWTM/view?usp=sharing

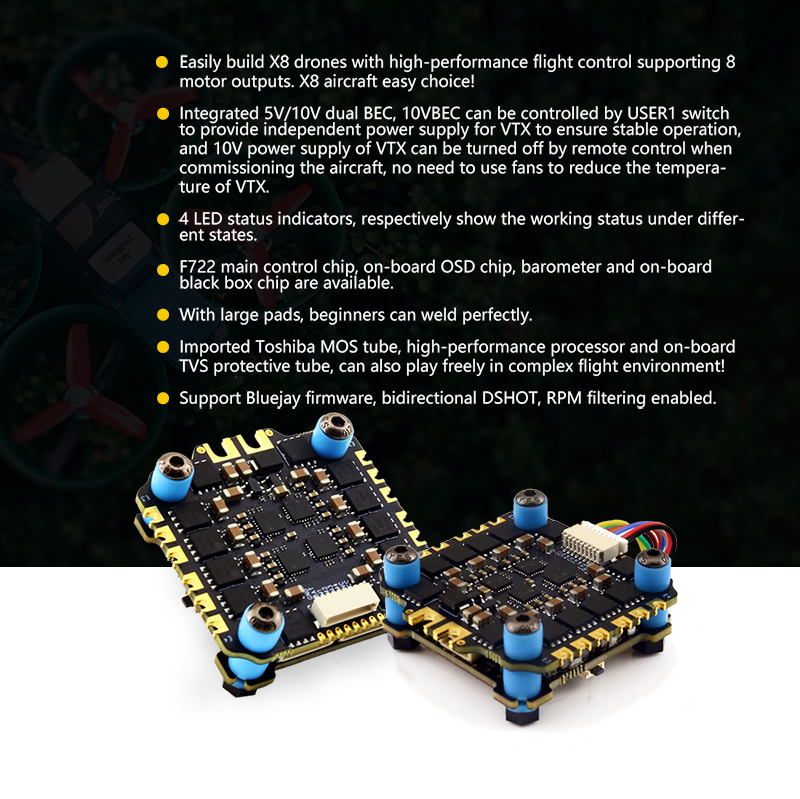

Features:

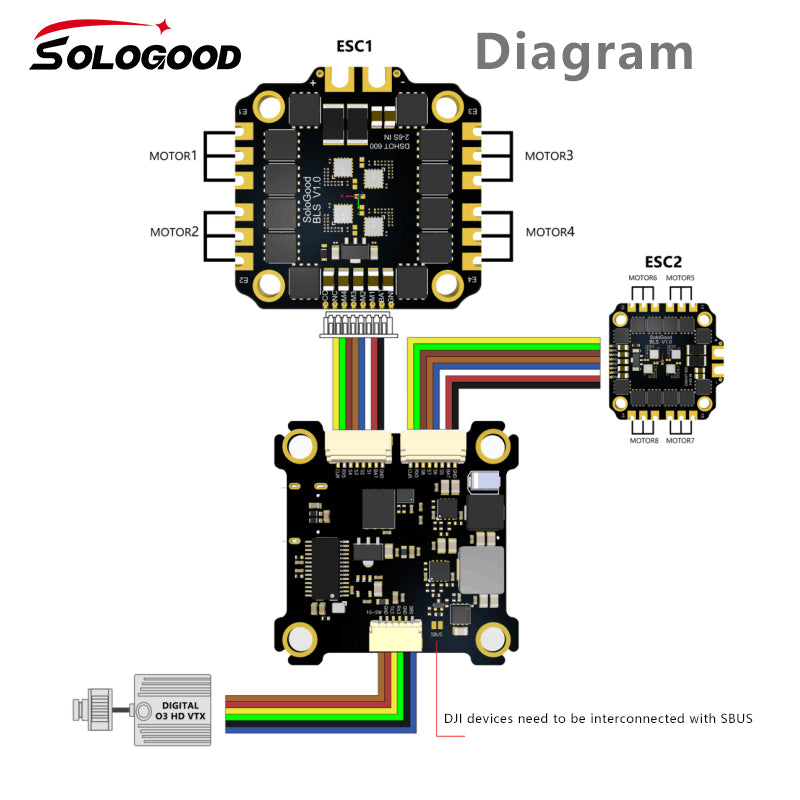

- Support up to 8 motor outputs to easily build X8 drones.
-
Integrated 5V/10V dual BEC ensures stable operation
-
Four LED status indicators display the working status under different states.
-
Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.
-
The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.

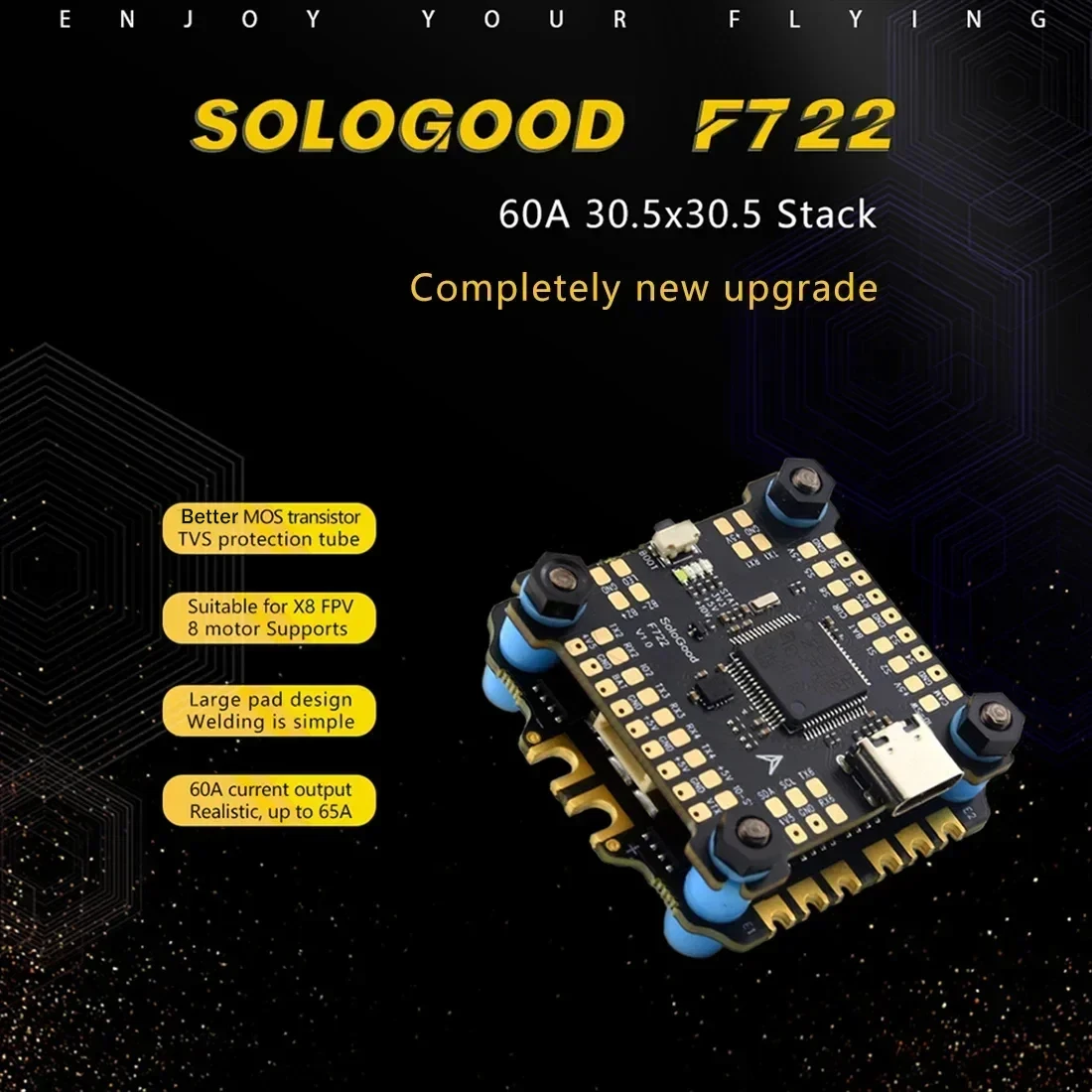

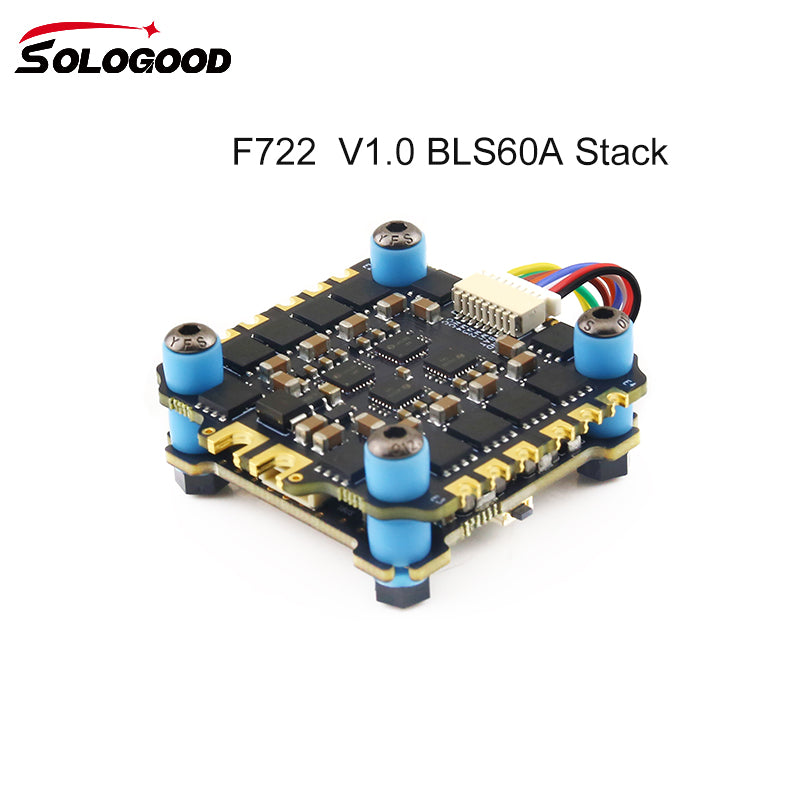

SoloGood 6S F722 Stack:
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g

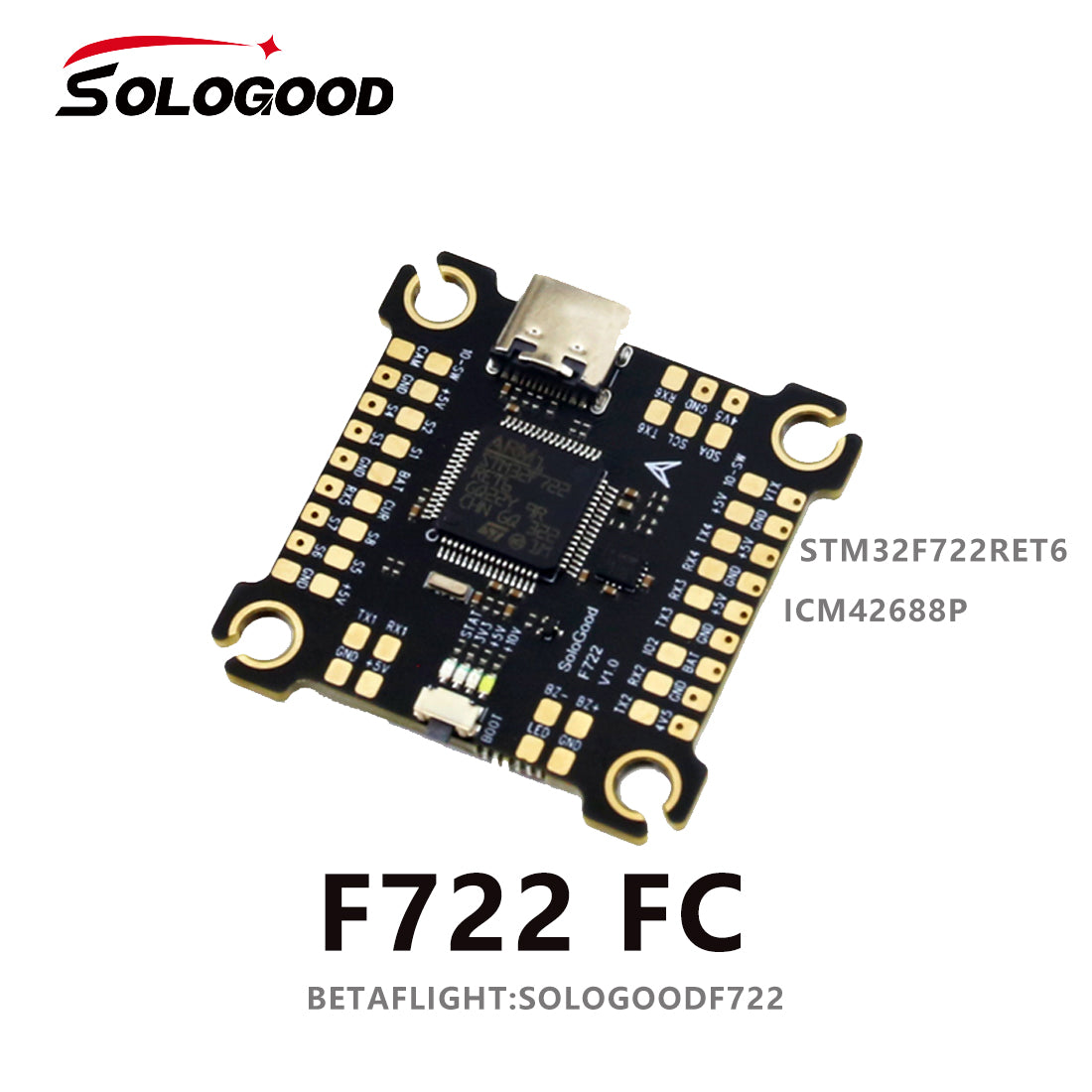

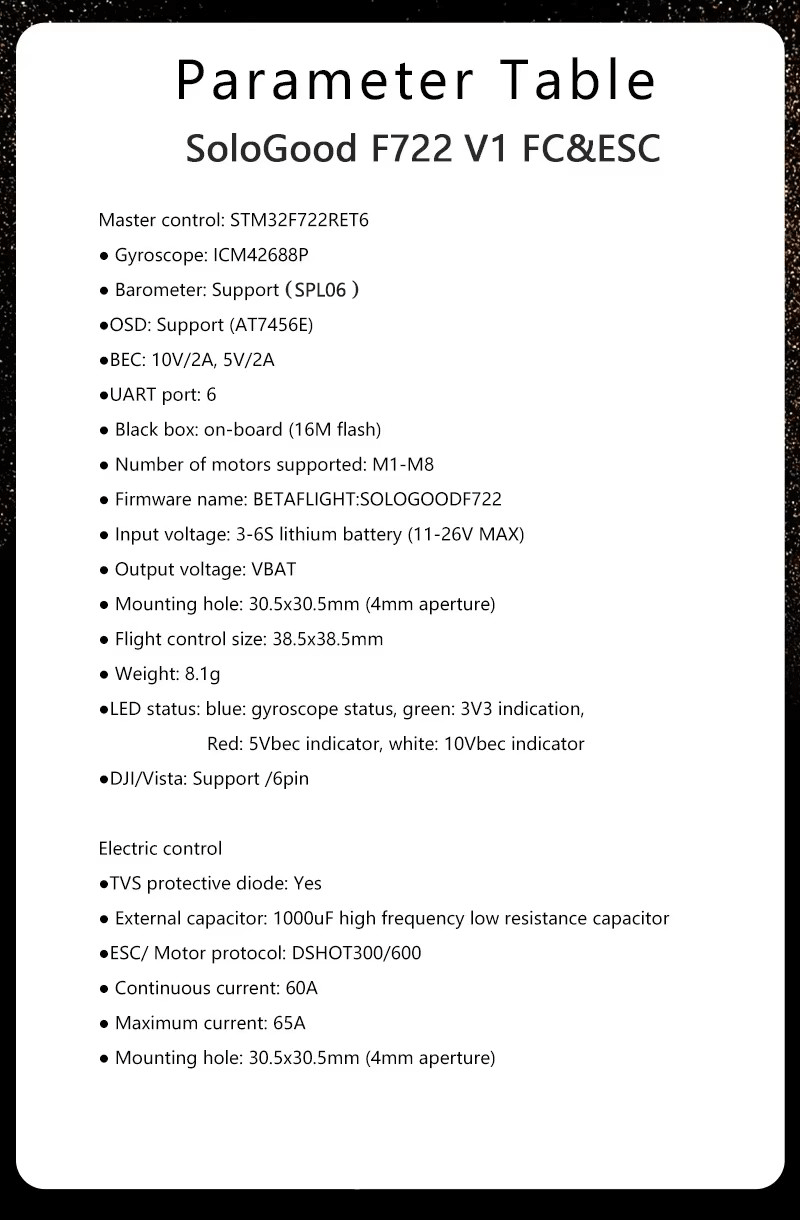

FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support ( SPL06 )
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes

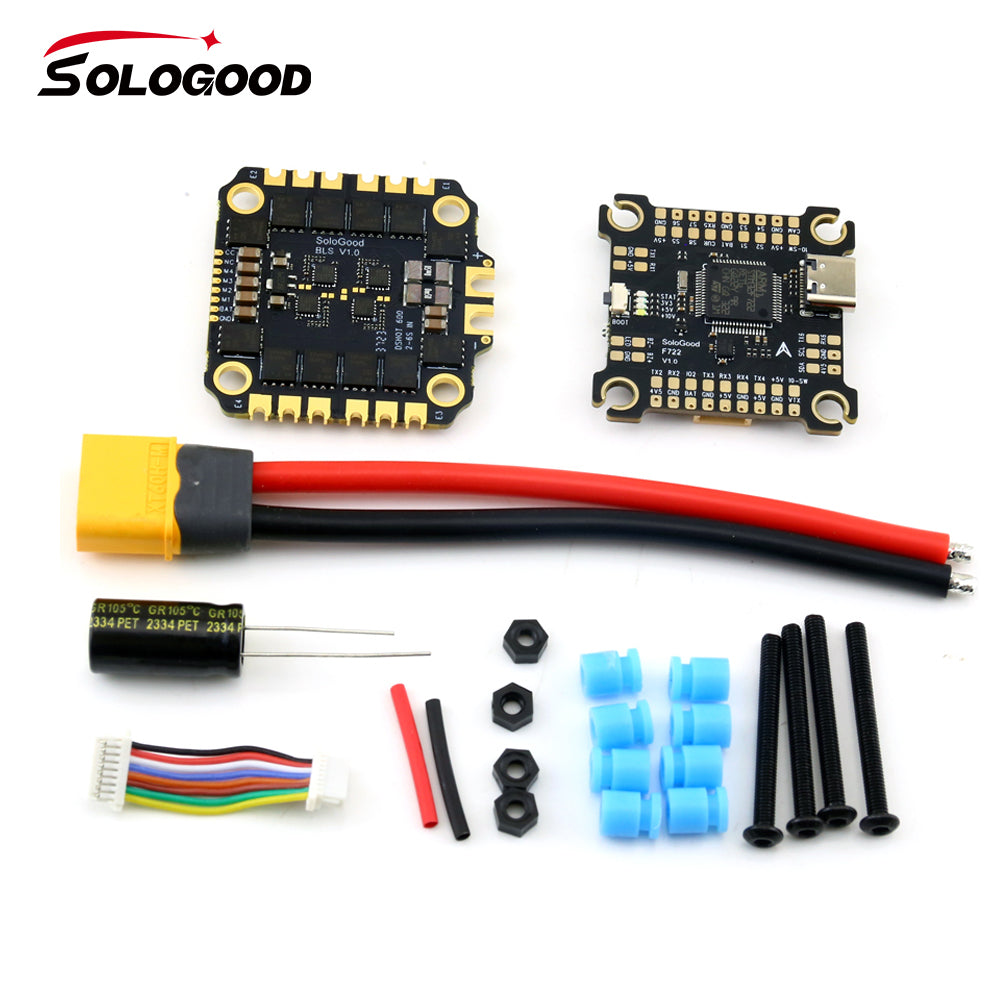

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)

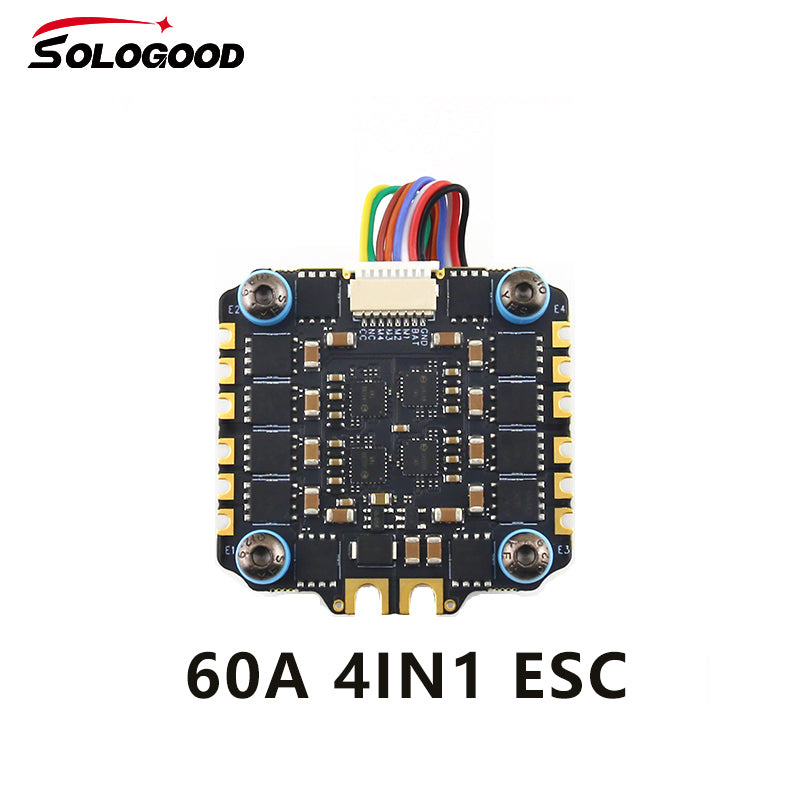

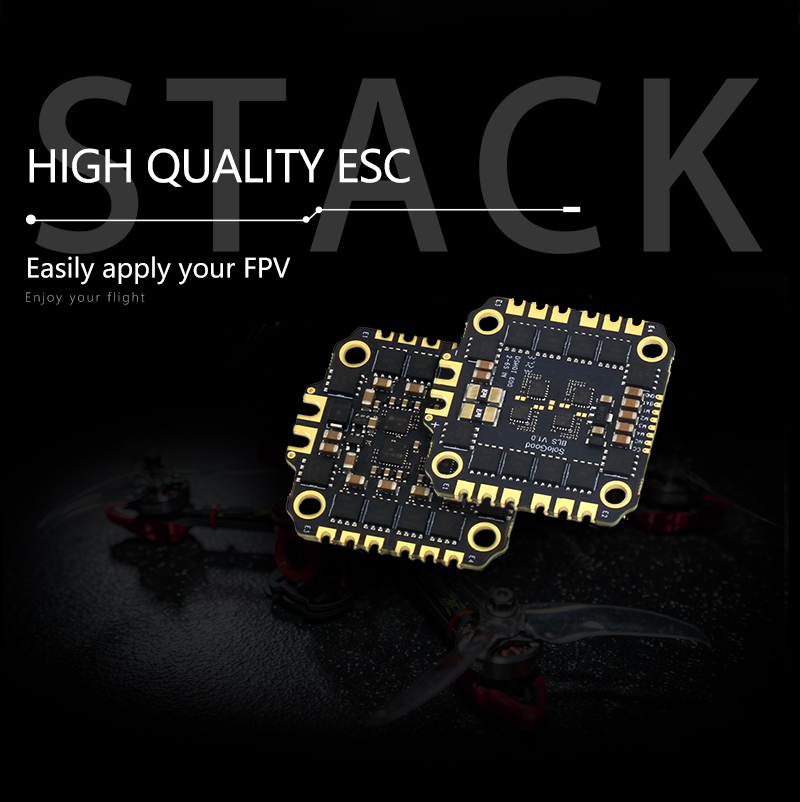

Sologood BLS60A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 60A
Maximum current 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
FAQ:
- Does this F722 stack support INAV firmware? --- YES
- Can I turn off 10V VTX power via remote switch?---YES
- Is the stack compatible with 5/7/8/9/10 inch FPV frames? ---YES
