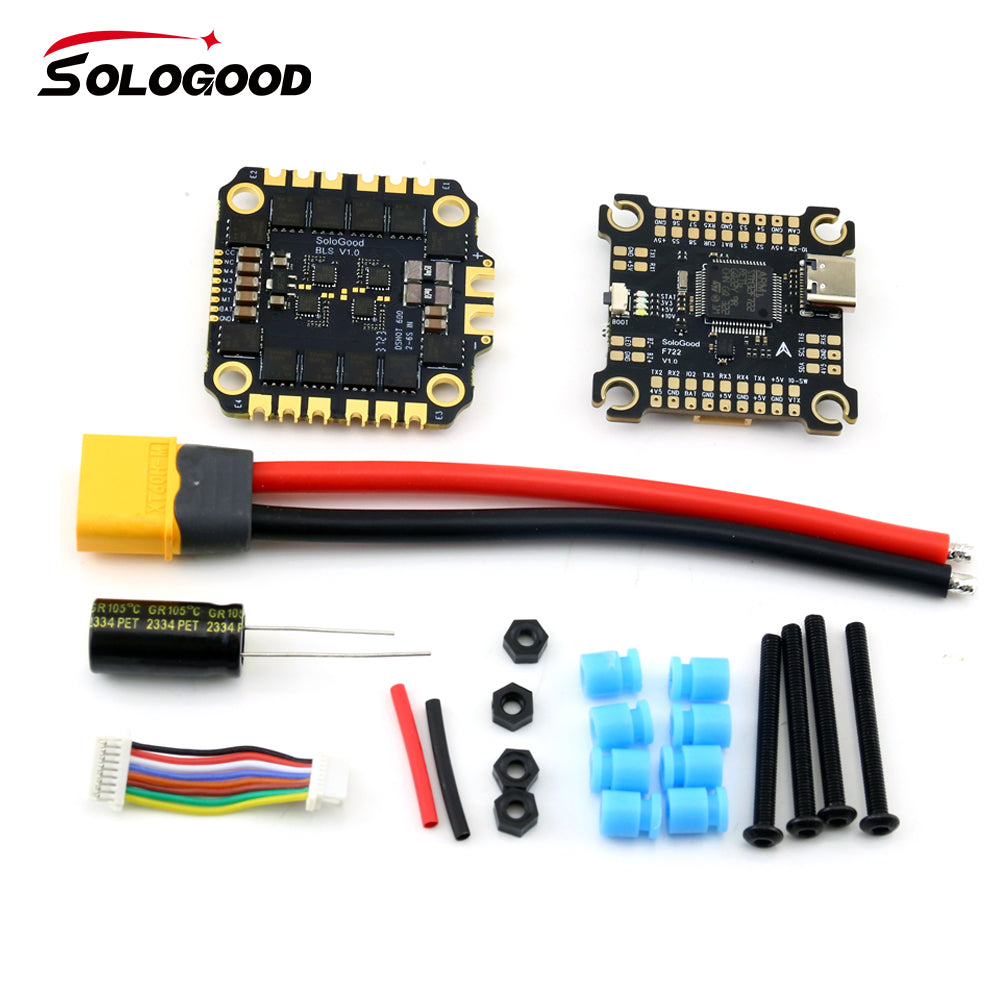

SoloGood F722 Stack ICM42688P F722 Flight Controller BLHELI_S 60A 4in1 ESC 30.5X30.5mm 2-6S

SoloGood F722 Stack ICM42688P F722 Flight Controller BLHELI_S 60A 4in1 ESC 30.5X30.5mm 2-6S

$59.99 USD
$119.00 USD $59.99 USD
Sale Sold out
Taxes included.
Color

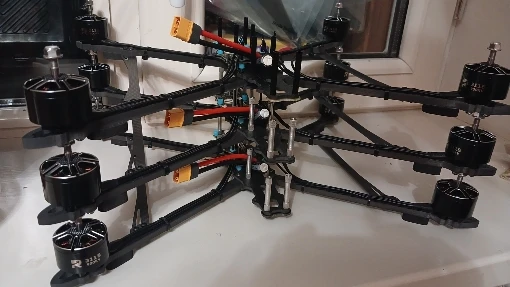

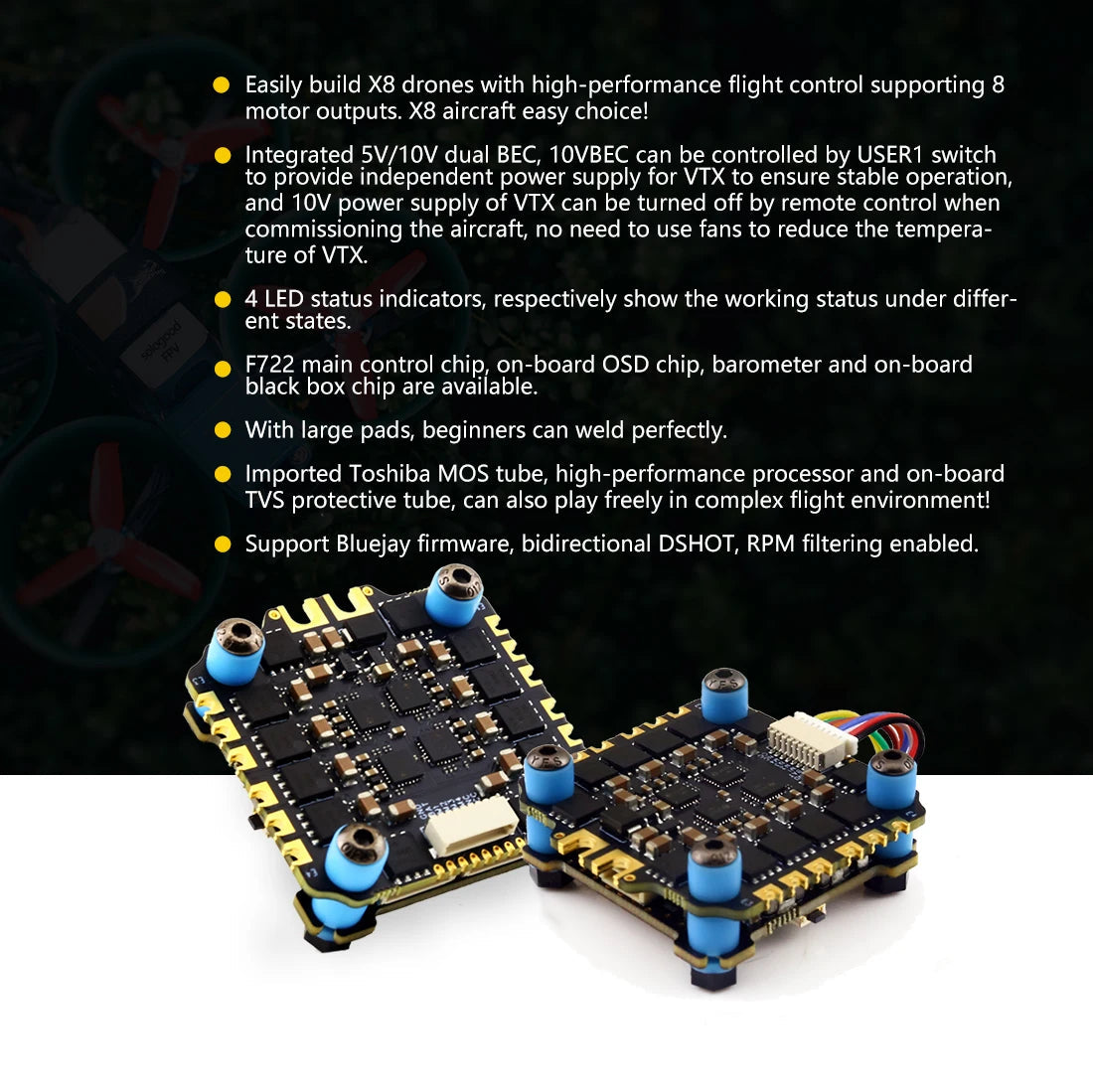

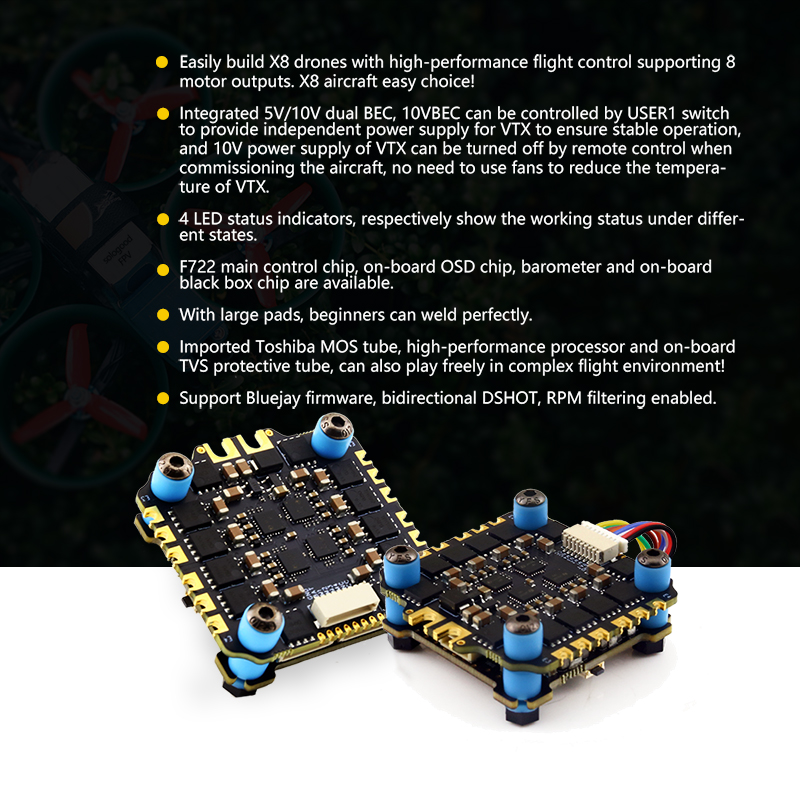

  • Support up to 8 motor outputs to easily build X8 drones.

  • Integrated 5V/10V dual BEC ensures stable operation

  • Four LED status indicators display the working status under different states.

  • Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.

  • The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.

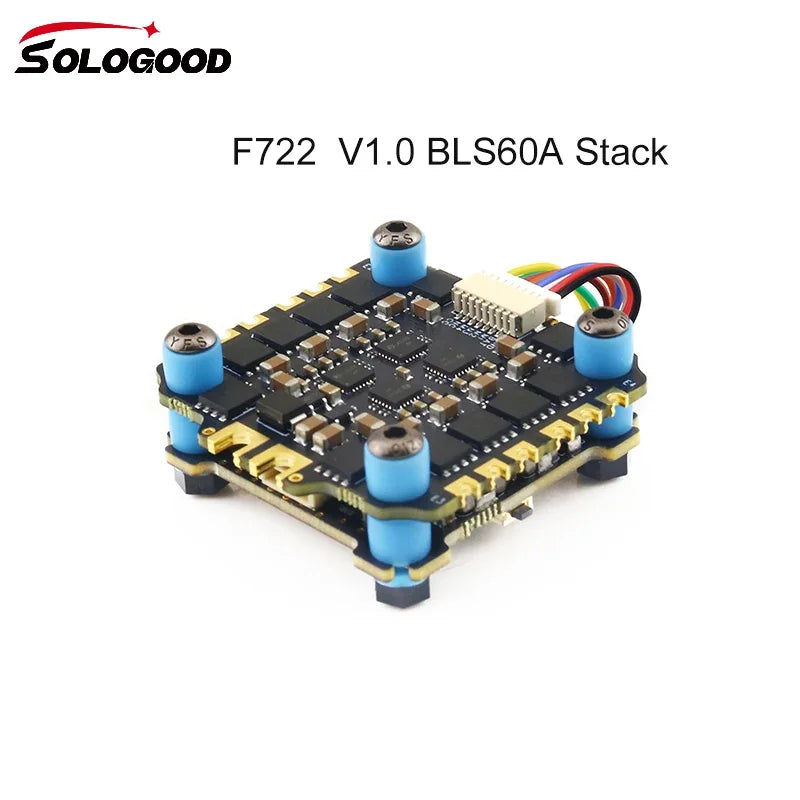

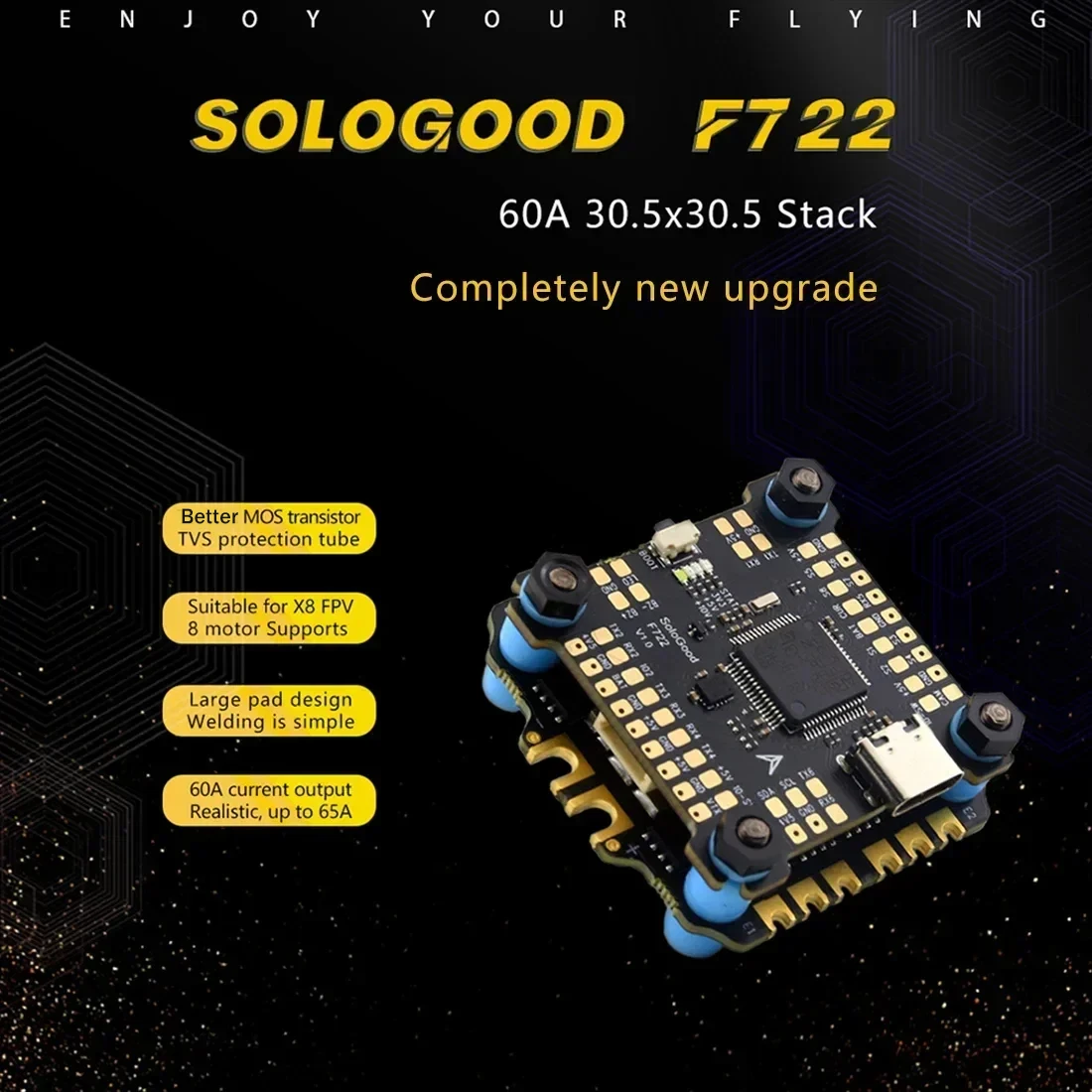

SoloGood F722 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g

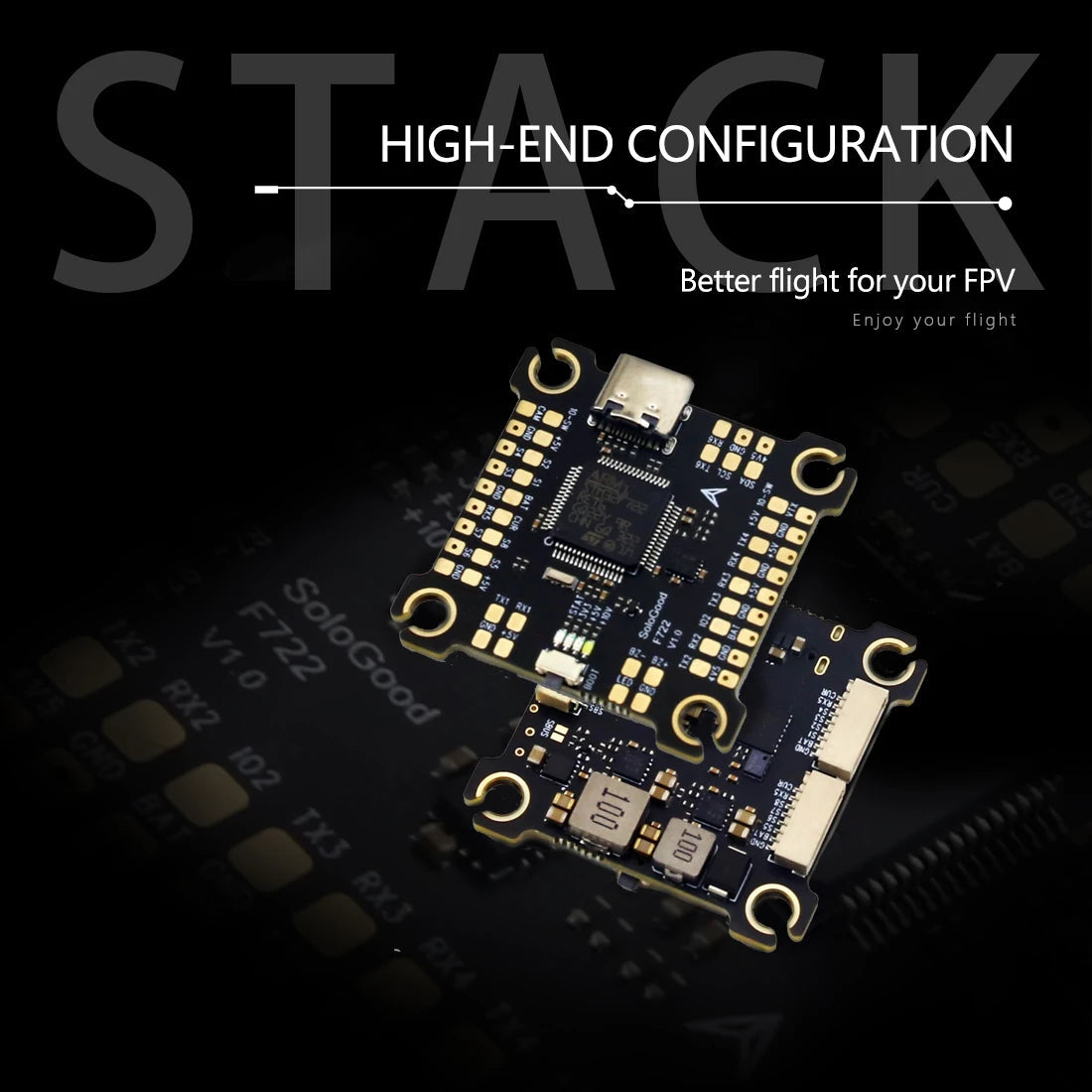

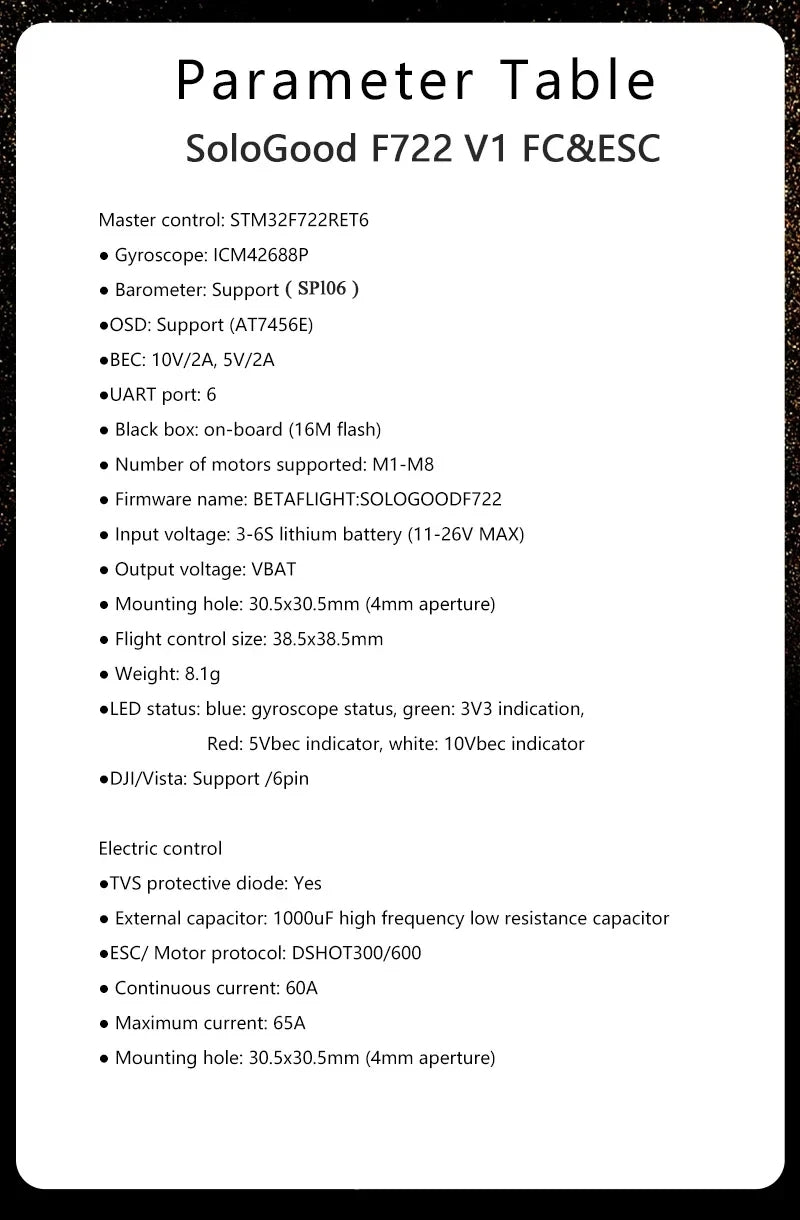

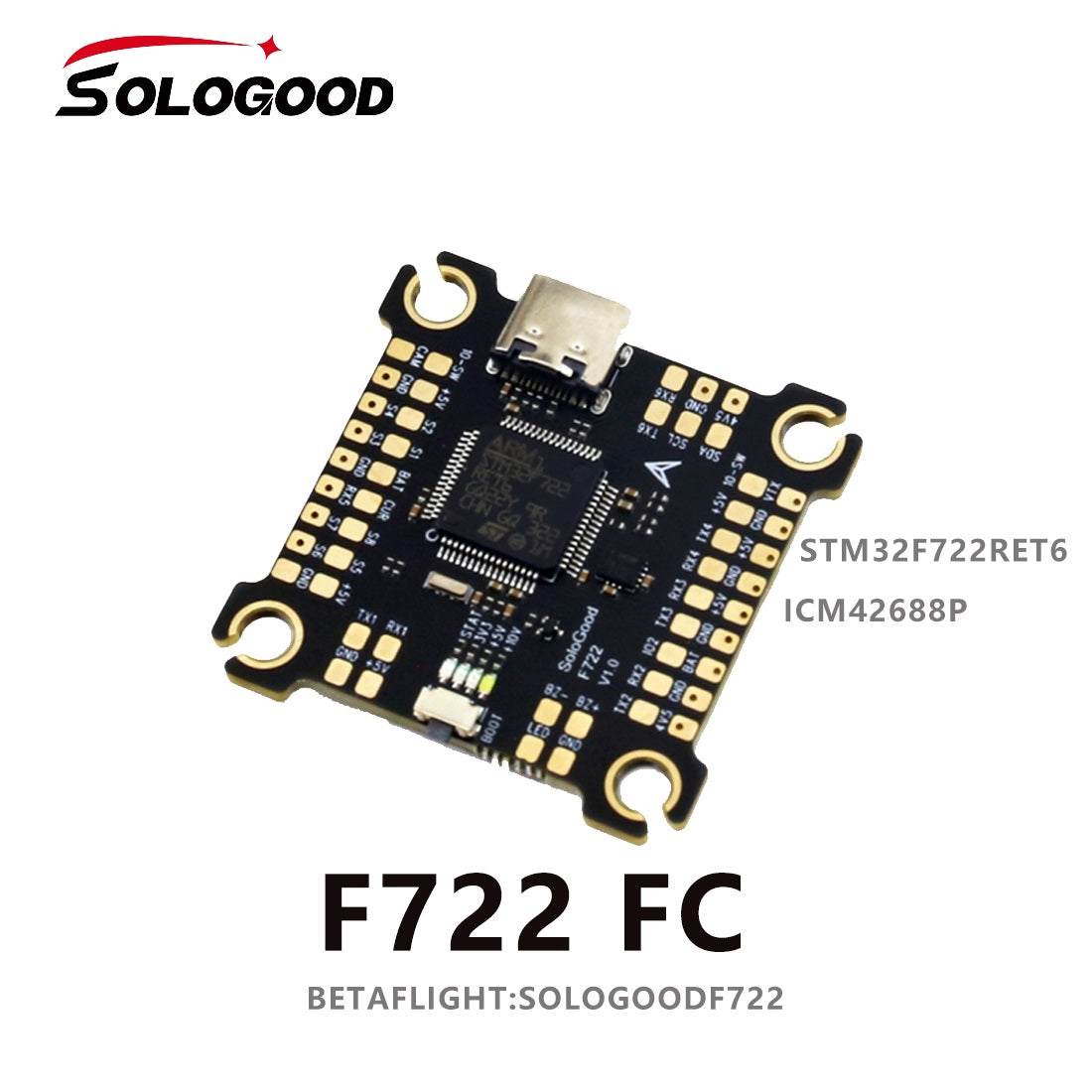

FC Specifications



Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support ( SPl06 )

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

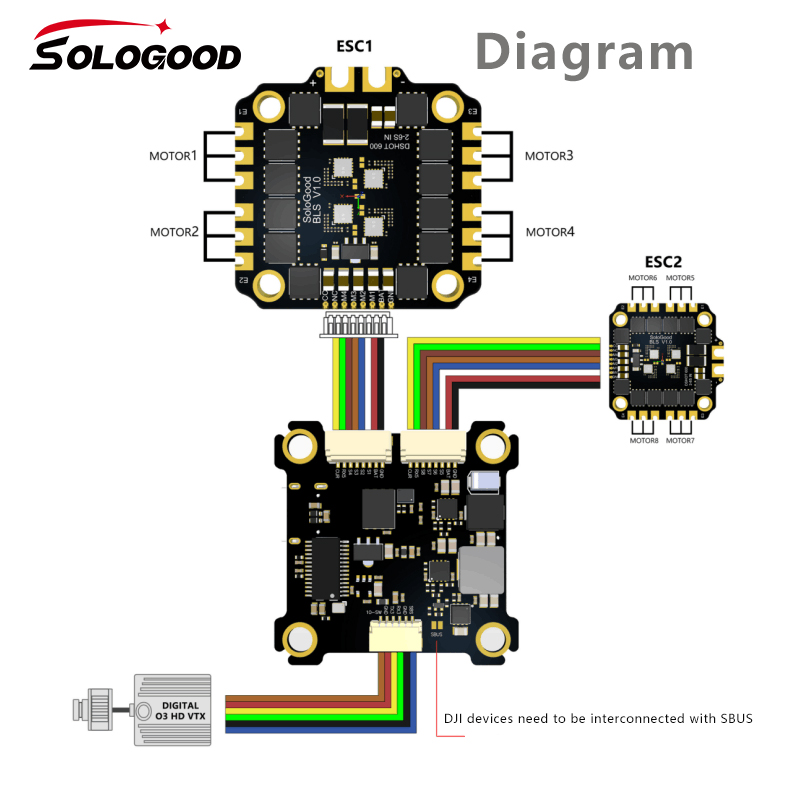

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

For more info about FC, pls scan this app

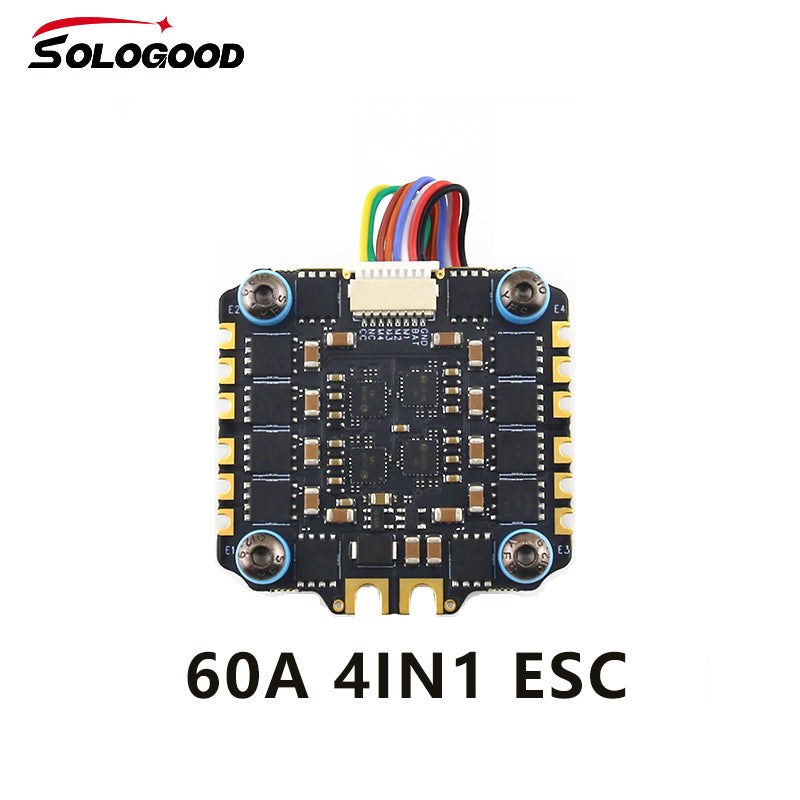

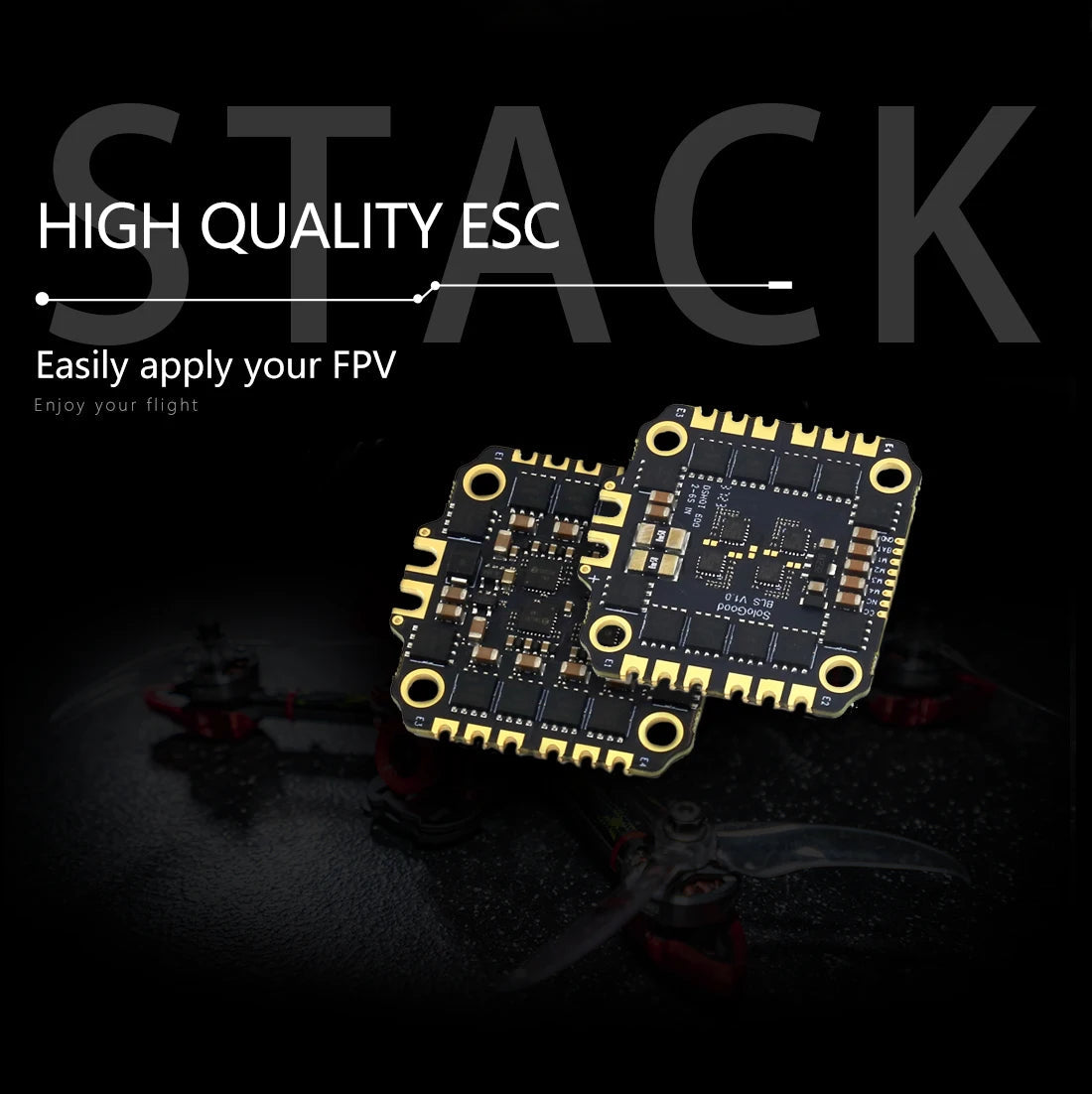

Sologood BLS60A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 60A

Maximum current 65A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

Installation hole position 30.5x30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g
