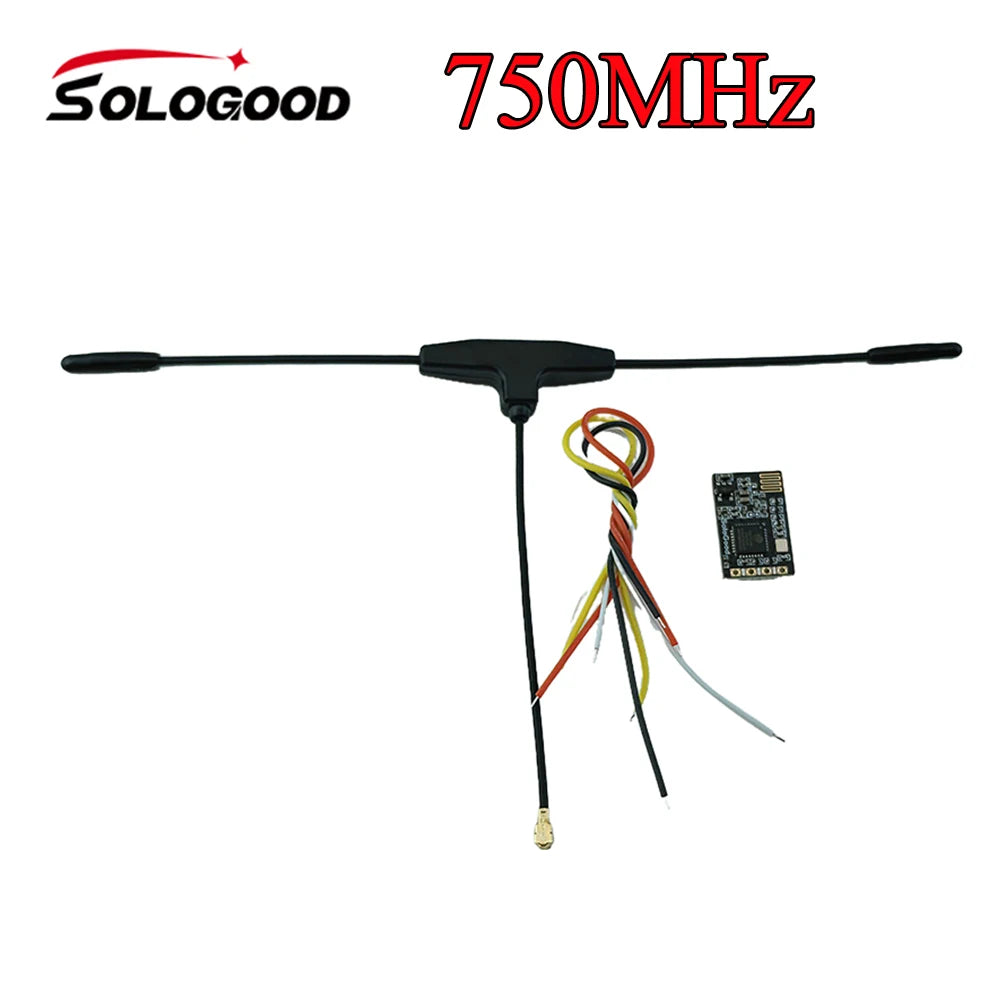

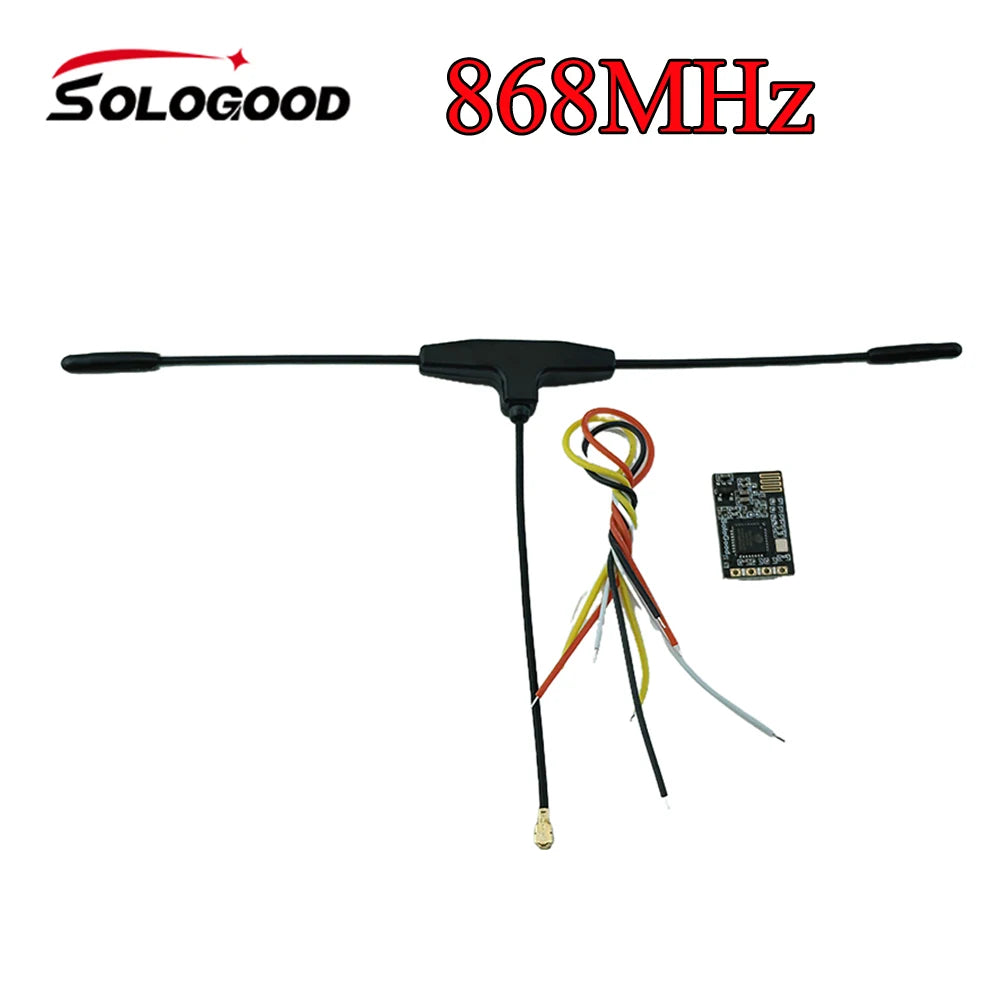

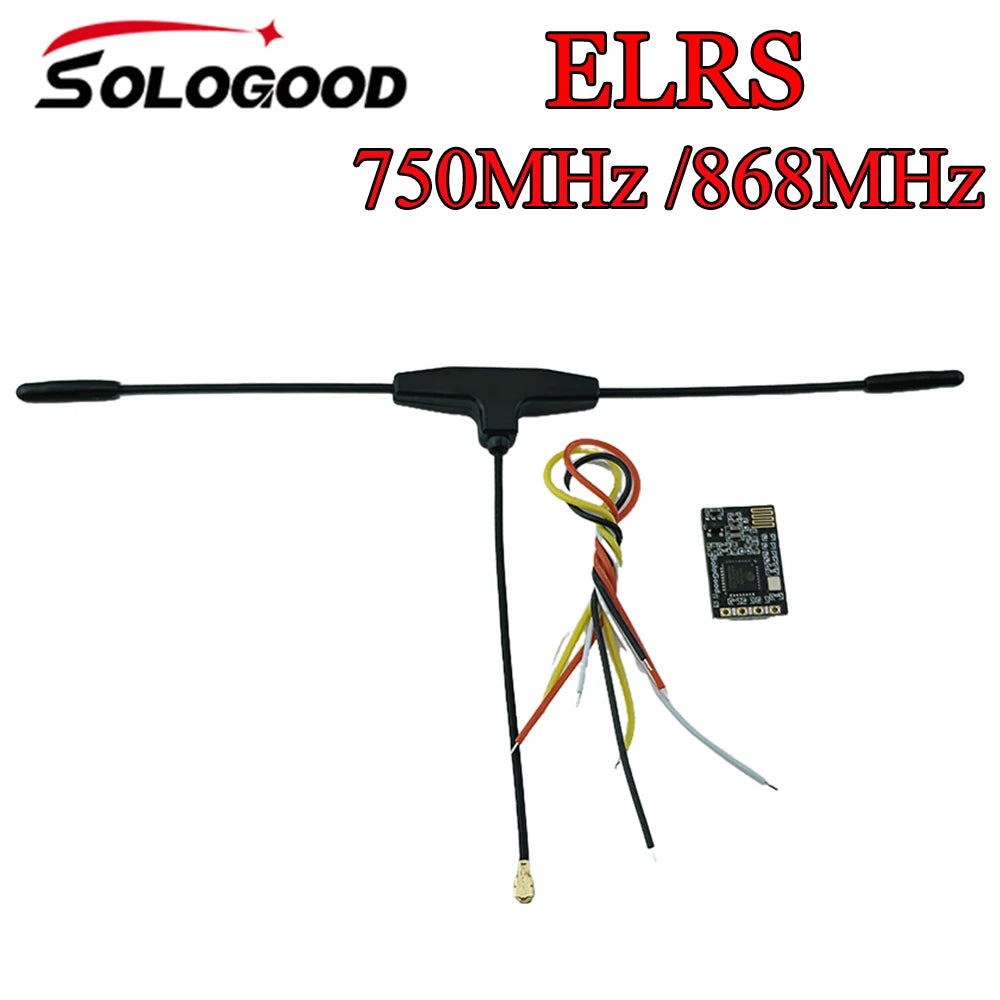

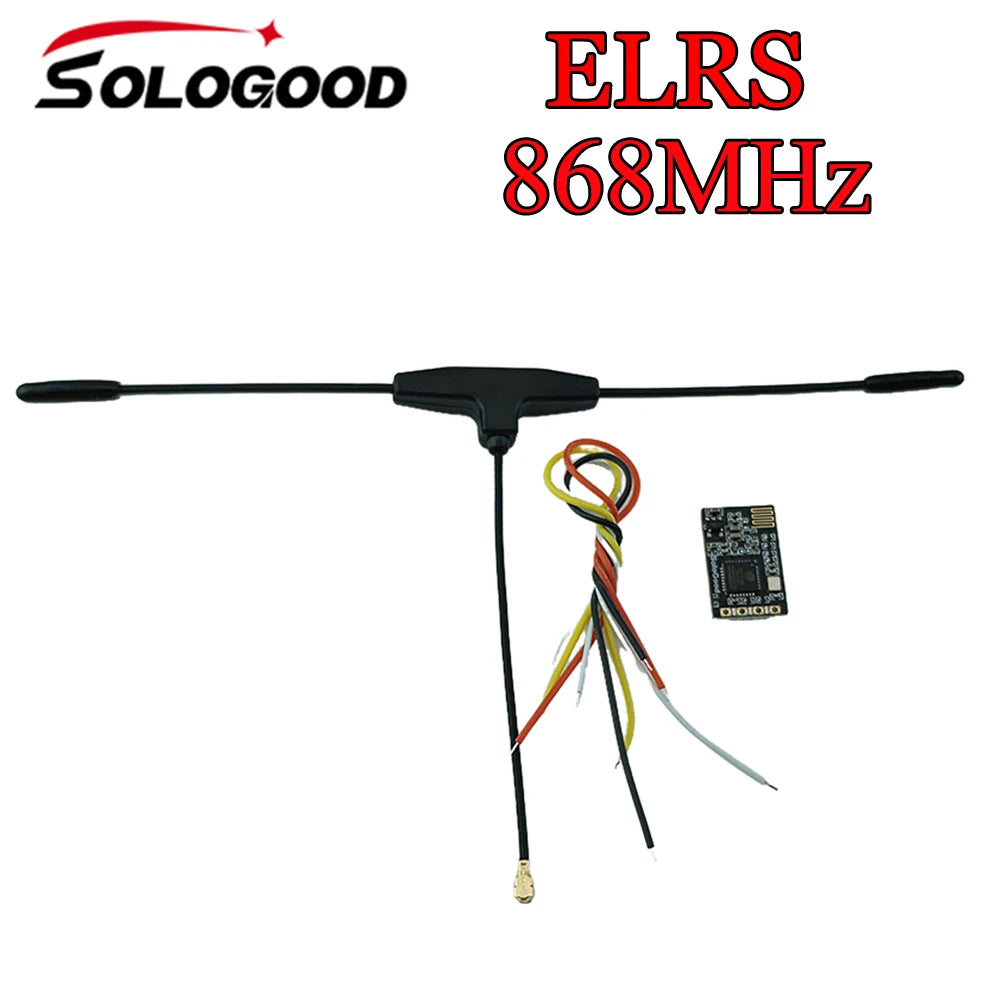

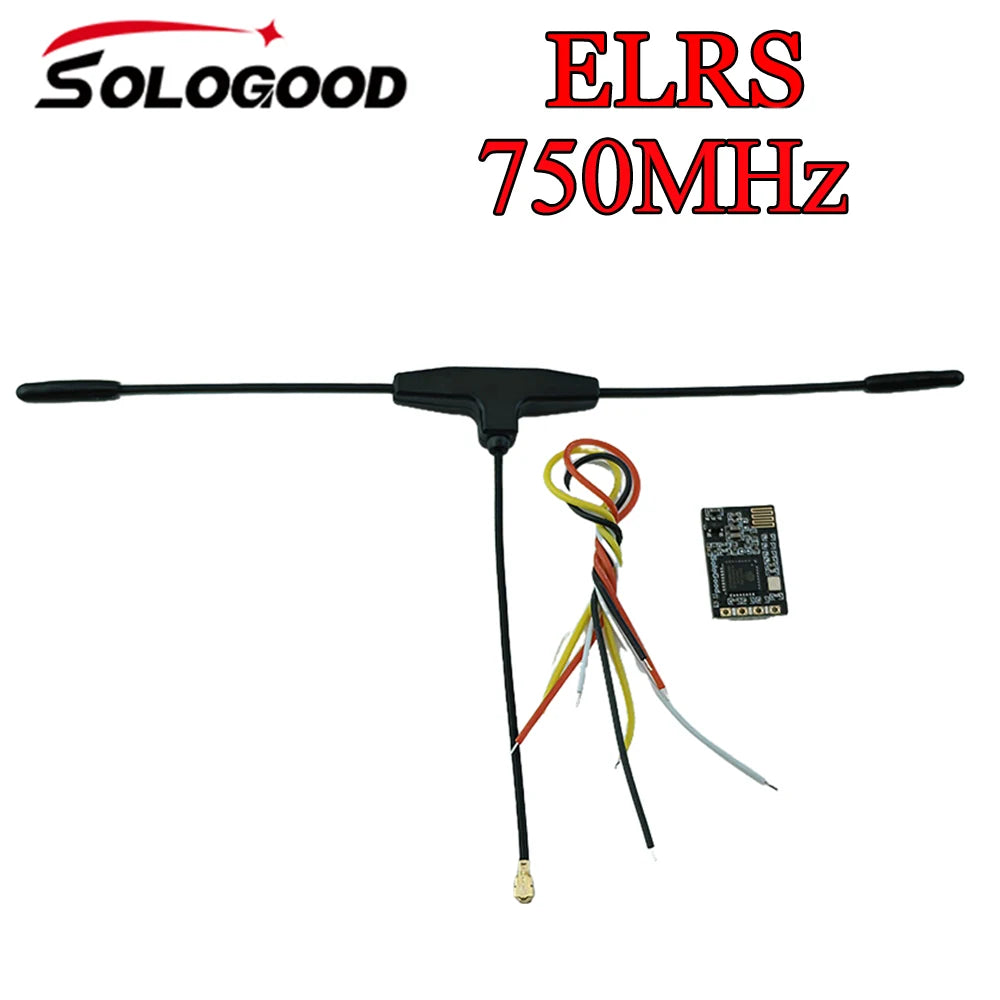

SoloGood ELRS 750MHz 868MHz Receiver With T type Antenn MCU ESP8285 50mW Telemetry Power for RC Racing Drone



Specifications

Designation:868MHz Rx

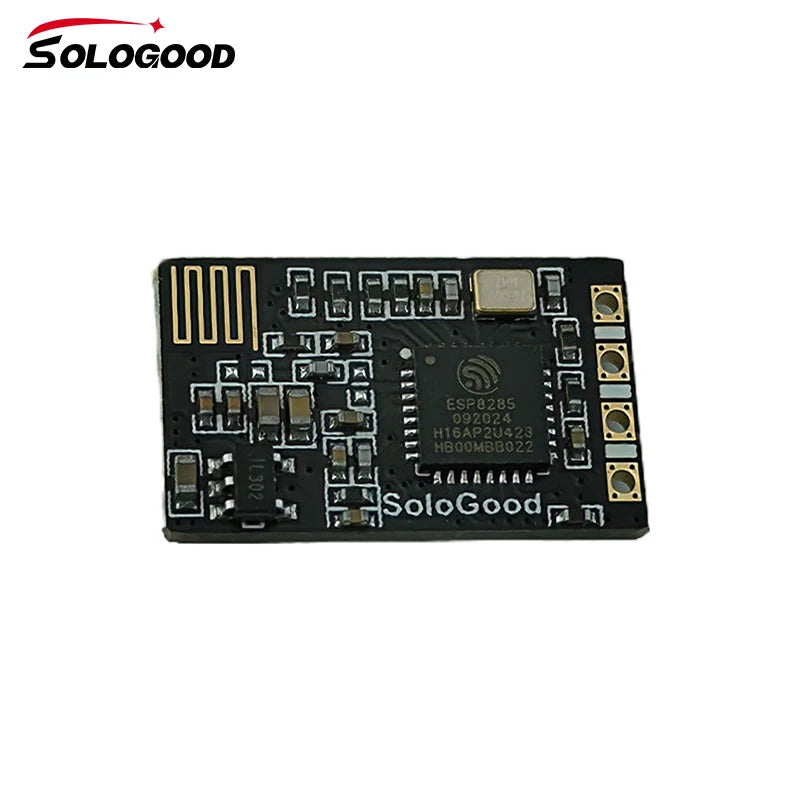

MCU:ESP8285

Antenna interface:IPEX 1

Telemetry power:Max 50mW

Frequency band: 865.2MHz-869.5MHz

Max Air Rate : 200Hz

Min Air Rate : 25Hz

Voltage range: 4.5-8V

Weight: 0.48g (No Antenna)

Size:10mm*12mm*3mm

Communication protocol:CRSF (Betaflight)

Product list:

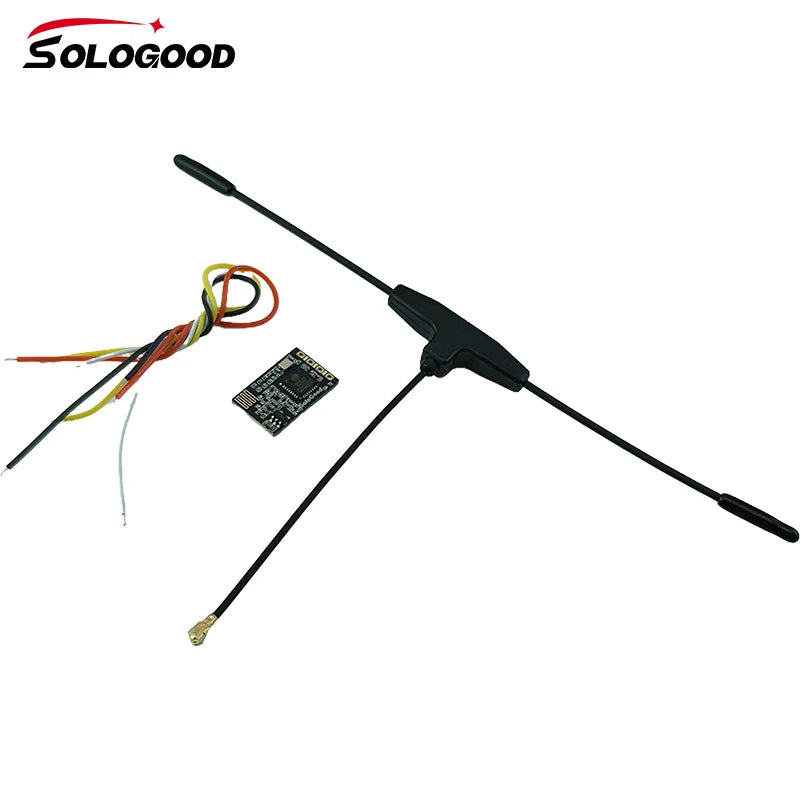

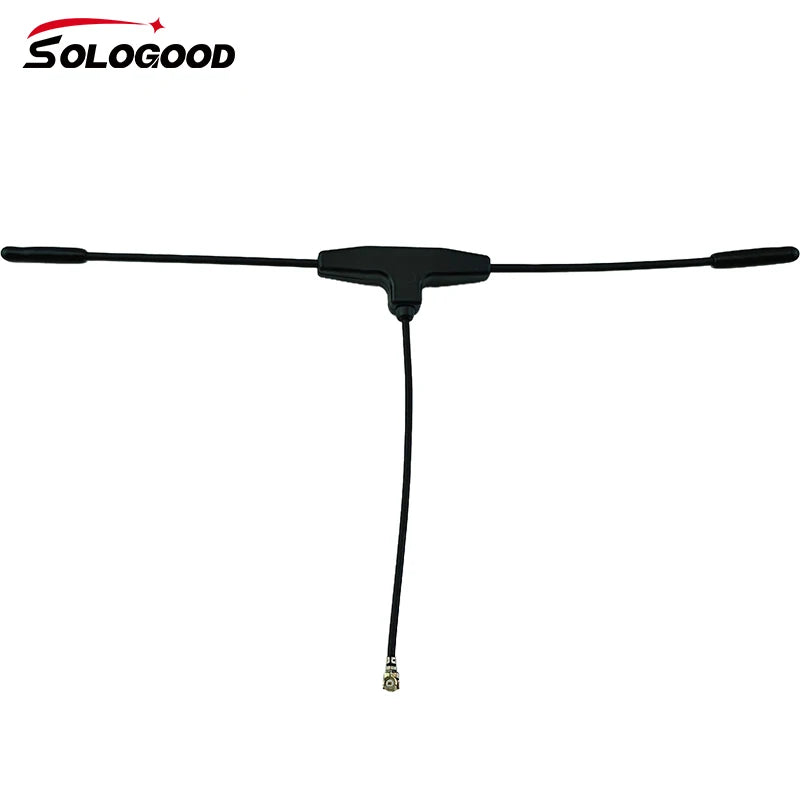

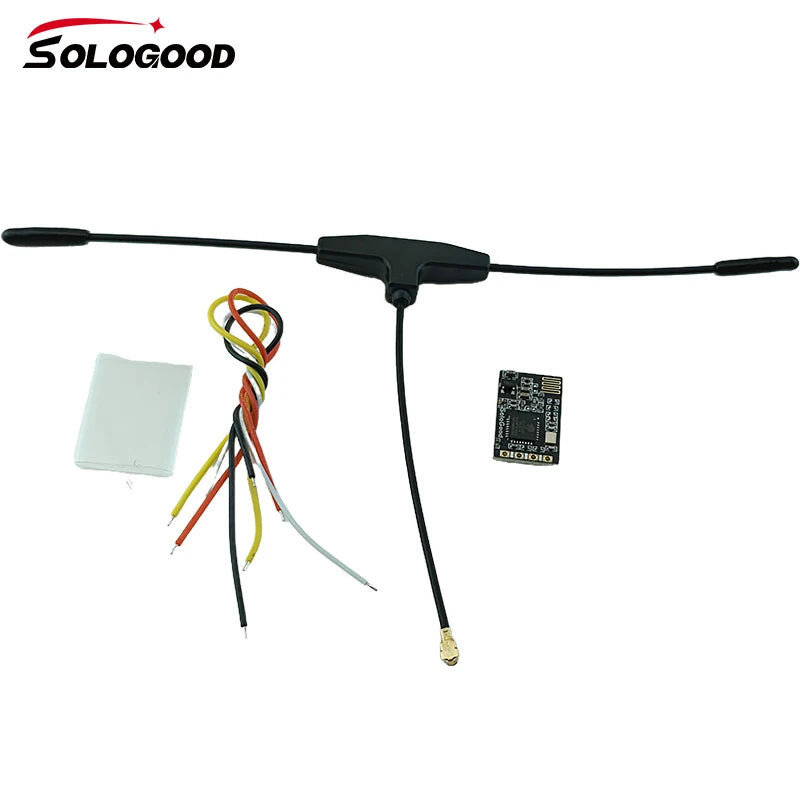

868MHz Rx*1,T Dipole antenna*1,30AWG Silicone Wire*4(BLlack,Red,Yellow,White),Transparent heat shrink tubing*1



LED Status:

    Slow blink 500ms on/off--Waiting for connection from transmitter

Fast blinking 25ms on/off--WiFi mode enabled

    Medium speed blink 100ms on/off--Radio chip not detected

Double blink then pause--Binding mode enabled

Triple blink then pause--Connected to transmitter but mismatched model-match

                       configuration

Solid on--Connected to a transmitter, or bootloader mode enabled
