Description

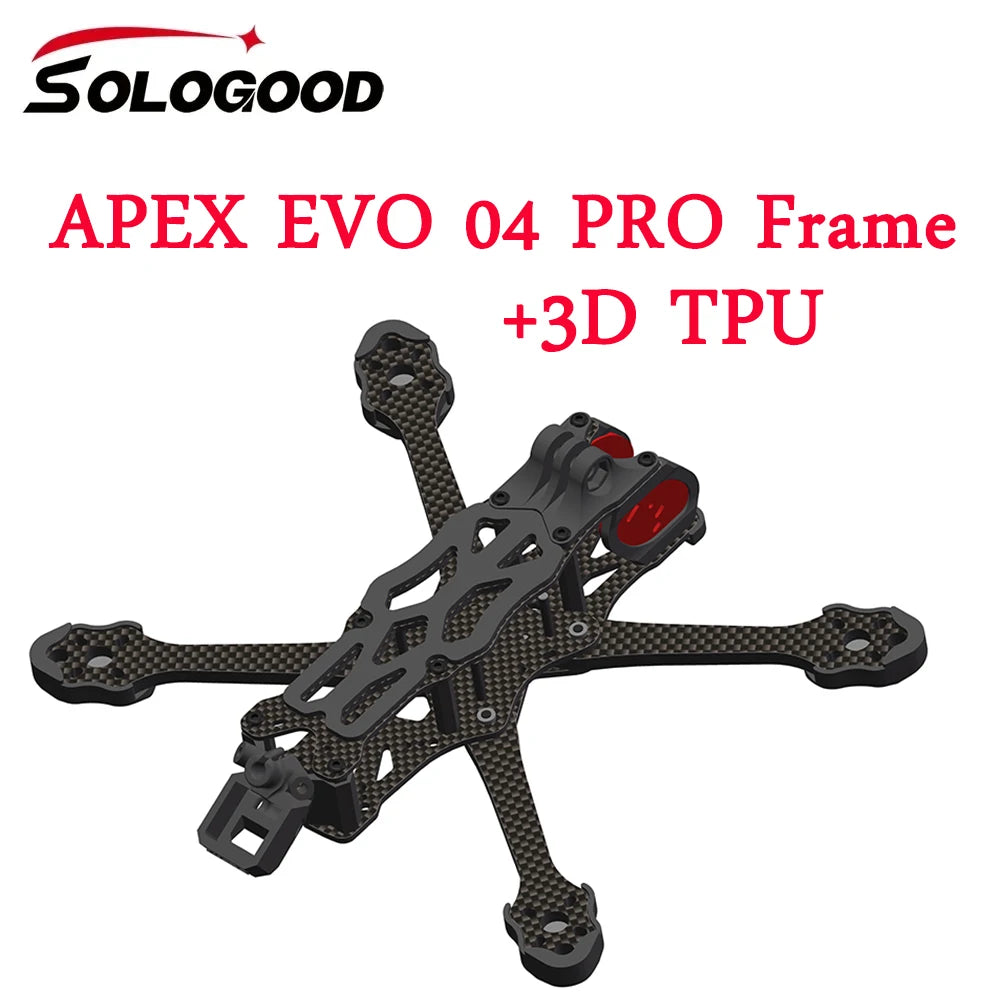

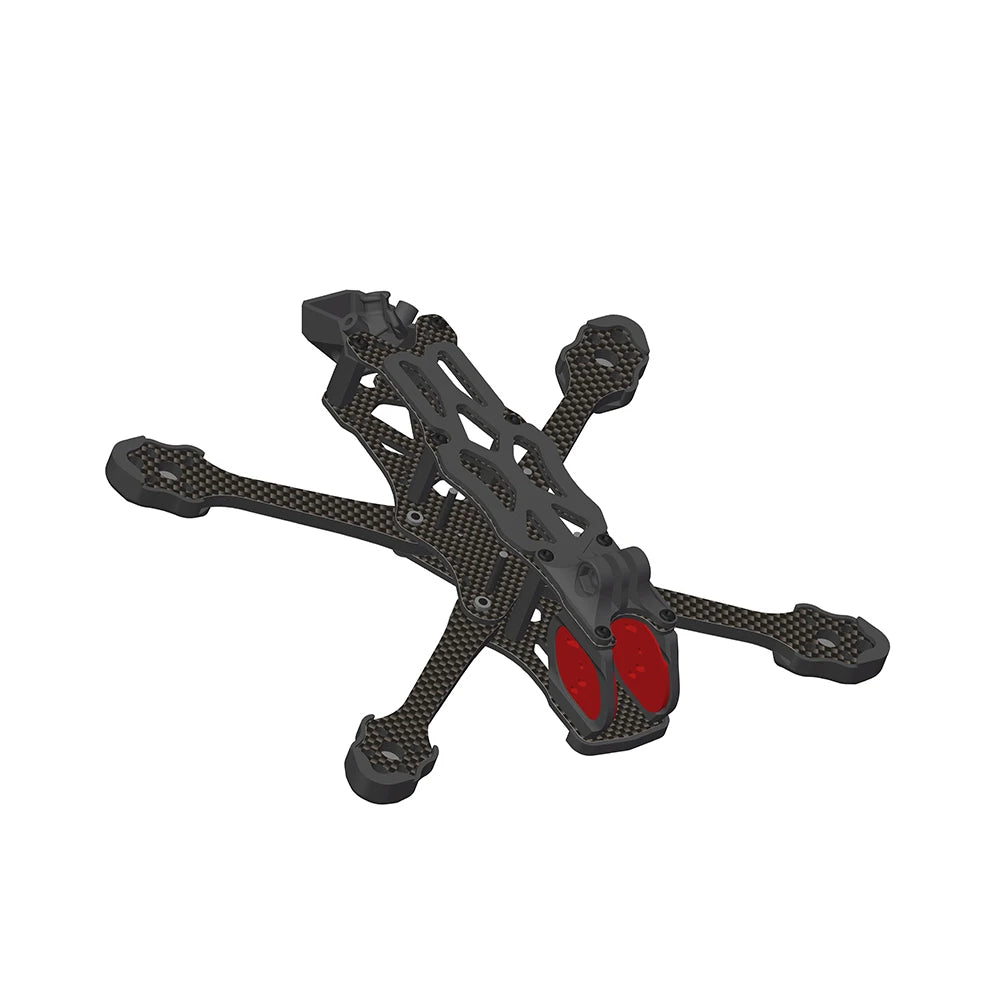

APEX EVO O4 PRO FPV Frame Kit FPV RC Racing Drone For DJI O4 PRO CADDX Vista Polar Nebula Pro RunCam Link Phoenix 2306 Motor

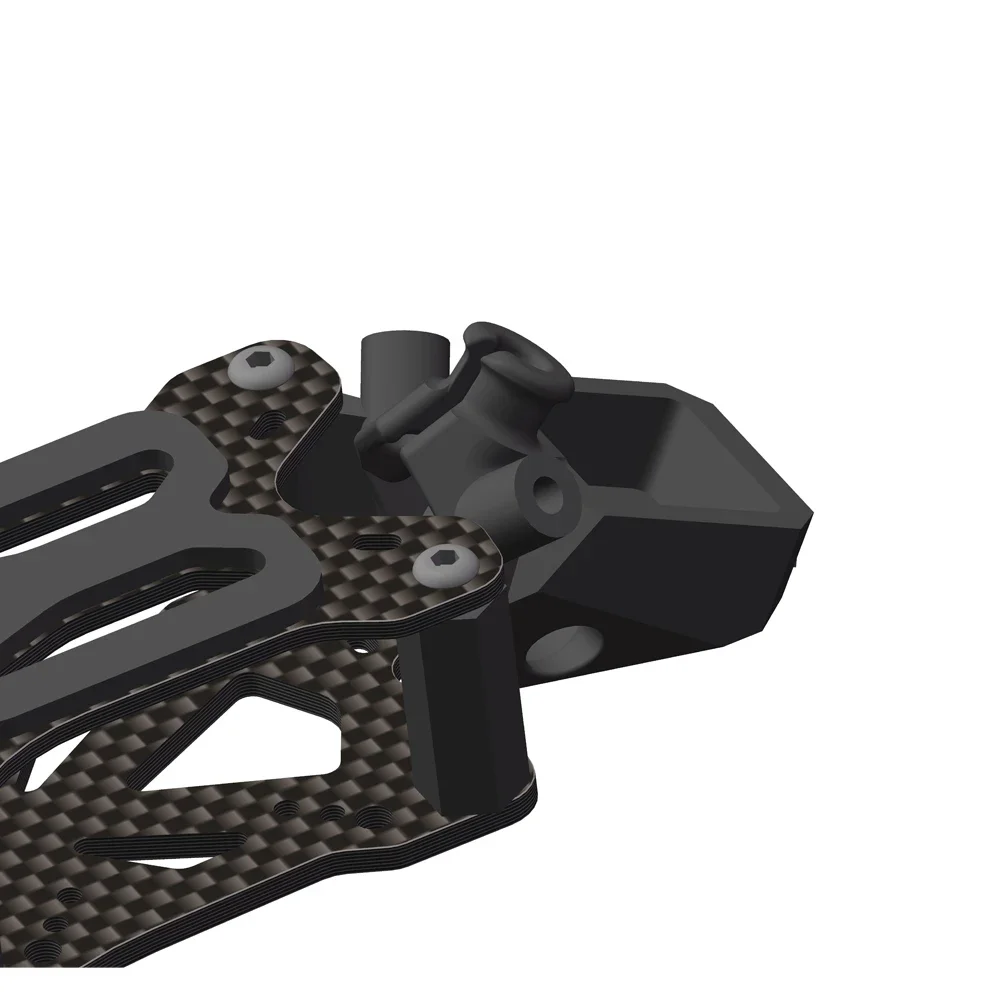

Included with the Apex EVO is a newly redesigned aluminium camera mount and 3D printed isolation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
Specification:
Brand Name：SoloGood
Model: APEX EVO-O4P.
Wheelbase:225mm(5inch).
Arm Plate Thickness: 5.5MM.
Base plate thickness: 2.5MM.
Middle plate thickness: 2.5MM.
Top plate thickness: 2.0MM.
Weight: 130g/Including 3D printed parts 158g（Different production batches will vary ）.
Material: 3K Carbon Fiber.
------------------------------------------

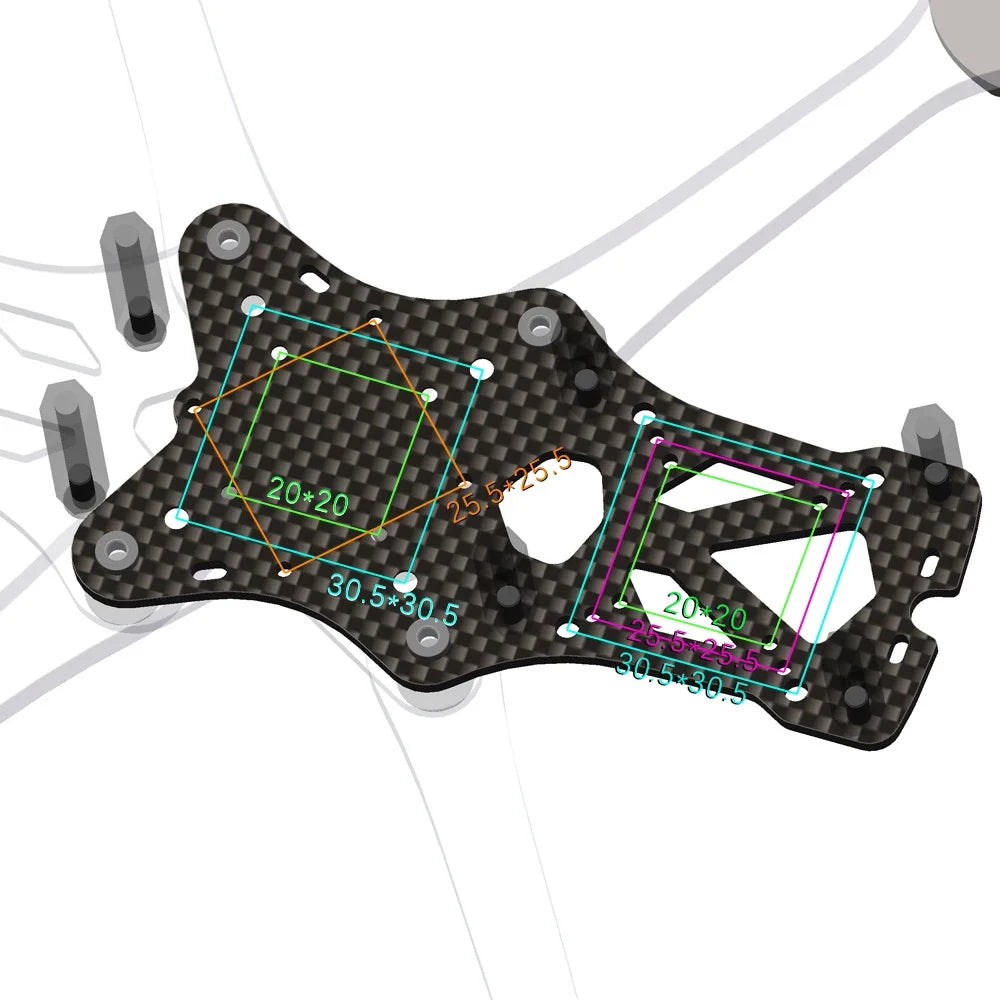

FC Hole distance: (front: 30.5X30.5 / 25.5x25.5 / 20X20MM) / (Rear: 30.5X30.5 / 25.5x25.5 / 20X20MM).
Motor Hole distance :16*16/19*19MM.
Suitable propeller: 5-5.2inch.

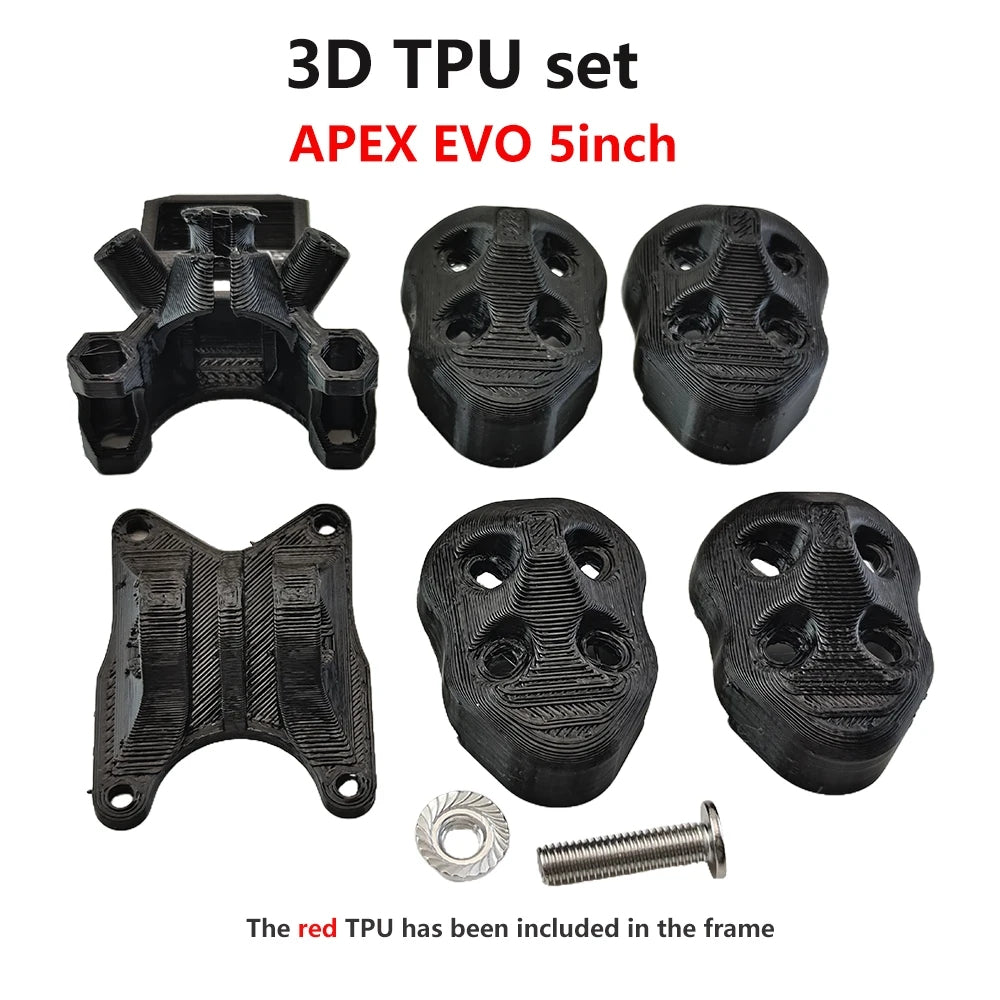

Support camera: 20MM（The installation of 14MM/19MM cameras can be achieved through 3D printed parts）
------------------------------------------

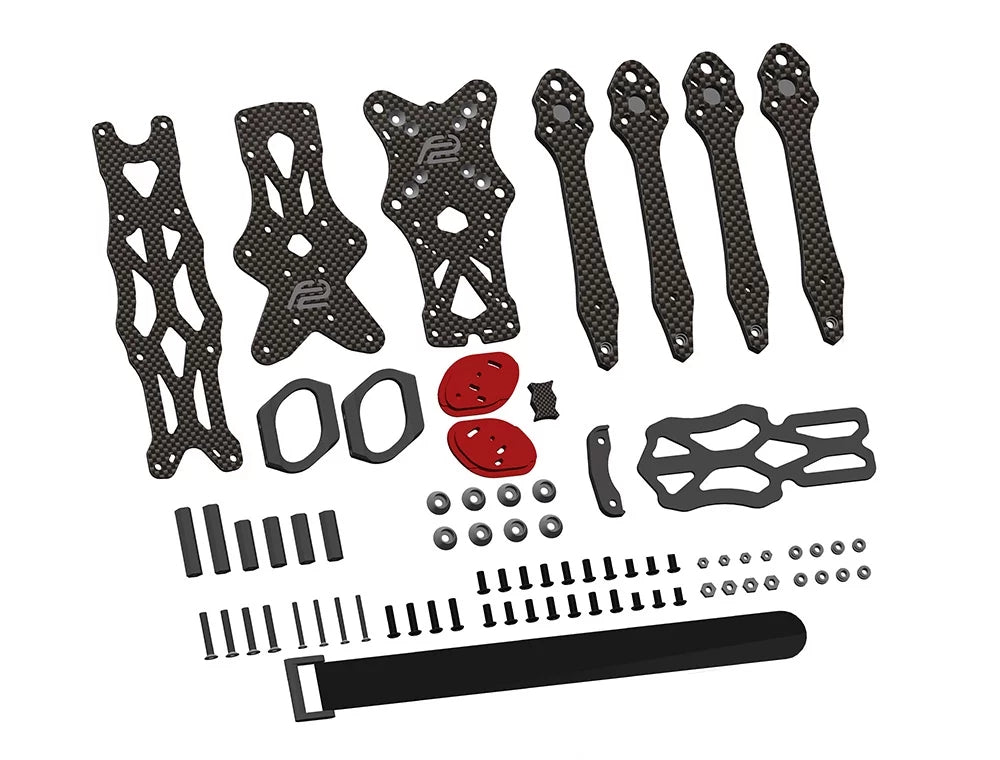

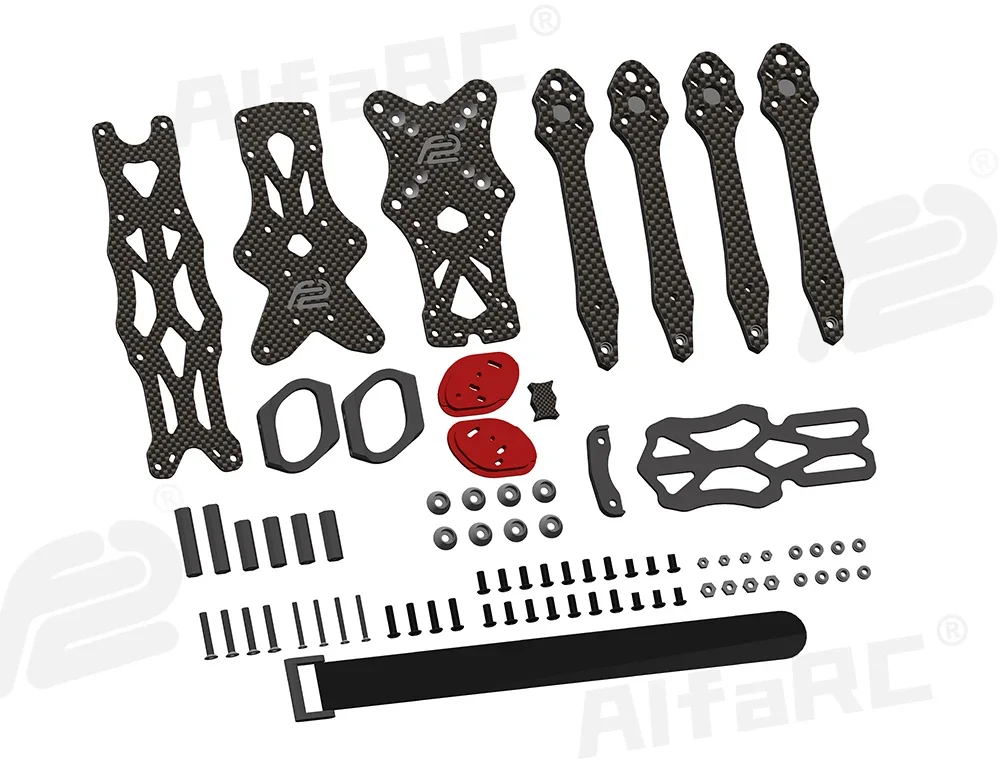

Package list:
1 set Frame KIT, without any electronic equipment
