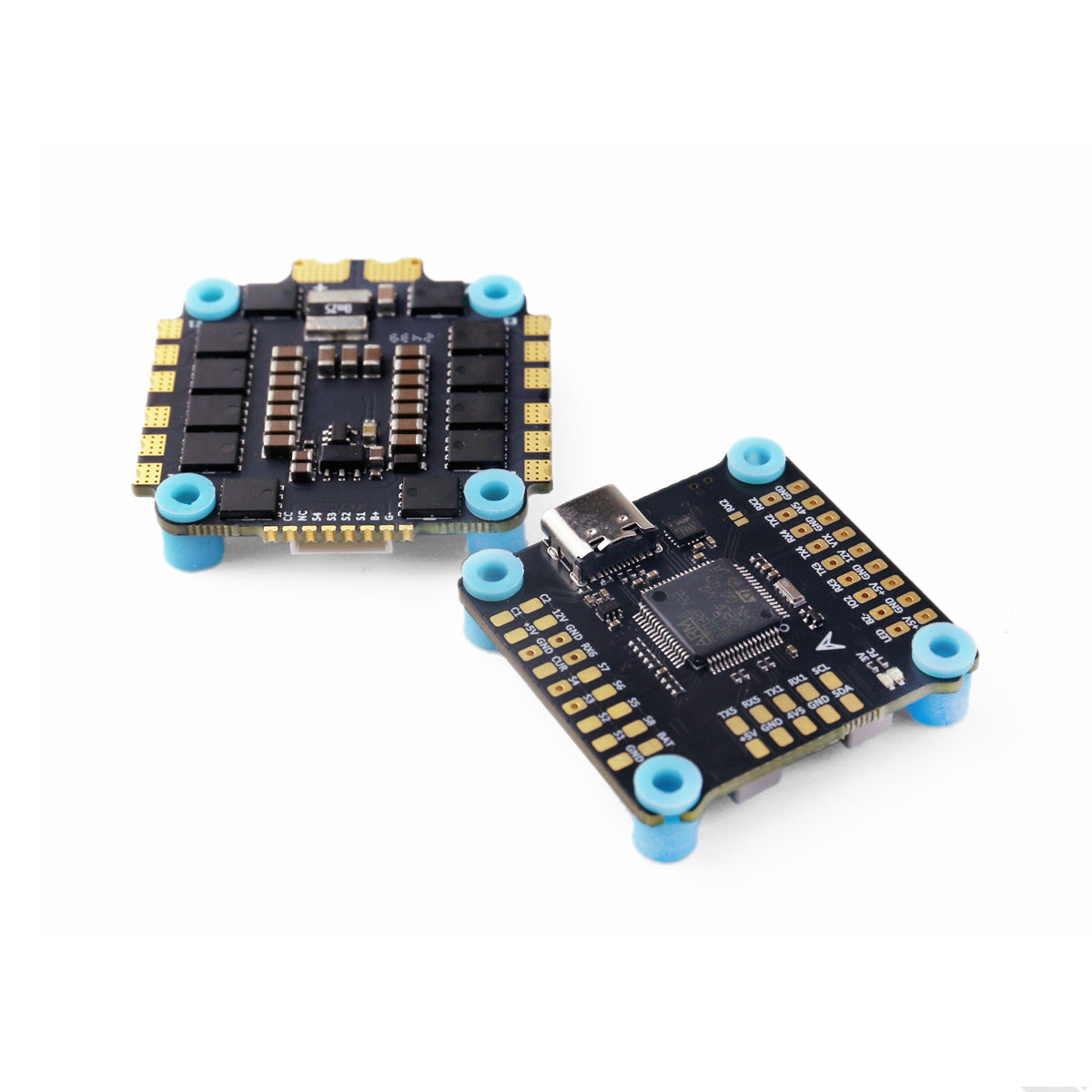

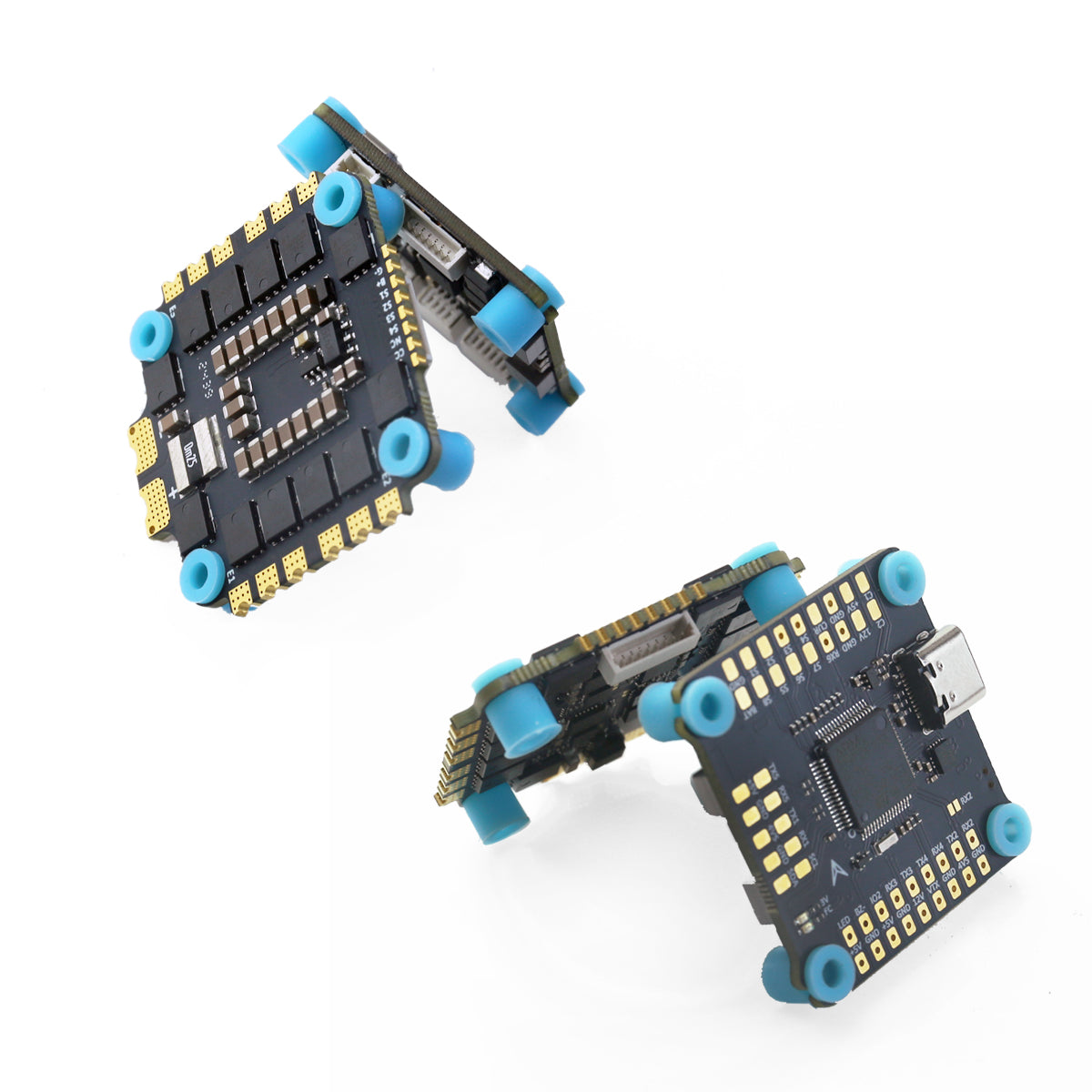

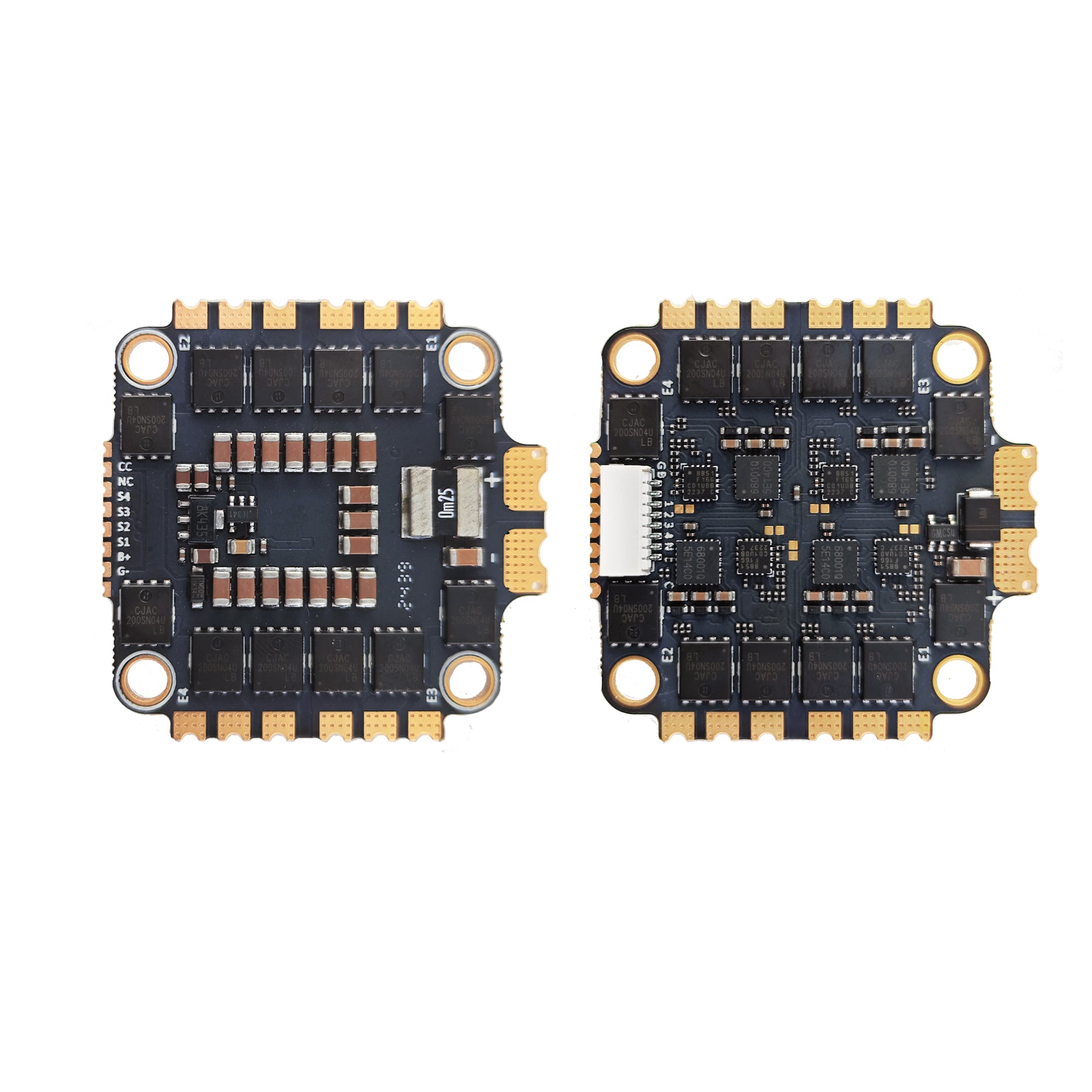

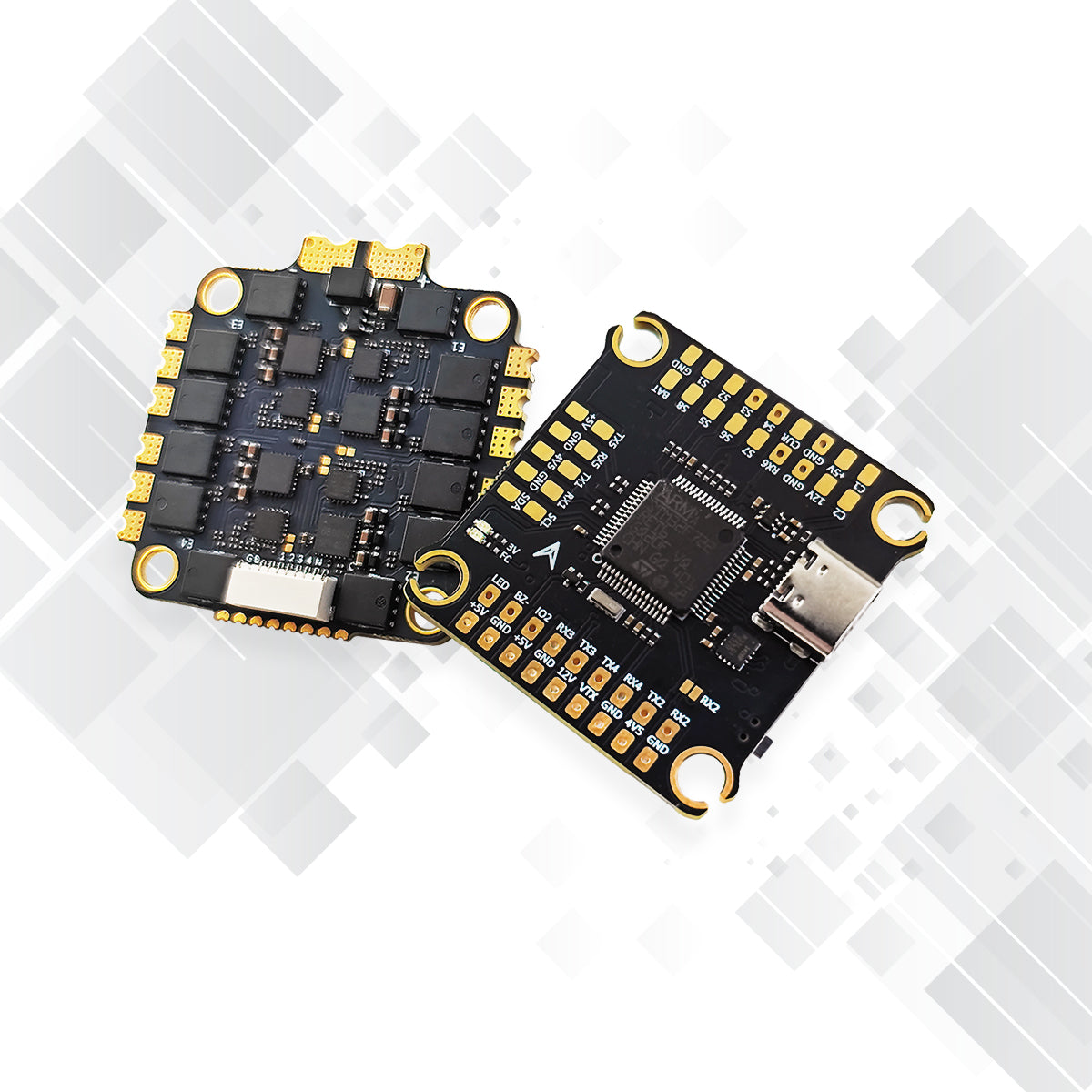

8S F722 V2 60A stack ICM42688P BLHELI_S 4in1 60A ESC 30.5*30.5MM 3-8S

$49.99 USD

~~$99.99 USD~~ $49.99 USD

Sale Sold out

Taxes included.

Color 8S F722 60A stack

Quantity

High-performance flight control supports up to 8 motor outputs, making it easy to build the X8 drone.
Integrated dual BEC, 5V and 12V dual BEC.

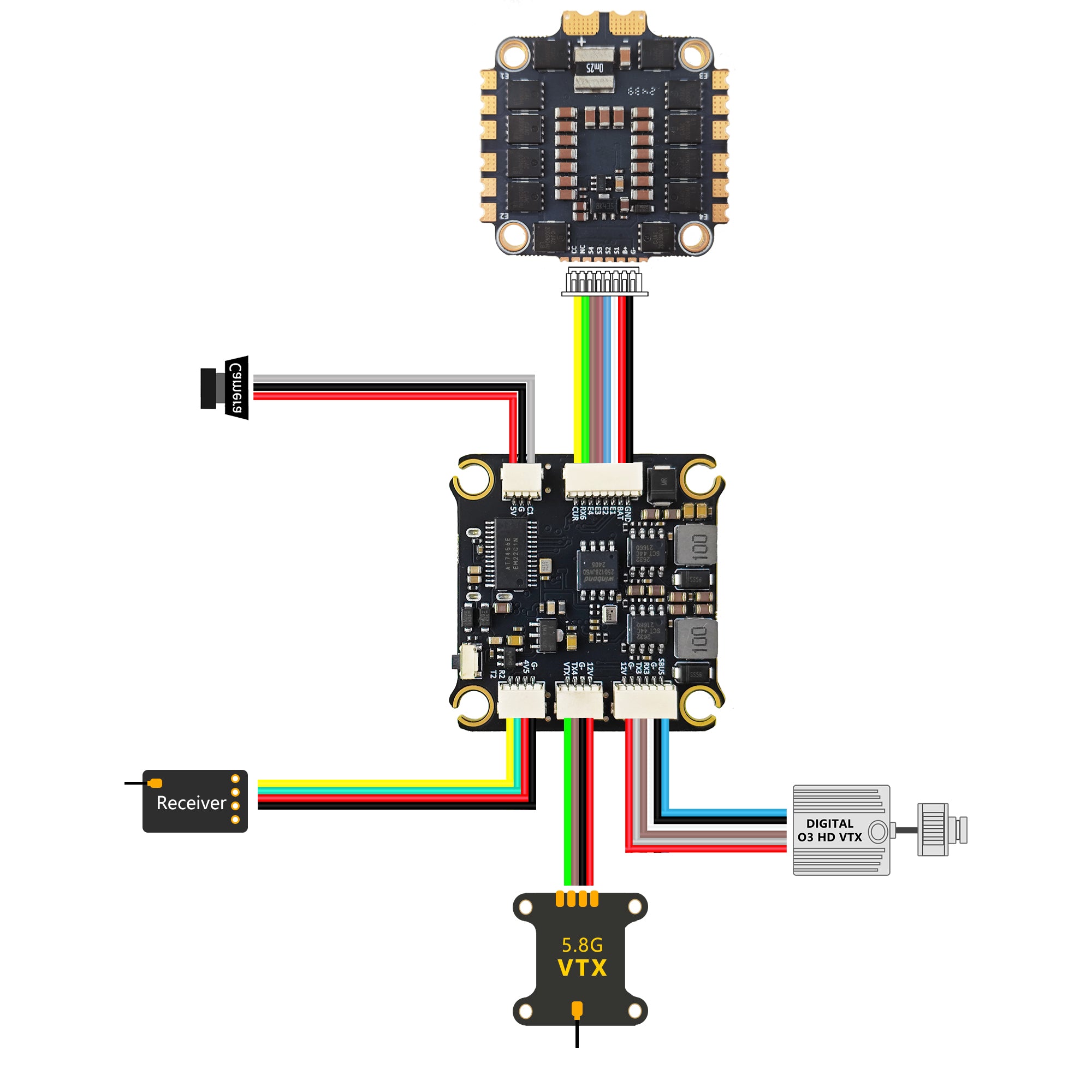

Supports dual cameras, switching between Cam1 and Cam2 via user1.
The F722 master control chip, onboard OSD chip, barometer and onboard black box chip are also available.
Using a large welding plate, the welding plate is away from the components to ensure that even beginners can weld perfectly.
The air conditioner uses a low-impedance MOS tube, EFM8BB51 processor and on-board TVS protection tube to ensure maximum performance even in complex flight environments and has been tested in multiple layers!
Default Bluejay firmware, bidirectional DSHOT, turn on RPM filtering.

Specification:

Main control: STM32F722RET6
Gyroscope: ICM42688P
Pressure gauge: support (SPL06)
OSD: Supported (AT7456E)
BEC: 12V/2A, 5V/2A
UART ports: 6
Black box: onboard (16M flash memory)
Number of motors supported: M1-M8
Firmware Name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-8S lithium battery (11-36V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm hole diameter)
Flight control size: 38.5x38.5mm
Weight: 8.1g
DJI/Vista: support/6pin AC
TVS protection diode: Yes
External capacitor: 1000uF high frequency low resistance capacitor (included in the package)
ESC/motor protocol: DSHOT300/600
Continuous current: 60A
Maximum current: 65A
Mounting hole: 30.5x30.5mm (4mm hole diameter)
