Description
INAV firmware


- High performance flight control supports up to 8 motor outputs, making it easy to build X8 drones.
- Integrated dual BEC of 5V and 12V.

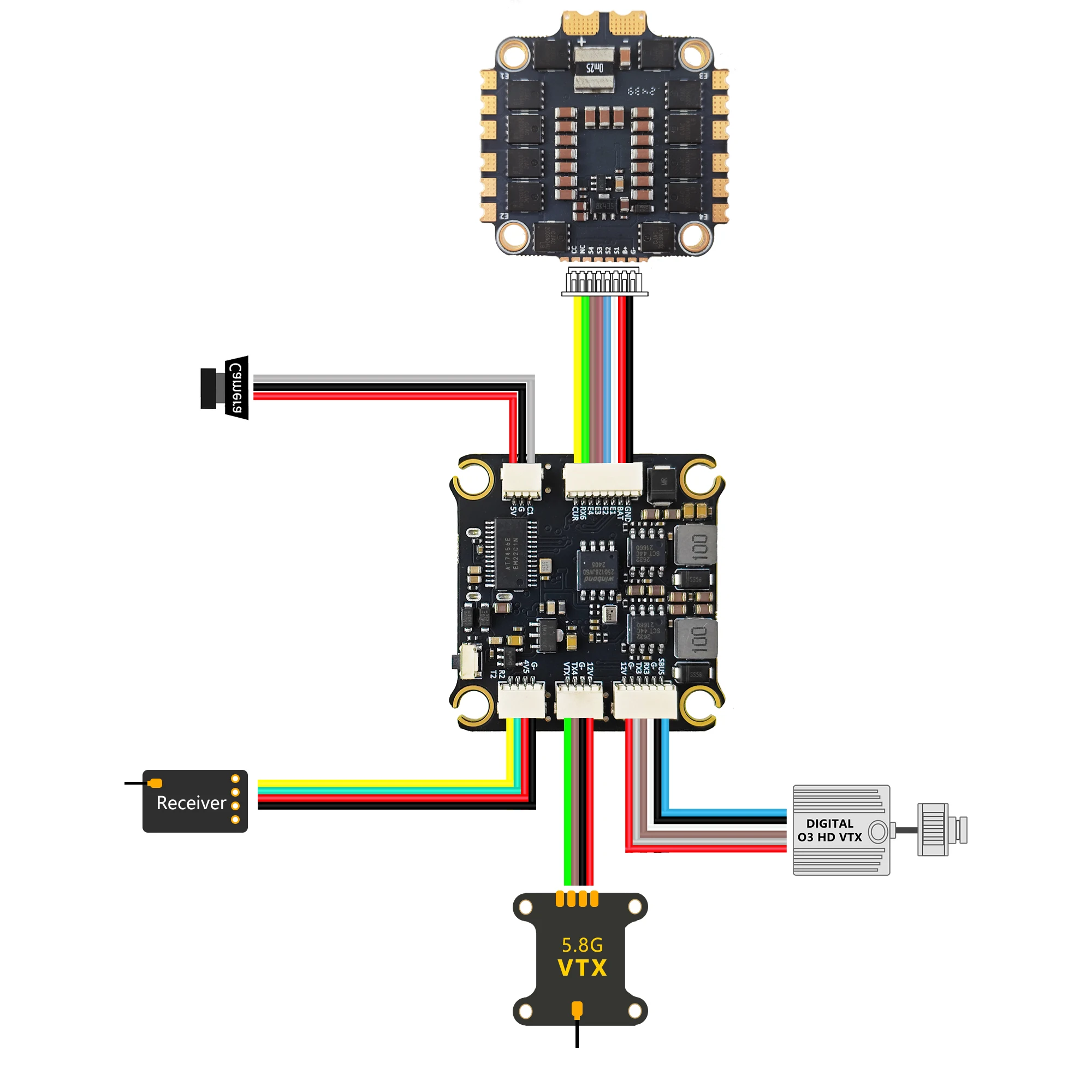

- Support dual cameras, switch between Cam1 and Cam2 through user1.
- The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip are also readily available.
- Using large solder pads, the pads are kept away from the components to ensure perfect soldering even for beginners.

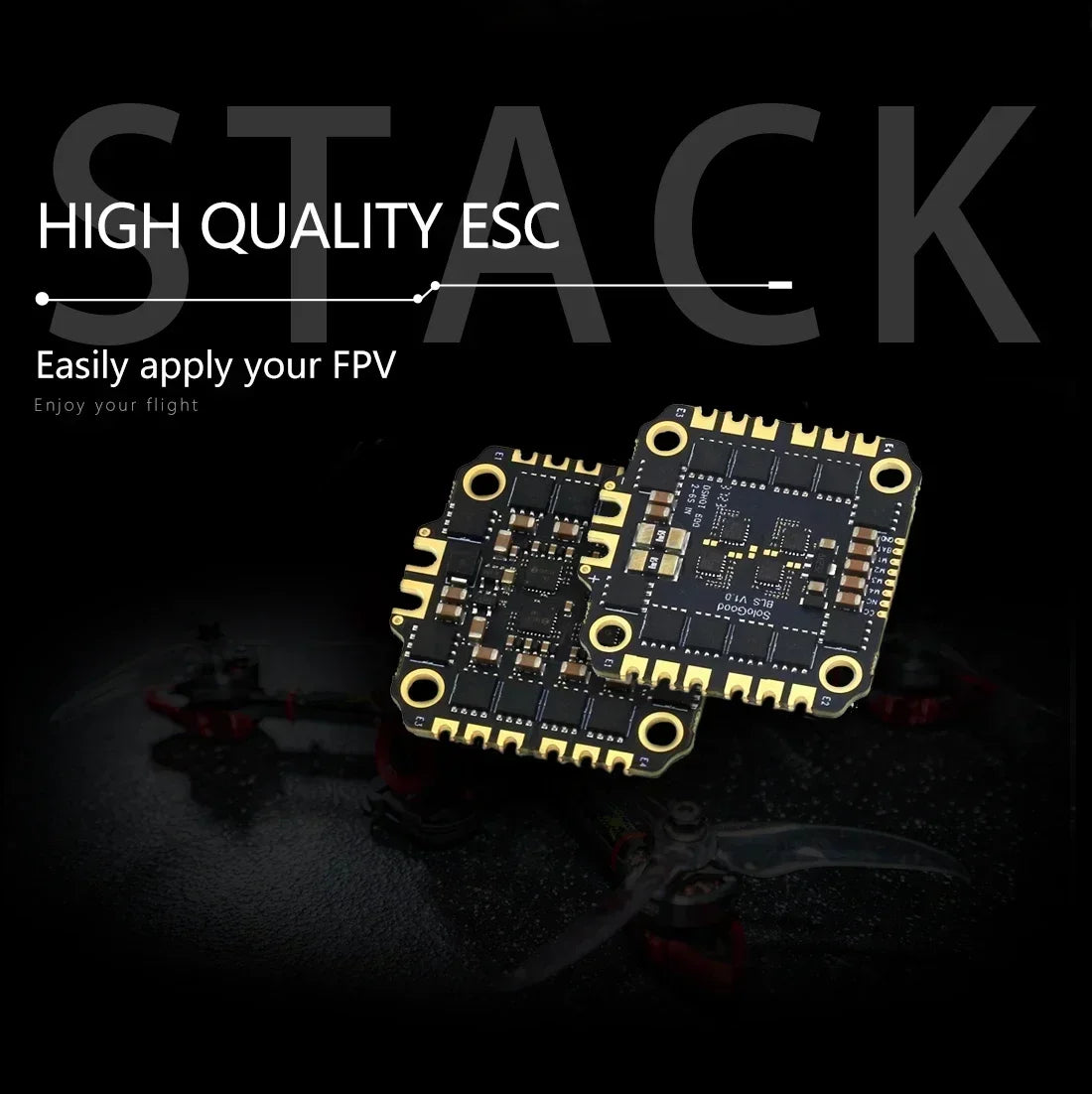

- The ESC uses low internal resistance MOS transistors, EFM8BB51 processors, and onboard TVS protection transistors to ensure maximum performance even in complex flight environments, and has undergone multi-layer testing!
- Can brush Bluejay firmware , bidirectional DSHOT, with RPM filtering enabled.

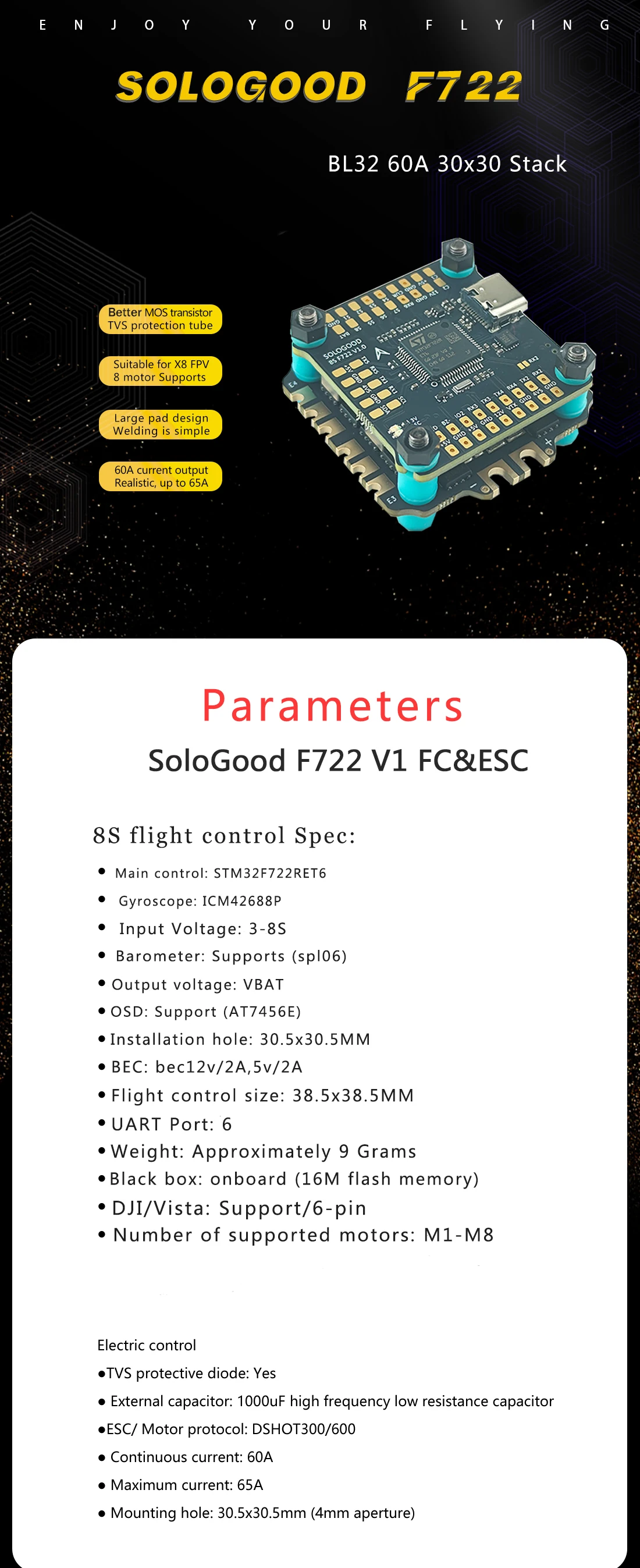

8S F722 FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Input voltage: 3-8S
Barometer: Supports (spl06)
Output voltage: VBAT
OSD: Support (AT7456E)
Installation hole: 30.5x30.5MM
BEC: bec12v/2A,5v/2A
Flight control size: 38.5x38.5MM
UART port: 6
Weight: Approximately 9 grams
Black box: onboard (16M flash memory)

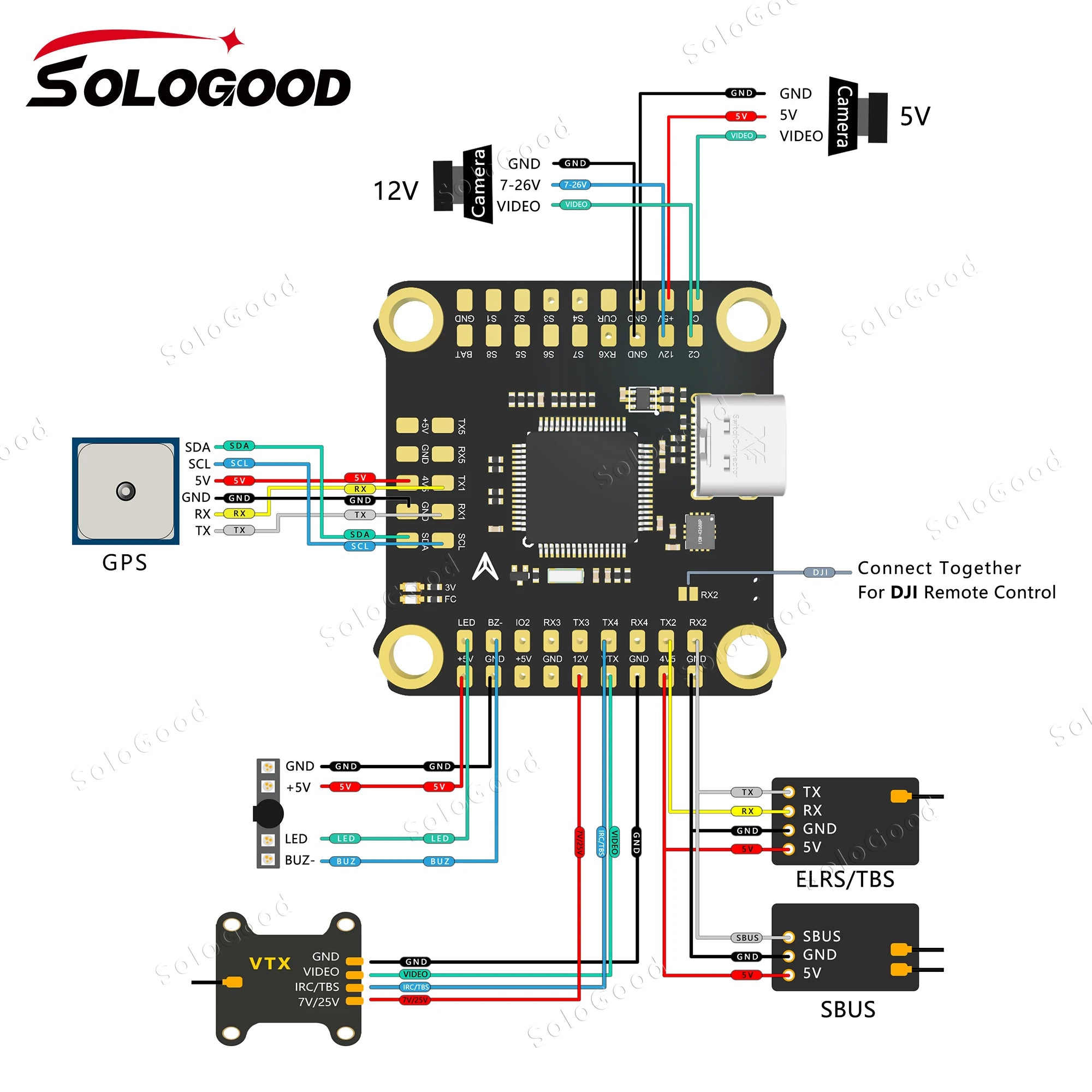

DJI/Vista: Support/6-pin
Number of supported motors: M1-M8
Sologood BLS60A 4in1 ESC SPEC:
Firmware: BLHELI-S: JH
Continuous current 60A
Maximum current 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
![]() ![]()
![]() ![]() ![]() ![]() |
