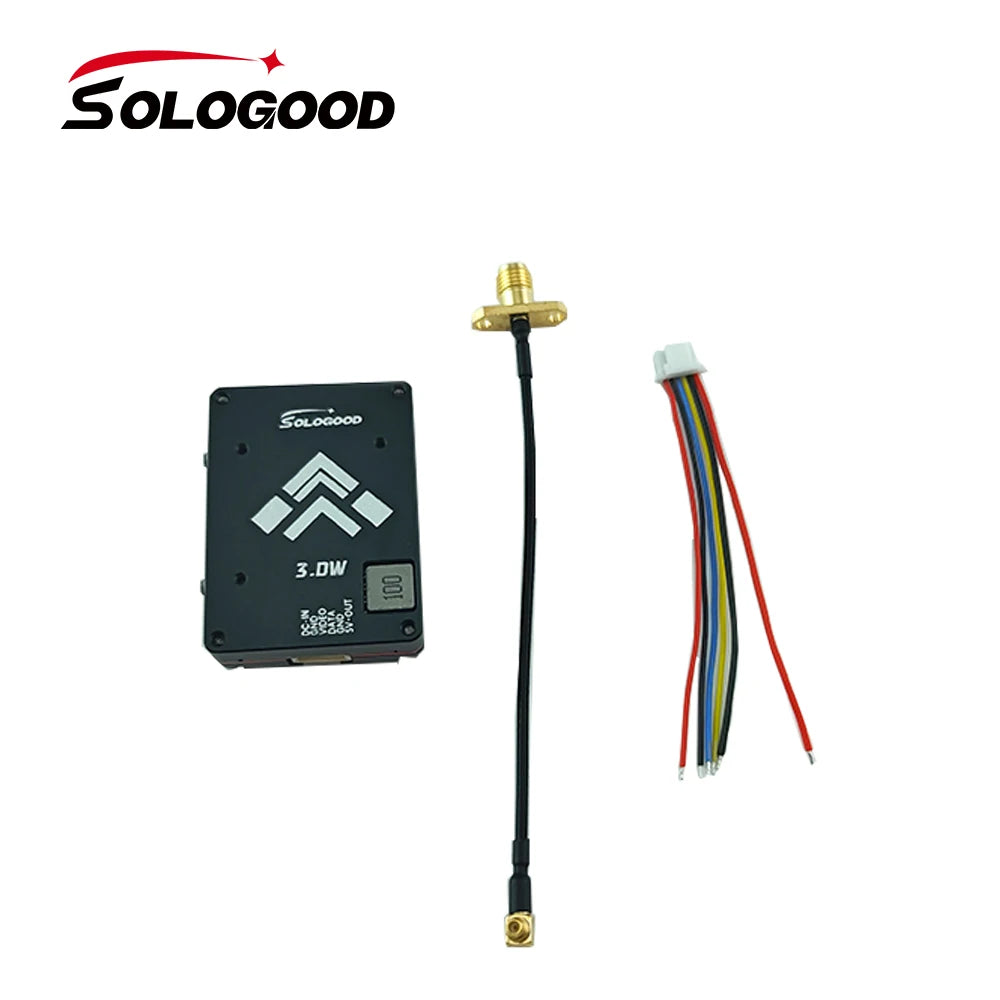

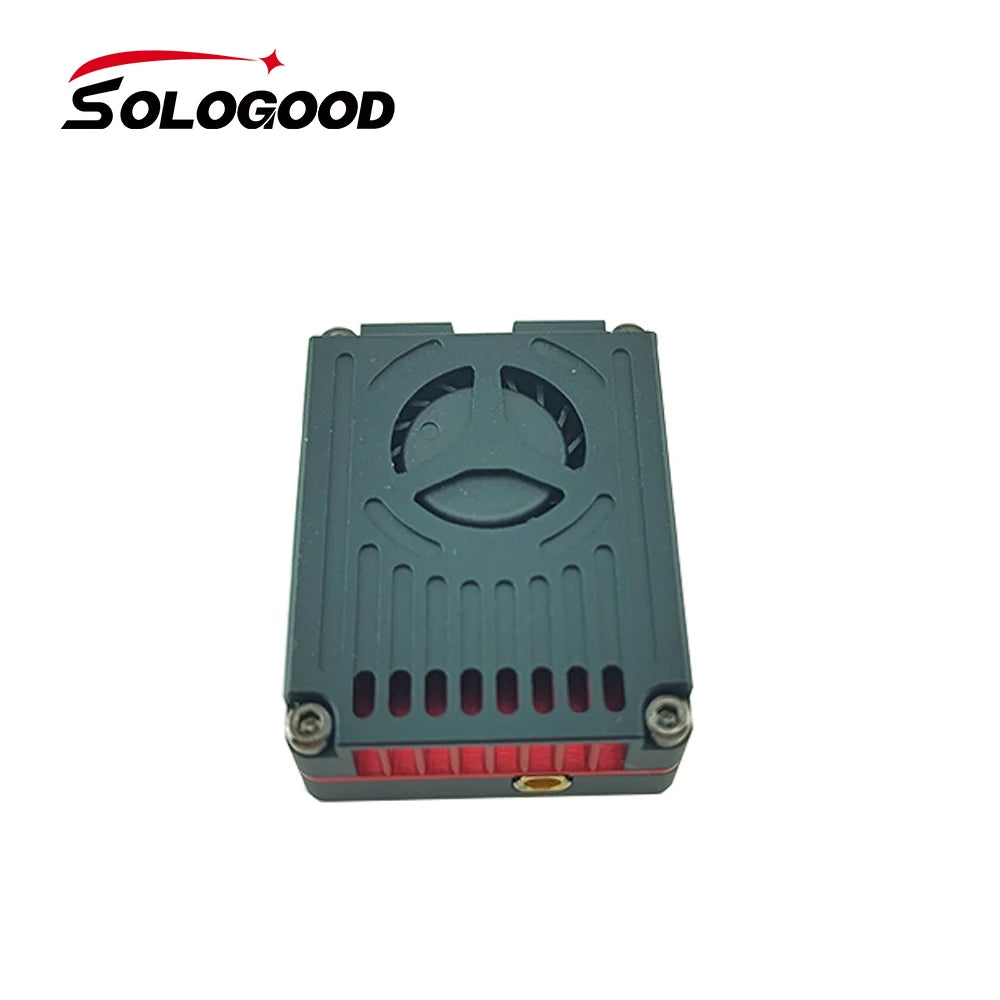

TX3000N Image Transmission User Manual
Please ensure that the antenna is connected before powering on, otherwise it may be damaged!!!
1. Basic Specifications:
- Weight: 22g (excluding antenna)
Dimensions (L x W x H): 41 x 30 x 13mm (excluding button protrusions).
Mounting holes: 20 x 20mm spacing, M1.6 threaded holes.
- Operating Voltage: DC 7V-36V (2S-8S)
Operating Current: 1100mA ± 100mA at 12V
- Maximum Power Consumption: 14 watts
- RF Transmission Power: Greater than 34.8dbm (3.0 watts)

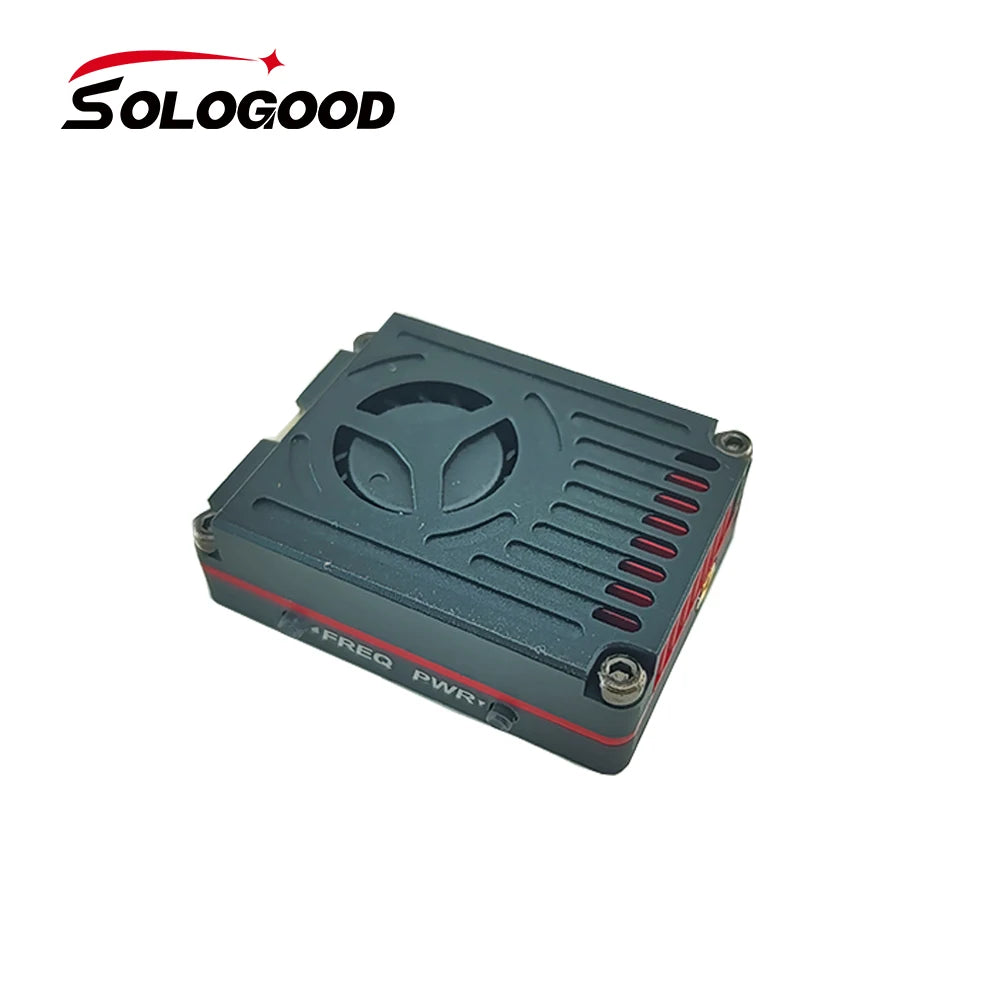

- 64 operating channels, selectable via buttons
-4 power levels, button-selectable settings
-5.8GHz video transmission transmitter (compatible with PAL and NTSC) compact design, small size, high transmission power
-Utilizes large-scale integrated circuits and automotive-grade components for high reliability
-Built-in frequency phase-locked loop, low harmonic radiation, high reliability, and stability using digital phase
-locked loop circuitry, no temperature drift
-Supports TBS protocol OSD parameter adjustment
Translated with DeepL.com (free version)

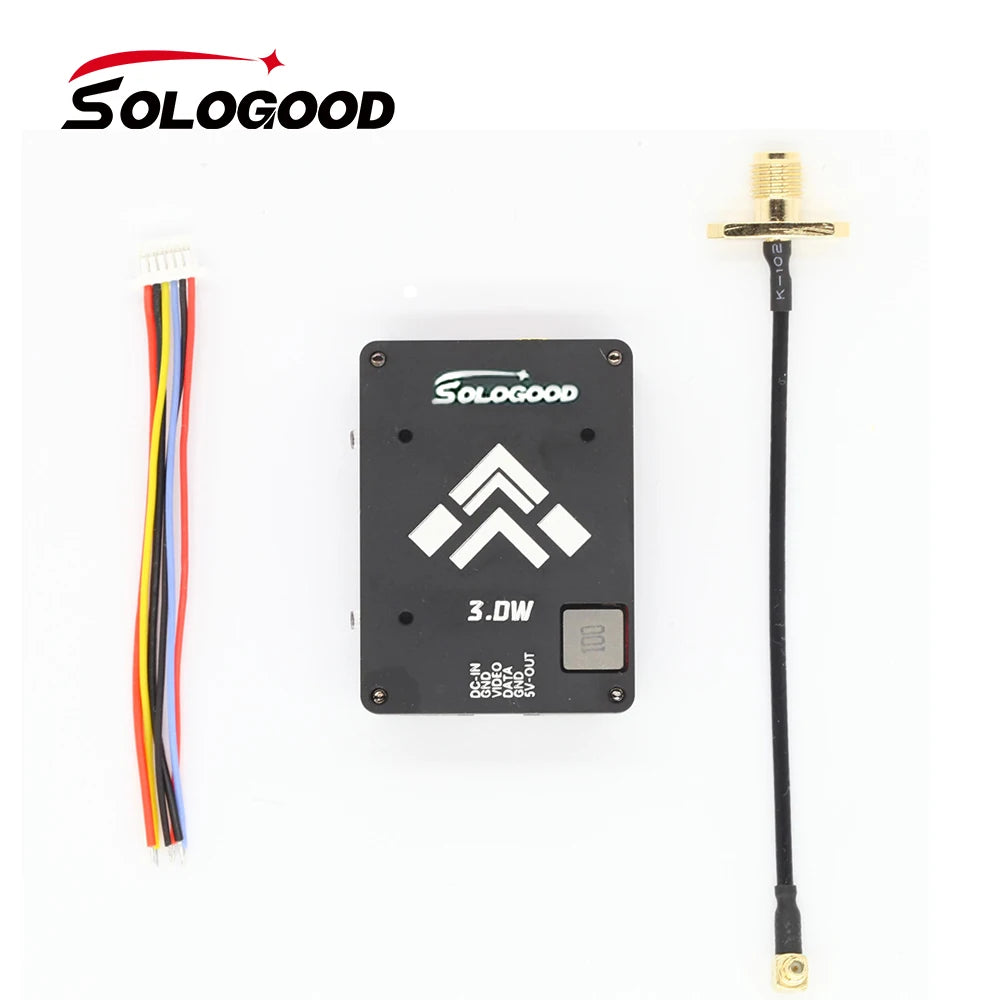

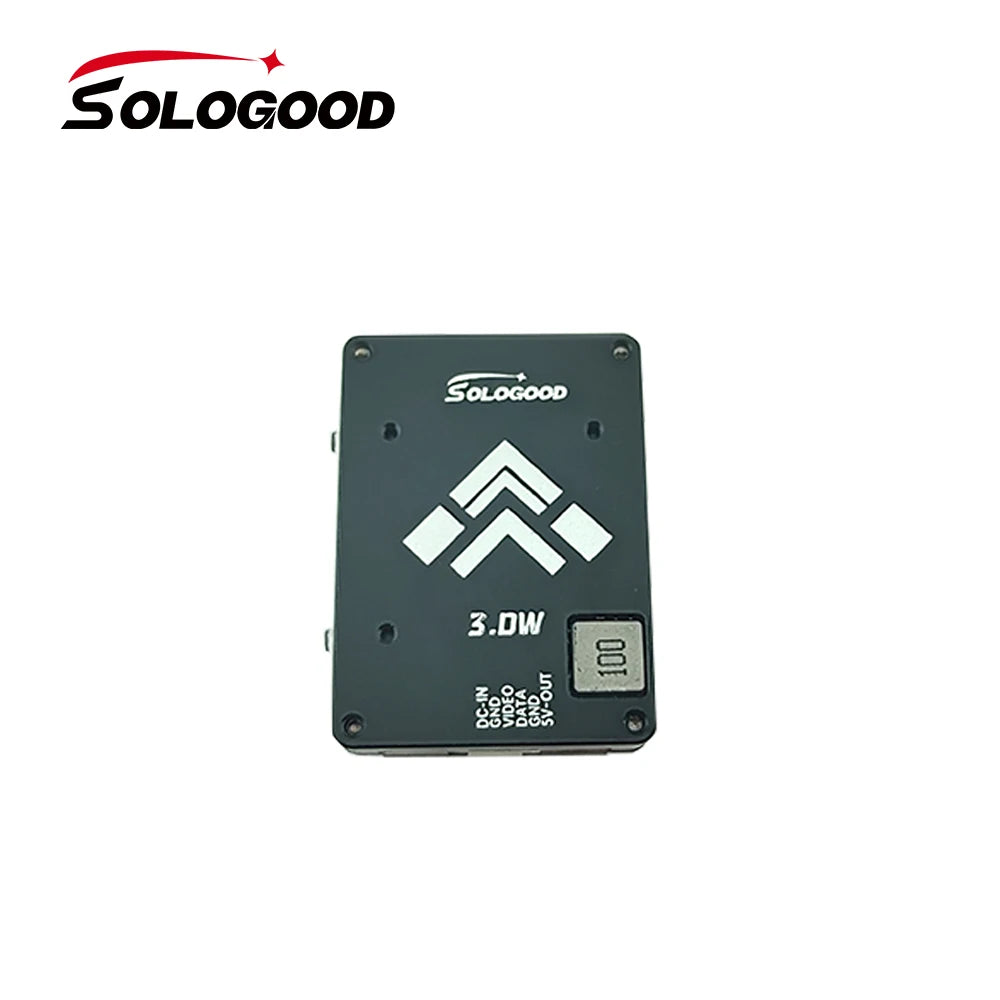

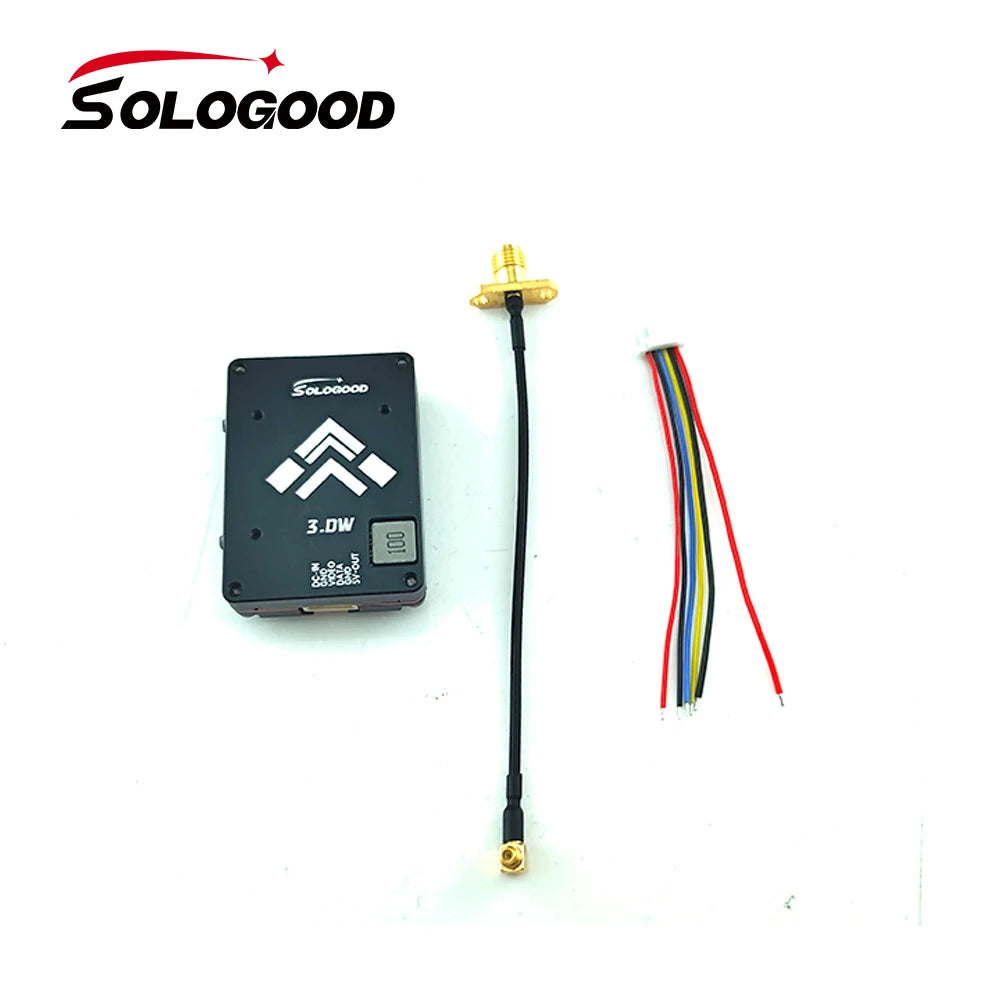

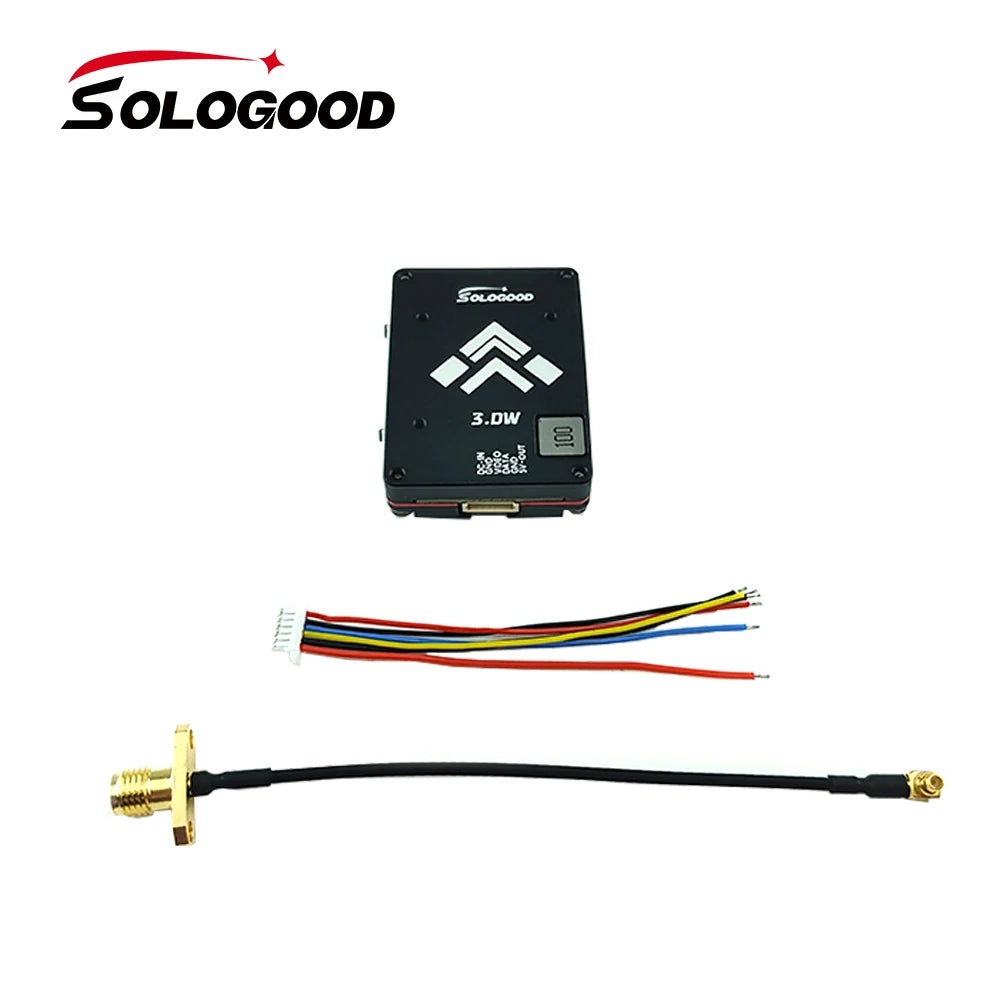

Interface definition
1. DC-IN image transmission power input positive pole, supporting a range of 7-36v.
2. GND diagram transmission power input negative pole
3. Video analog video signal input
4. DATA OSD tuning communication data cable, supporting the protocol Smartudio
5. GDN image transmission output negative pole
6. 5V-OUT image transmission output positive pole, maximum output current 350MA. Note: Connect a wide voltage camera like 5-12,
Possible insufficient power supply voltage for the camera, resulting in no image and black screen.
