RadioMaster TX16S MKII V4.0 ELRS ExpressLRS or Multi-protocol JP4IN1 Version Hall Gimbals Transmitter Remote Control
Only Mode 2 Left throttle option,if you want Mode 1 right throttle ,please kindly contact us,we will
send a Change mode video to you ,you can follow it to change.
Specification:
Size:287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter module:
Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)Transmitting power:
lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)
lnternal ELRS : Max. 250mw(transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)working current: 400mA
Working voltage:6.6-8.4v DC
Remote control distance:> 2km @ 22dbmRadio firmware: EdgeTX
Module Firmware: Multiprotocol- Module(4IN1)-
OR- ExpressLRS(ELRS)
Channels: Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a
resolution of 480* 272

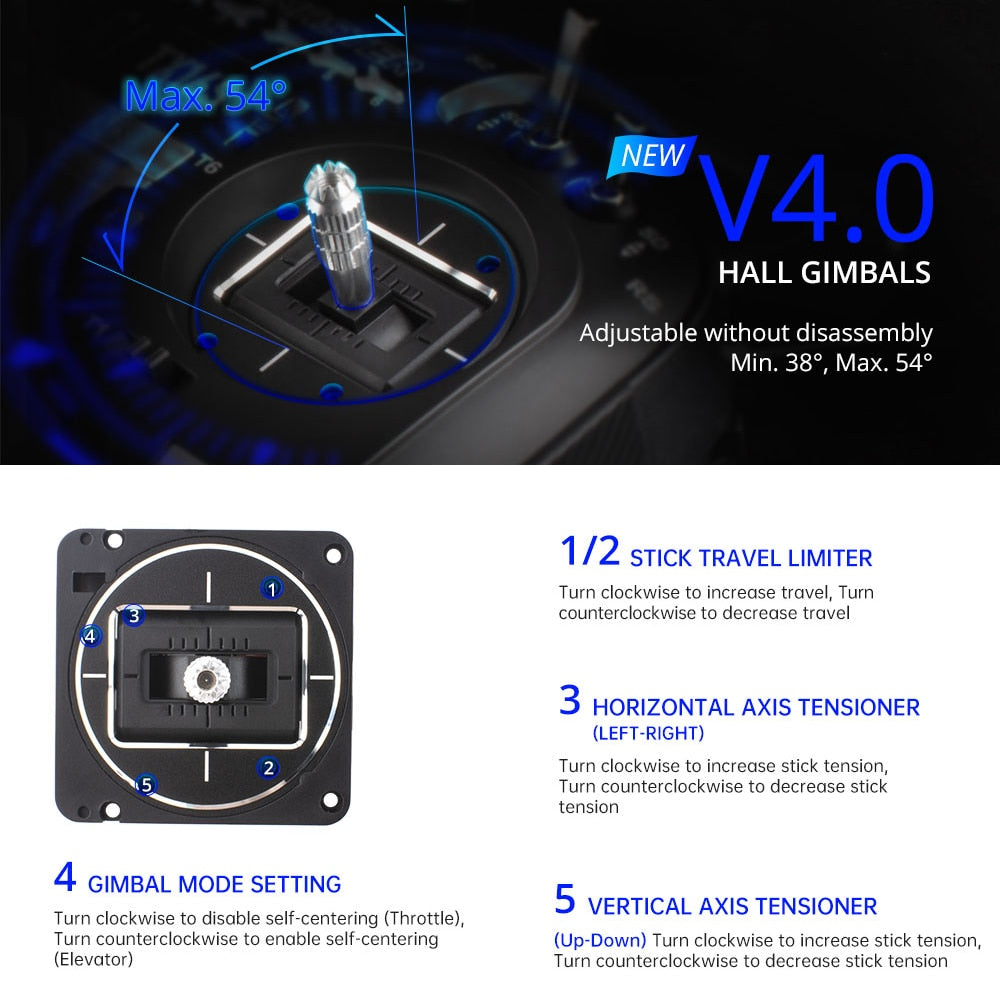

Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia,
Option 2:AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
·Optimized charge IC, better balancing and uSB-C charge current management.· Rear mounted audio jack provides headphone output.
· V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)- Optional high/low rear grips included for improved ergonomics.
-lmproved S1/S2 knobs with clear centre-detents.
-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.

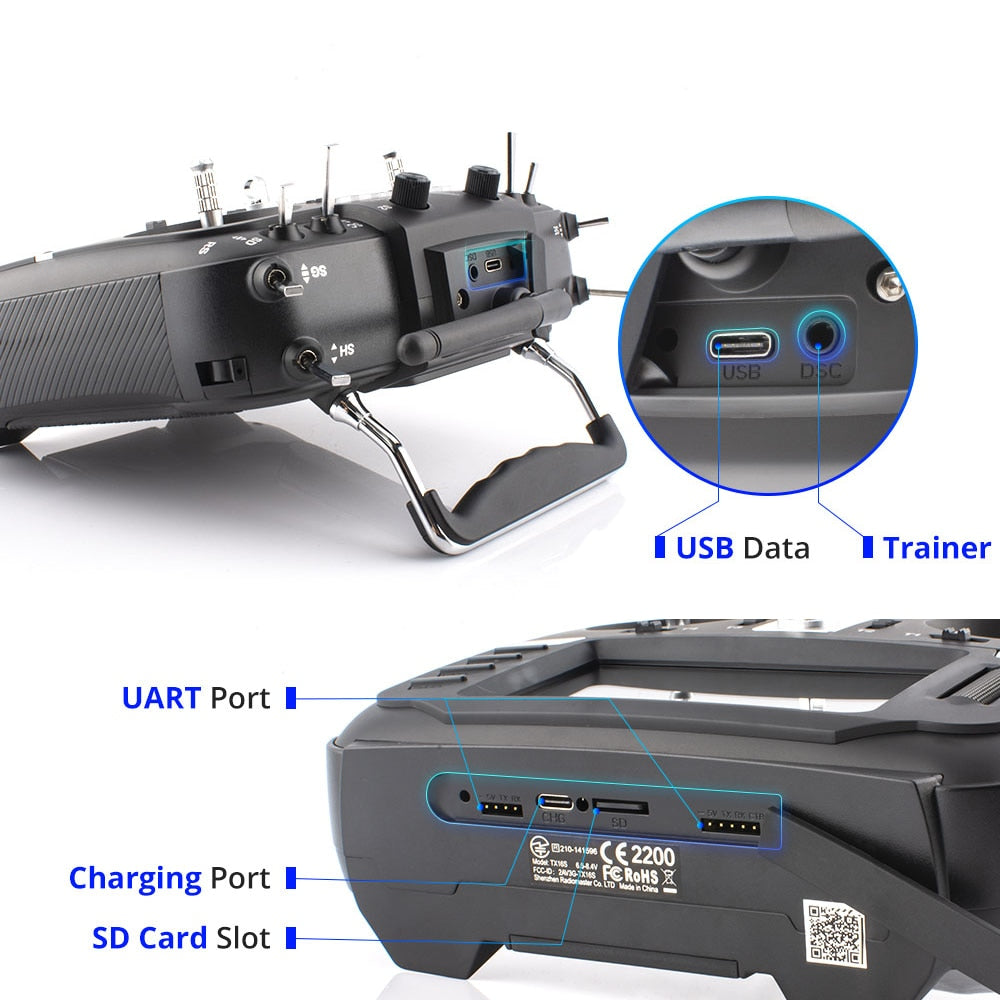

·Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods.
- lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
