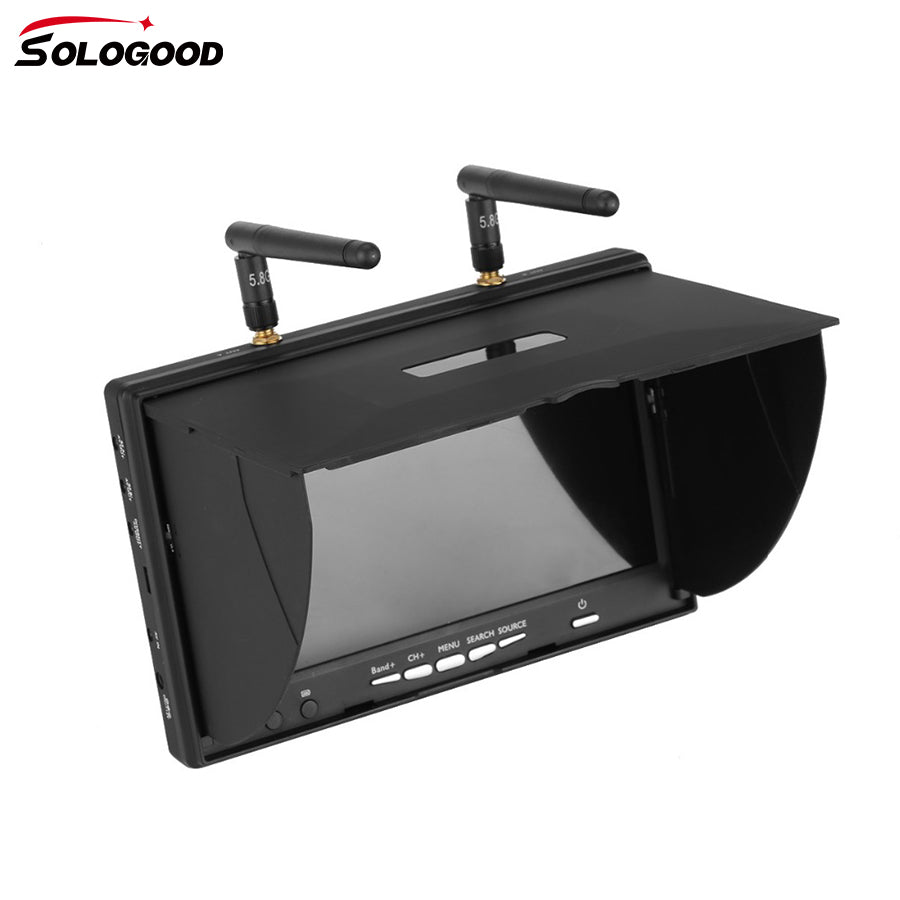

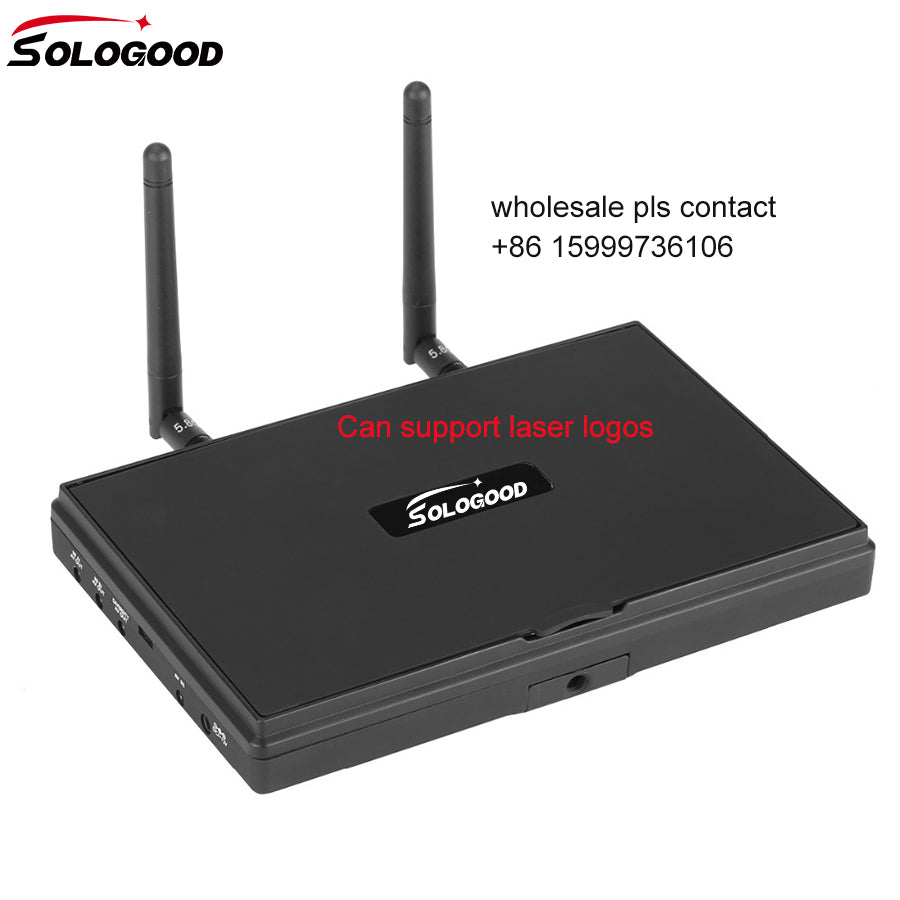

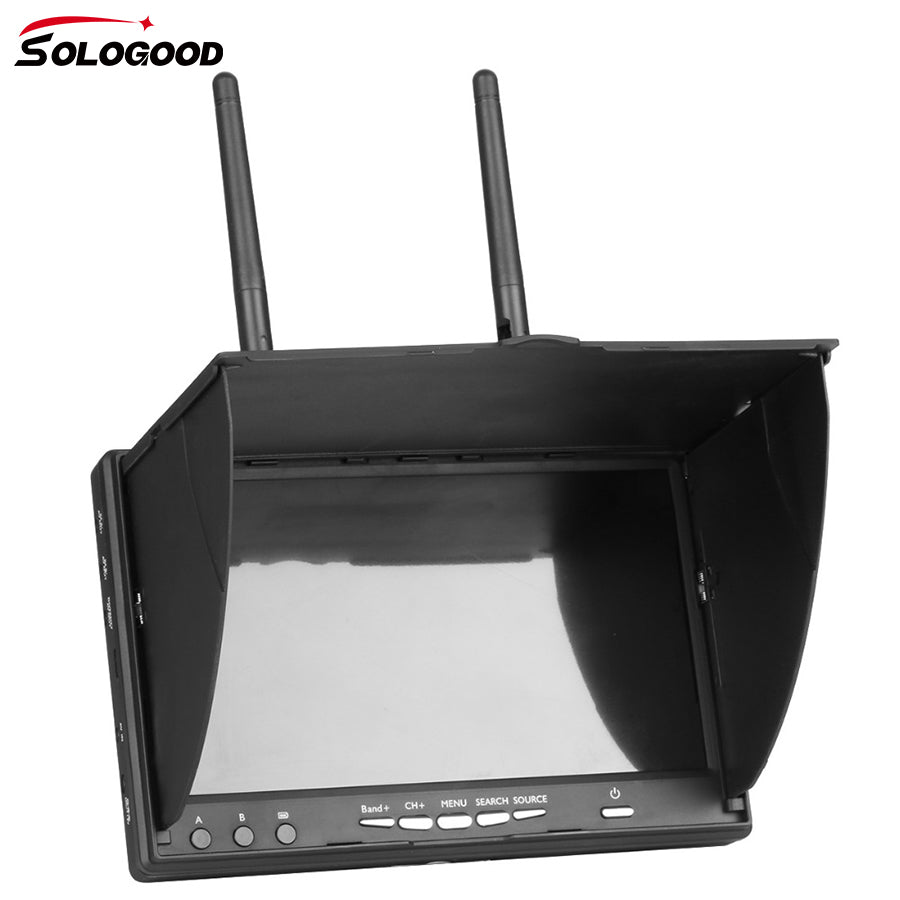

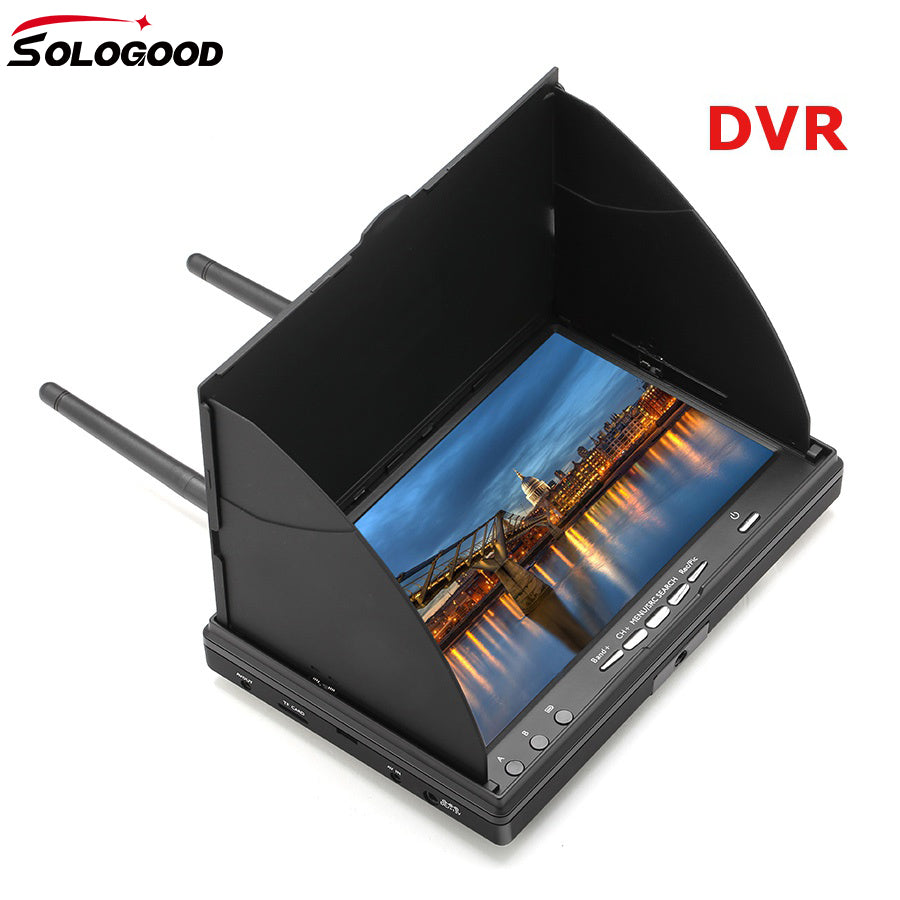

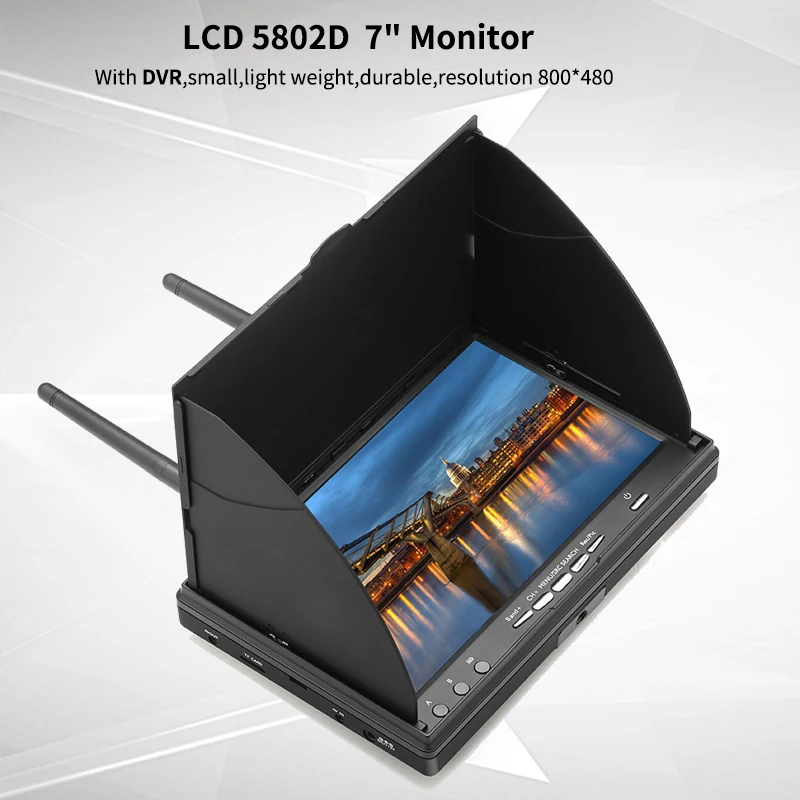

SoloGood LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen

Description:
Item Name:  LCD5802D(with DVR)

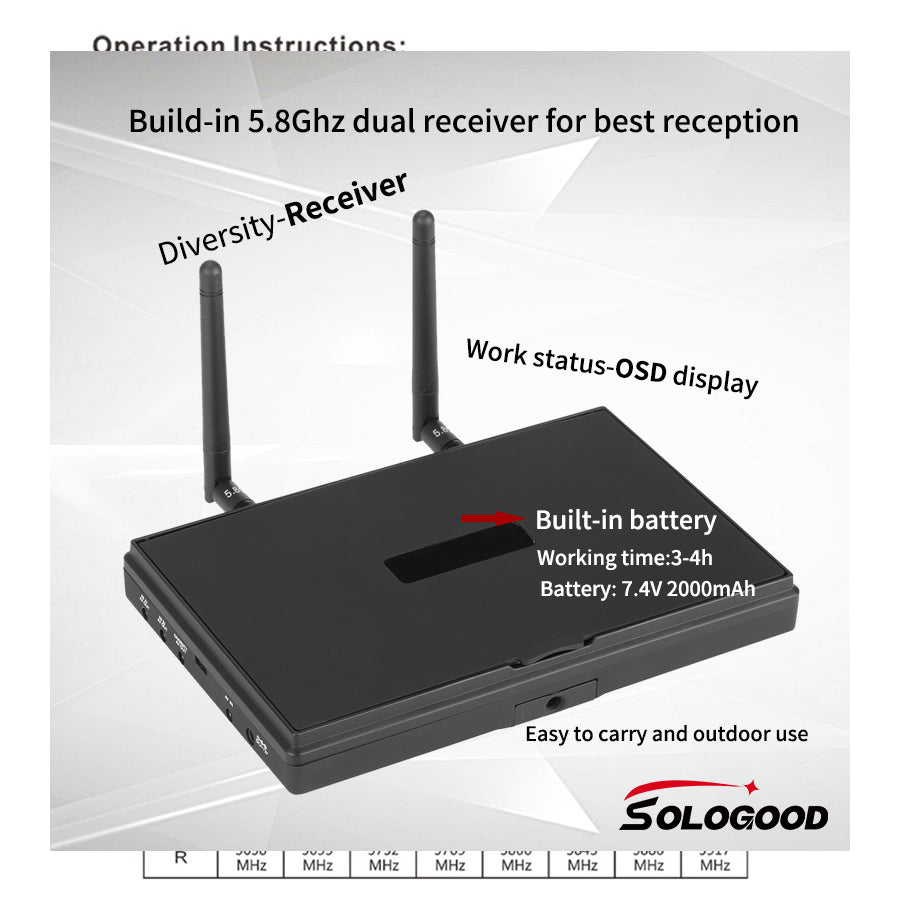

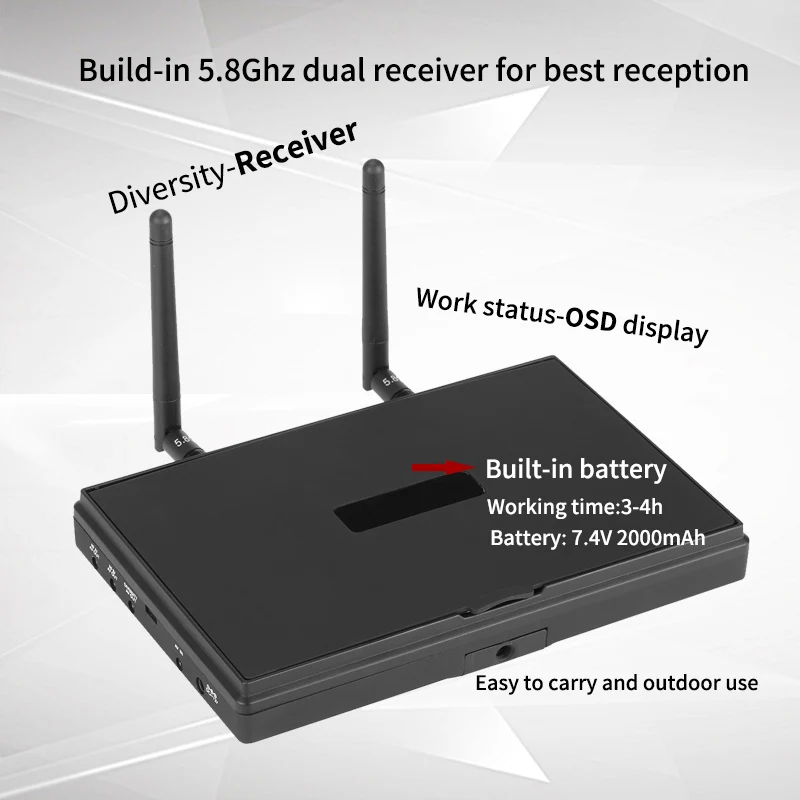

Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)

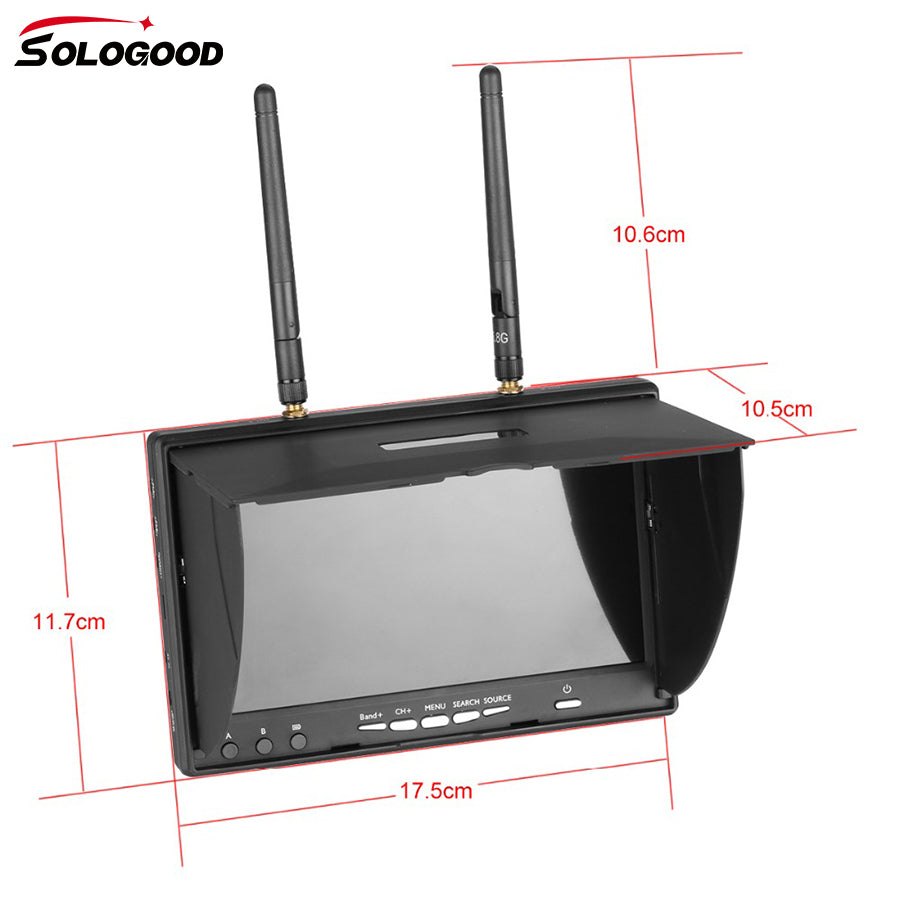

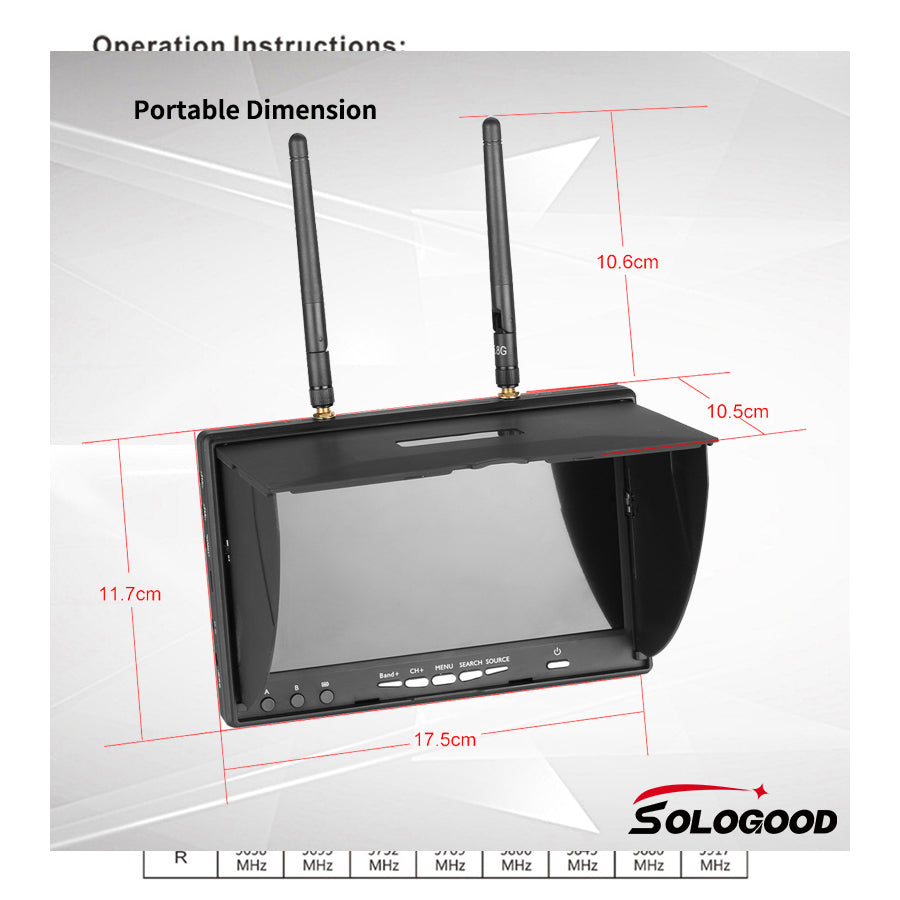

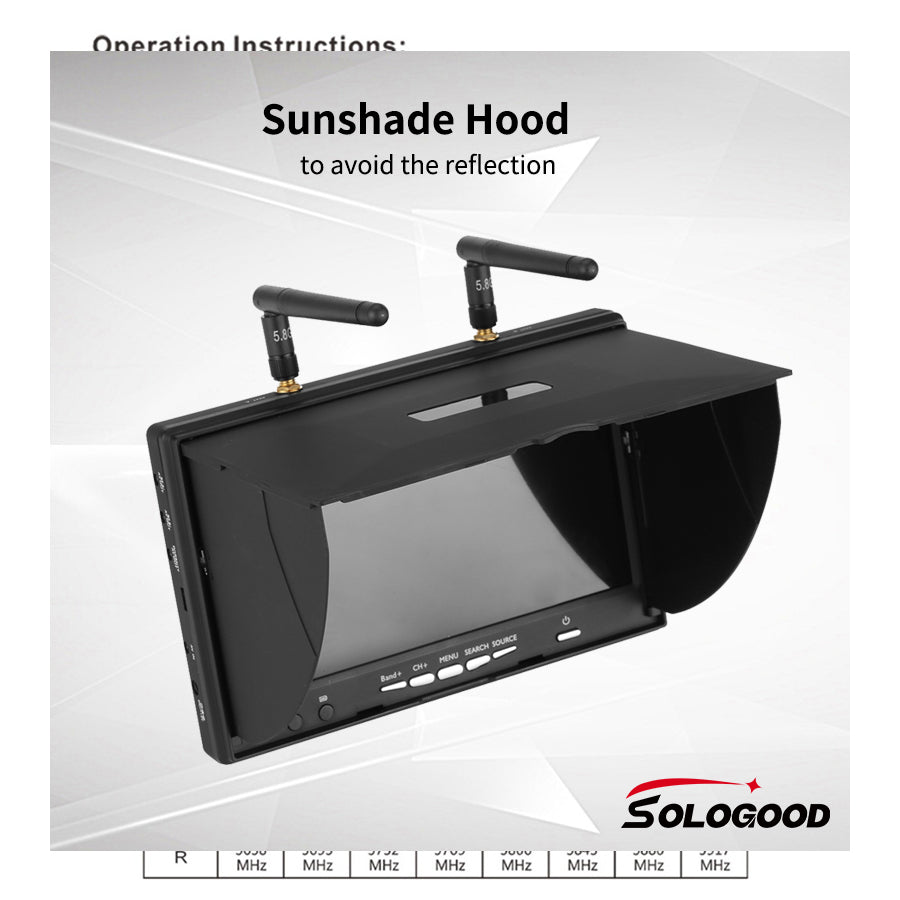

Size:180mm x 120mm x 25mm(Note:Sunshield height:110mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)

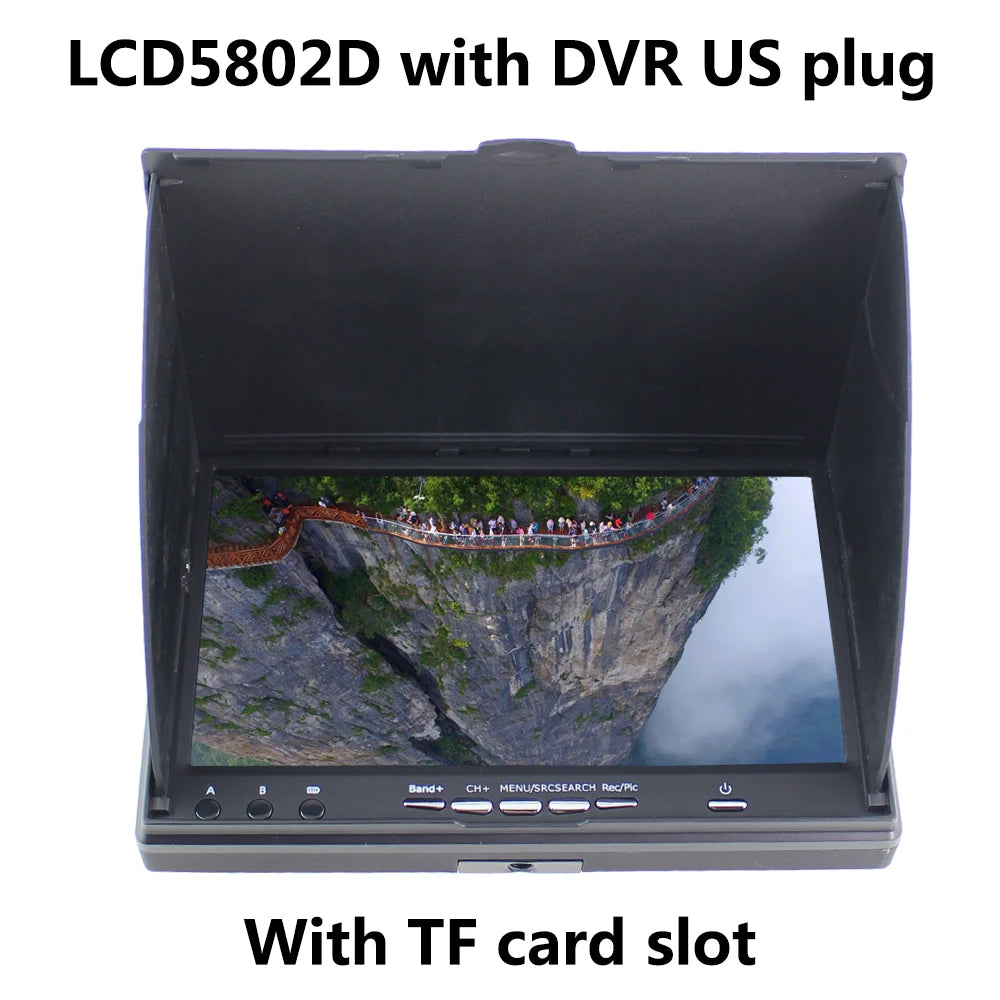

Support up to 32G , C10 SD Card.

Plug :  US /EU

LCD5802D Features:

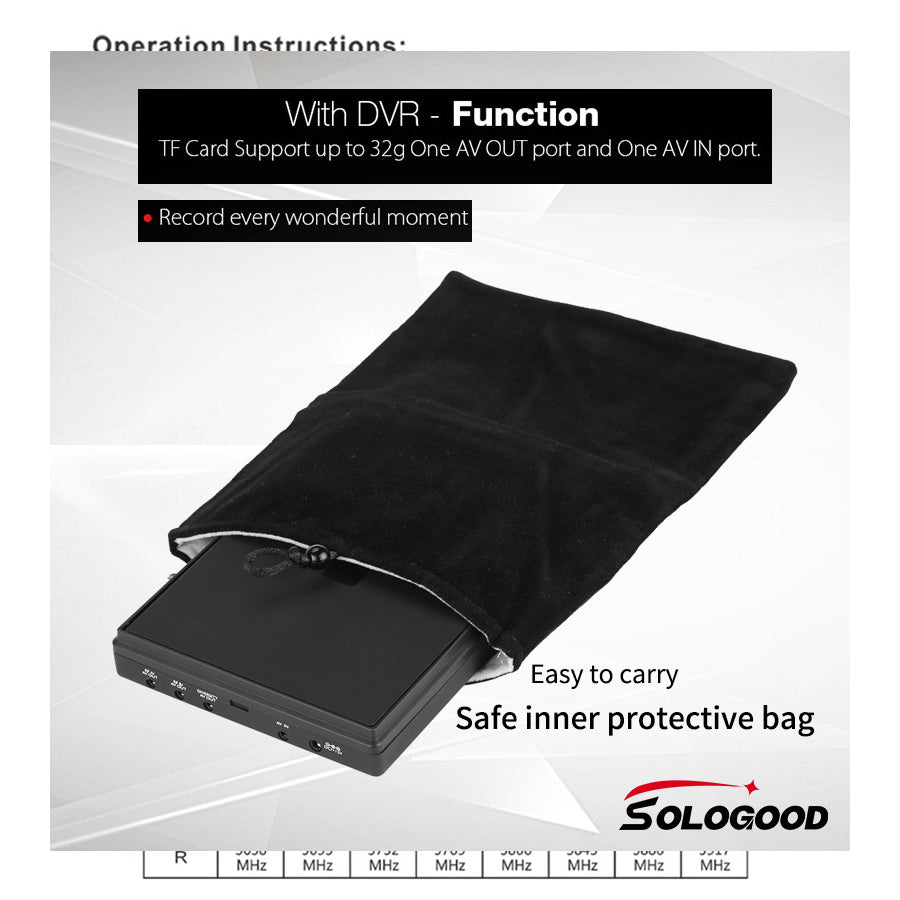

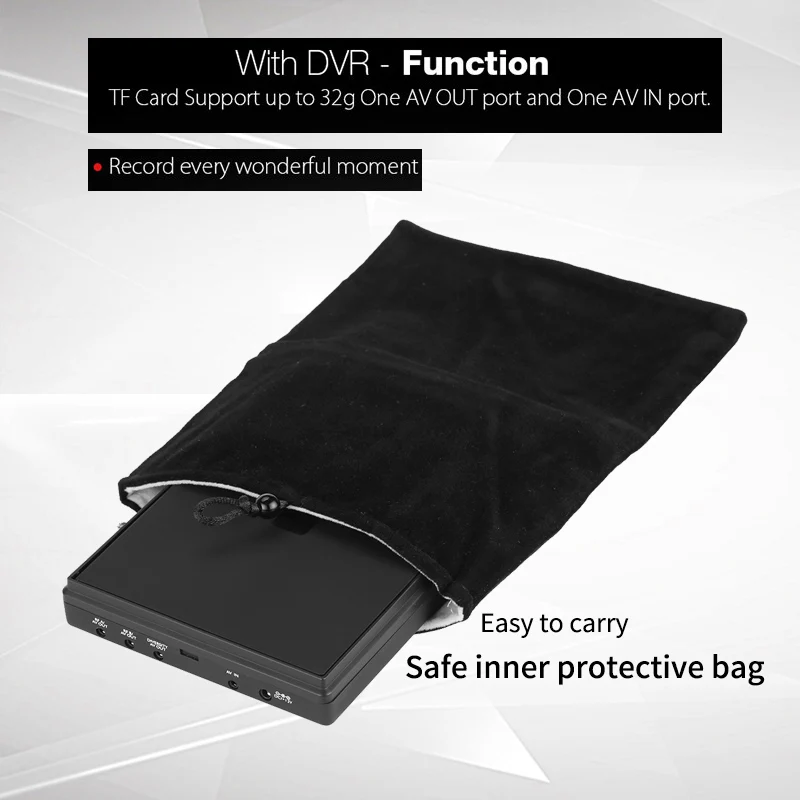

With DVR function
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time

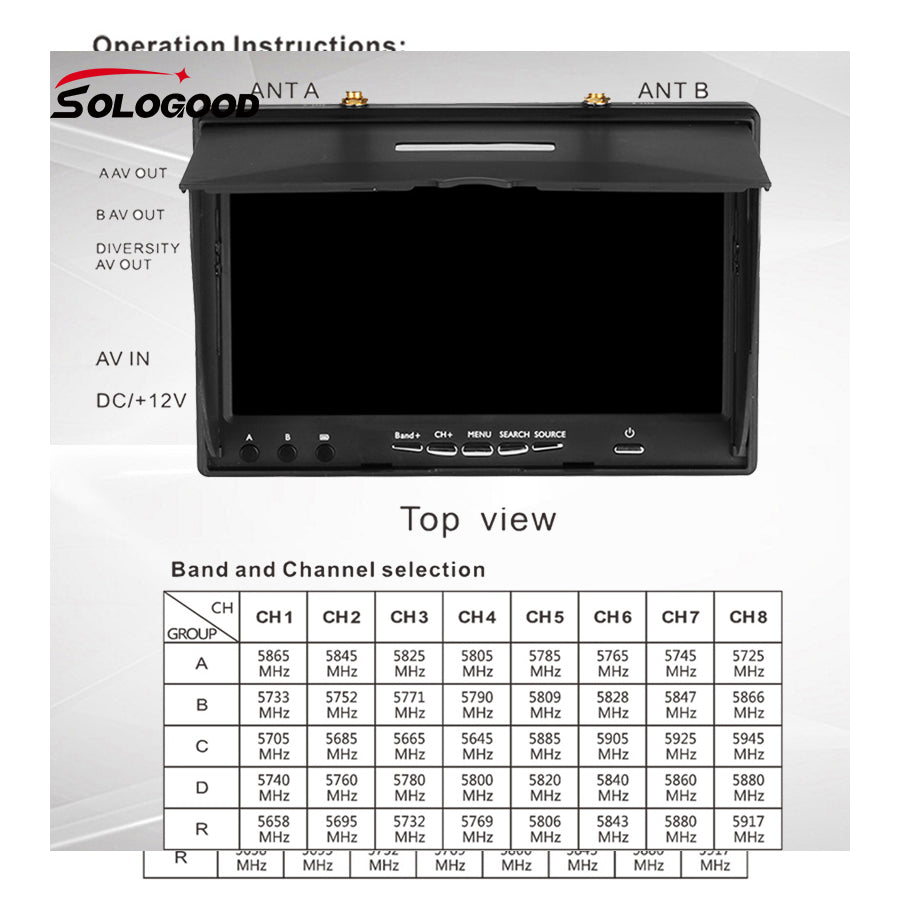

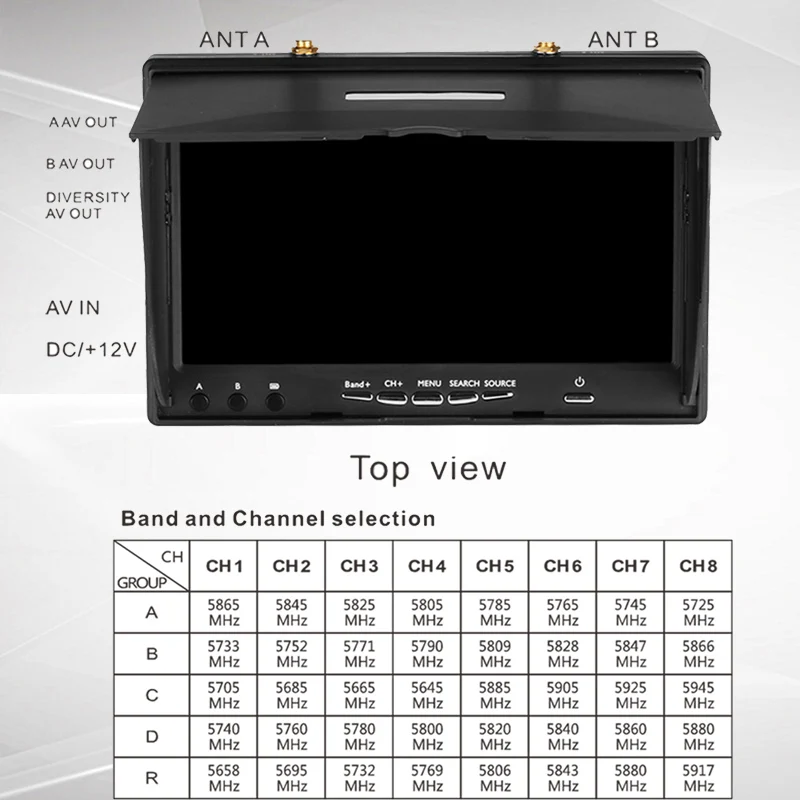

Band and Channel selection

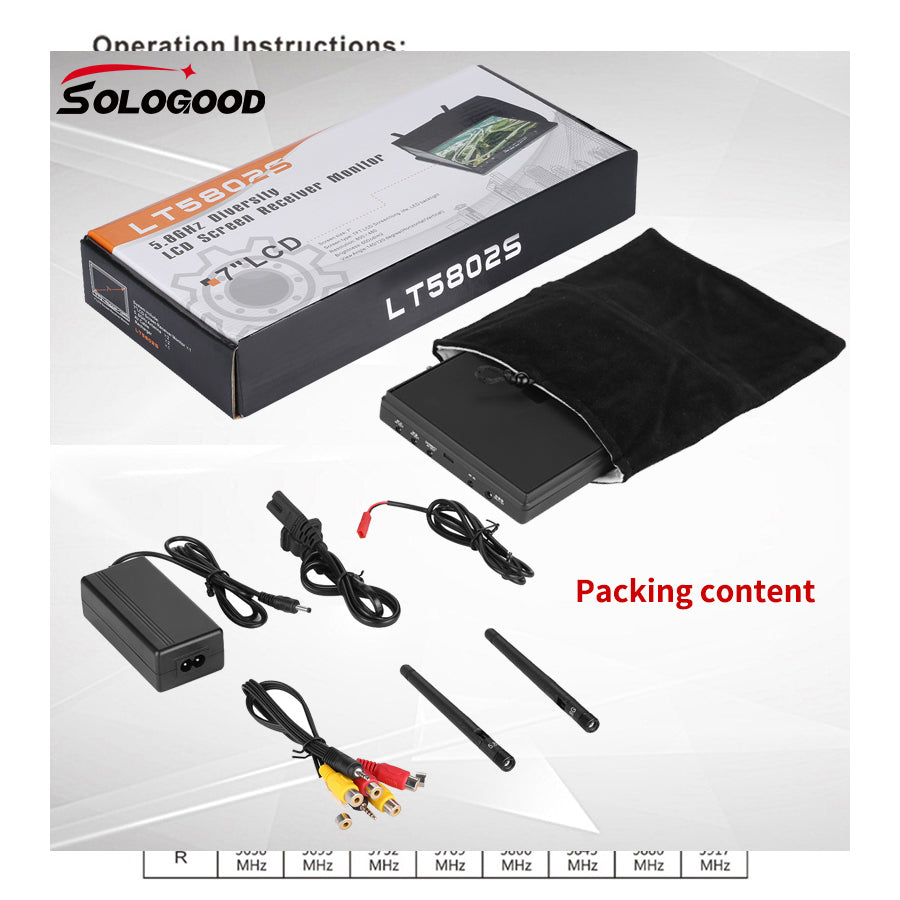

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery(with DVR)
2 x 5.8G Antenna
1 x AV Cable
1 x Charger
