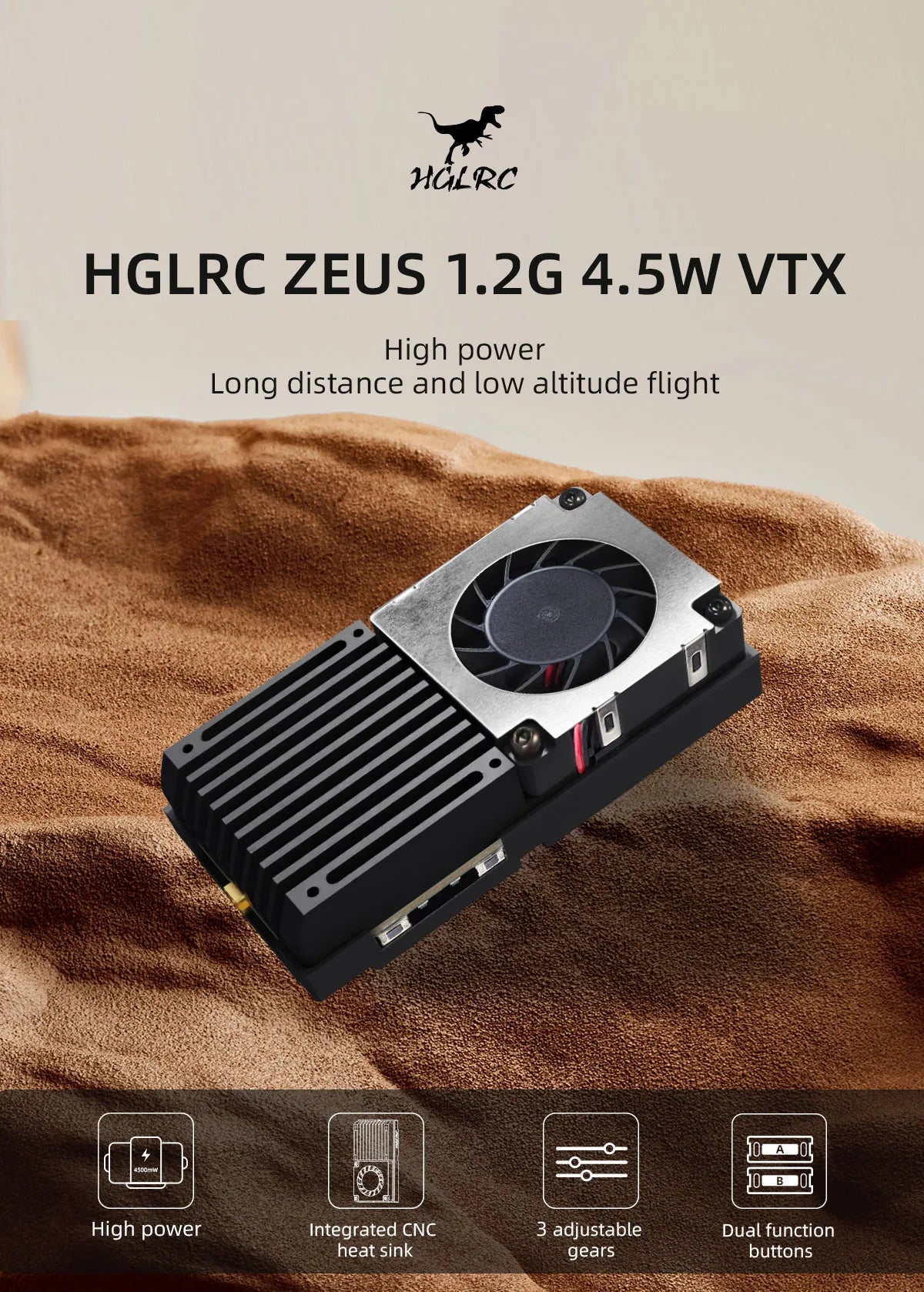

HGLRC ZEUS 1.2G 4.5W High Power Image Transmission Adjustable Power Aerial Photography Travel FPV
advantage:

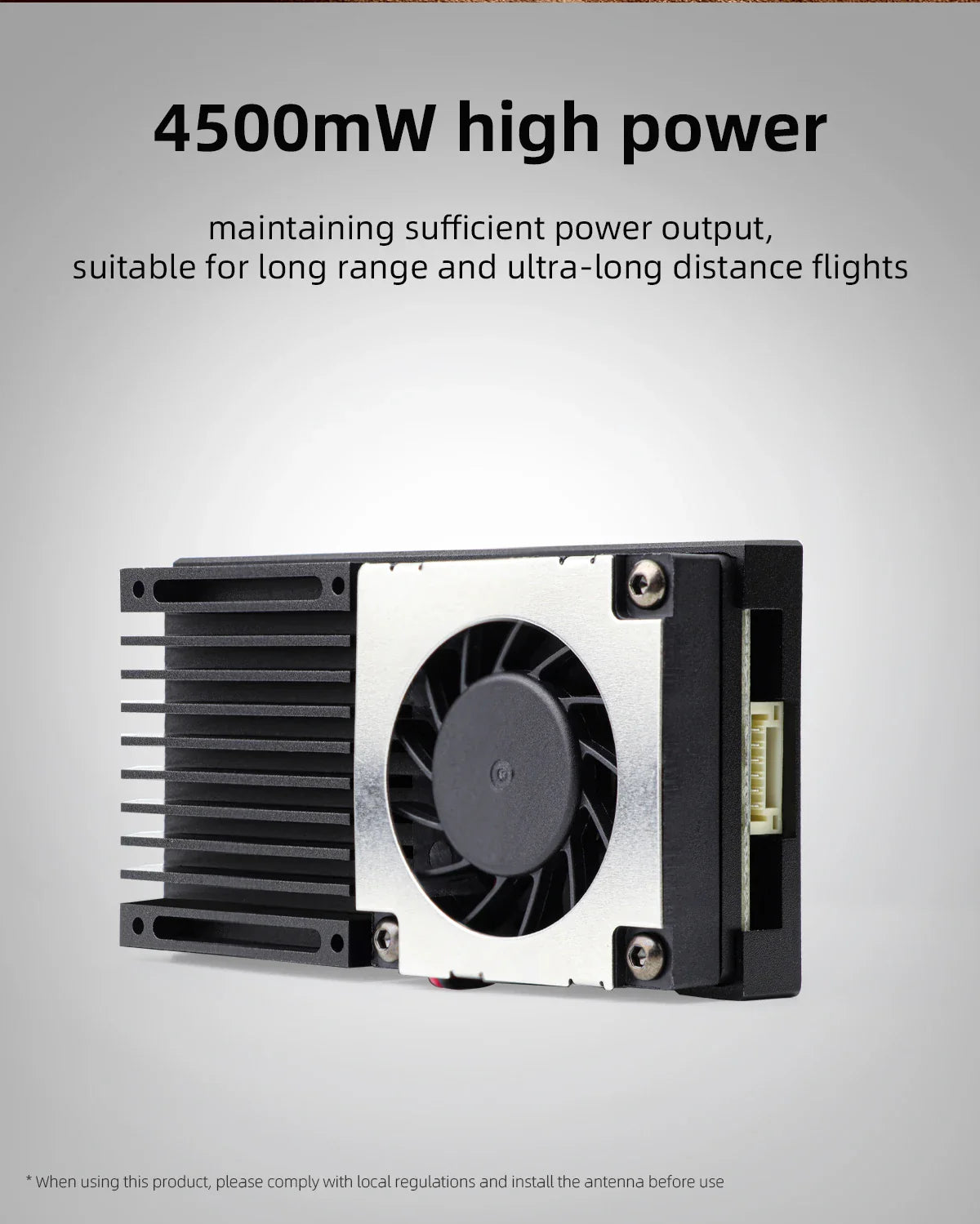

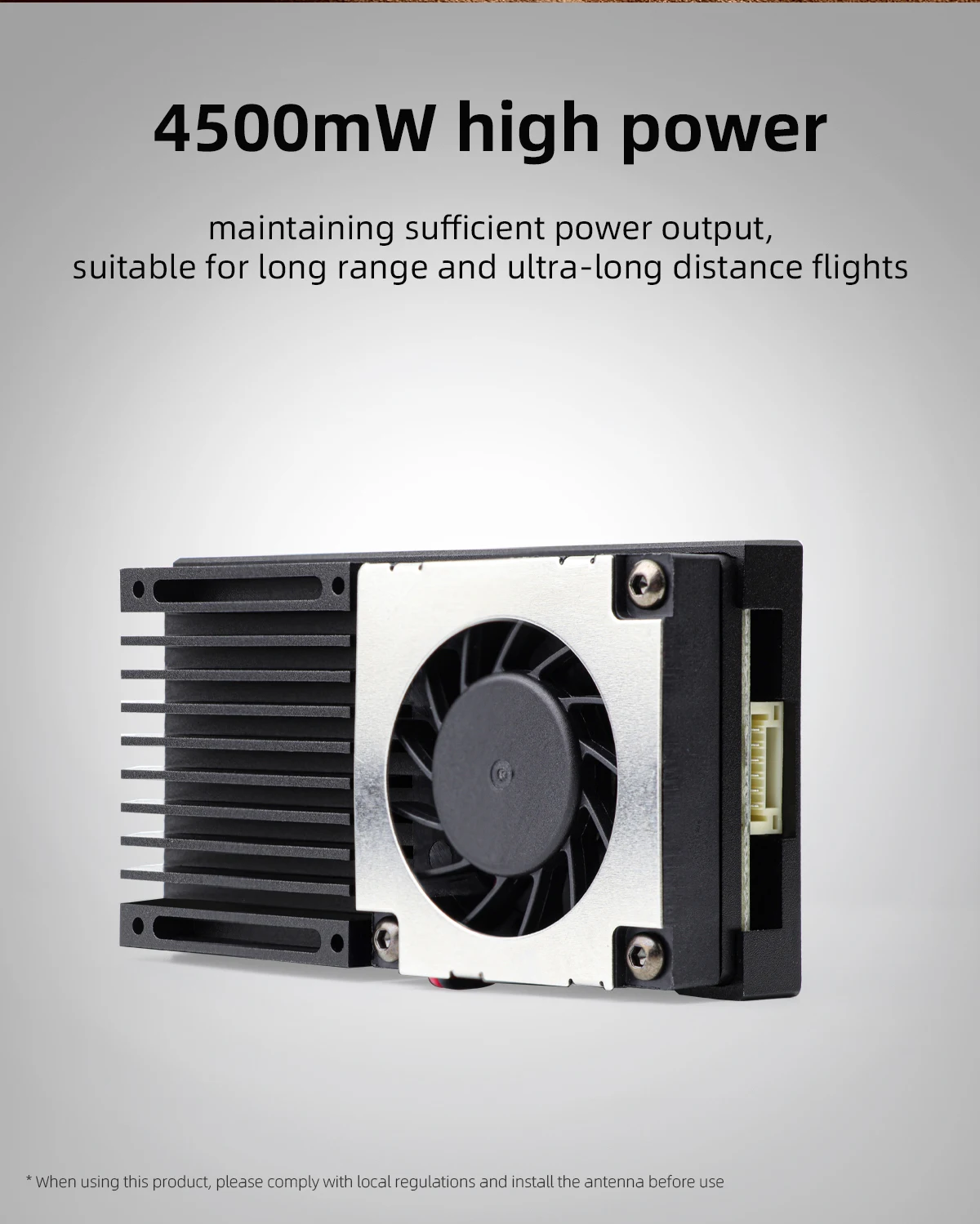

* 4.5W high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights.
* 3 power levels adjustable PIT/25mW/800mW/4.5W.

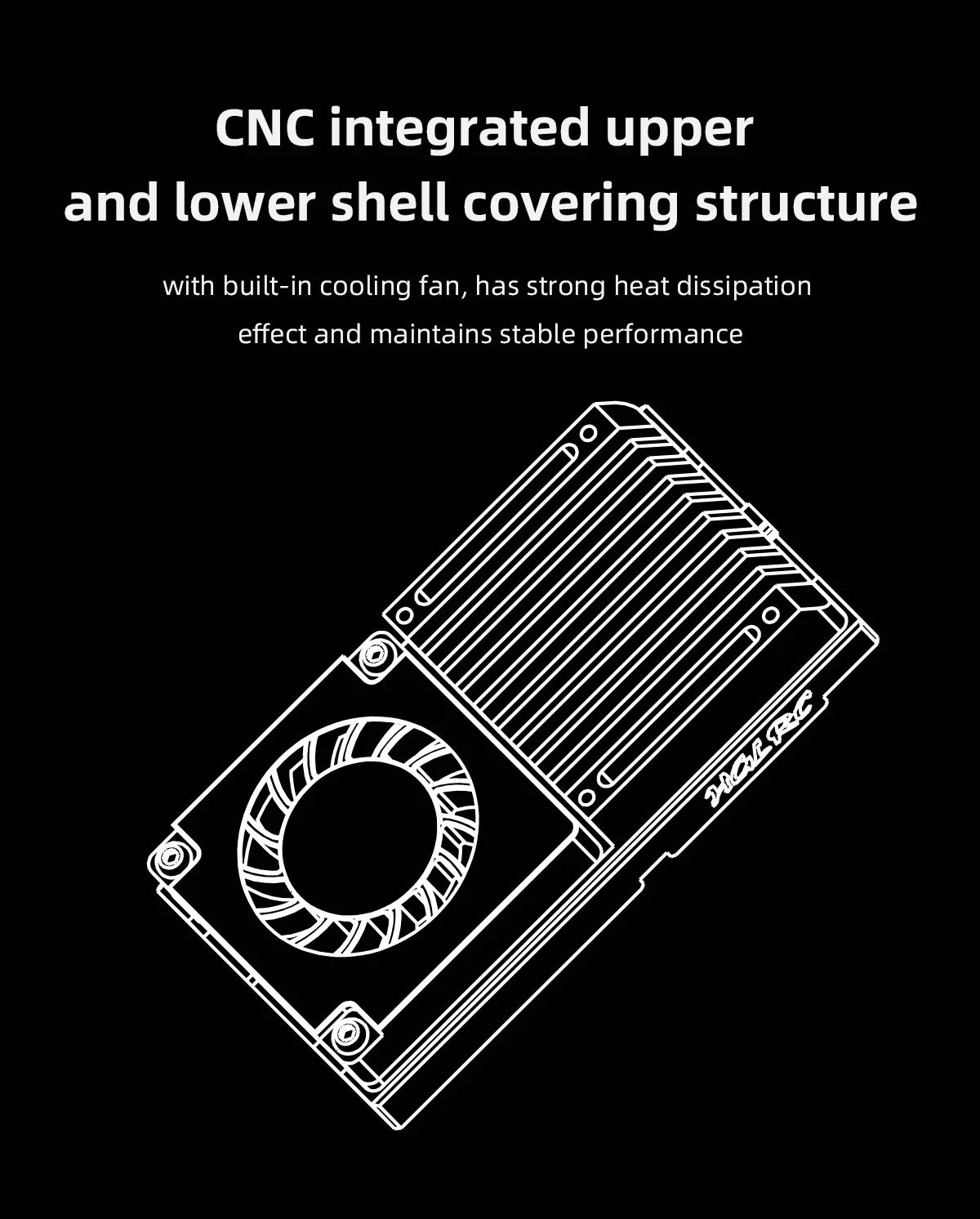

* CNC integrated upper and lower shell covering structure, with built-in cooling fan, has strong heat dissipation effect and maintains stable performance.

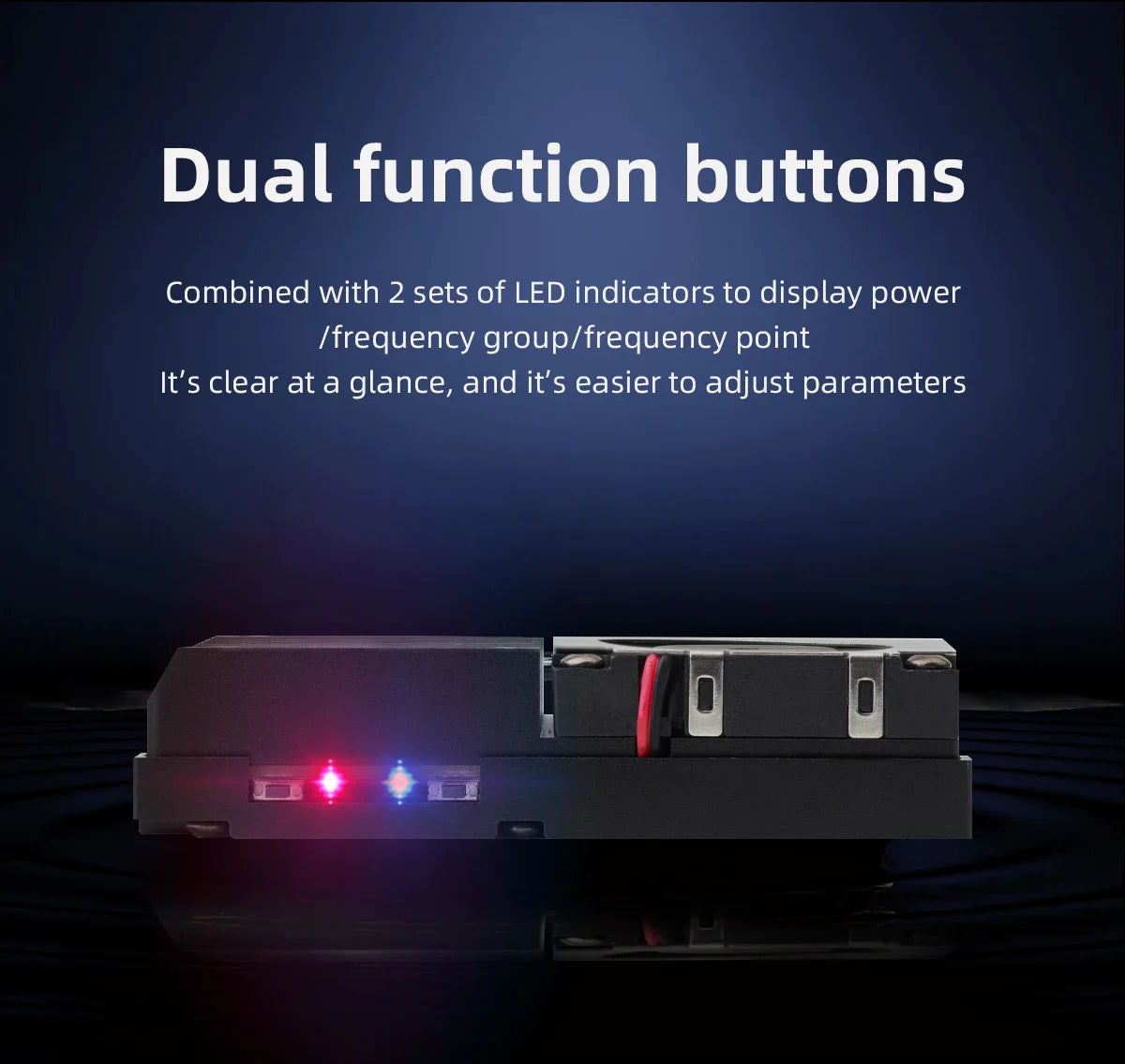

* Dual-function buttons make parameter adjustment easier, and 2 sets of LED indicators display power/frequency group/frequency points at a glance.
* Supports IRC Tramp protocol OSD parameter adjustment.
* Supports 2-8s (DC 7-36V) wide voltage input.
* Supports 20X20 M2 hole installation.
Function Description:
* IRC tramp "PIT/25mW /800mW /4.5W"
* Press and hold the channel selection button for 1 second to switch CH 1-8 cycle.
* Press and hold the power selection button for 1 second to switch the power to 25mW/800mW/4.5W cycles.
* Press and hold the power selection button for more than 2 seconds to switch between entering PITMODE and exiting PITMODE

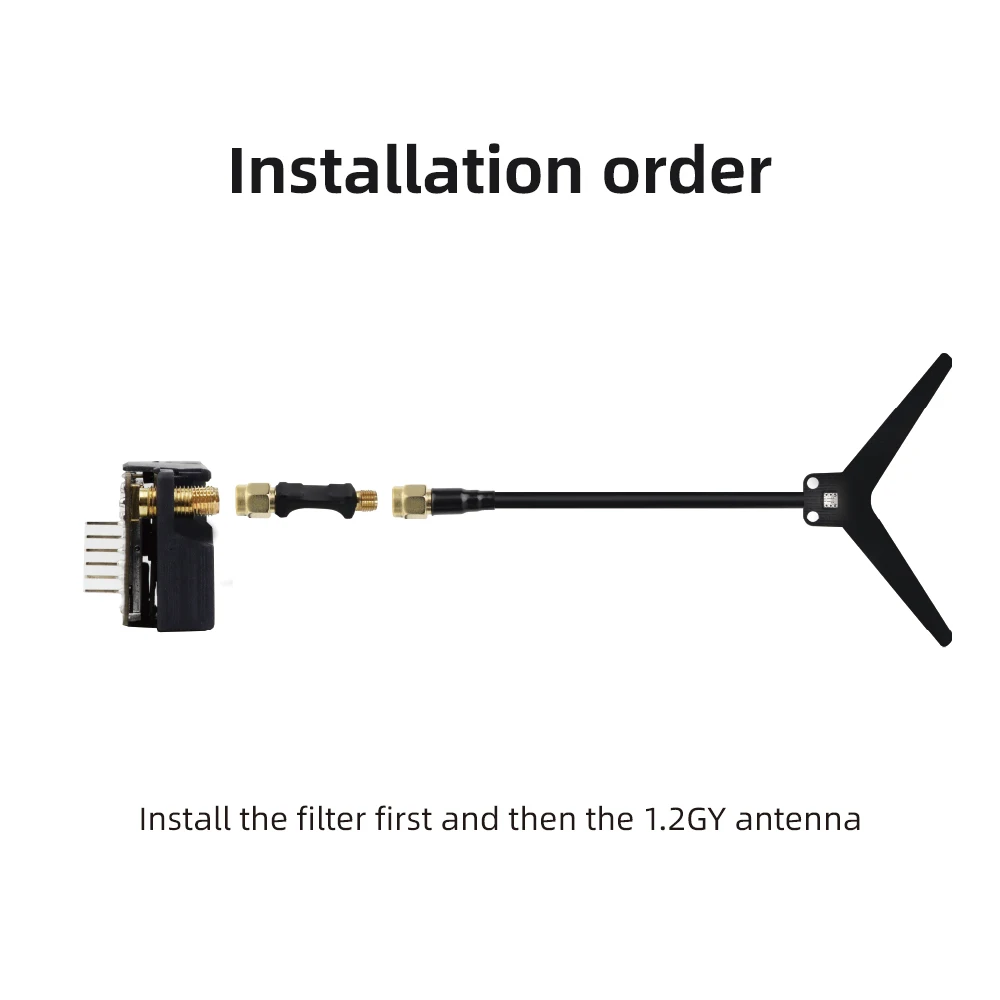

* When using this product, please comply with local regulations and install the antenna before use

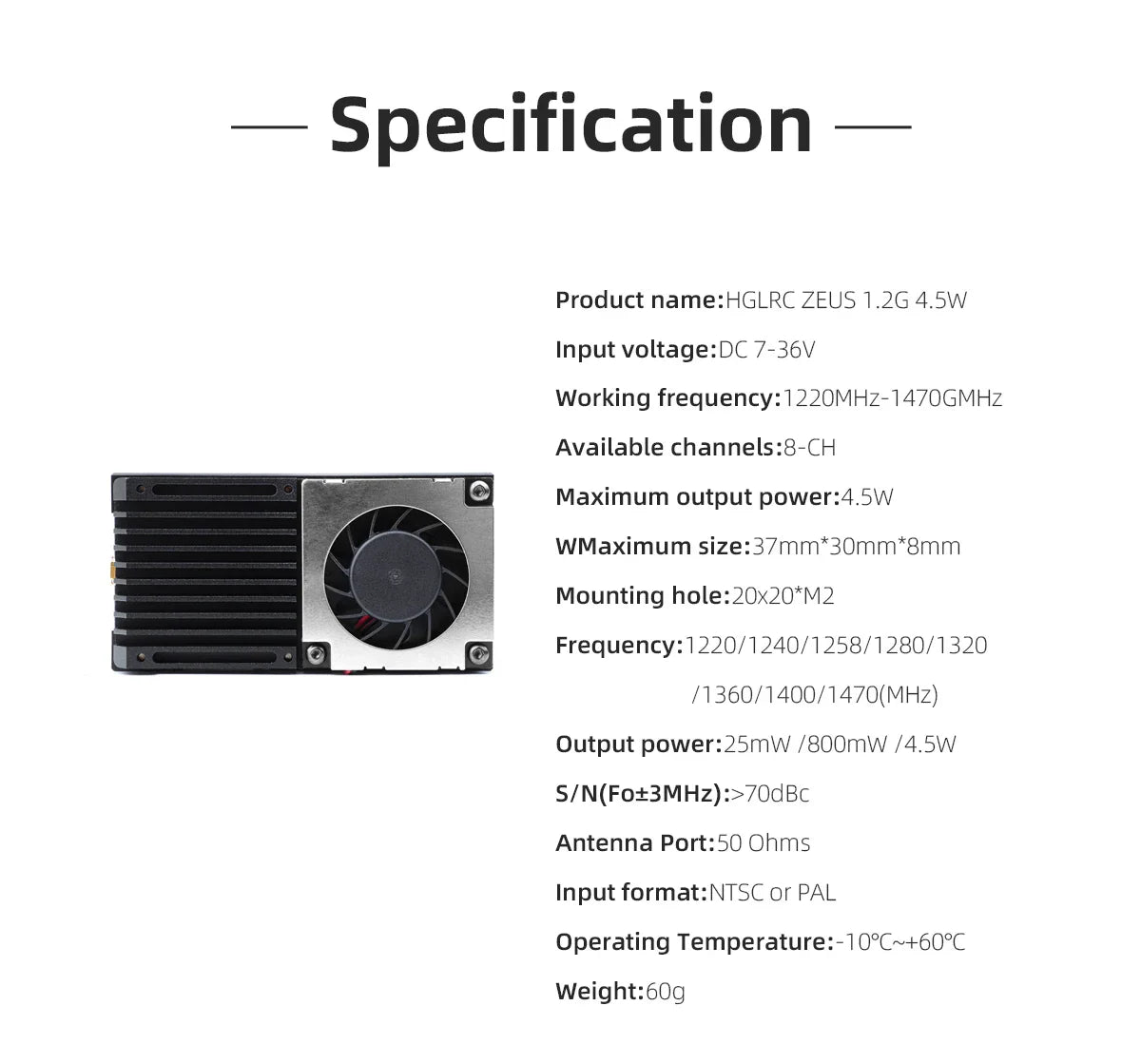

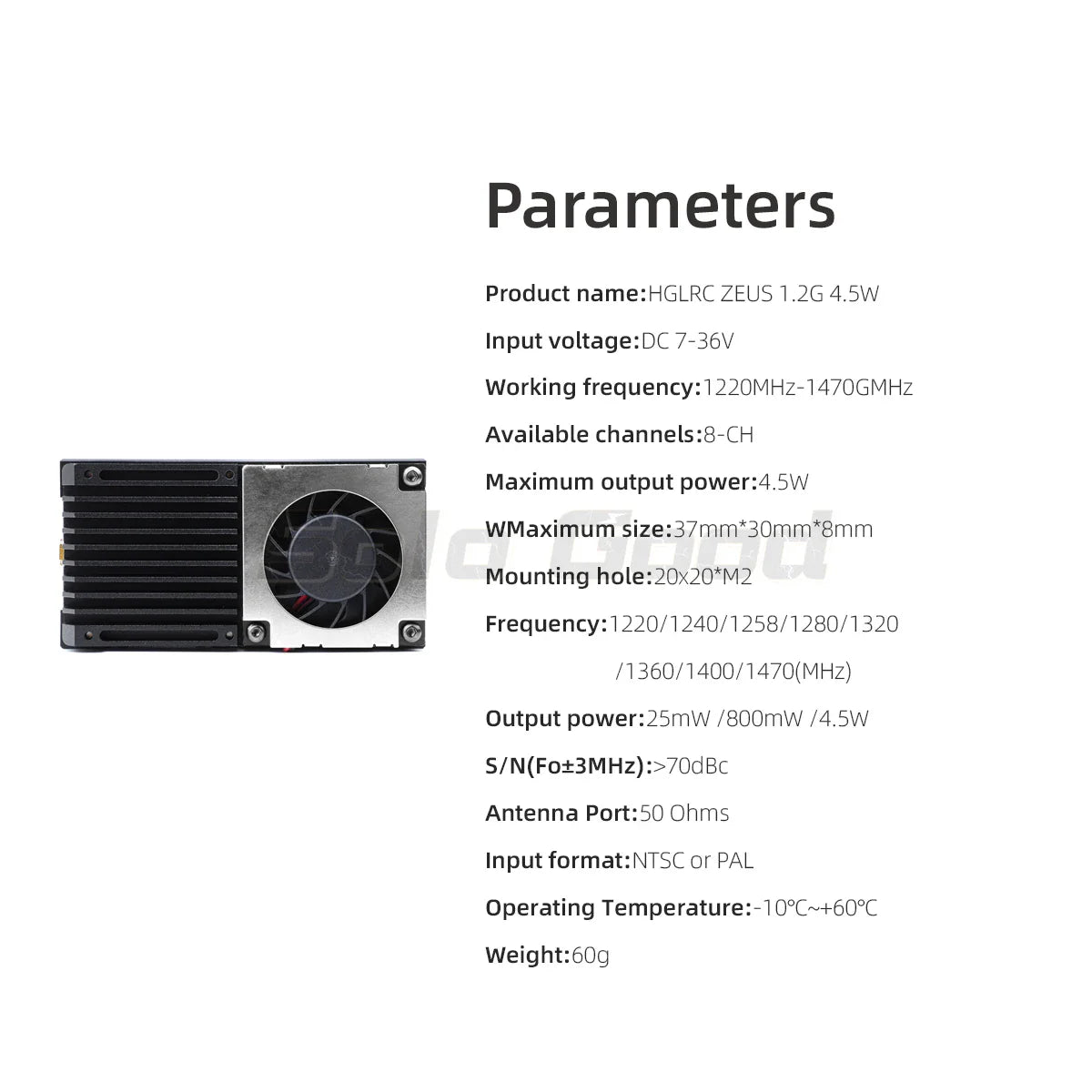

Product parameters
Input voltage: DC 7-36V
Working frequency: 1220MHz-1470GMHz
Available channels: 8-CH
Maximum output power: 4.5W

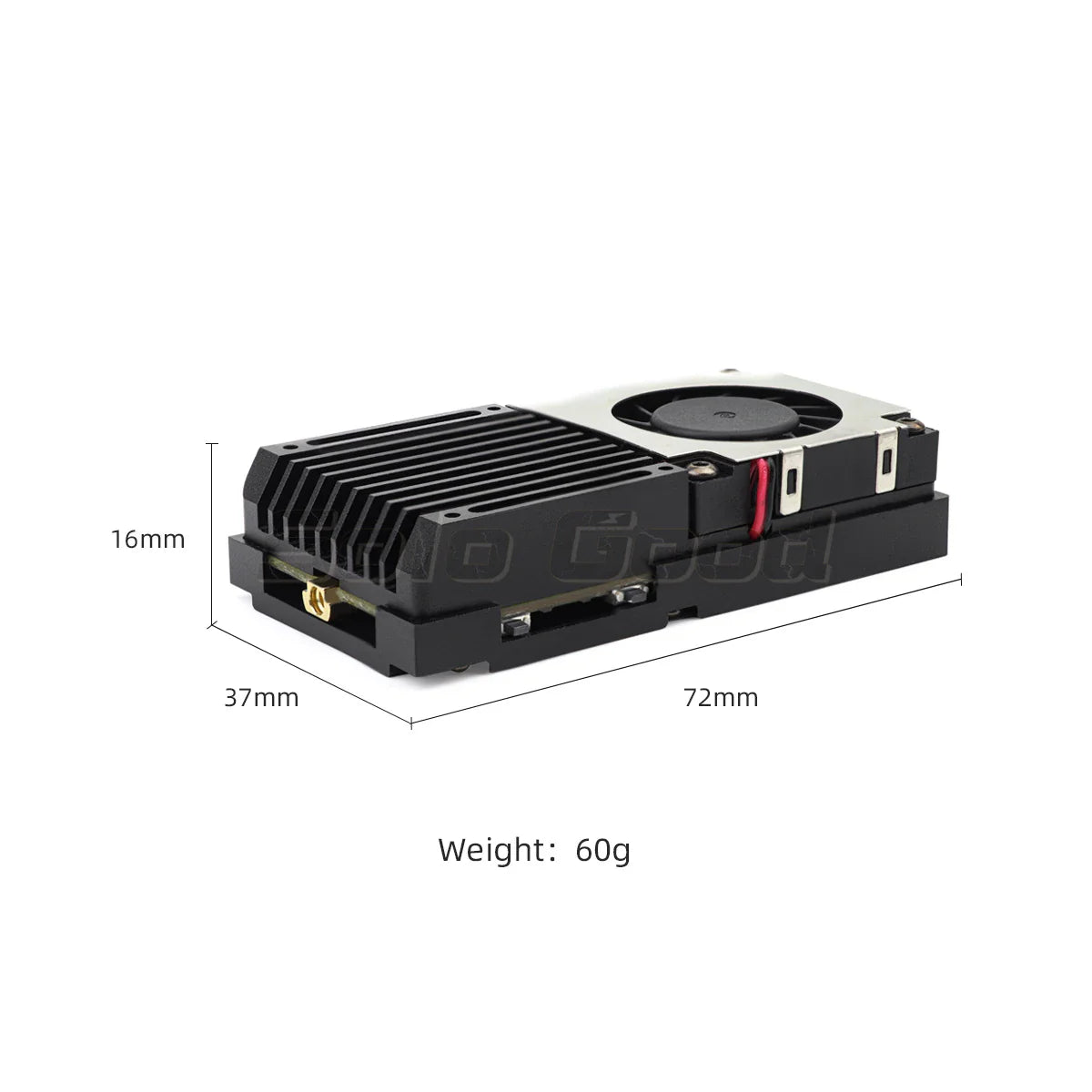

WMaximum size: 37mm*30mm*8mm
Mounting hole: 20x20*M2
Frequency:1220/1240/1258/1280/1320/1360/1400/1470(MHz)
Output power:25mW /800mW /4.5W
S/N(Fo±3MHz):>70dBc
Antenna Port:50 Ohms
Input format:NTSC or PAL
Operating Temperature:-10℃~+60℃
Weight:60g

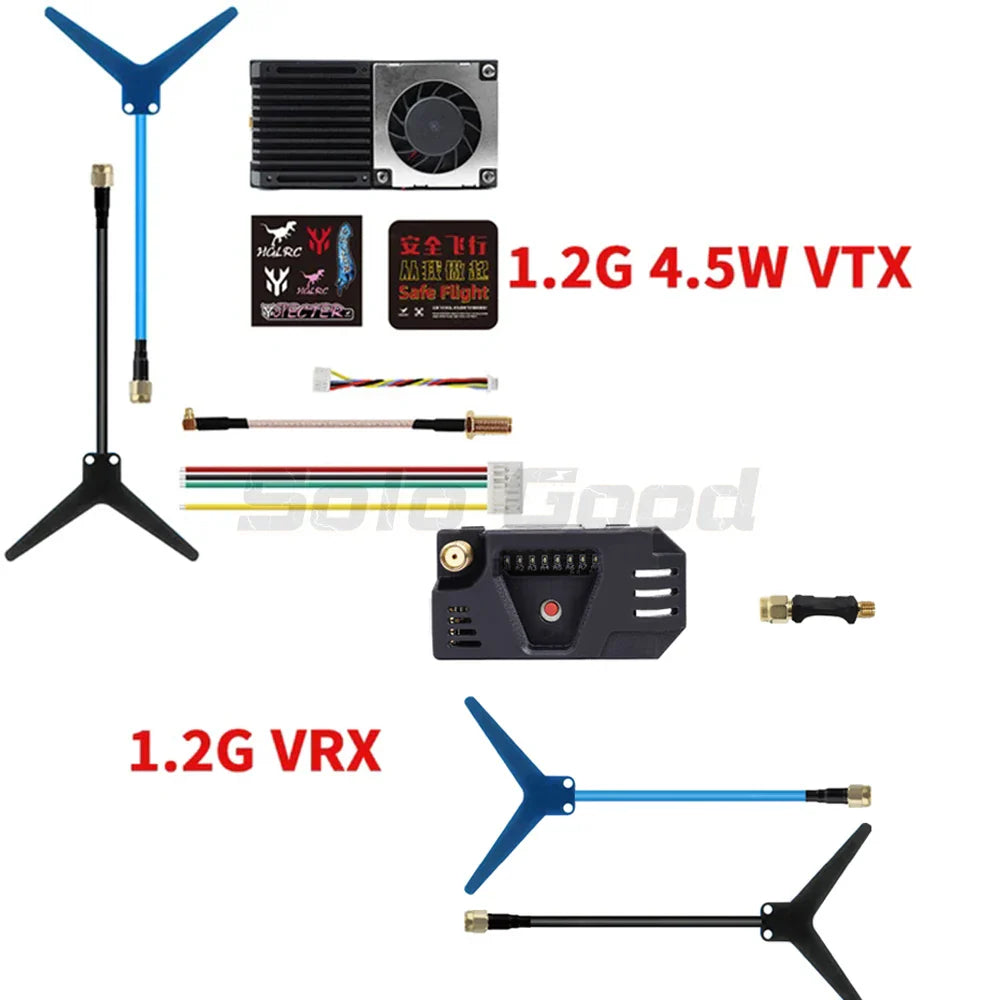

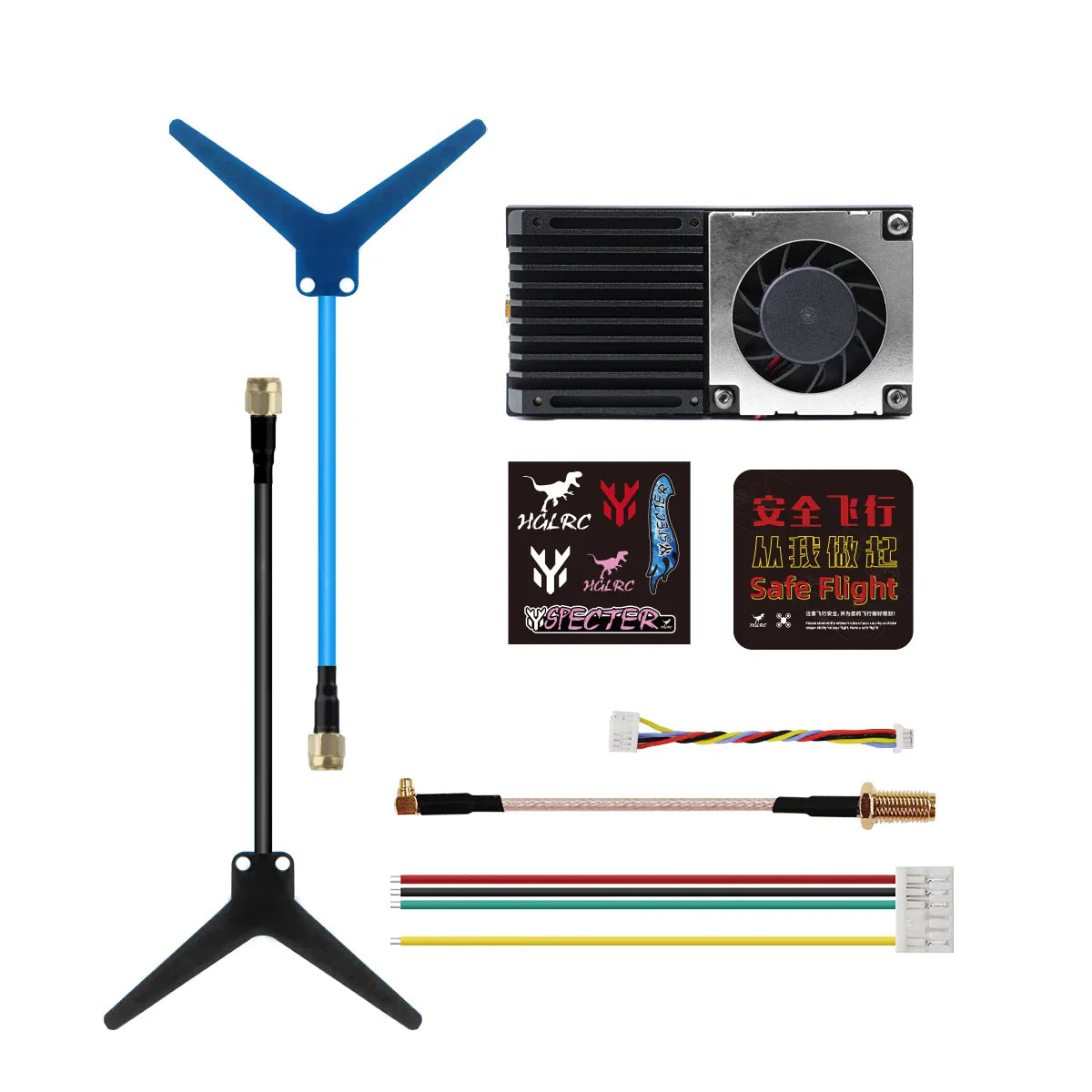

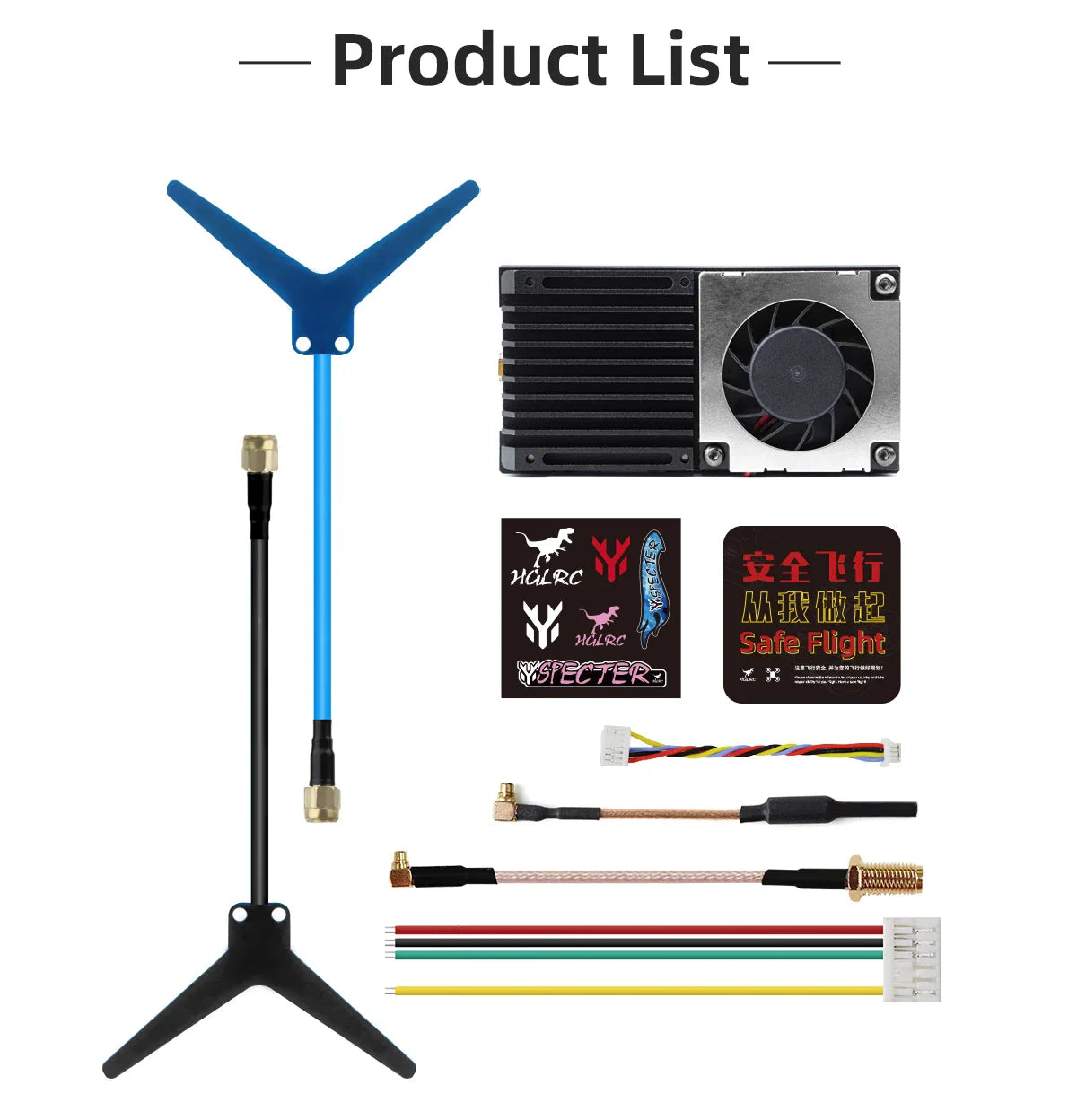

Product List:
1 x Zeus 1.2G 4.5W VTX
1 x MMCX to SMA 100mm adapter
2 x 1.2GHz-1.4GHz SMA Dipole Antenna
1 x GH1.25 6Pin 100mm single-ended cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
