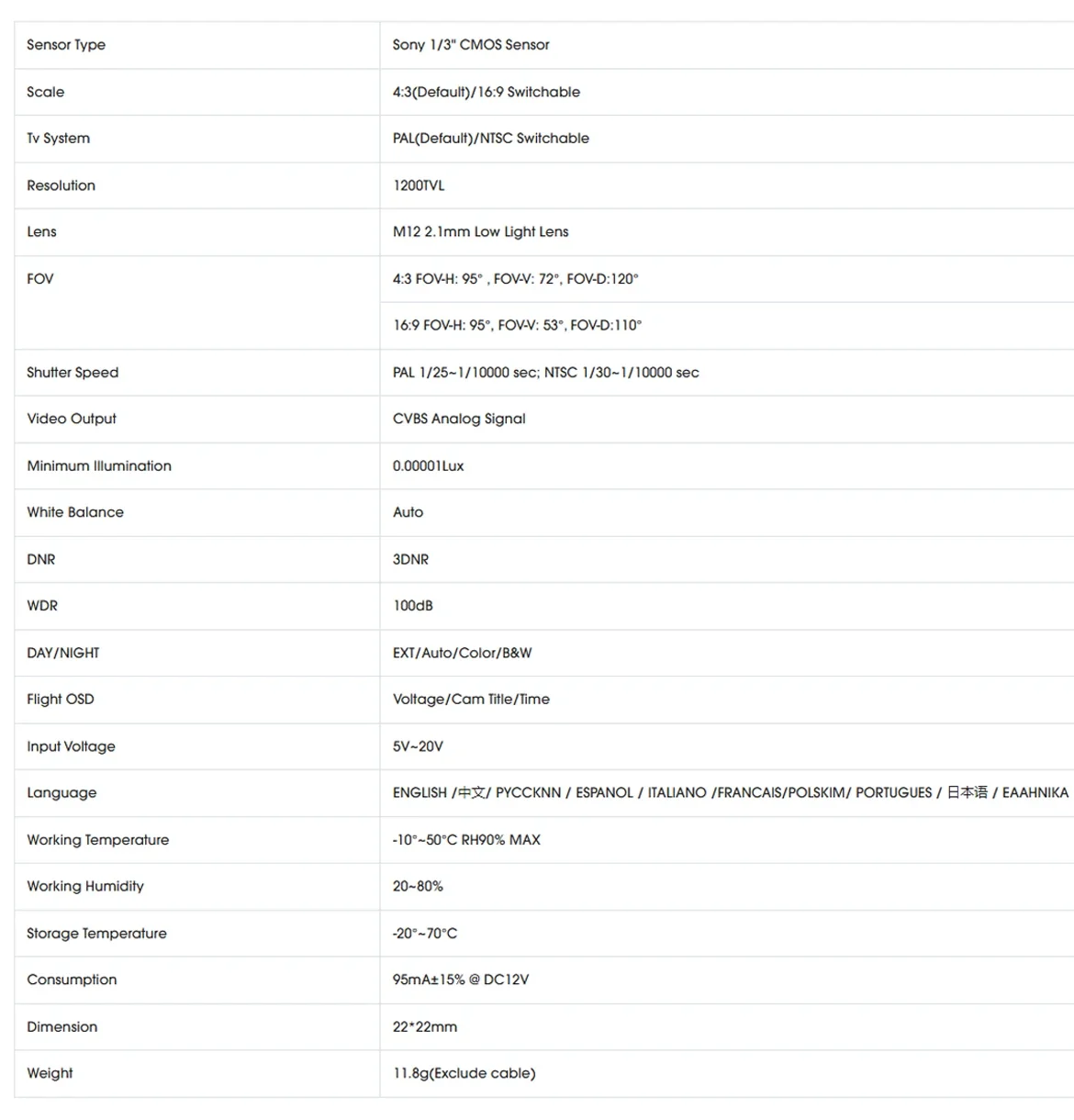

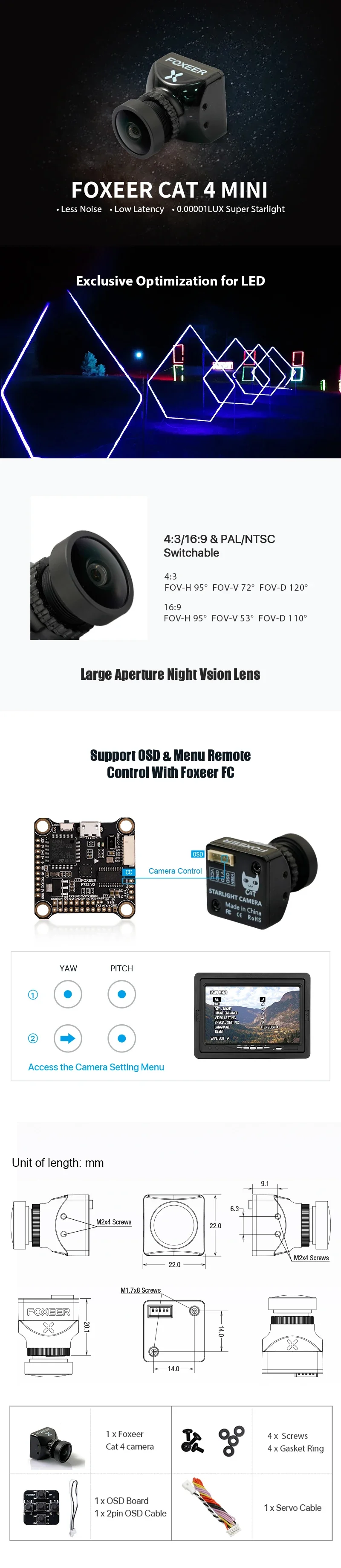

| Sensor Type |
Sony 1/3" CMOS Sensor |
| Scale |
4:3(Default)/16:9 Switchable |
| Tv System |
PAL(Default)/NTSC Switchable |
| Resolution |
1200TVL |
| Lens |
M12 2.1mm Low Light Lens |
| FOV |
4:3 FOV-H: 95° , FOV-V: 72°, FOV-D:120° |
| 16:9 FOV-H: 95°, FOV-V: 53°, FOV-D:110° |
| Shutter Speed |
PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output |
CVBS Analog Signal |
| Minimum Illumination |
0.00001Lux |
| White Balance |
Auto |
| DNR |
3DNR |
| WDR |
100dB |
| DAY/NIGHT |
EXT/Auto/Color/B&W |
| Flight OSD |
Voltage/Cam Title/Time |
| Input Voltage |
5V~20V |
| Language |
ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature |
-10°~50°C RH90% MAX |
| Working Humidity |
20~80% |
| Storage Temperature |
-20°~70°C |
| Consumption |
95mA±15% @ DC12V |
| Dimension |
19*19mm |
| Weight |
11.8g(Exclude cable) |
