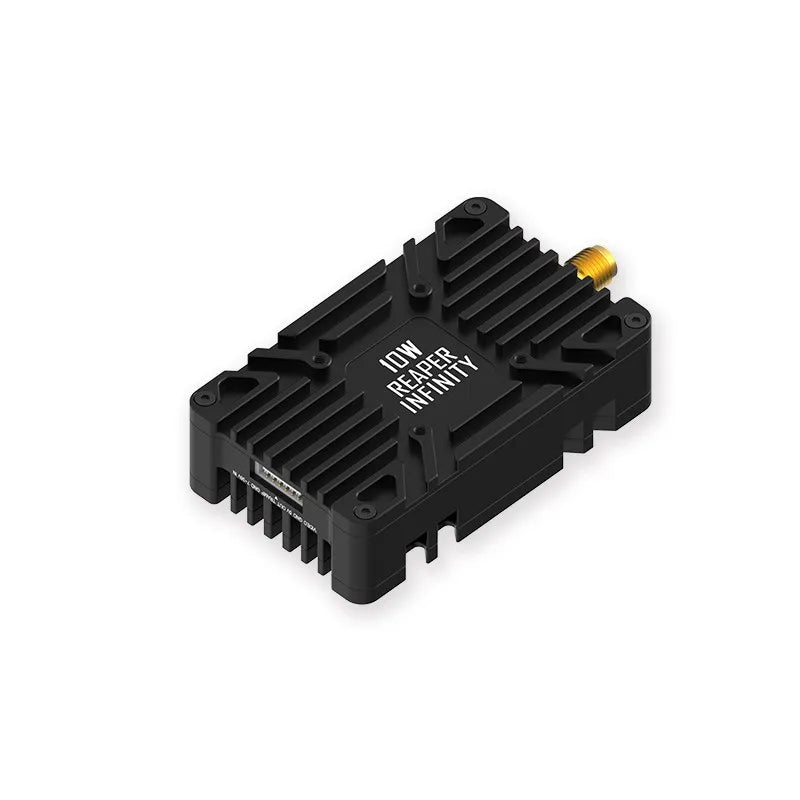

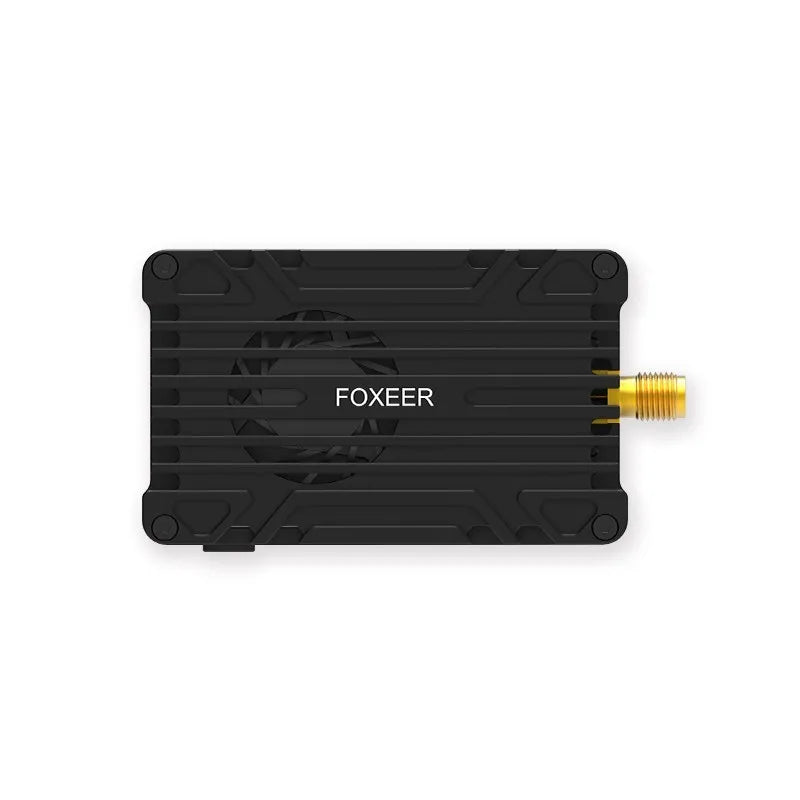

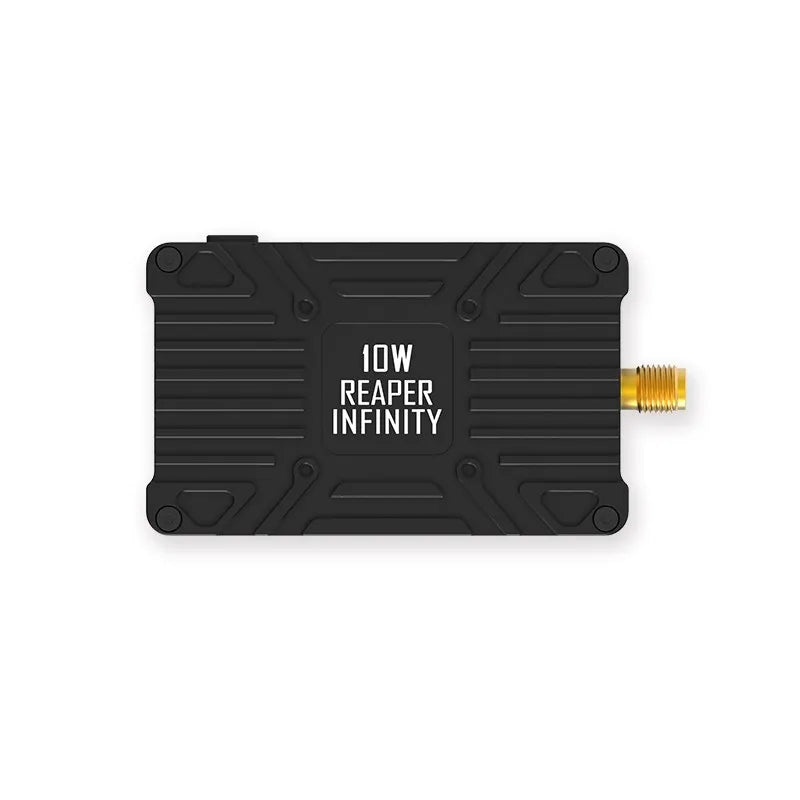

FOXEER 4.9G-6G Reaper Infinity 5.8G 10W 80CH VTX 2-8S Lipo 400mW/2W/5W/7.5W/10W Switchable Transmitter for Long Range RC FPV
FOXEER 4.9G-6G Reaper Infinity 5.8G 10W 80CH VTX 2-8S Lipo 400mW/2W/5W/7.5W/10W Switchable Transmitter for Long Range RC FPV
Couldn't load pickup availability
Adjust the power level and frequency: If the Tramp Rx pin cable on VTx is connected with FC, then the button doesn't work.
|
Name |
Reaper Infinity 10W |
|
Input Voltage |
9~36V |
|
Output Voltage |
5V |
|
Channels |
80CH |
|
Power |
1W/2.5W/5W/7.5W/10W |
|
Pit |
Double click to enter |
|
Weight |
48g |
|
Mounting Hole |
20*20mm M2 with 2.5mm depth |
|
Size |
66*37*16mm |
|
Connector |
SMA |
|
Cable Connector |
GH1.25 6P |
|
Consumption |
10V/3.3A & 20V/1.5A; 10W |
|
Package Include |
1 x VTx, 1 x silicon cable |
|
Band |
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
|
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
Band H |
5653 |
5693 |
5733 |
5773 |
5813 |
5853 |
5893 |
5933 |
|
Band L |
5333 |
5373 |
5413 |
5453 |
5493 |
5533 |
5573 |
5613 |
|
Band U |
5325 |
5348 |
5366 |
5384 |
5402 |
5420 |
5438 |
5456 |
|
Band O |
5474 |
5492 |
5510 |
5528 |
5546 |
5564 |
5582 |
5600 |
|
Band X |
4990 |
5020 |
5050 |
5080 |
5110 |
5140 |
5170 |
5200 |
PIT On/Off:

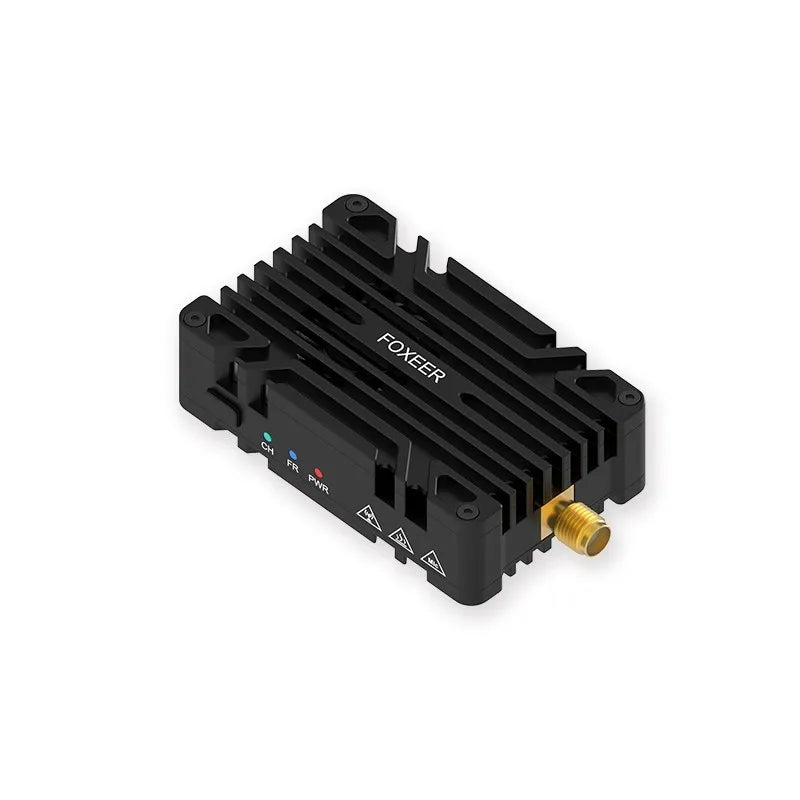

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
