Description

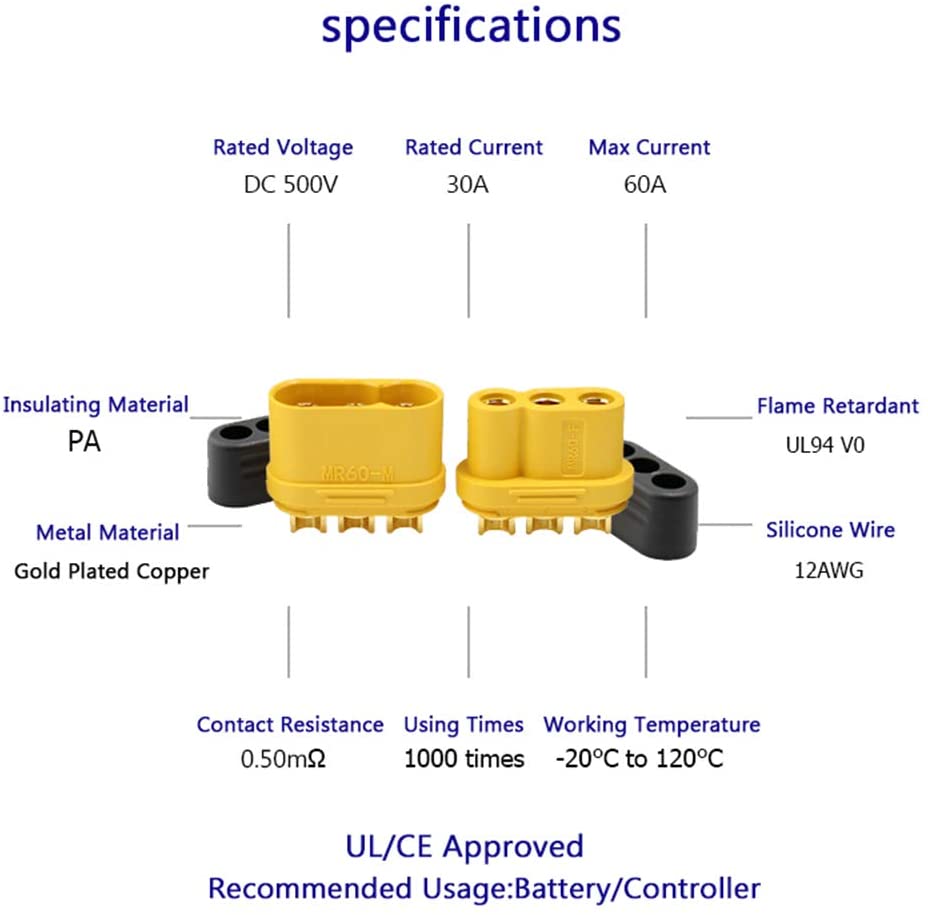

Parameters:
Item Name: MR60 connector
Body Material and Surface Plating: Brass and gold plated
Insulation Material: PA66
Contact resistance: 0.5mΩ
Rated voltage: DC 500V
Rated current: 30A
Instantaneous current: 60A
FR level: UL94 V0
USE times: 1000 times
Cable SPEC: 12AWG
Operating temperature: -20℃--120℃
Features:

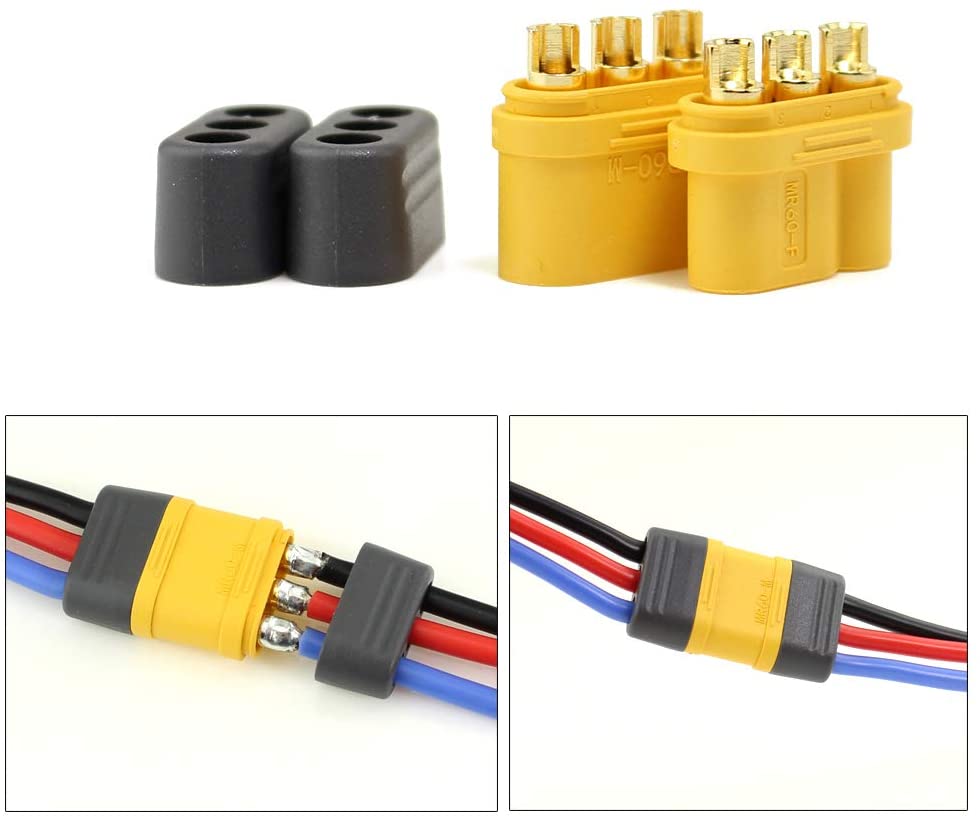

- Suitable for connecting ESCs and motors
- With protective sleeve
- Assistive weld foot, more stable
- Package Included:

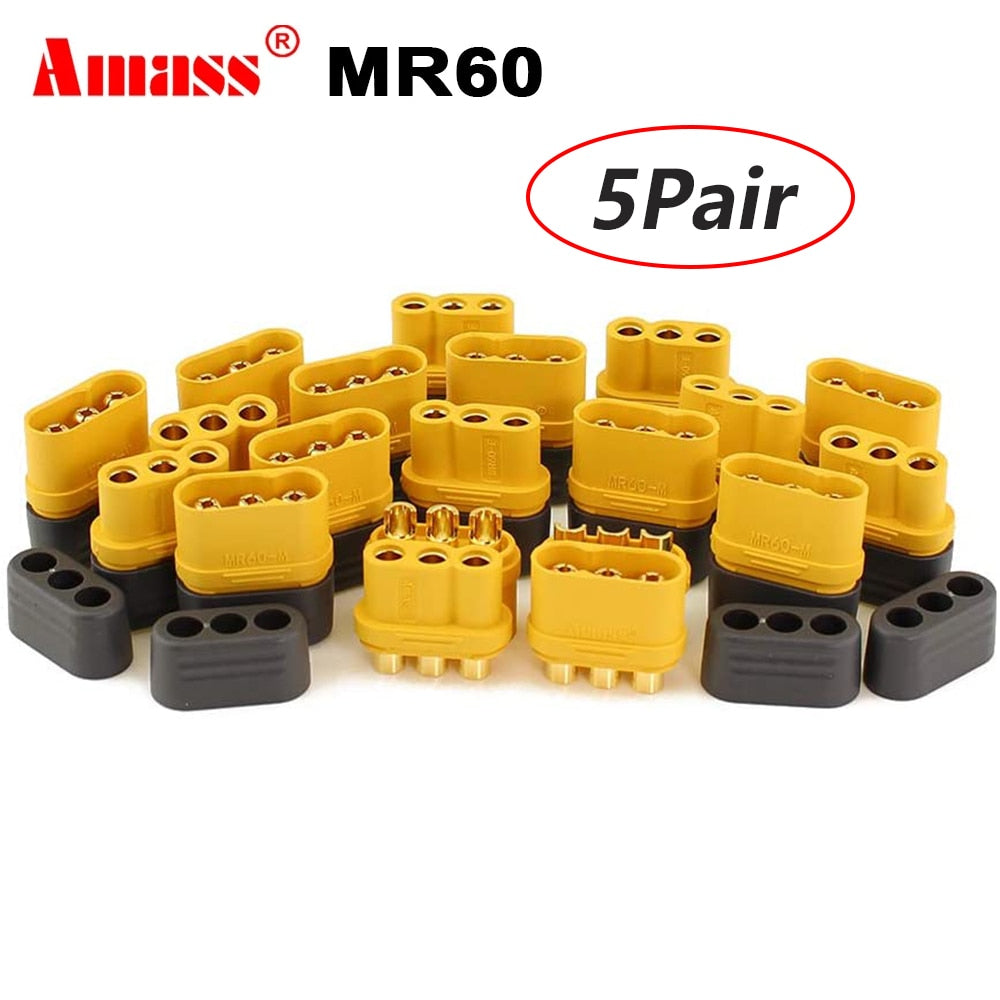

- 5pairs Amass MR60 Male Female Plug
