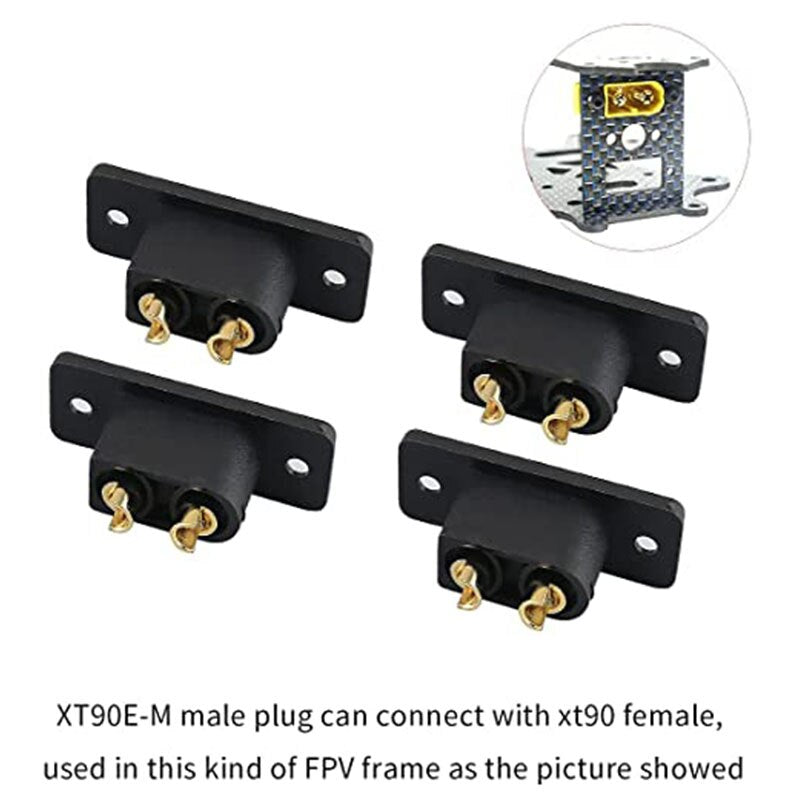

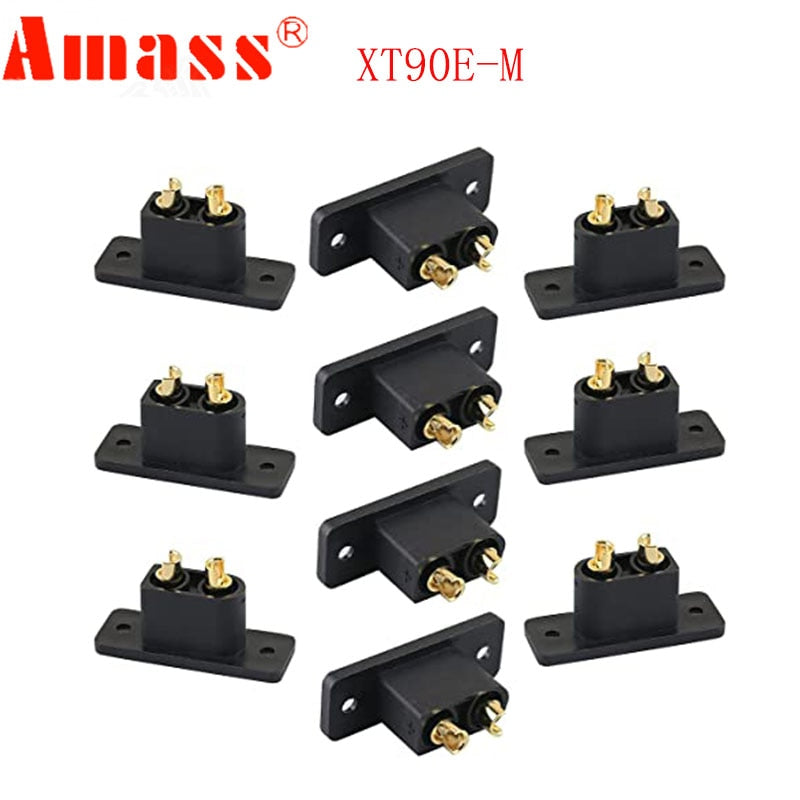

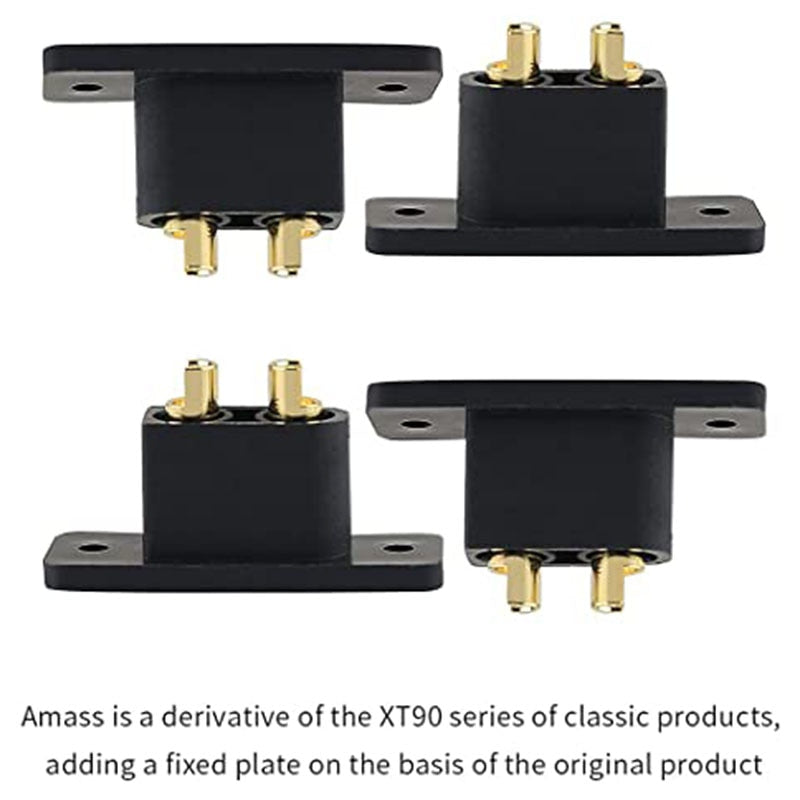

5/10PCS/20PCS AMASS Black XT90E-M Battery Plug Gold-Plated Male Connector DIY Connecting Parts for RC Aircraft Drone Accessories

Roll over image to zoom in Click on image to zoom

5/10PCS/20PCS AMASS Black XT90E-M Battery Plug Gold-Plated Male Connector DIY Connecting Parts for RC Aircraft Drone Accessories

SoloGood.RC

Color: 5PCS XT90E-M

Variant

Price:

$3.07

Quantity:

Share this product

Product Description

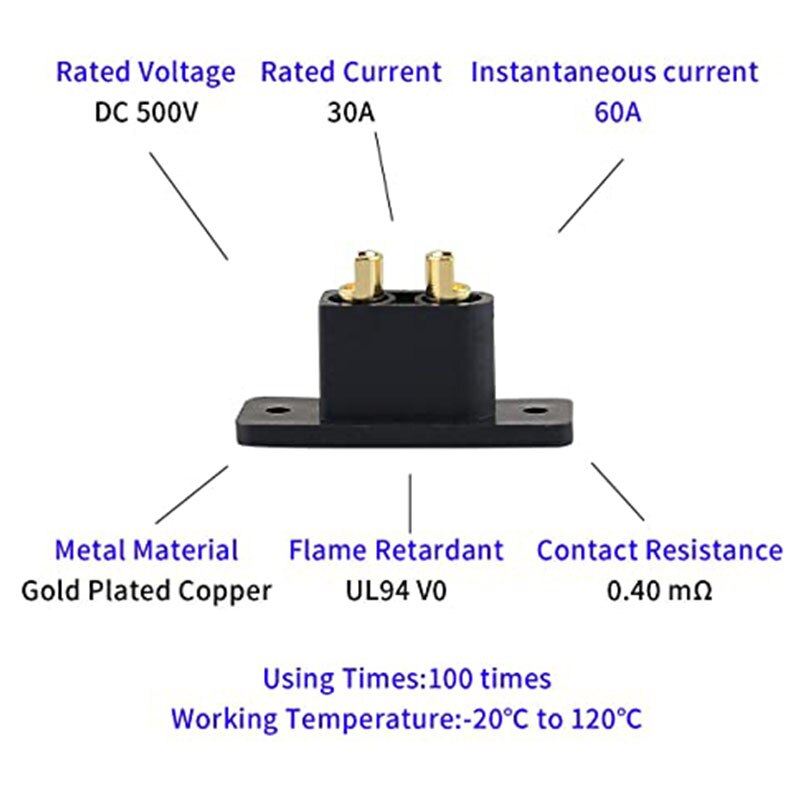

Model: XT90E-M Male Plug
Rated voltage: DC 500V
Rated current: 30A/12#
Instaneus current: 60A/12#
Contact resistance: 0.4mΩ
Using times: 100 times
Protection level: IP40
Temperature: -20℃ to 120℃
Recommended cable spec.: 8/10/12#
Weight: 7.9g/pc

IMPORTANT:

can handle over 60A current for extended periods without exceeding 80DegC. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.
The connector is a precision part, please be careful when using it
Do not plug or unplug the connector when the power is on
Advice: Although there are many clones more cheap to get than an original Amass version,we recommend to use the original ones, this ones have being more tested and go through more strict quality control methods. Don't let your expensive race quad loosing connection because of a XT90

Product description

Specification:
Model: XT90E Male Plug
Rated voltage: DC 500V
Rated current: 30A/12#
Instaneus current: 60A/12#
Contact resistance: 0.4mΩ
Insulation resistance: 2000mΩ
Using times: 100 times
Protection level: IP40
Temperature: -20℃ to 120℃
Recommended cable spec.: 8/10/12#
Weight: 7.9g/pc

Package included:
5pcs/10pcs /20pcs XT90E-M male plug
