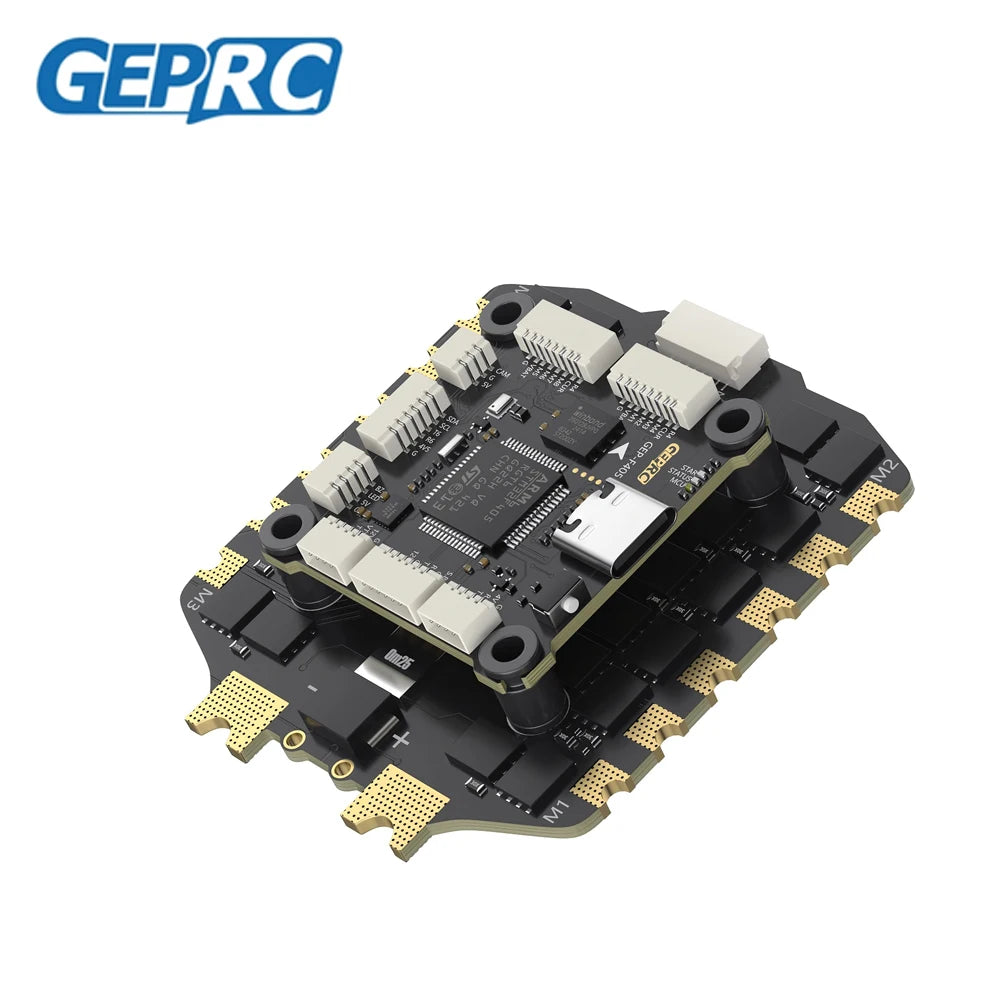

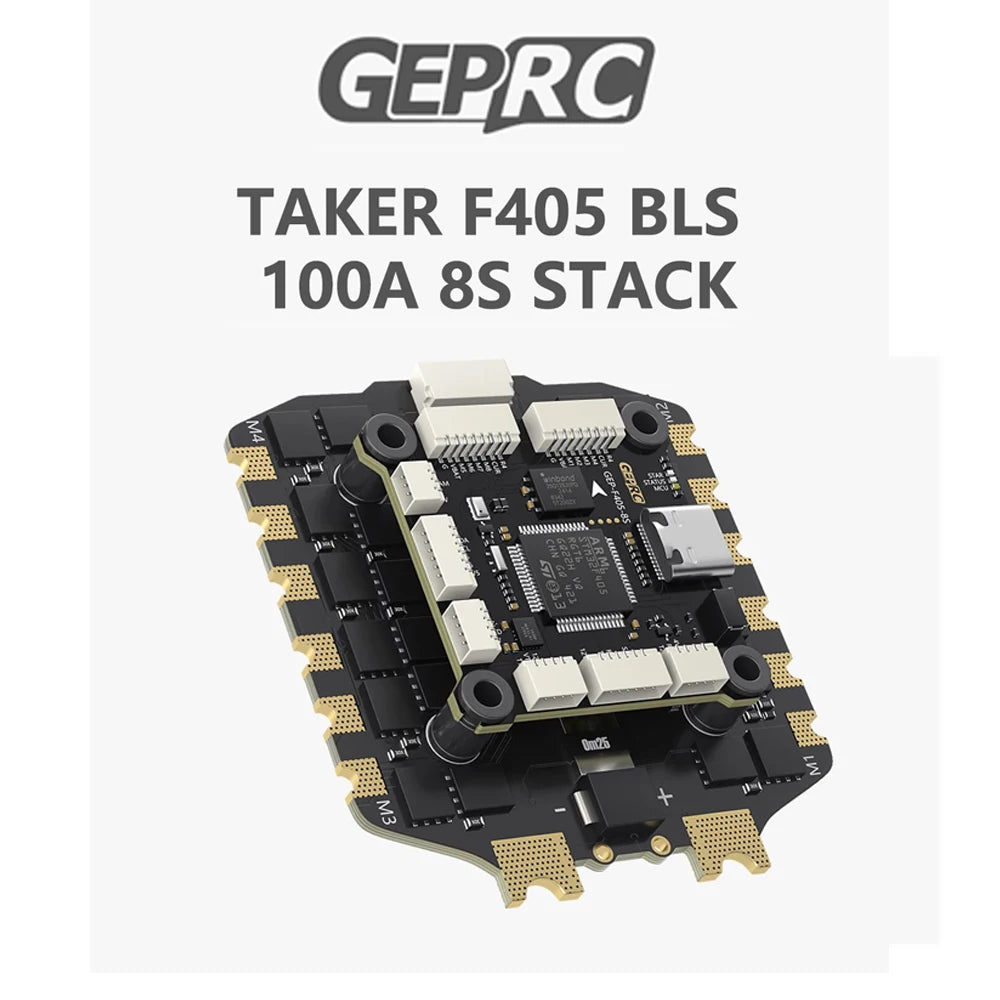

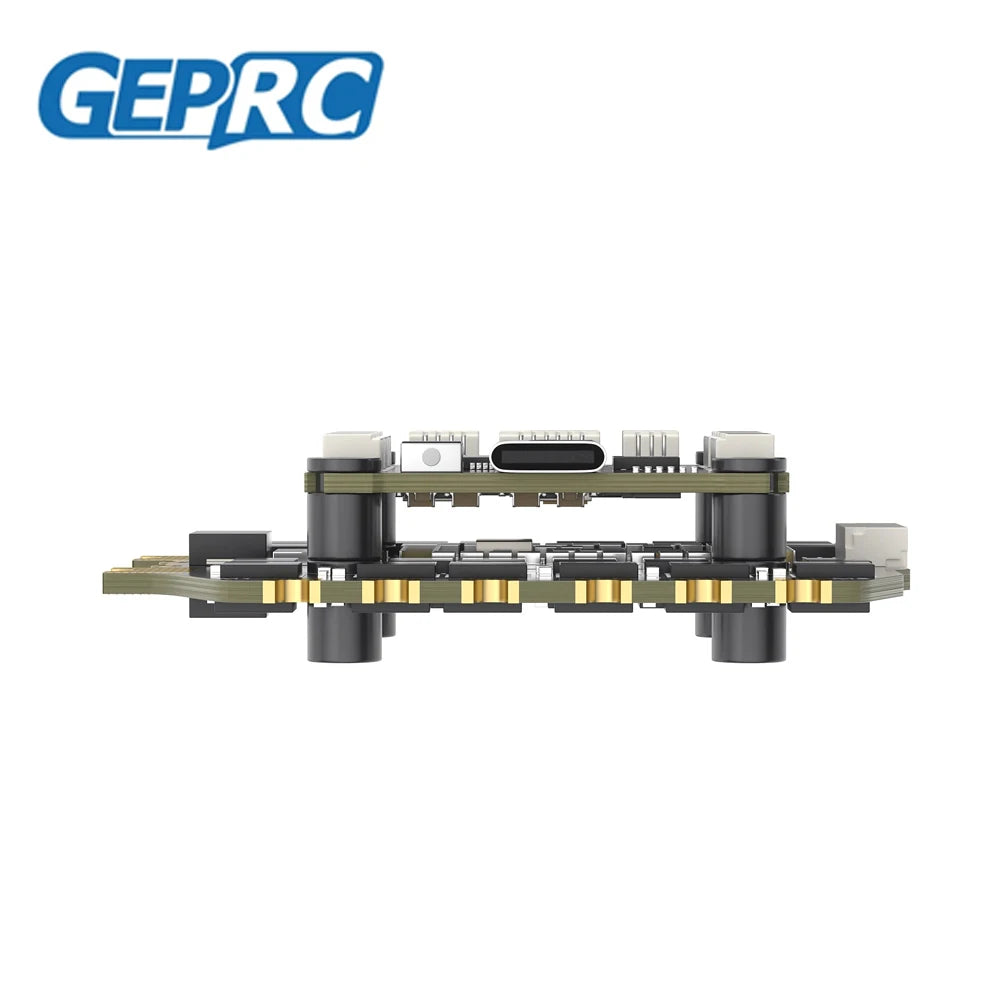

GEPRC TAKER F405 BLS 100A 8S STACK 4IN1 ESC Black Box Data Analyze Record Flight Barometer Integrated LC Filter Racing FPV Drone

Features

1. Use mainstream STM32F405 chip

2. Equipped with the latest 42688-P gyroscope

3. 16M black box storage

4. Integrated LC filter

5. Upgrade type-C USB interface

6. Directly plugged into the D JI Air Unit

7. With TAKER H100_8S_BLS 100A 4IN1 ESC, Dual MOS, high current, silky flight

8. Supports 8S Lipo battery

9. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

10. 12V@3A + 5V@3A dual independent BEC

Specifications

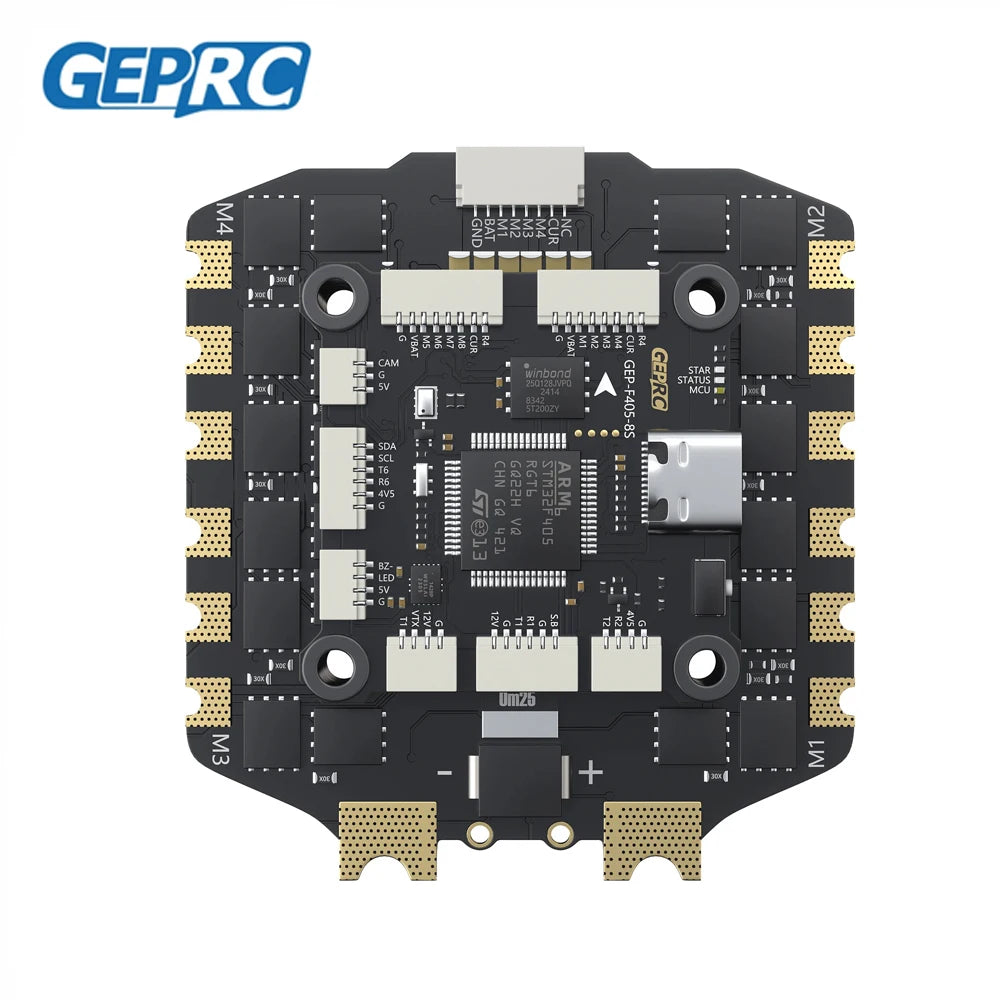

GEP-F405-8S Flight Controller

• MCU:STM32F405

• IMU:ICM42688-P(SPI)

• Air Unit Connection:Direct plugging into D JI Air Unit

• Black Box:16M onboard

• Barometer: support

• Motor outputs:M1-M8

• USB Interface:Type-C

• OSD:BetaFlight OSD w/ AT7456E chip

• BEC:5V@3A,12V@3A dual BEC

• Firmware Target:GEPRCF405_BT_HD

• Size:37x37mm

• Mounting: 30.5x30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle

• Input Voltage:3-8S LiPo

• UART:6 UARTs

• Power Filter:Integrated LC filter

• Weight:8.3g

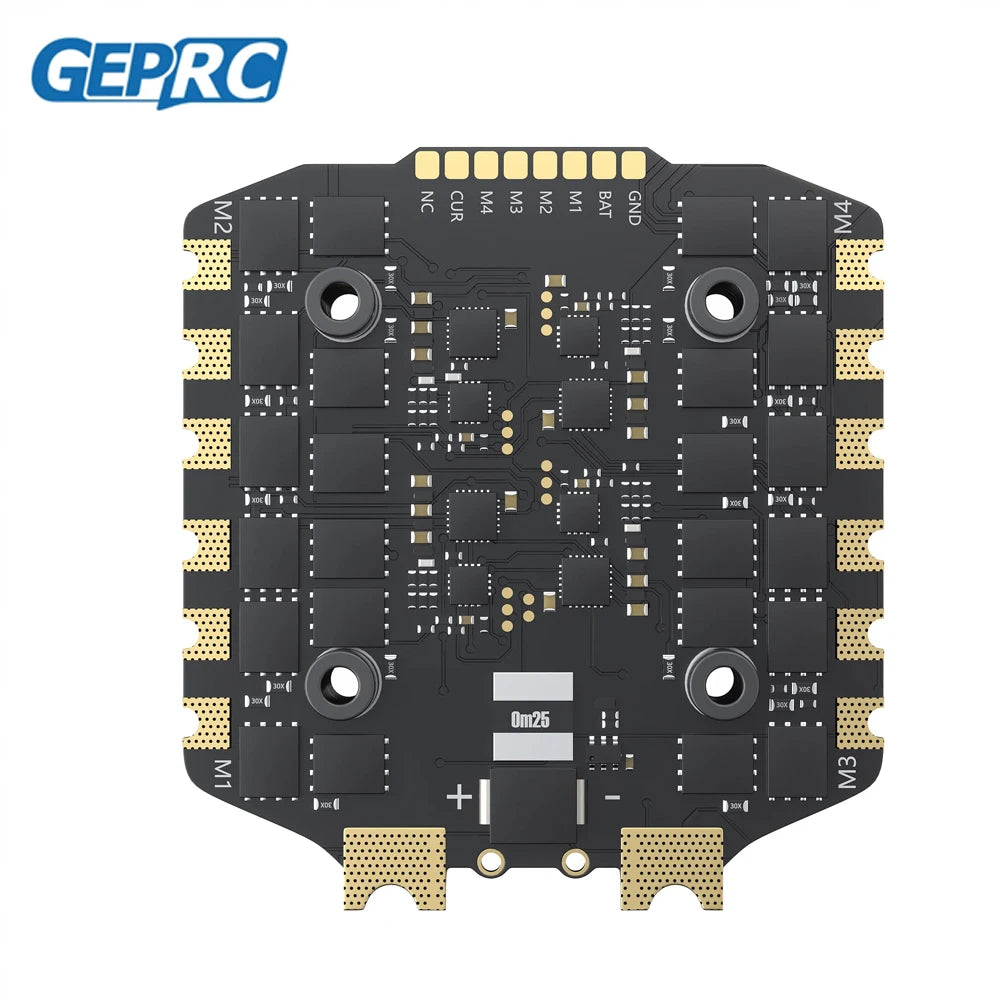

TAKER H100_8S_BLS 100A 4IN1 ESC

• Input Voltage: 3-8S Lipo

• Ammeter: Support

• Calibration value:200

• Continue Current:100A

• Burst Current:105A(5 second)

• Support Protocol: Dshot 150/300/600

• Size:56.3*61.1mm,hole30.5x30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.

• Weight: 28.8g

• Target: B_X_30

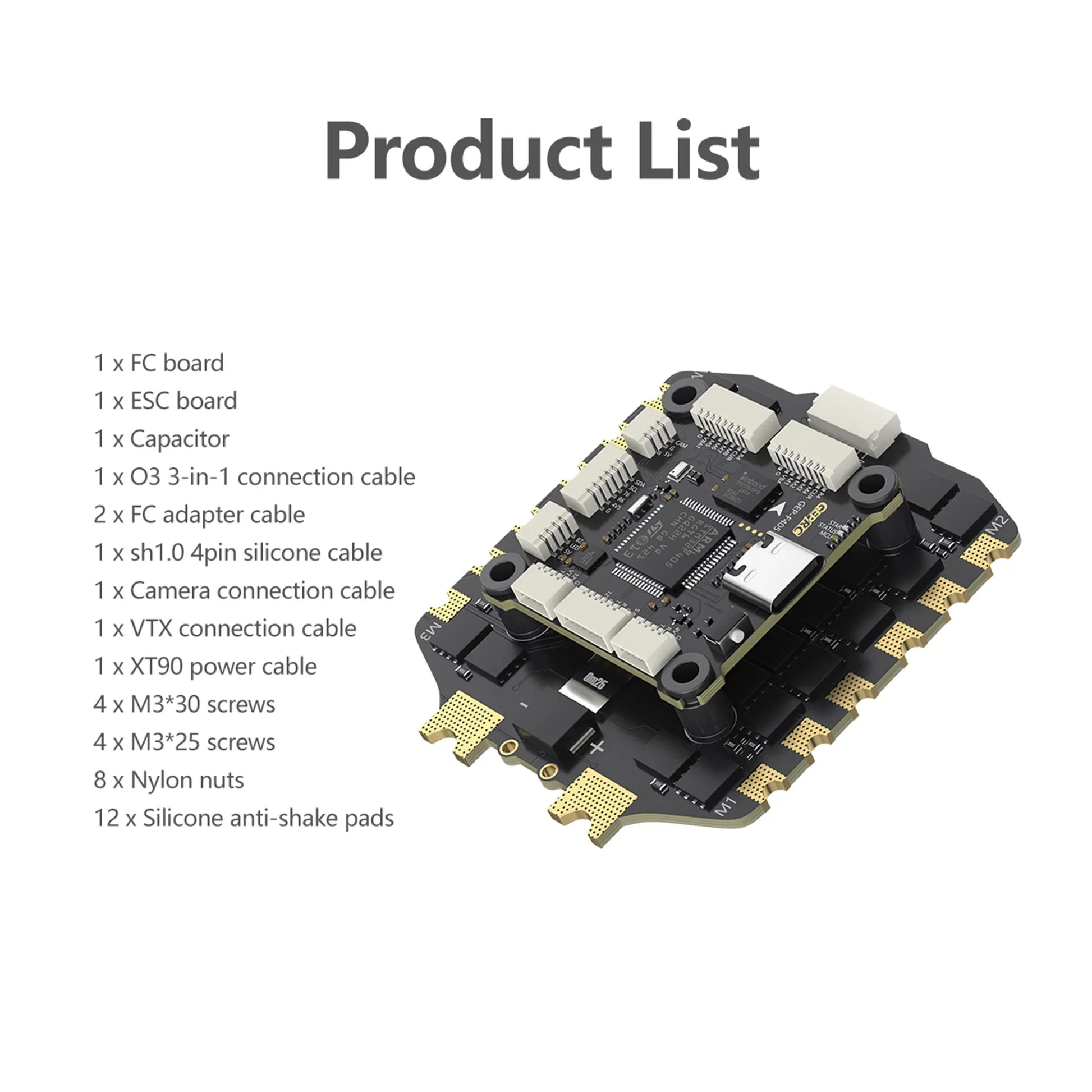

Includes

1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
2 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
